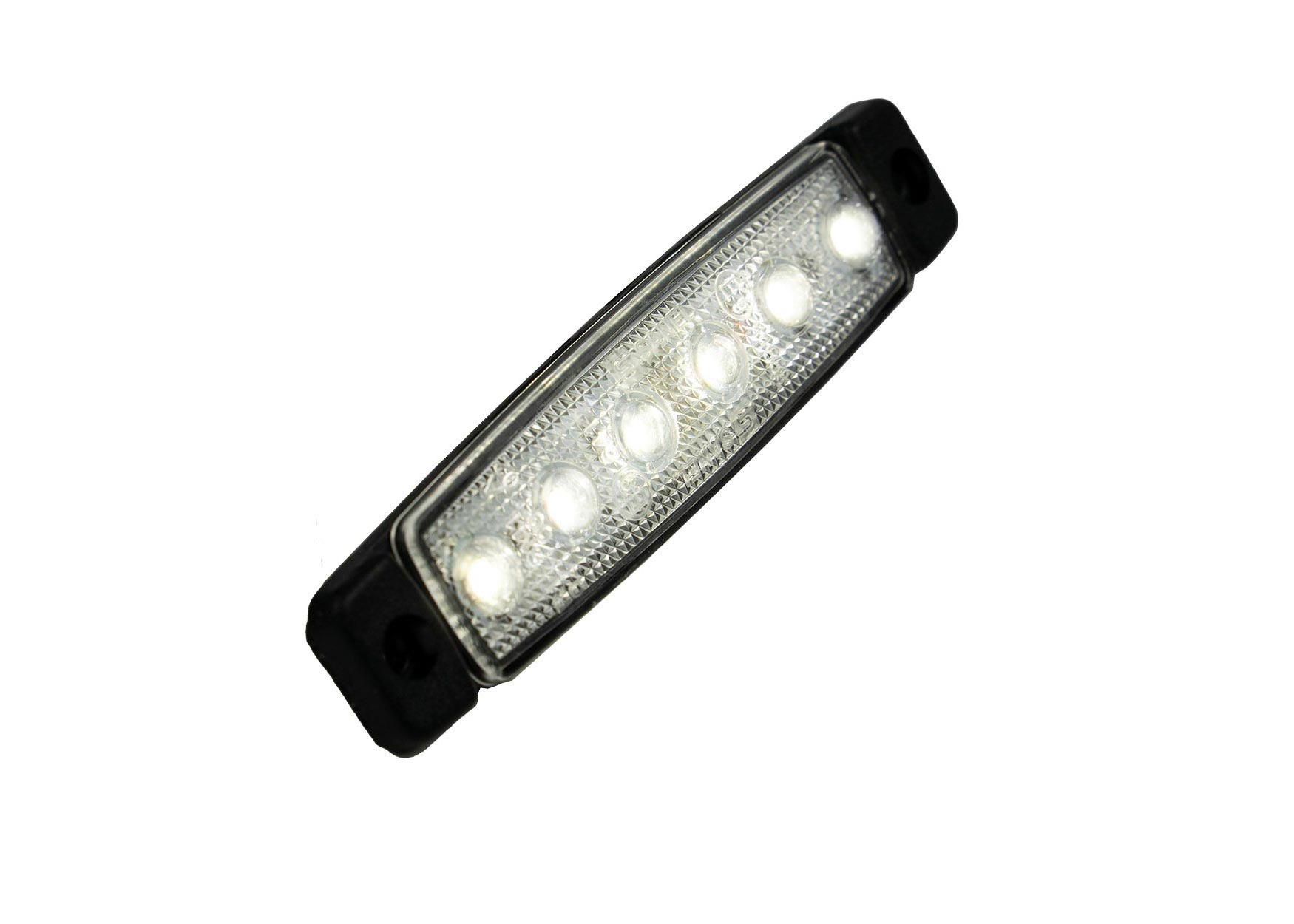

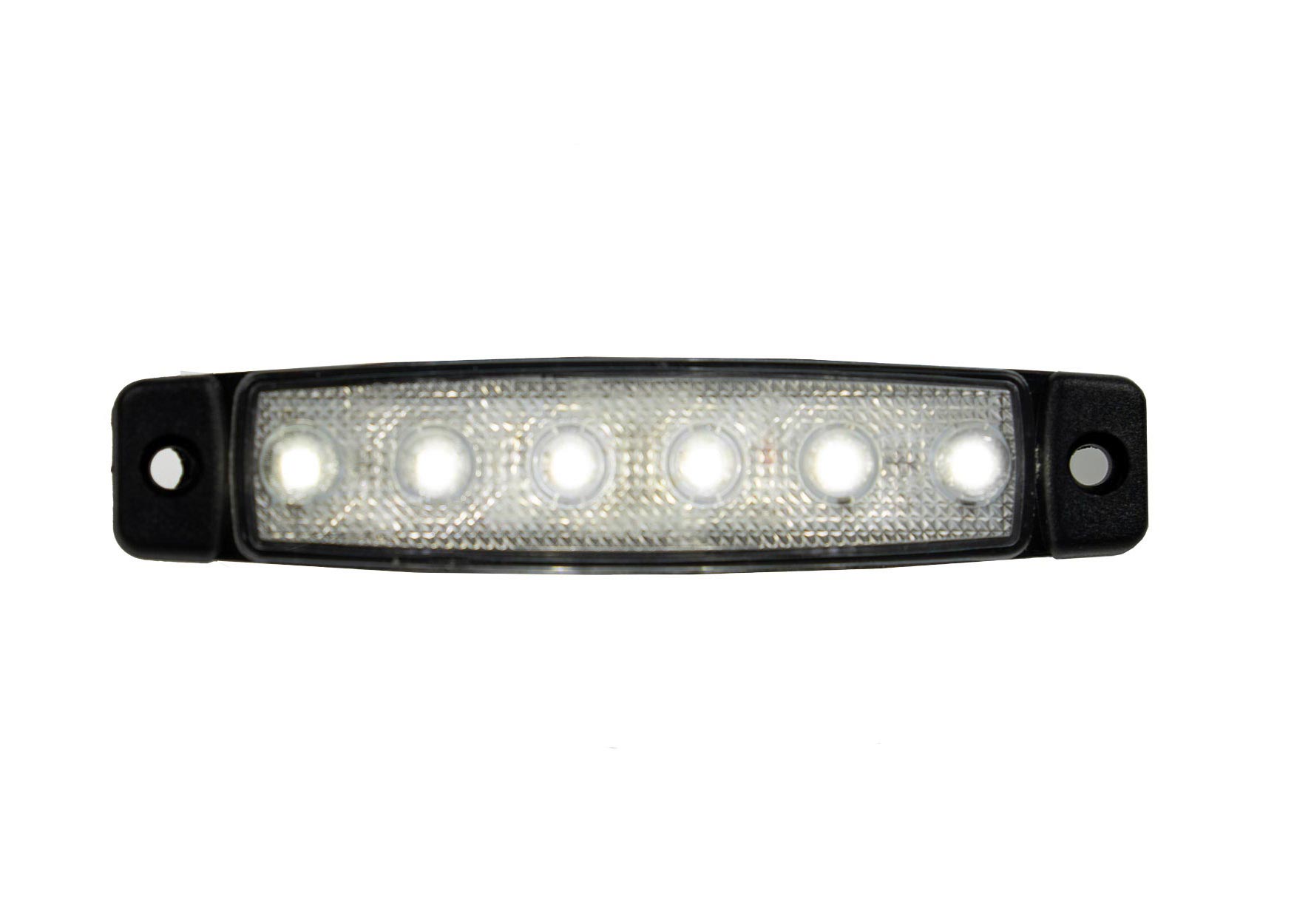

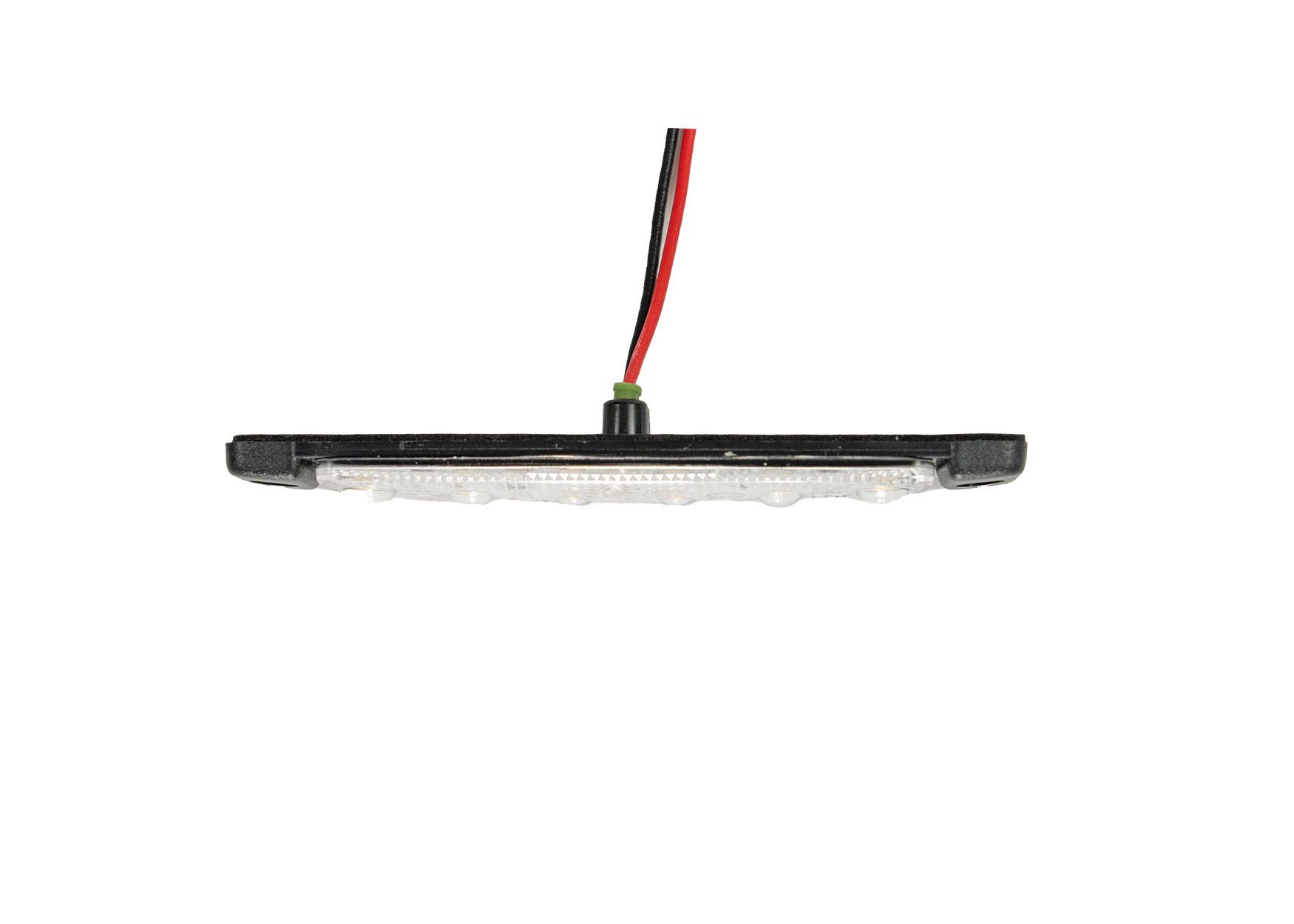

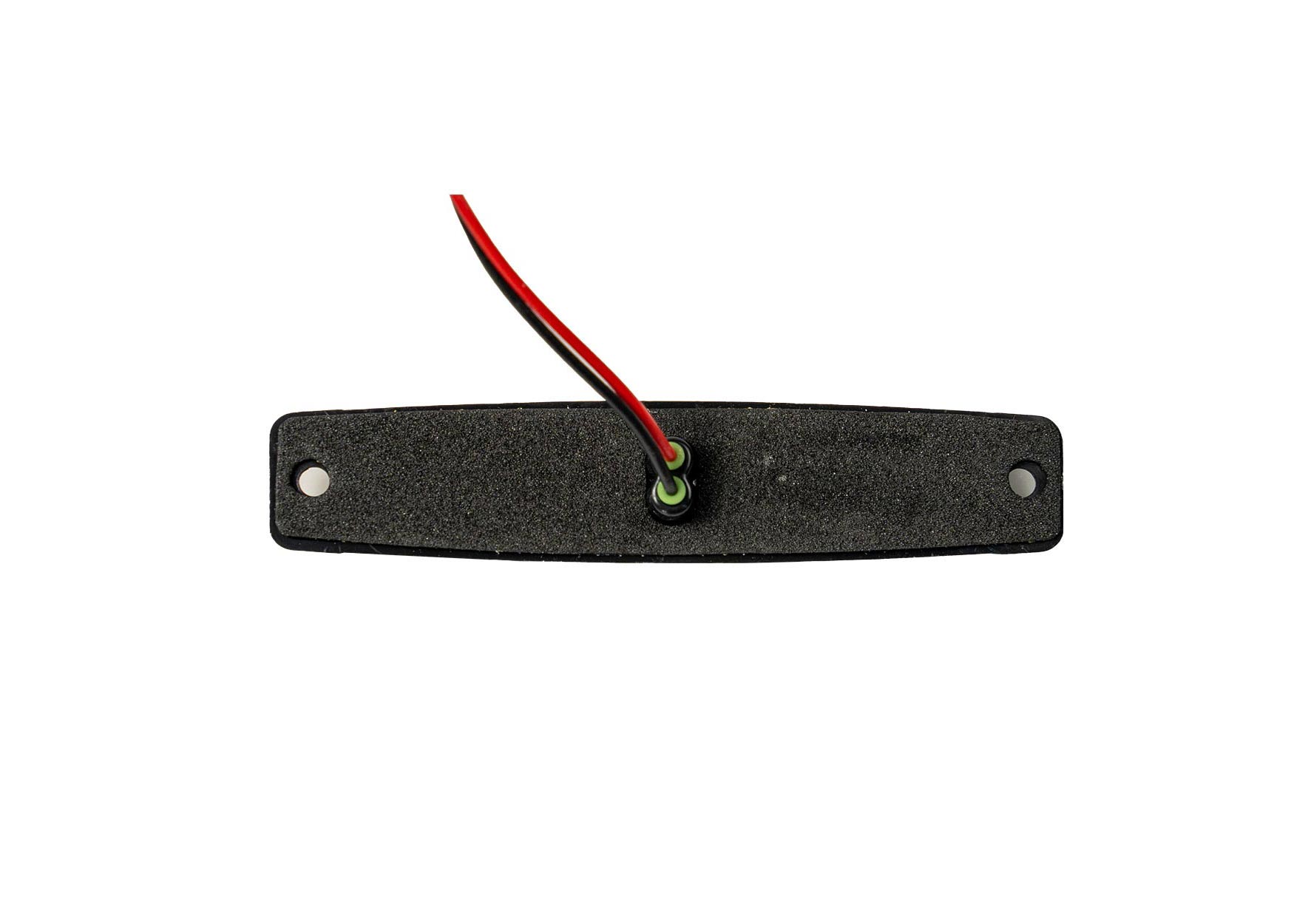

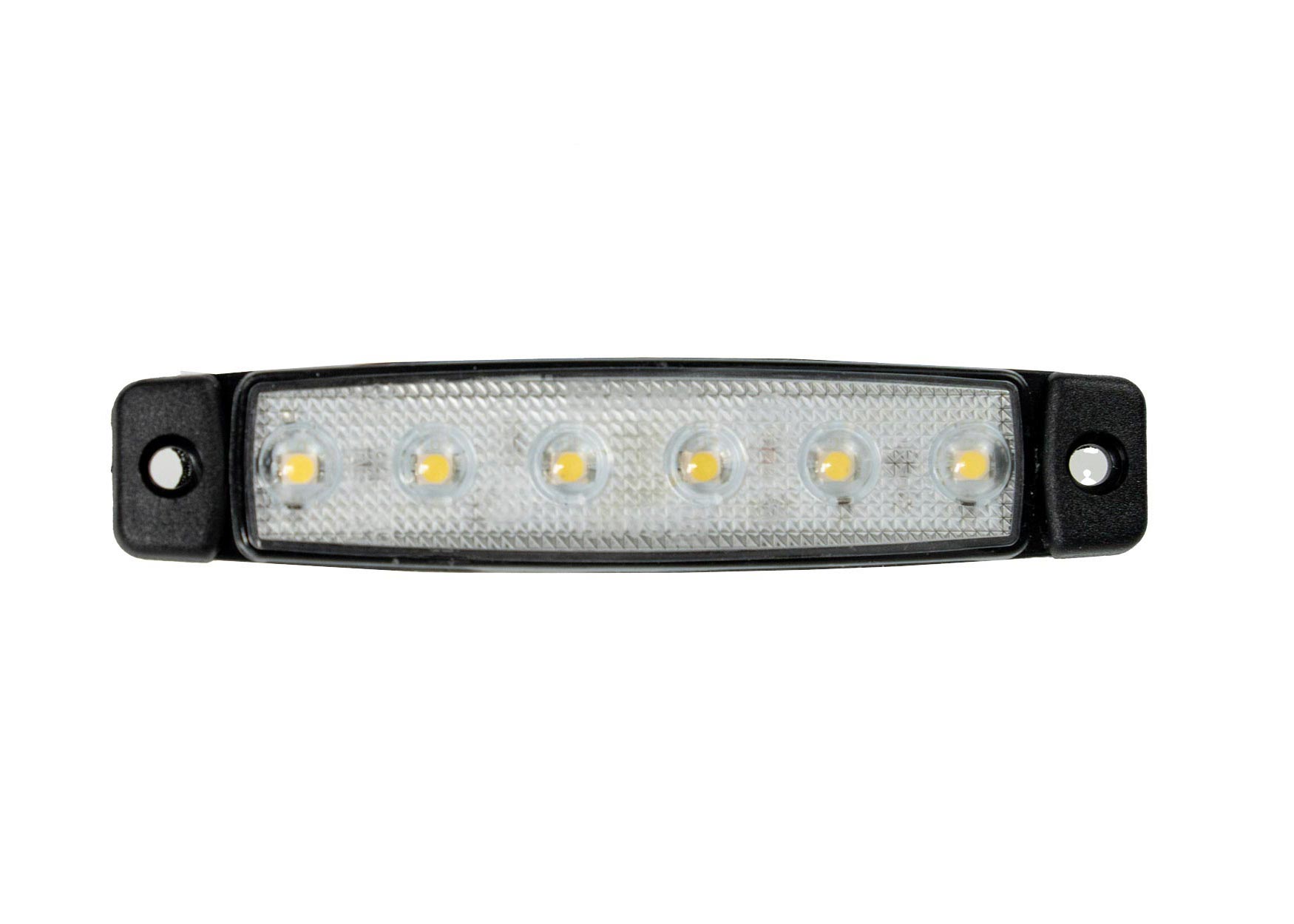

ILM Series LED Step Light - White

PART NO: ILM9604

Product options
  • Product Overview:
    • Surface mount.
    • Only 7.4mm deep.
    • Available in 12V or 24V.
    • Other colours also available.
  • Warranty: 3 Years
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Step Light - White, 12V LED Step Light - White, 24V
PART NUMBER ILM9604 ILM9604D
IP RATING IP67 IP67
VOLTAGE (V) DC 12 24
CURRENT DRAW (AMPS) 0.01A @ 12V 0.005A @ 24V
CABLE LENGTH (MM) 190 190
CONNECTORS None None
LIGHT COLOUR White White
LENS COLOUR Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) N/A N/A
INTEGRAL SWITCH No No
PIR No No
DIAMETER (MM) N/A N/A
LENGTH (MM) 96 96
HEIGHT (MM) 6.4 6.4
DEPTH (MM) 20 20
WEIGHT (KG) 0.012 0.012
