LEDDIM2
LEDDIM2 Bottom

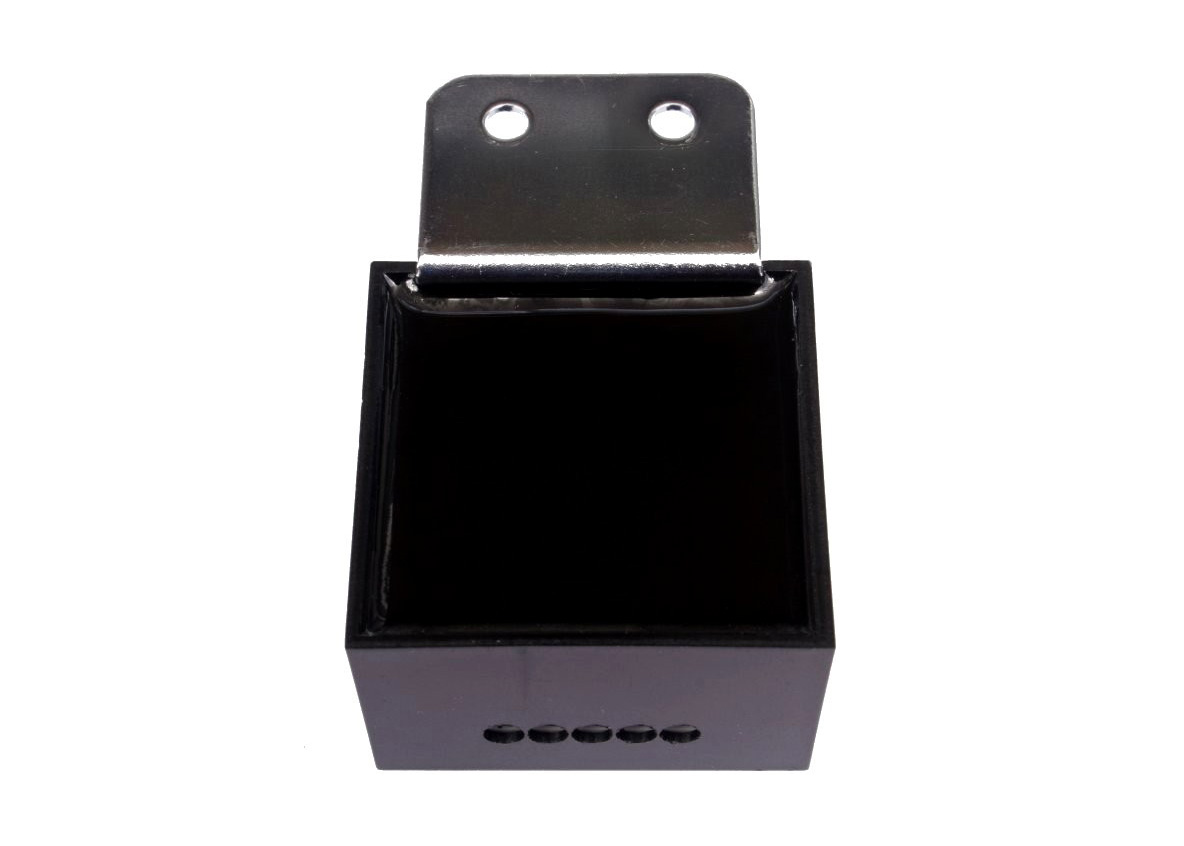

LEDDIM2 Back

LED PWM Dimmer Master

PART NO: LEDDIM2

Product options
  • Product Overview:
    • Light intensity can be varied from 10% to 100%.
    • PWN Switching Frequency: 240 Hz±3%.
    • 0% - 100% Duty Cycle.
    • Flickerless dimming of LEDs.
  • Warranty: 3 Years
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED PWM Dimmer Master
PART NUMBER LEDDIM2
IP RATING IP20
VOLTAGE (V) DC 9-32
CURRENT DRAW (AMPS) 10A @12 V, 10A @ 24V
CABLE LENGTH (MM)
CONNECTORS None
DIAMETER (MM) N/A
LENGTH (MM) 52
HEIGHT (MM) 52
DEPTH (MM) 31
WEIGHT (KG) 0.138

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
