V100 Series Lightbar Mounted Illuminated

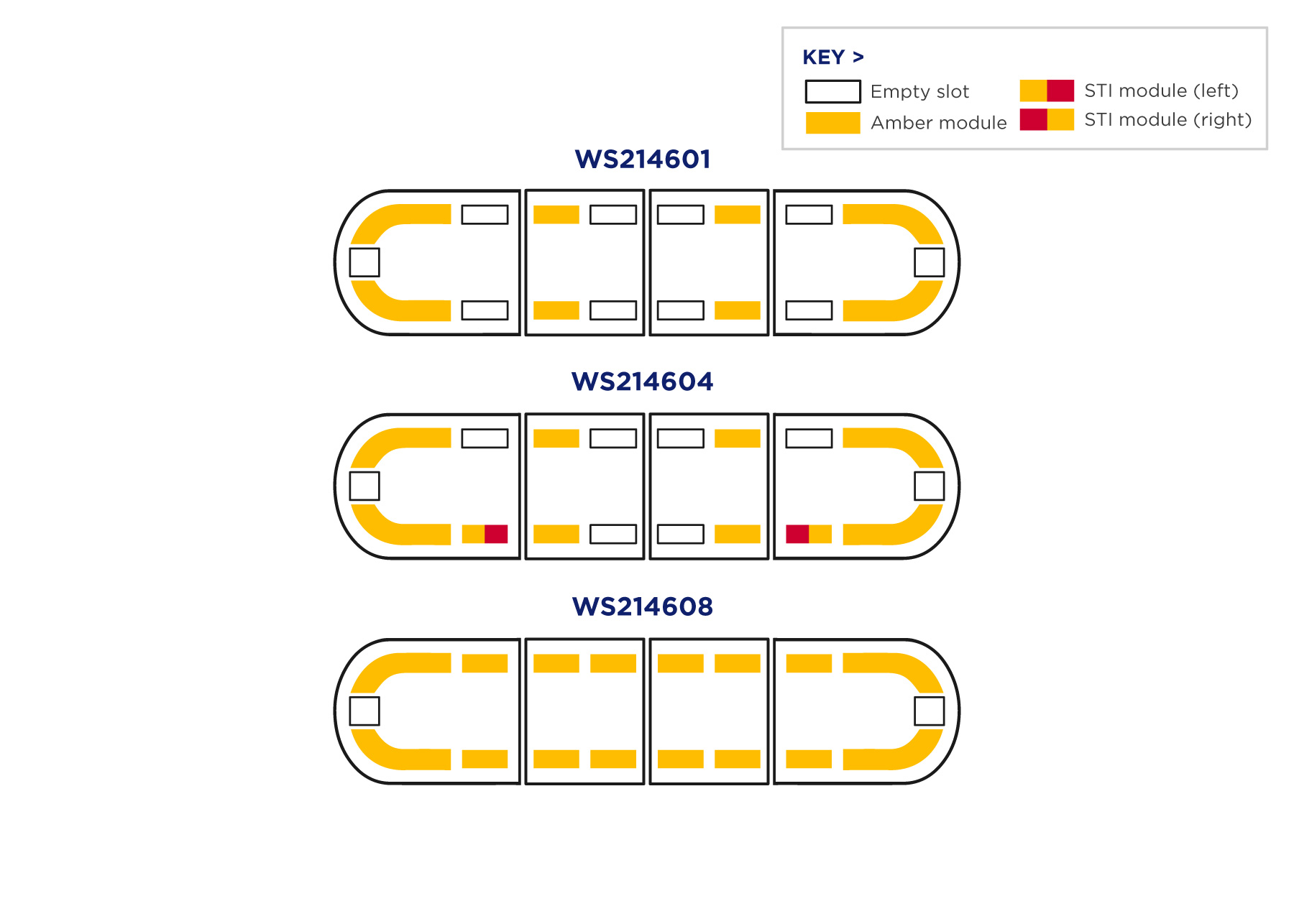

V100 Series 1.2m Lightbar Configurations

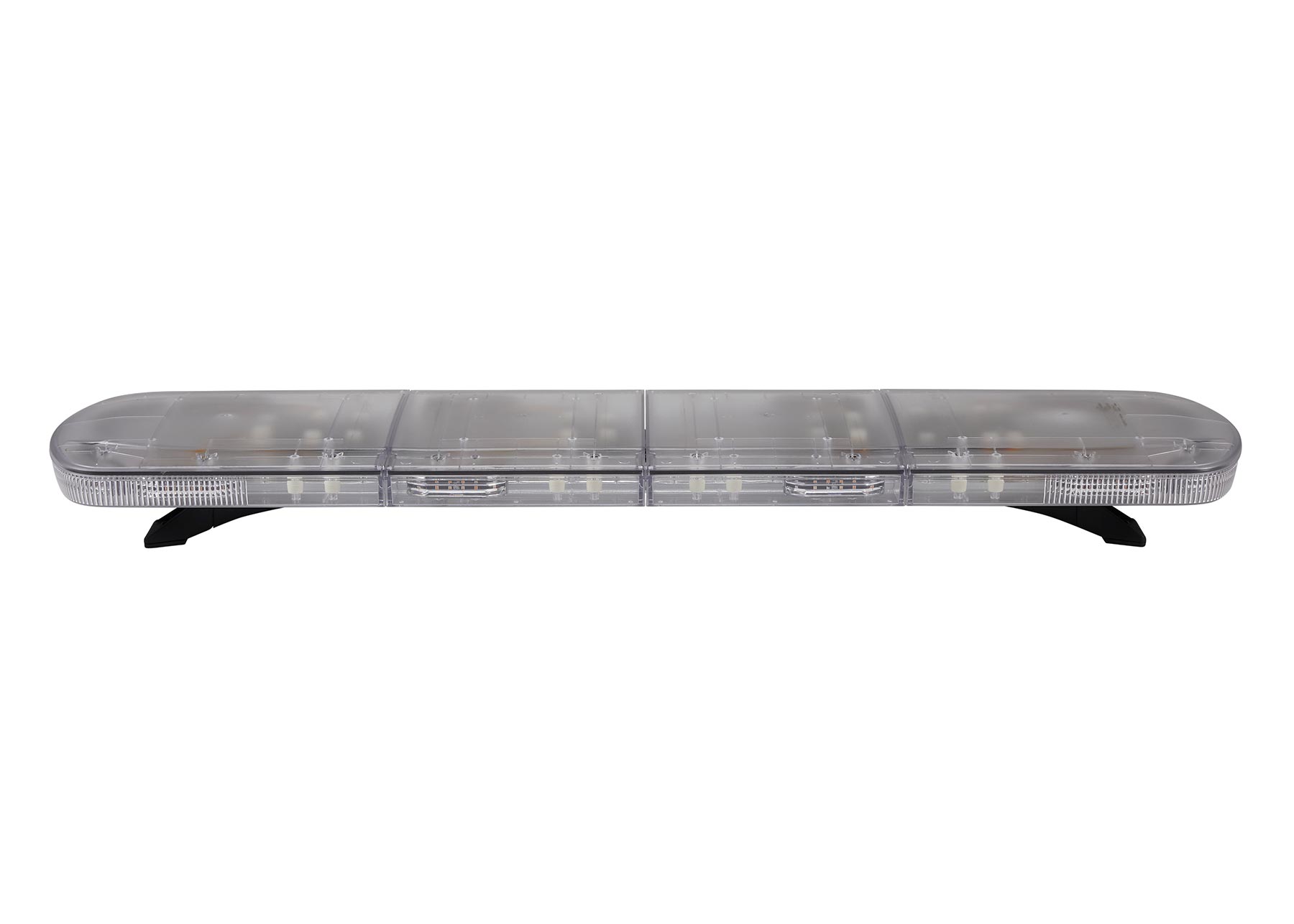

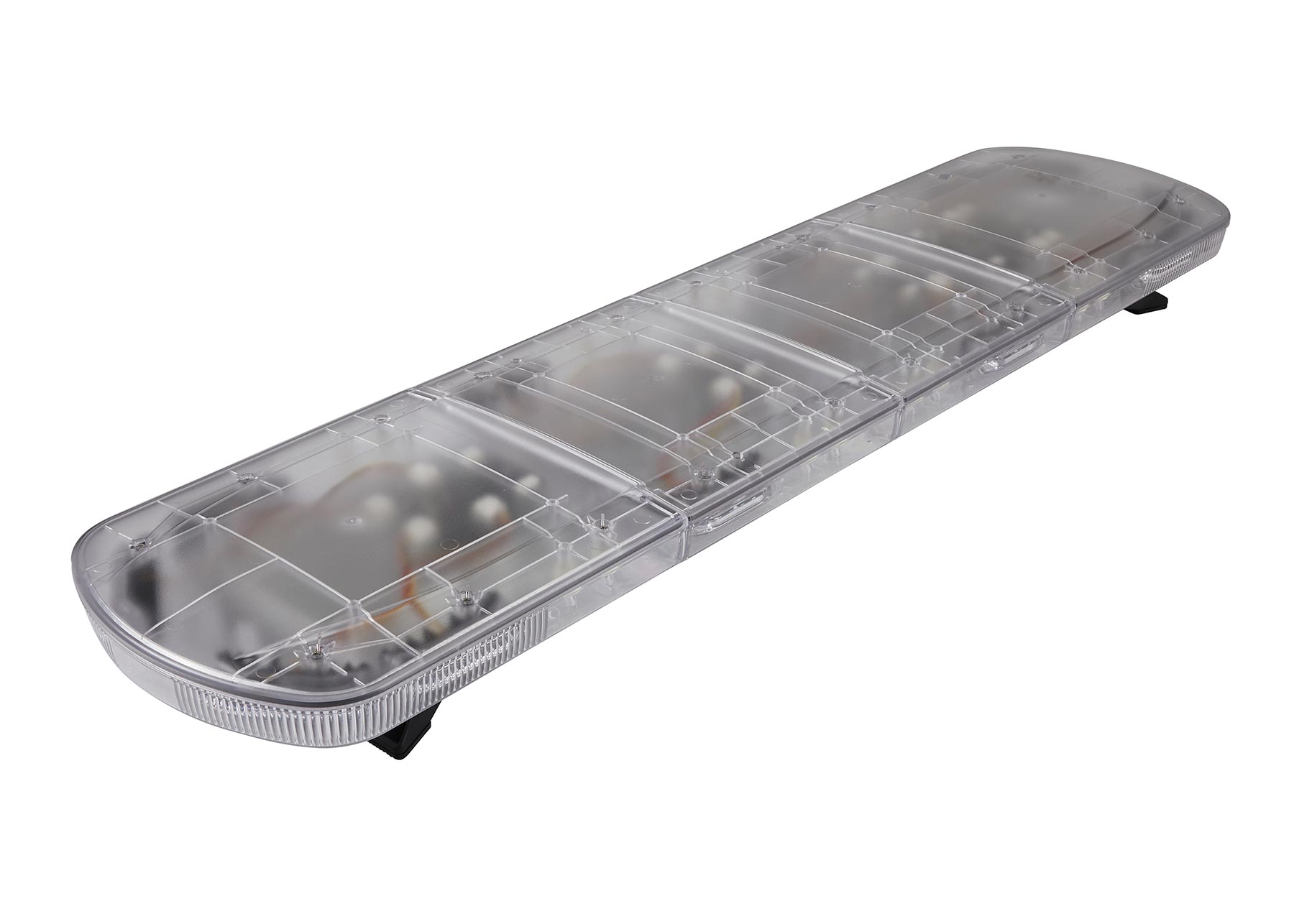

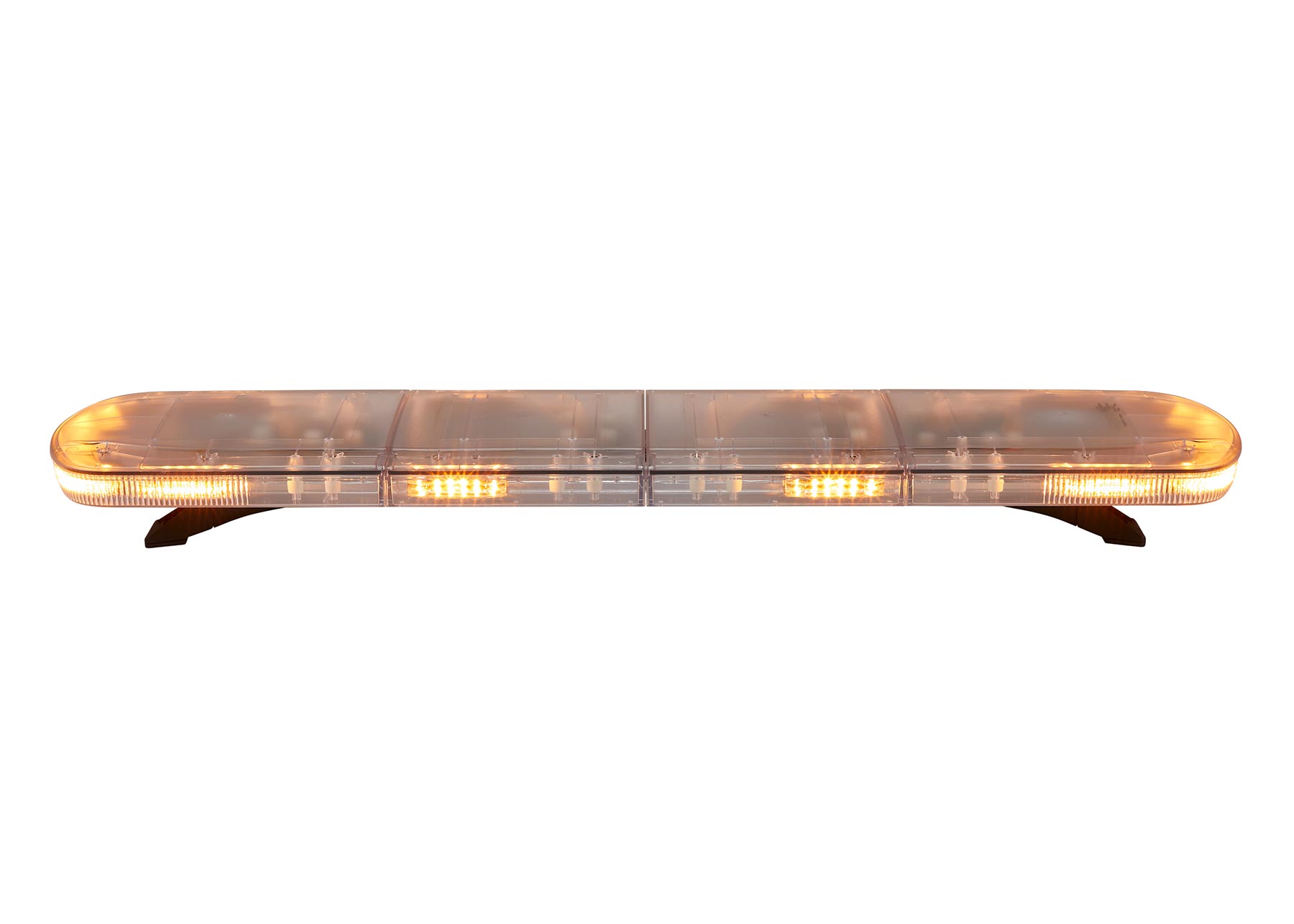

V100 Series R65 LED Lightbar - Amber, 1.2m

PART NO: WS214601

Product options

Product Overview:
- Optimised electronics for minimal current draw.
- Multiple flash patterns, steady burn cruise light and low power night function to meet ECE R65 Class II.
- Customisation options include alley lights, stop / tail / indicator modules, illuminated centre.

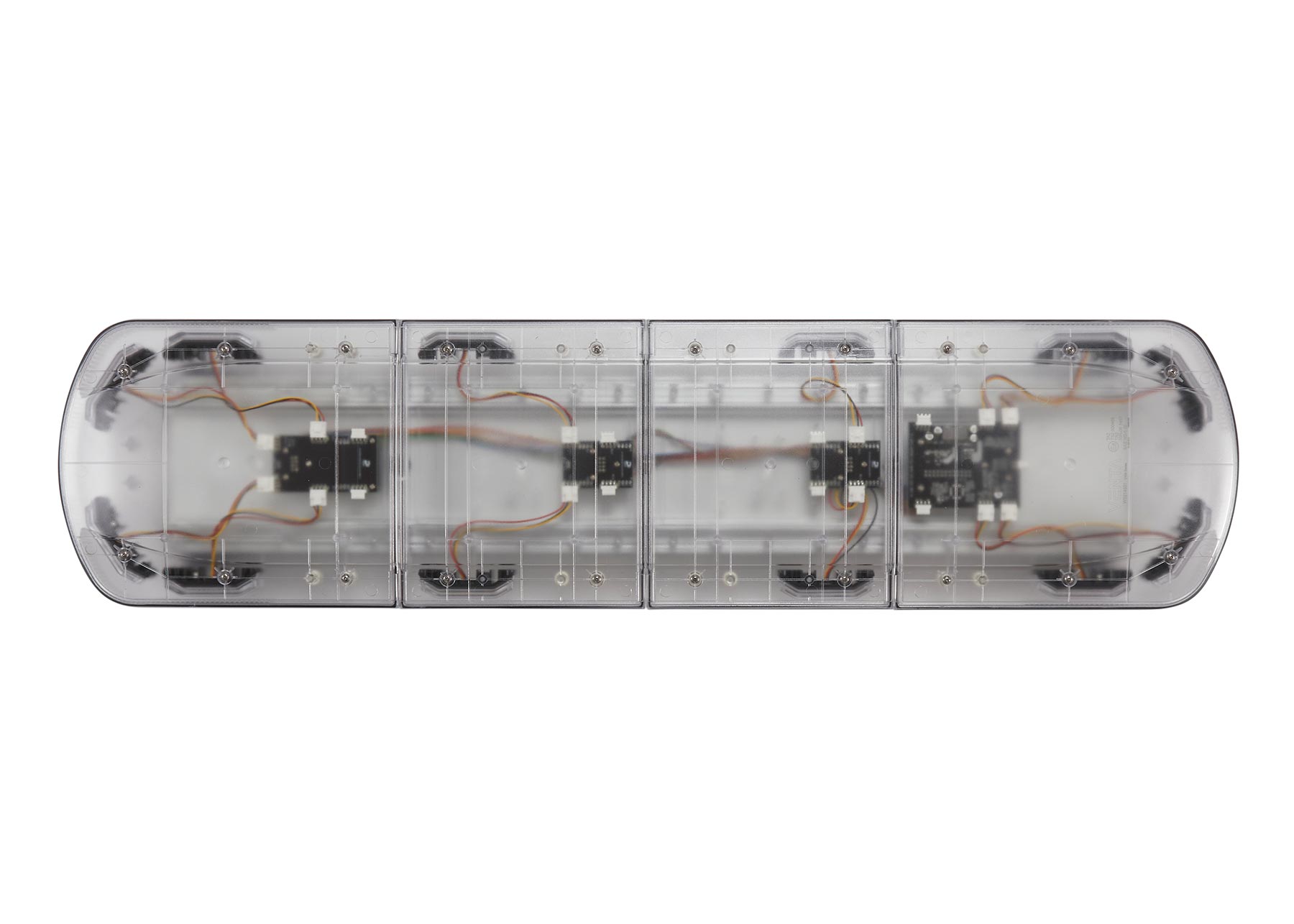

- Modular design makes it serviceable in the field. Modules can be swapped easily if needed.

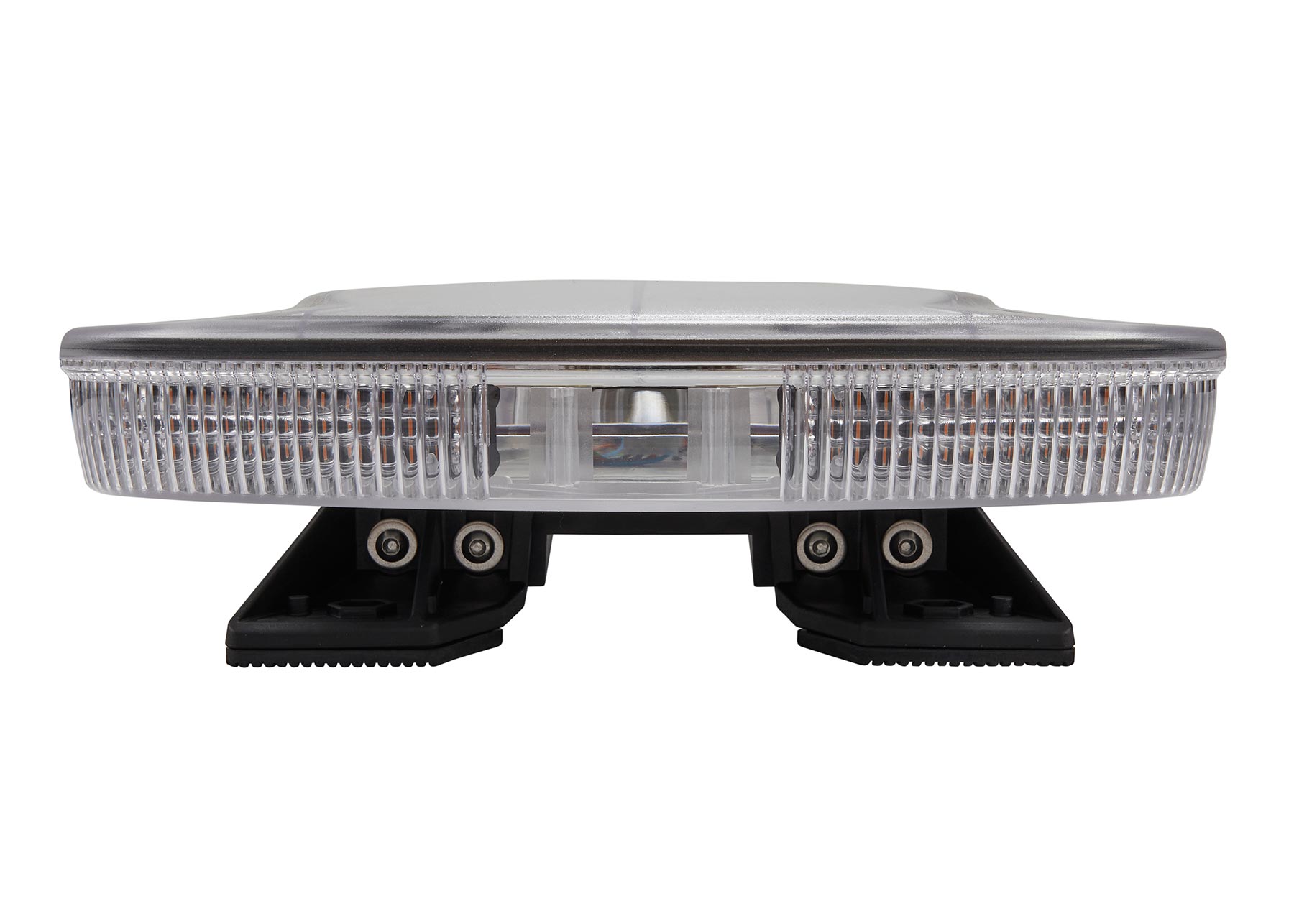

- Supplied with an adjustable mounting bracket, meaning the lightbar can be positioned parallel to the ground even on angled roofs.
- Undergone a high temperature flash rate test at 50oC, low temperature flash rate test at -30oC, durability flash rate test, vibration, moisture, dust, corrosion and warpage tests.
- Polycarbonate lens and base, aluminium housing.
- Comes in amber as standard. Can be supplied in other colours including blue, red and white.
- Can be supplied with waterproof connectors, including Superseal.
- Available in four lengths.
Warranty: 3 Years
Approvals: ECE R10, R65 Class 2, SAE Class 1, CAP168.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE	R65 LED Lightbar - Amber, 1235mm	R65 LED Lightbar - Amber with STI, 1235mm	R65 LED Lightbar - Fully Loaded Amber, 1235mm
PART NUMBER	WS214601	WS214604	WS214608
IP RATING	IP65	IP65	IP65
VOLTAGE (V) DC	10-30	10-30	10-30
CURRENT DRAW (AMPS)	7.2A @ 12V, 3.6A @ 24V		7.2A @ 12V, 3.6A @ 24V
CABLE LENGTH (MM)	5000	5000	5000
CONNECTORS	None	None	None
LIGHT COLOUR	Amber	Red/Amber	Amber
LENS COLOUR	Clear	Clear	Clear
DIAMETER (MM)	N/A	N/A	N/A
LENGTH (MM)	1235	1235	1235
HEIGHT (MM)	125	125	125
DEPTH (MM)	304	304	304
WEIGHT (KG)	10.87
