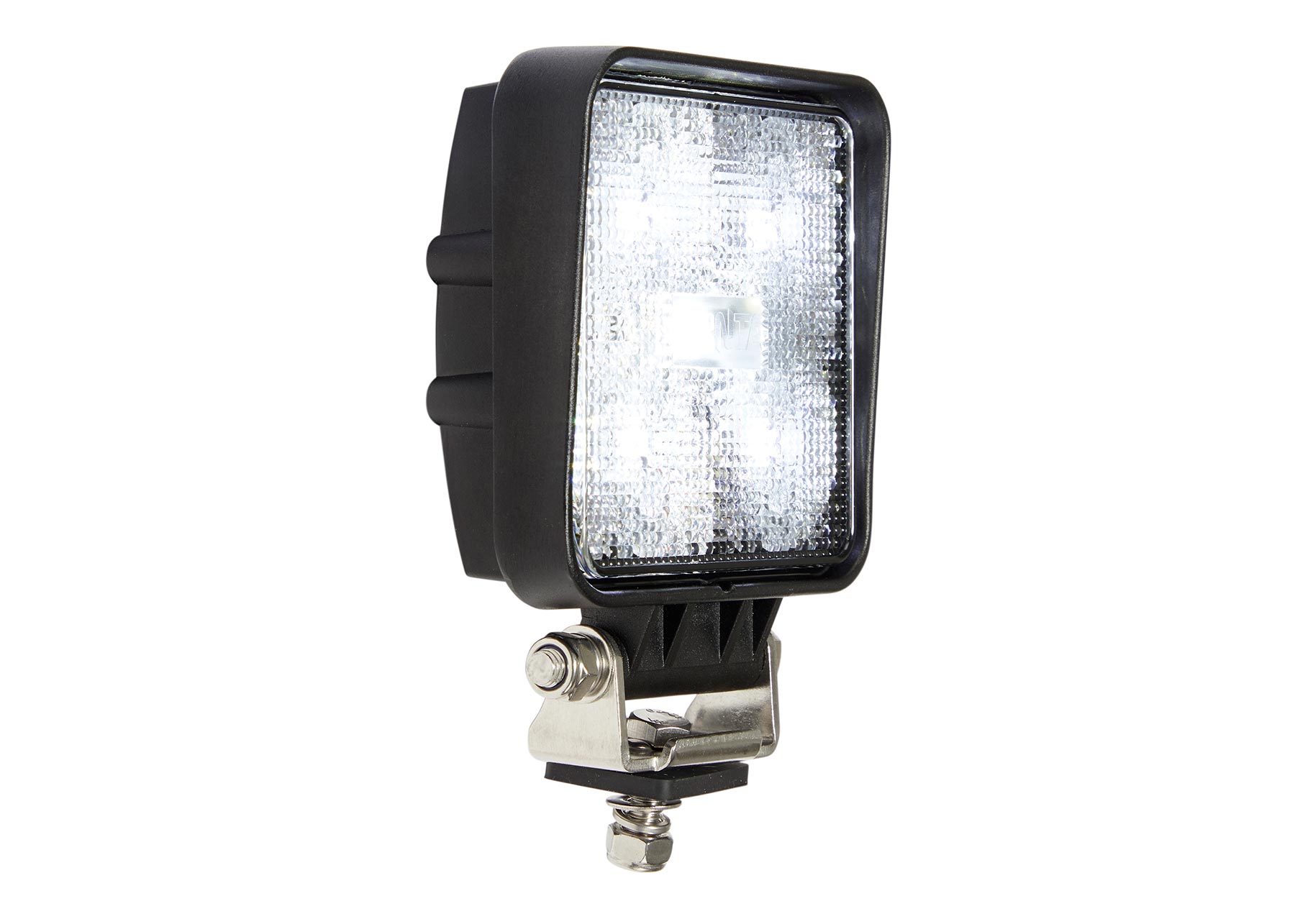

AU.22.4.SHV Illuminated
AU.22.4.SHV

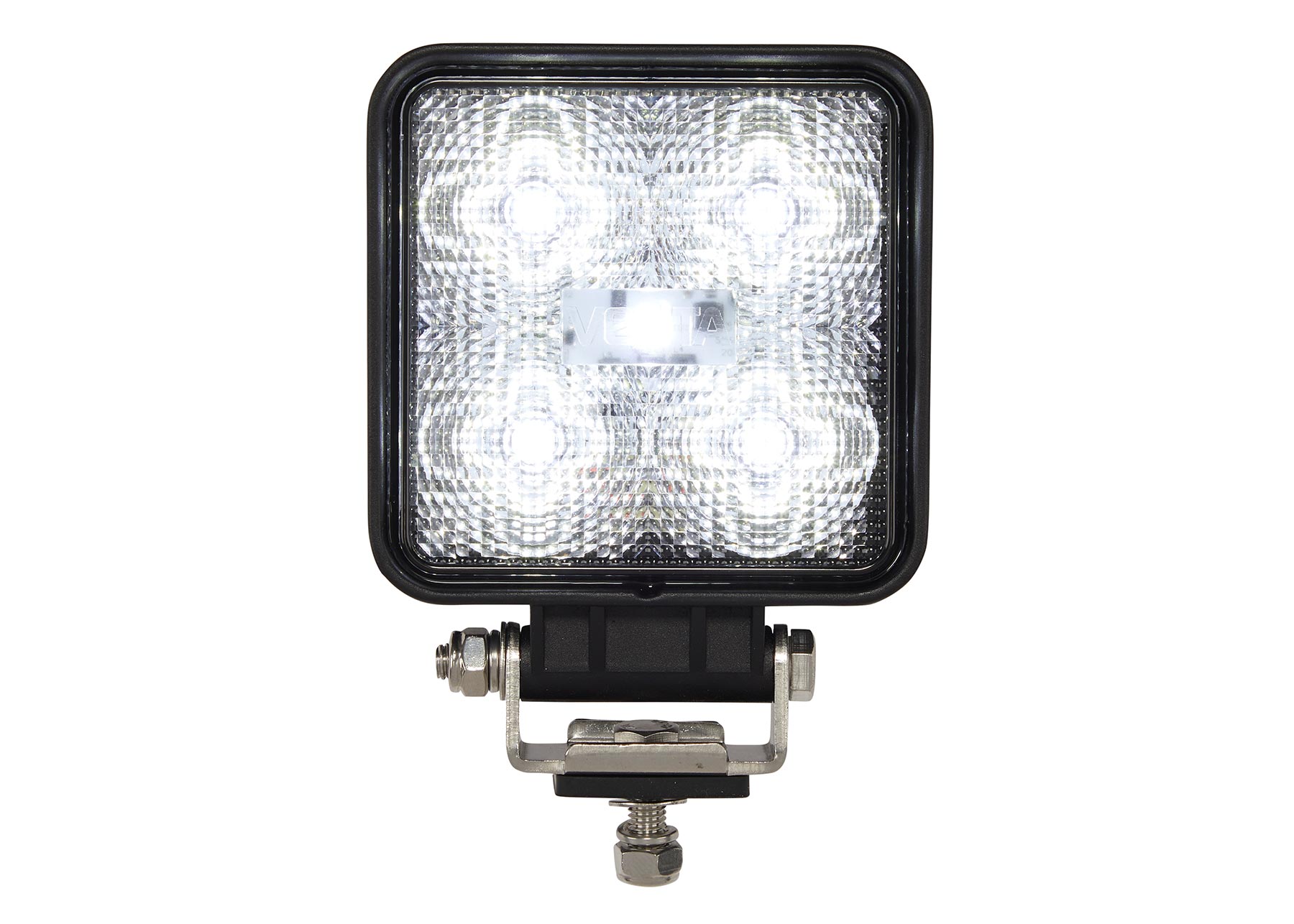

AU.22.4.SHV Front Illuminated
AU.22.4.SHV Front

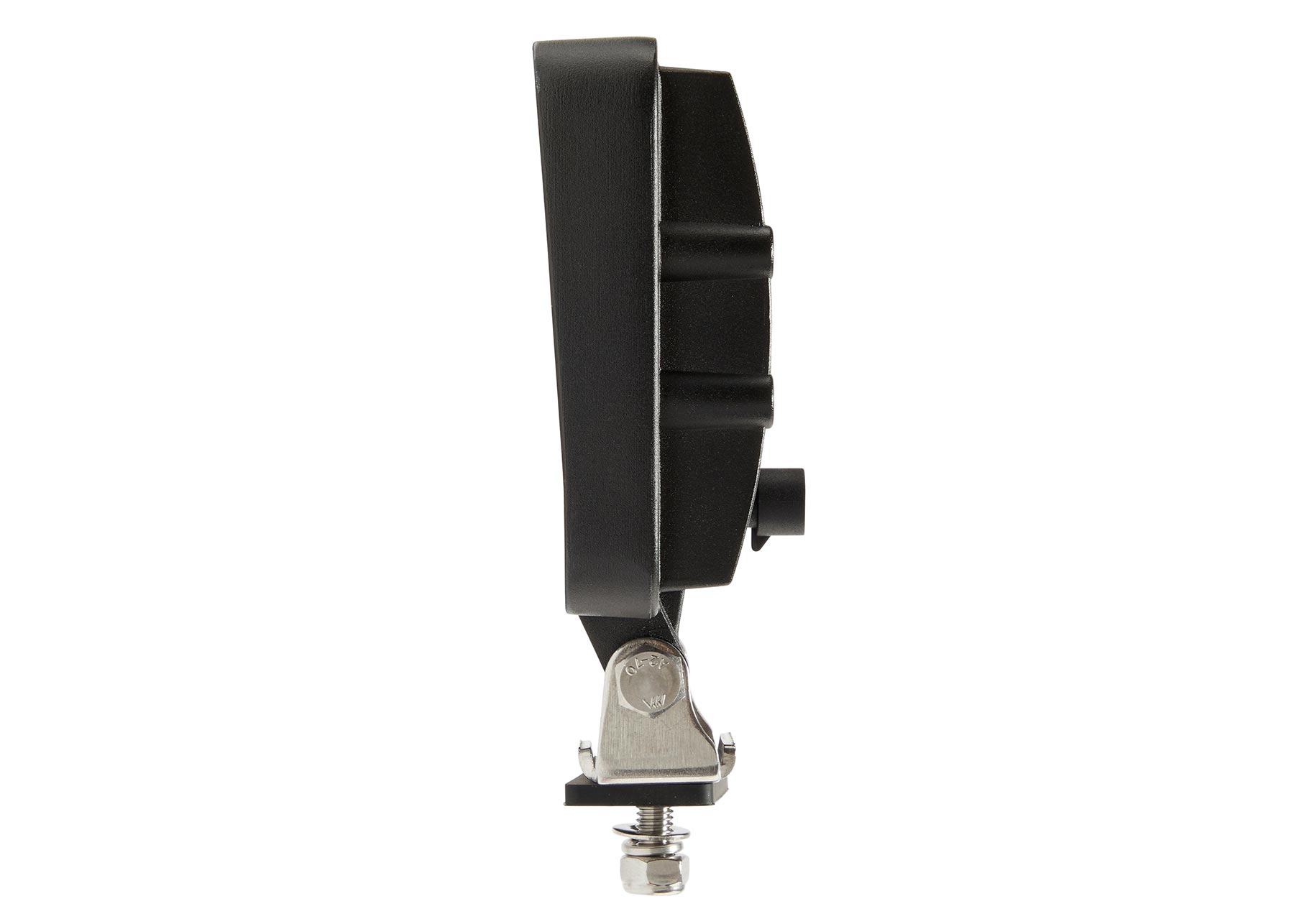

AU.22.4.SHV Side
AU.22.4.SHV Top

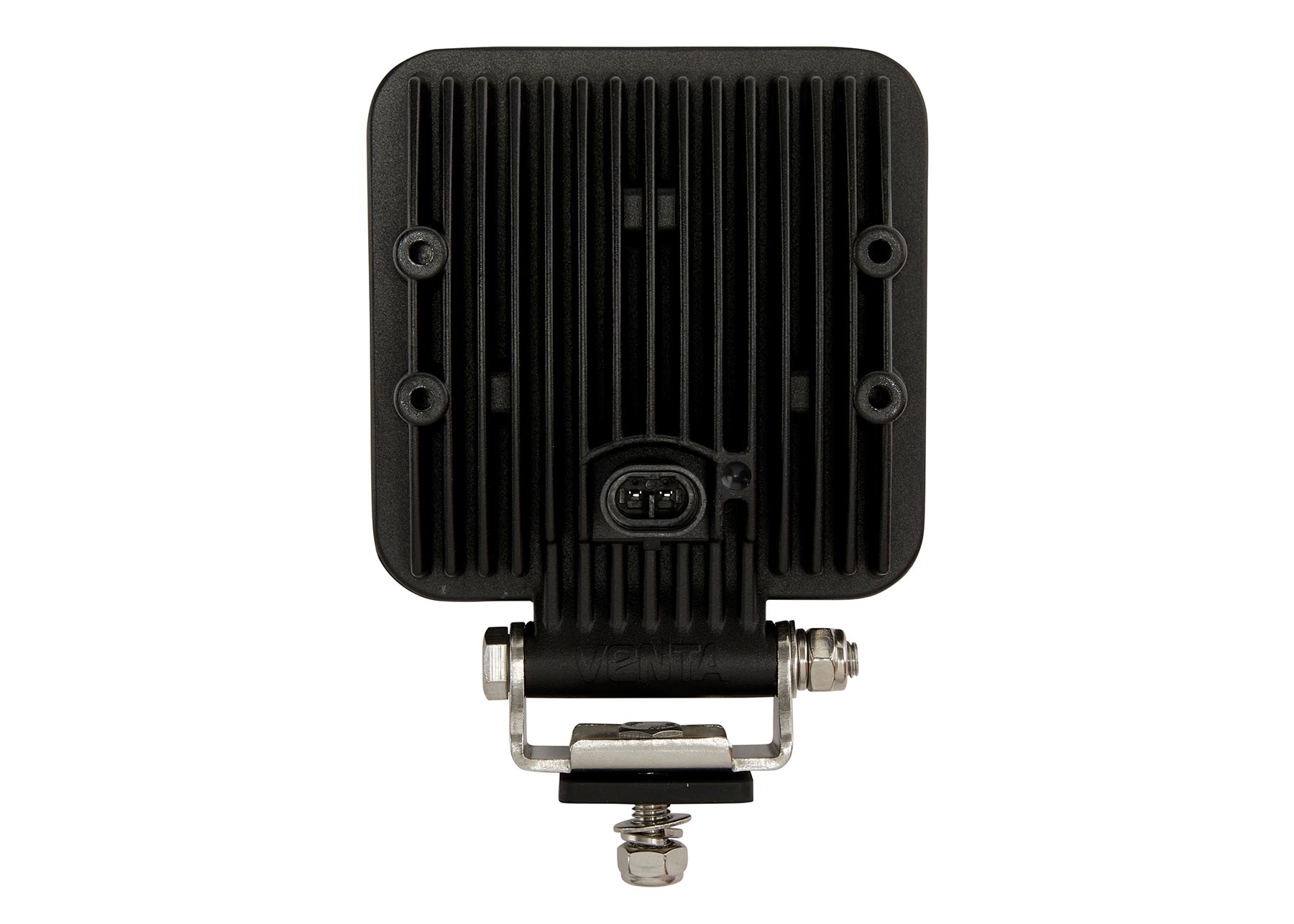

AU.22.4.SHV Back
AU.22.4.SHV.SM Illuminated
AU.22.4.SHV.SM
AU.22.4.SHV.SM Front Illuminated
AU.22.4.SHV.SM Front

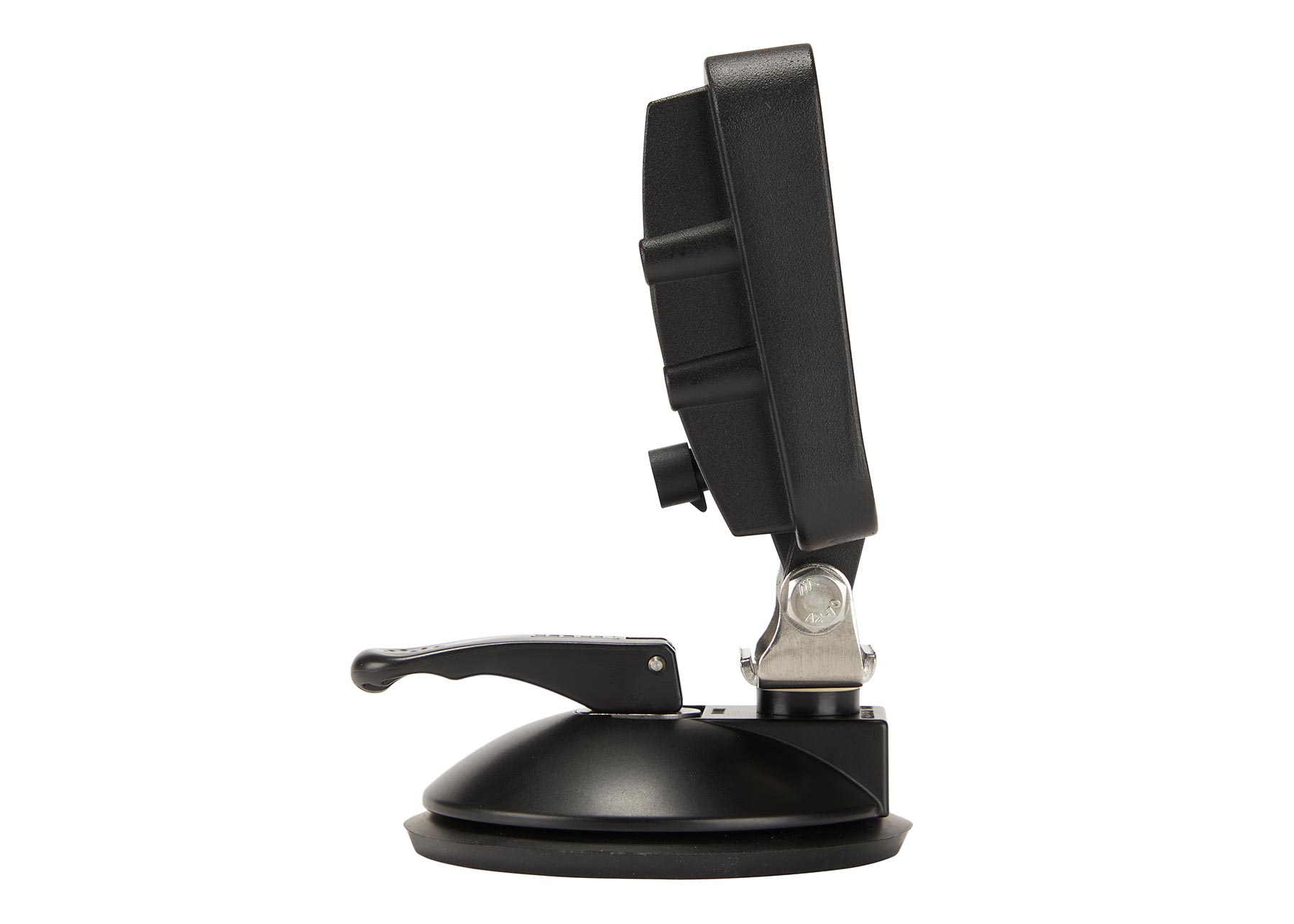

AU.22.4.SHV.SM Side

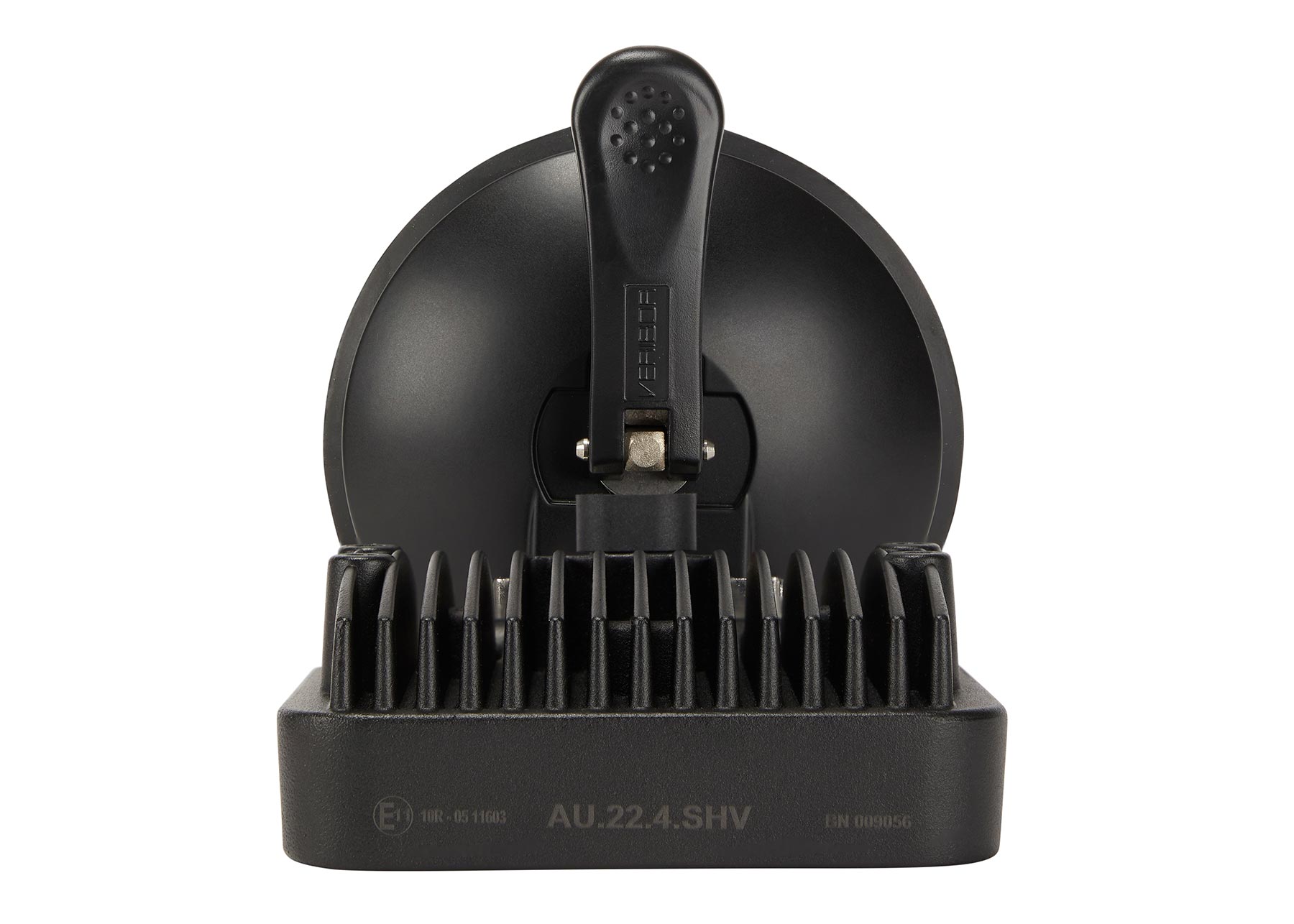

AU.22.4.SHV.SM Top
AU.22.4.SHV.SM Back

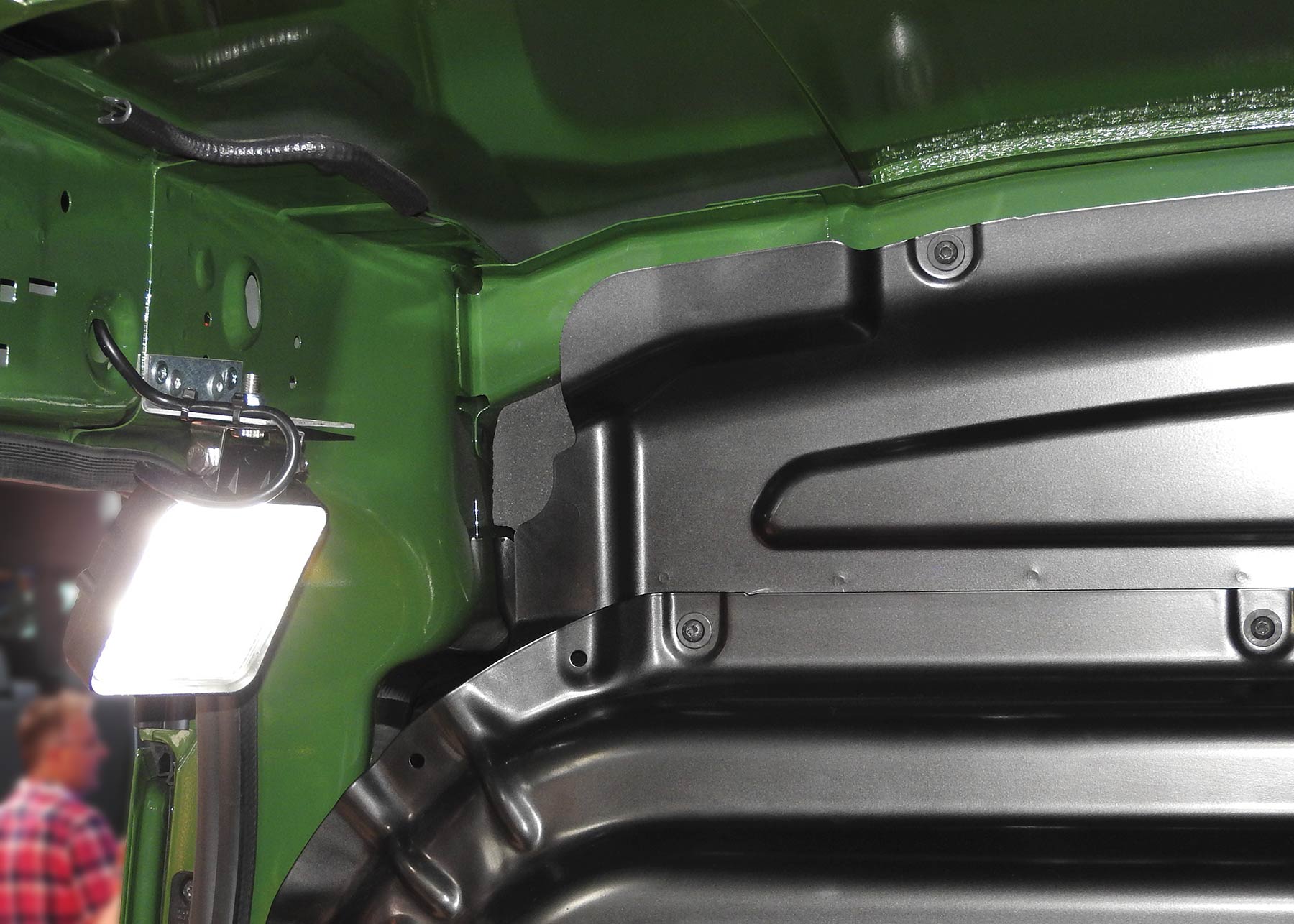

AU.22 In Action

AU.22 Series High Power LED Worklamp with Integrated Superseal Connector 10-80V

PART NO: AU.22.4.SHV

Product options
  • Product Overview:
    • High power light output at 1,350 lumens.
    • Integrated Superseal connector providing fast and easy plug and play installation.
    • Daylight colour temperature ensures maximum visibility and safety.
    • Robust aluminium housing for protects against knocks and scrapes.
    • 3mm strong steel bracket provides strength and stability to the worklamp.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE High Power LED Worklamp with Integrated Superseal Connector 10-80V High Power LED Worklamp with Integrated Superseal Connector 10-80V - Suction Mount
PART NUMBER AU.22.4.SHV AU.22.4.SHV.SM
IP RATING IP67 IP67
VOLTAGE (V) DC 10-80 10-80
CURRENT DRAW (AMPS) 1.641A @ 12V, 0.839A @ 24V 1.641A @ 12V, 0.839A @ 24V
CABLE LENGTH (MM)
CONNECTORS SuperSeal SuperSeal
LIGHT COLOUR White White
LENS COLOUR Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 6000 6000
INTEGRAL SWITCH N/A N/A
DIAMETER (MM) N/A N/A
LENGTH (MM) 112 112
HEIGHT (MM) 144 176
DEPTH (MM) 51 51
WEIGHT (KG) 0.605 0.932

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
