WL1084 Illuminated
WL1084
WL1084 Side

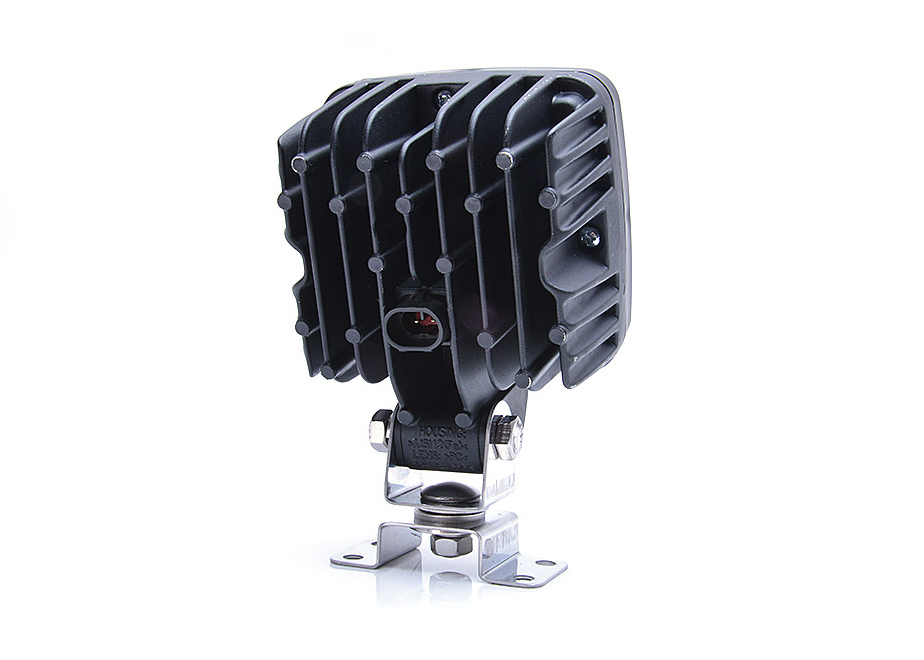

WL1084 Back

WL1084 Series High Power LED Worklamp with Integrated Superseal Connector

PART NO: WL1084

Product options
  • Product Overview:
    • Integrated 2-pin SuperSeal Connector.
    • Matt black front cover and matching powder coated heatsink.
    • Robust housing.
    • Versatile adjustment.
    • Surface mount bracket.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE High Power LED Worklamp with Integrated Superseal Connector
PART NUMBER WL1084
IP RATING IP67
VOLTAGE (V) DC 12-70
CURRENT DRAW (AMPS) 2.8A @ 12V, 1.5A @ 24V
CABLE LENGTH (MM) 2540
CONNECTORS SuperSeal
LIGHT COLOUR White
LENS COLOUR Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 6000
INTEGRAL SWITCH N/A
DIAMETER (MM) N/A
LENGTH (MM) 102
HEIGHT (MM) 152
DEPTH (MM) 78
WEIGHT (KG) 0.148
