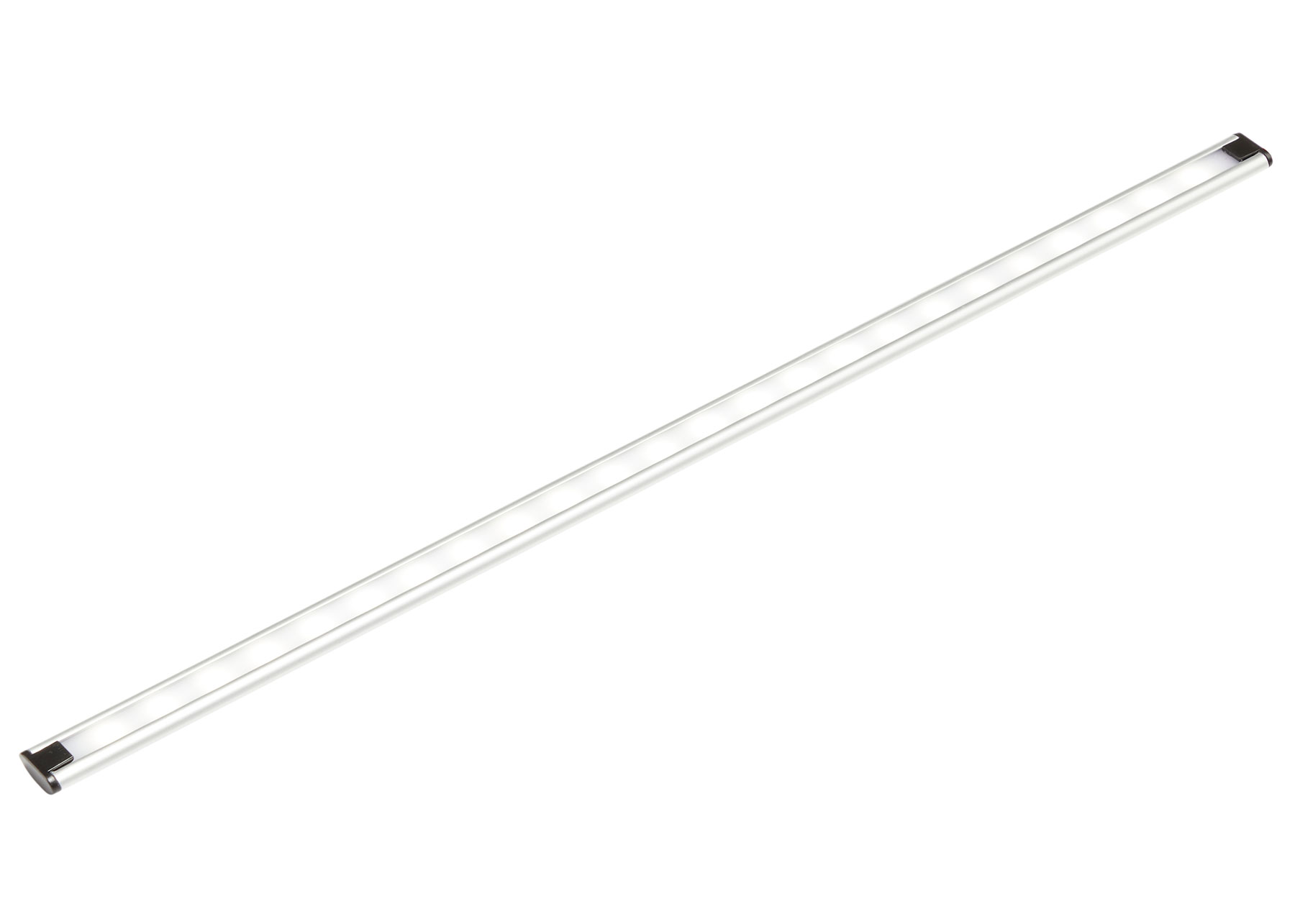

ILT Series Illuminated

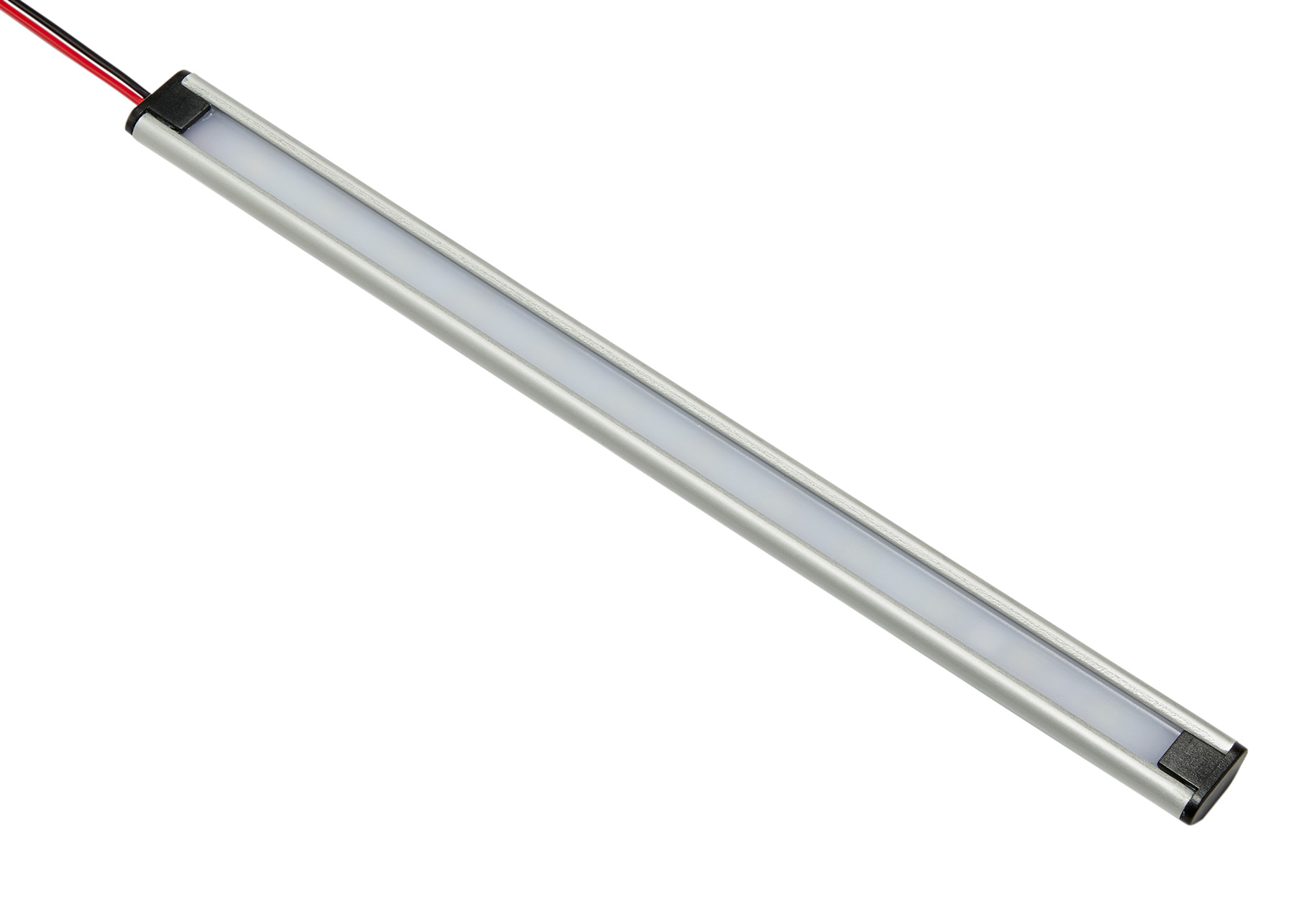

ILT Series Off
ILT Series Straight Mounting

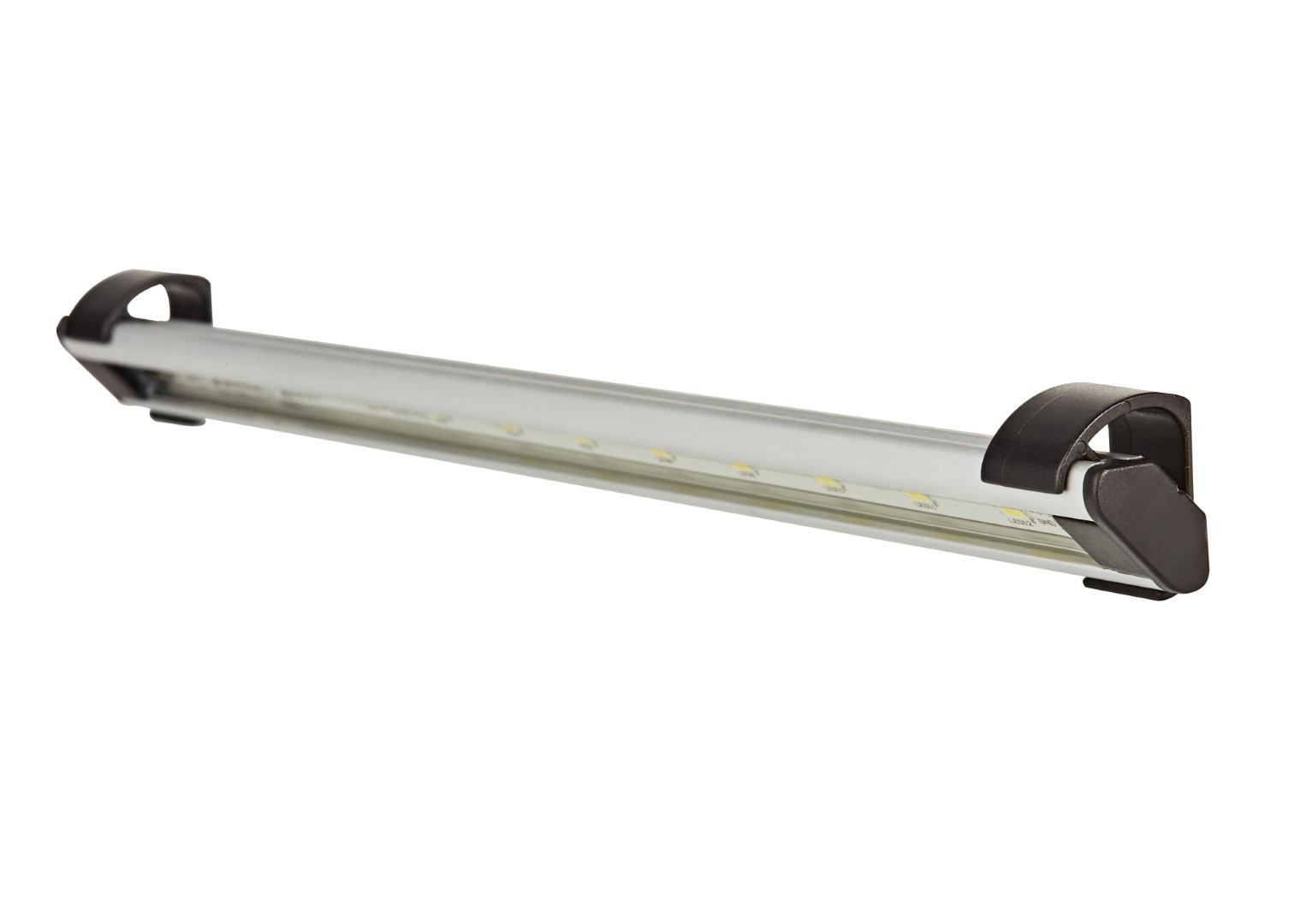

ILT Series Angled Mounting

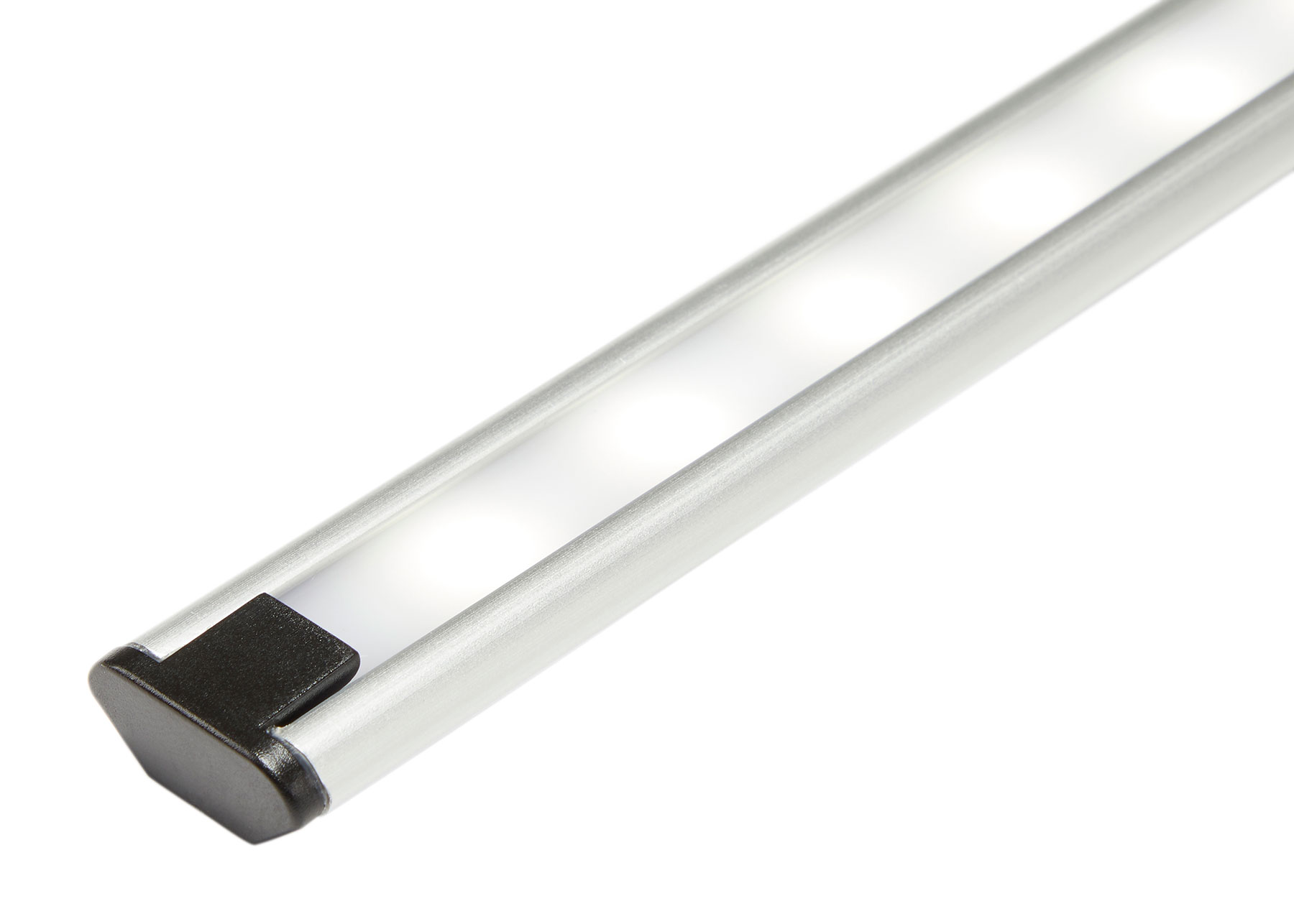

ILT Series Illuminated

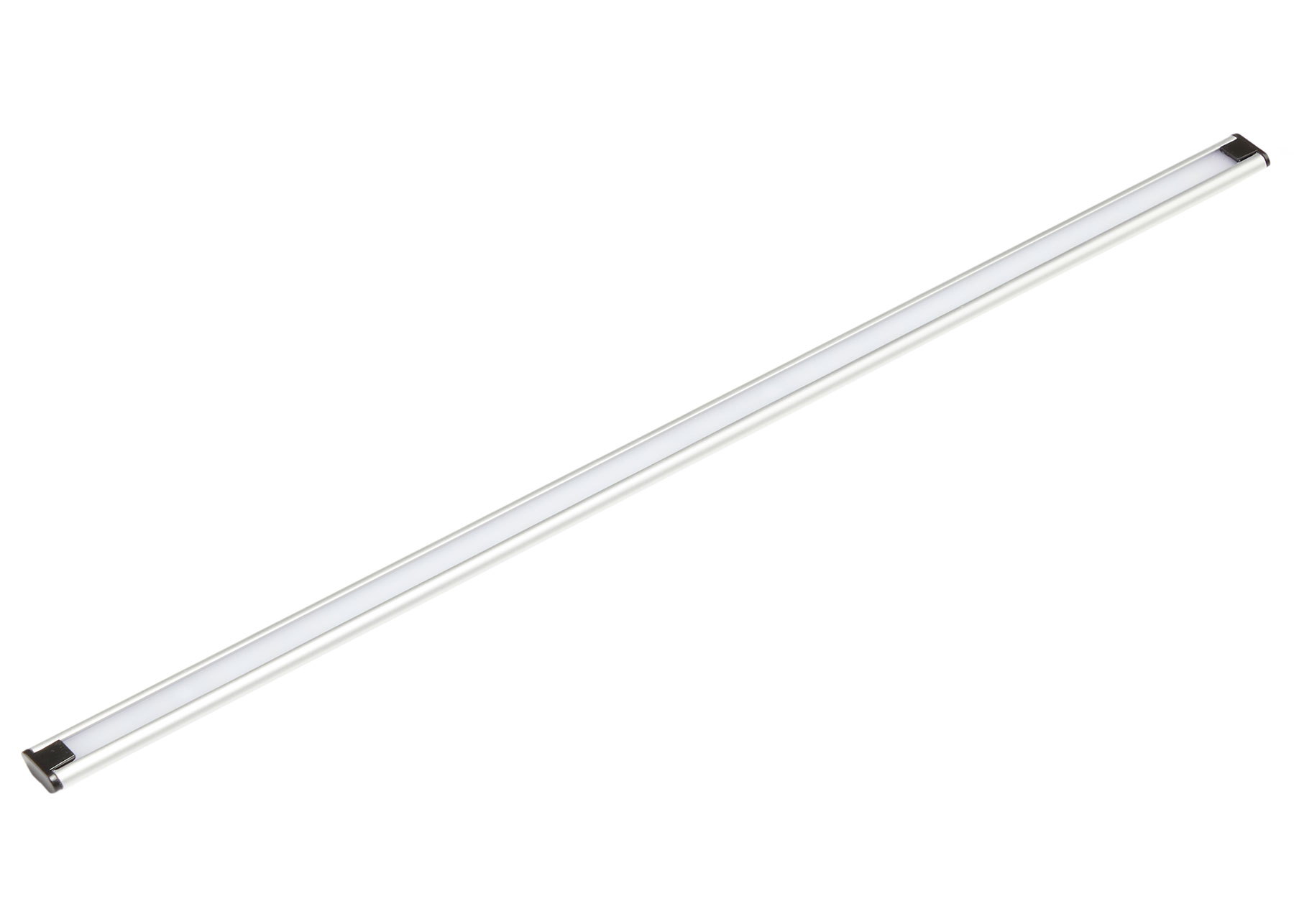

ILT Series Off
ILT Series Illuminated

ILT Series LED Strip Light

PART NO: AU8194

Product options
  • Product Overview:
    • Dual voltage.
    • Supplied with straight and 45° angled mounting brackets.
    • Aluminium base, polycarbonate lens.
    • Available in 3 lengths.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Strip Light, 289mm LED Strip Light, 541mm LED Strip Light, 1045mm LED Strip Light, 541mm with Superseal Connector
PART NUMBER AU8194 AU819401 AU819402 AU819403
IP RATING IP67 IP67 IP67 IP67
VOLTAGE (V) DC 12/24 12/24 12/24 12/24
CURRENT DRAW (AMPS) 0.24A @ 12V, 0.12A @ 24V 0.52A @ 12V, 0.26A @ 24V 1.04A @ 12V, 0.52A @ 24V 0.52A @ 12V, 0.26A @ 24V
CABLE LENGTH (MM) 510 510 510 510
CONNECTORS None None None SuperSeal
LIGHT COLOUR White White White White
LENS COLOUR Clear Clear Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 5000 5000 5000 5000
INTEGRAL SWITCH No No No No
PIR No No No No
DIAMETER (MM) N/A N/A N/A N/A
LENGTH (MM) 289 541 1045 541
HEIGHT (MM) 22.4 22.4 22.4 22.4
DEPTH (MM) 10.5 10.5 10.5 10.5
WEIGHT (KG) 0.09 0.15 0.3 0.15
