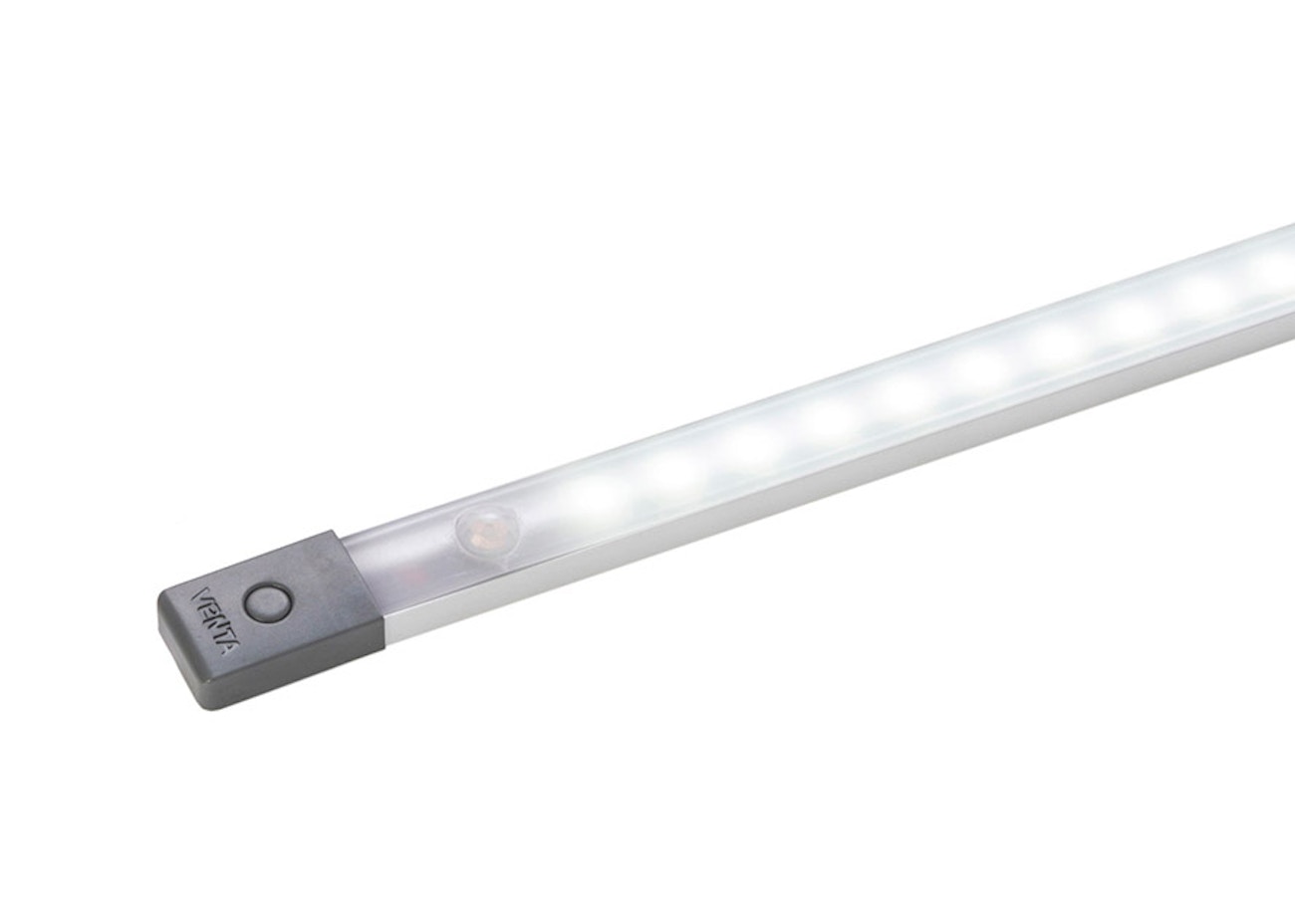

ILV Series High Power LED Strip Light with PIR - 512mm

PART NO: ILV450M

Product Overview:
- Slimline design.
- Surface mount.
- Light stays on for 131 seconds after the PIR is activated.
- ILV450 is available in 12V and 24V.
- Other voltage and switching options available in other lengths of the ILV Series.
- Some variants made to order. Lead times apply.
Warranty: 3 Years
Approvals: ECE R10.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE	High Power LED Strip Light - 512mm, 12V with PIR	High Power LED Strip Light - 512mm, 24V with PIR	High Power LED Strip Light - 512mm, 12V with PIR and Superseal Connector
PART NUMBER	ILV450M	ILV450MD	ILV450MS
IP RATING	IP20	IP20	IP20
VOLTAGE (V) DC	12	24	12
CURRENT DRAW (AMPS)	0.360A @ 12V	0.180A @ 24V	0.360A @ 12V
CABLE LENGTH (MM)	1000	1000	1000
CONNECTORS	None	None	SuperSeal
LIGHT COLOUR	White	White	White
LENS COLOUR	Clear	Clear	Clear
LIGHT COLOUR TEMPERATURE (°KELVINS)	6000	6000	6000
INTEGRAL SWITCH	No	No	No
PIR	Yes	Yes	Yes
DIAMETER (MM)	N/A	N/A	N/A
LENGTH (MM)	520	520	520
HEIGHT (MM)	15.5	15.5	15.5
DEPTH (MM)	25	25	25
WEIGHT (KG)	0.125	0.125	0.125

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
