ILC Series Illuminated
ILC Series
ILC Series
ILC Series

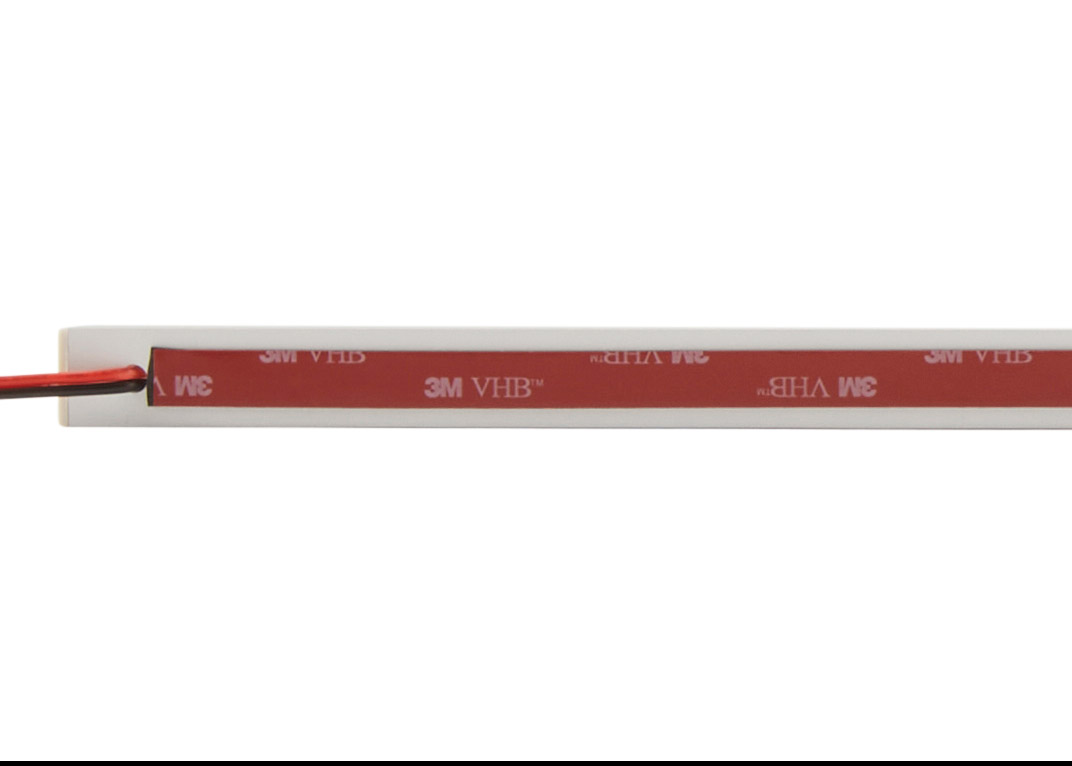

ILC Series Back

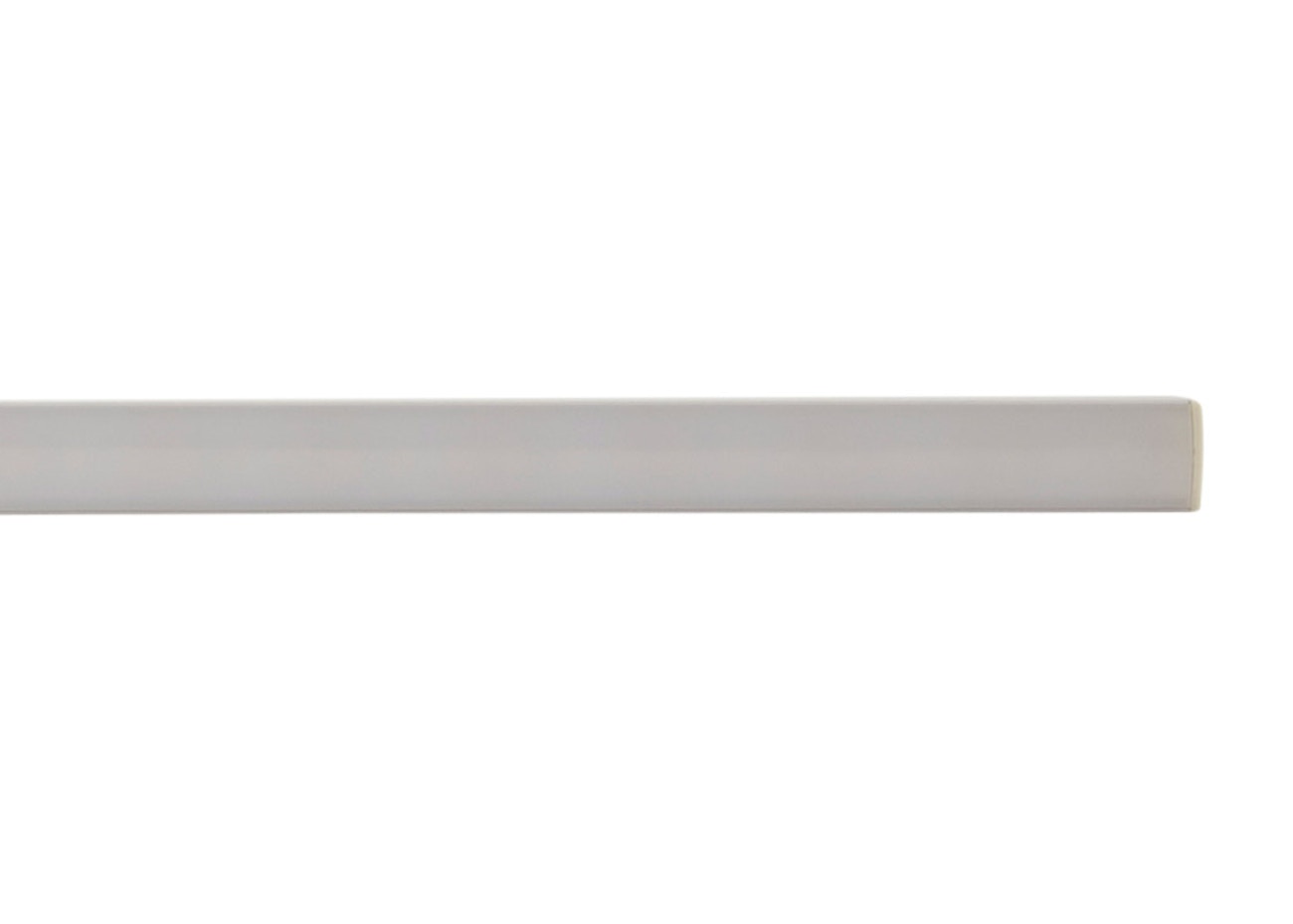

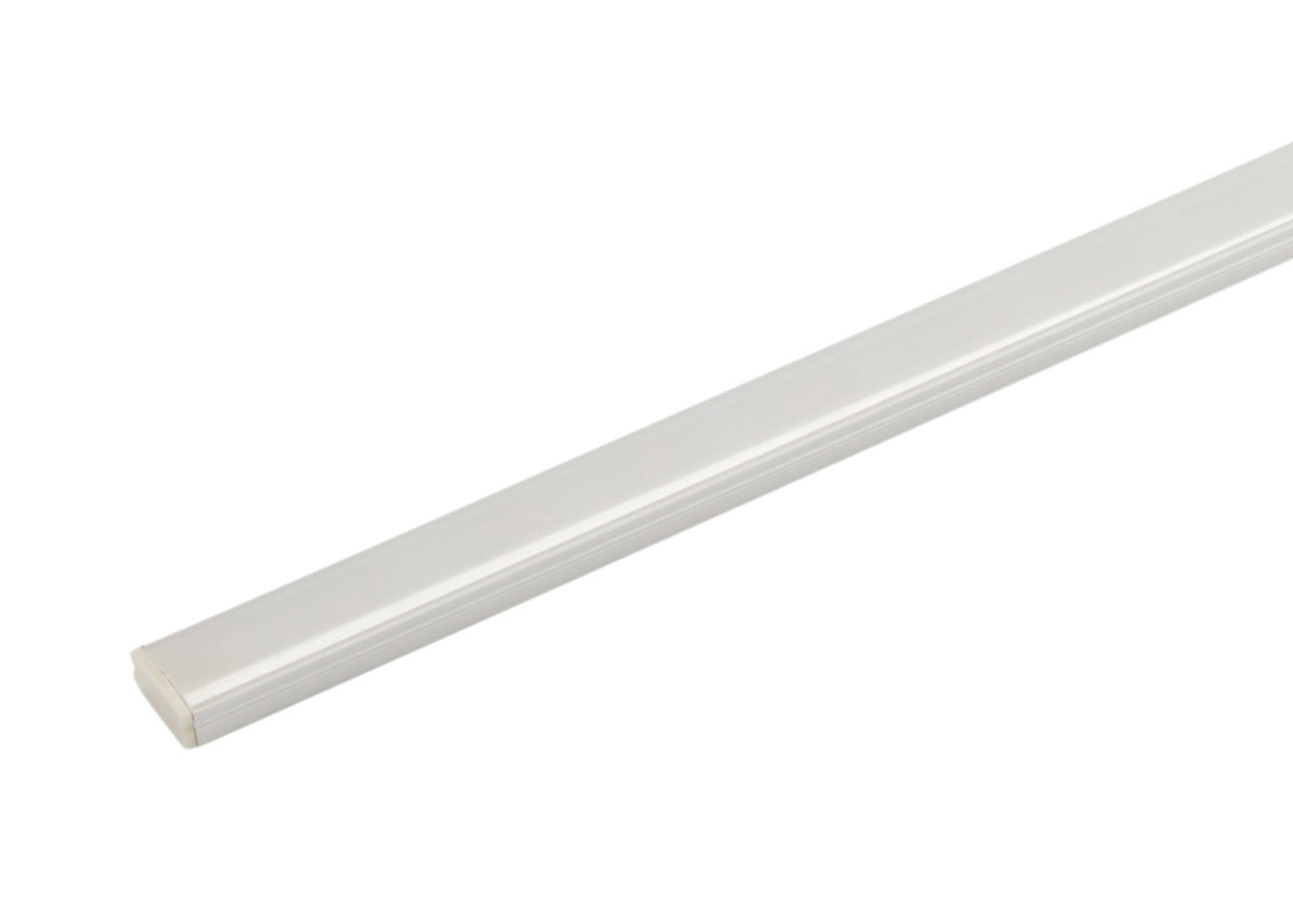

ILC Series LED Strip Light

PART NO: ILC400SS

Product options
  • Product Overview:
    • Dotless light output.
    • Dimmable PCB.
    • High power.
    • Ultra slim profile at just 17mm wide and 8mm deep.
    • Comes with 3M VHB tape for mounting or spring clips.
    • Available in 4 lengths.
    • Switched and non-switched options available.
  • Warranty: 3 Years
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Strip Light, 1000mm LED Strip Light with Switch, 1000mm LED Strip Light with Switch, 400mm LED Strip Light with Switch, 700mm
PART NUMBER ILC1000S ILC1000SS ILC400SS ILC700SS
IP RATING IP44 IP44 IP44 IP44
VOLTAGE (V) DC 12 12 12 12
CURRENT DRAW (AMPS) 1.15A @ 12V 1.1A @ 12V 0.5A @ 12V 0.85A @ 12V
CABLE LENGTH (MM) 800 200 405 200
CONNECTORS Spade Spade Spade Spade
LIGHT COLOUR White White White White
LENS COLOUR Clear Clear Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 4000 4000 4000 4000
INTEGRAL SWITCH No Yes Yes Yes
PIR No No No No
DIAMETER (MM) N/A N/A N/A N/A
LENGTH (MM) 1000 1000 400 700
HEIGHT (MM) 17 17 17 17
DEPTH (MM) 8 8 8 8
WEIGHT (KG) 0.152 0.152 0.06 0.102

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.

By clicking "Submit" you agree for us to contact you using the information you have provided. You can review our Privacy Policy here.
