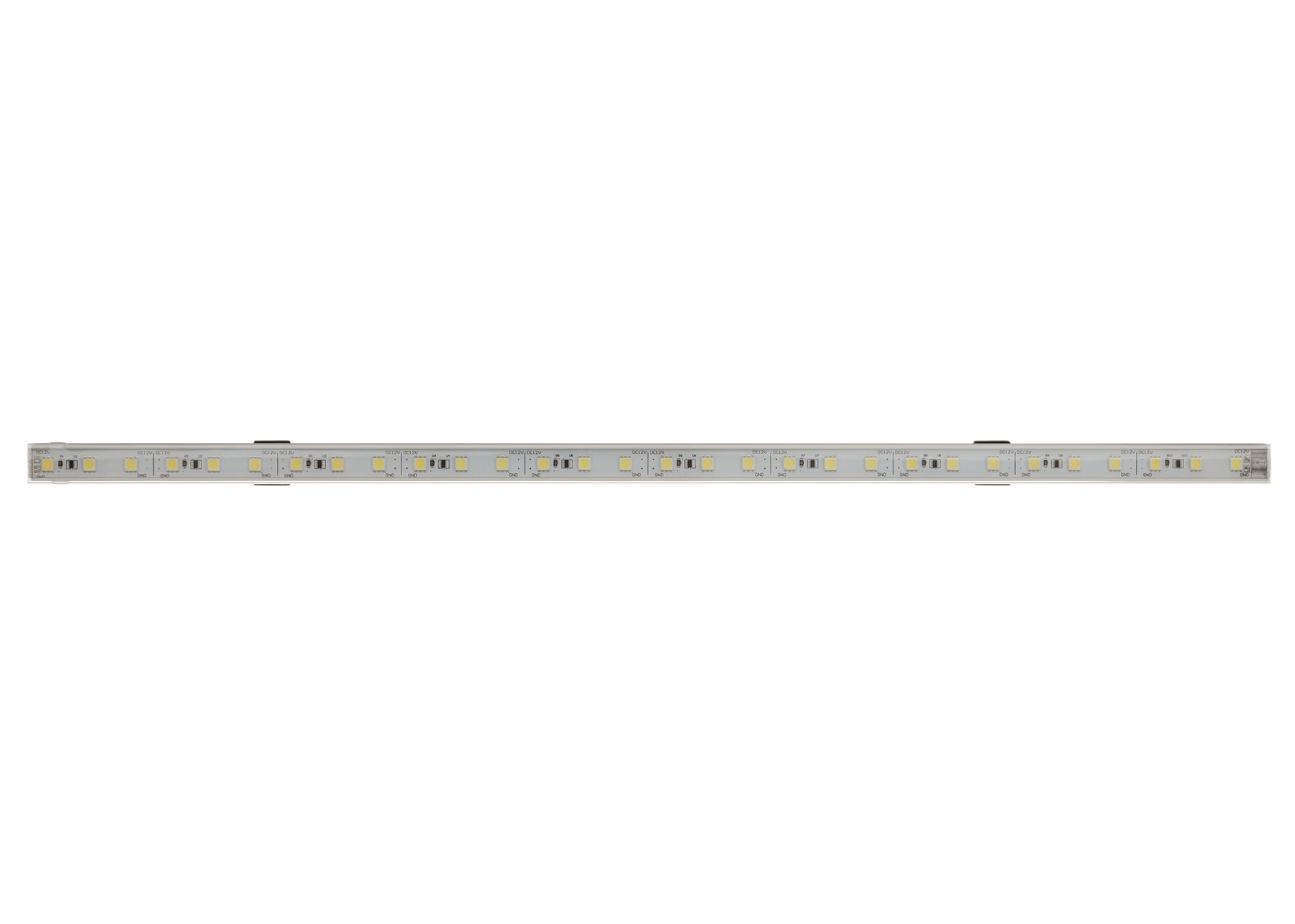

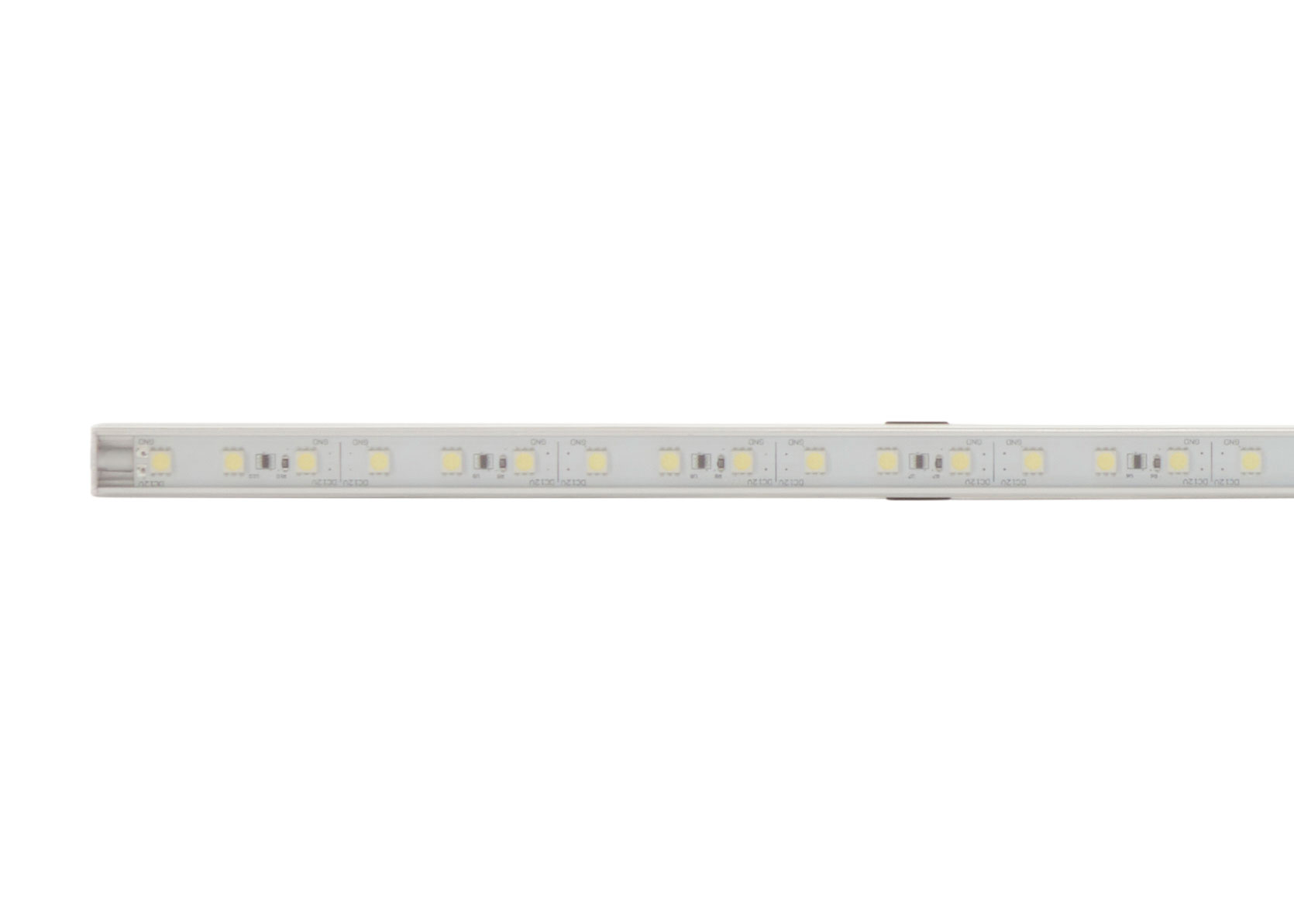

ILP500DR Front
ILP500DR Front
ILP500DR

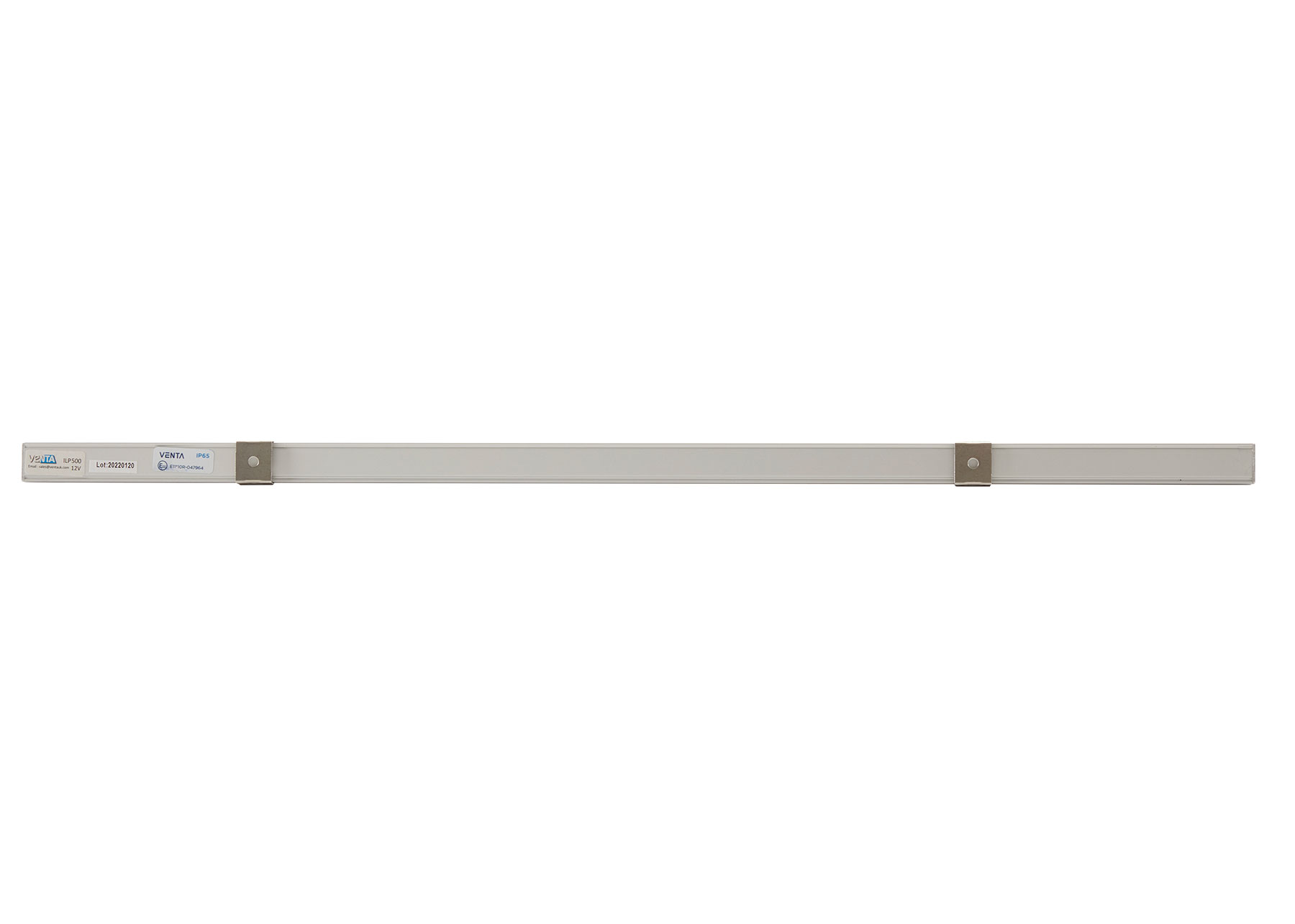

ILP500DR Back

ILP Series High Power Waterproof LED Strip Light - Red, 500mm

PART NO: ILP500DR

Product options
  • Product Overview:
    • Robust, fully potted resin construction in aluminium housing.
    • Intense light output.
    • Incredible 120 ° light spread.
    • Only 8mm deep by 16mm wide.
    • Cost effective.
    • Different colour options and lengths available across ILP Series.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE High Power Waterproof LED Strip Light - 500mm - Red, 24V High Power Waterproof LED Strip Light - 500mm - Red, 12V
PART NUMBER ILP500DR ILP500R
IP RATING IP65 IP65
VOLTAGE (V) DC 24 12
CURRENT DRAW (AMPS) 0.26A @ 24V 0.53A @ 12V
CABLE LENGTH (MM) 300 300
CONNECTORS None None
LIGHT COLOUR Red Red
LENS COLOUR Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 6000 6000
INTEGRAL SWITCH No No
PIR No No
DIAMETER (MM) N/A N/A
LENGTH (MM) 500 500
HEIGHT (MM) 8 8
DEPTH (MM) 16 16
WEIGHT (KG) 0.126 0.126
