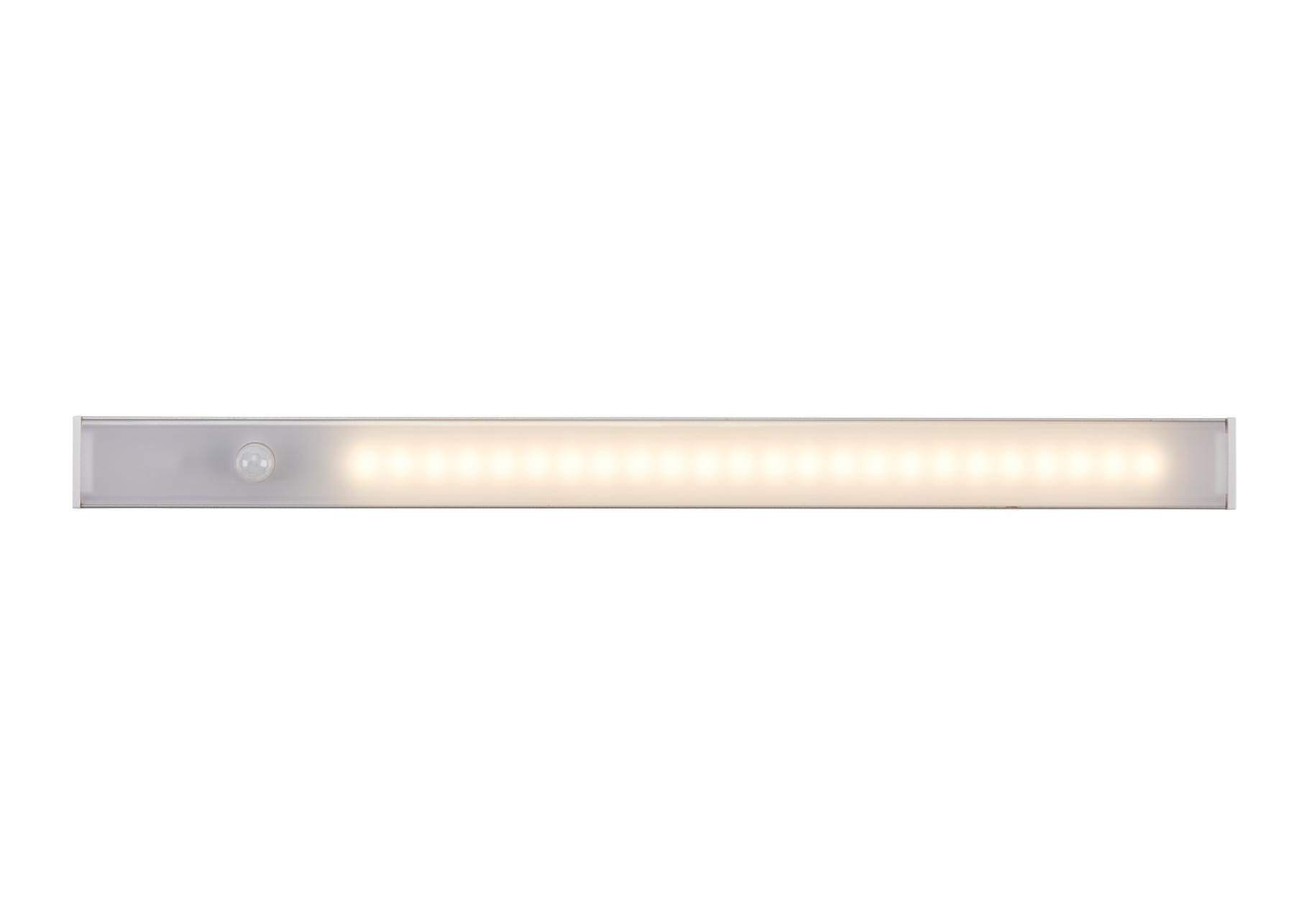

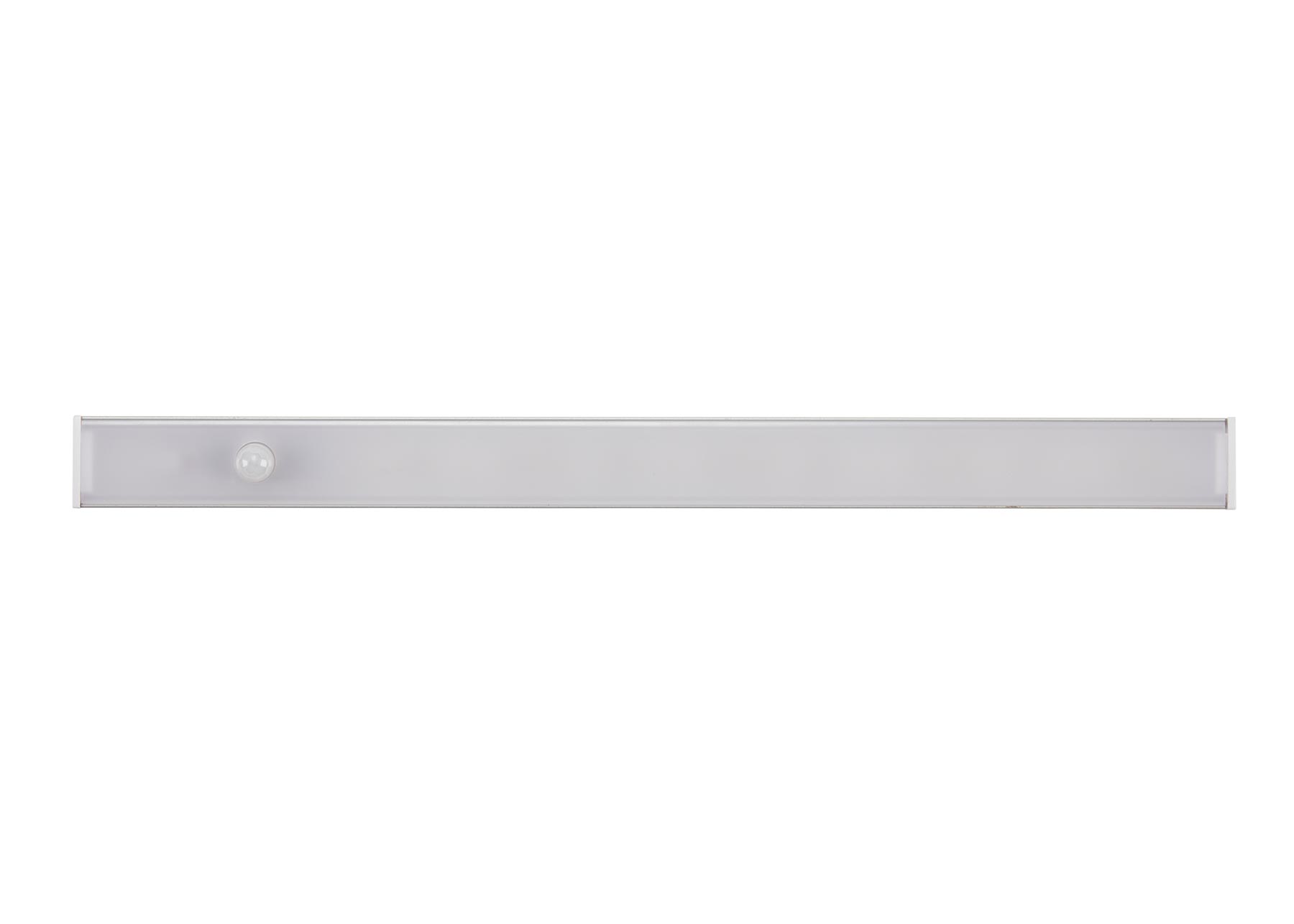

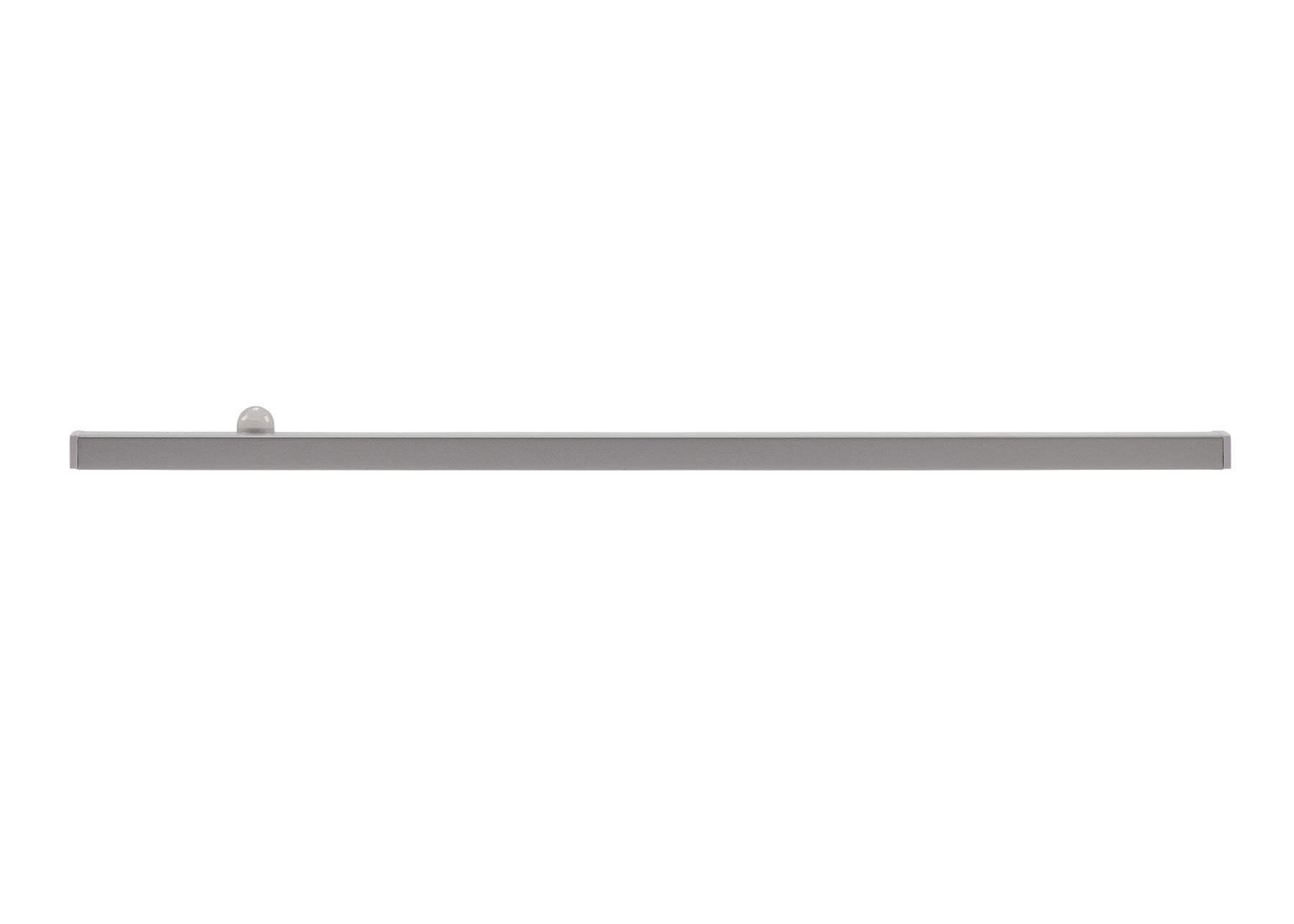

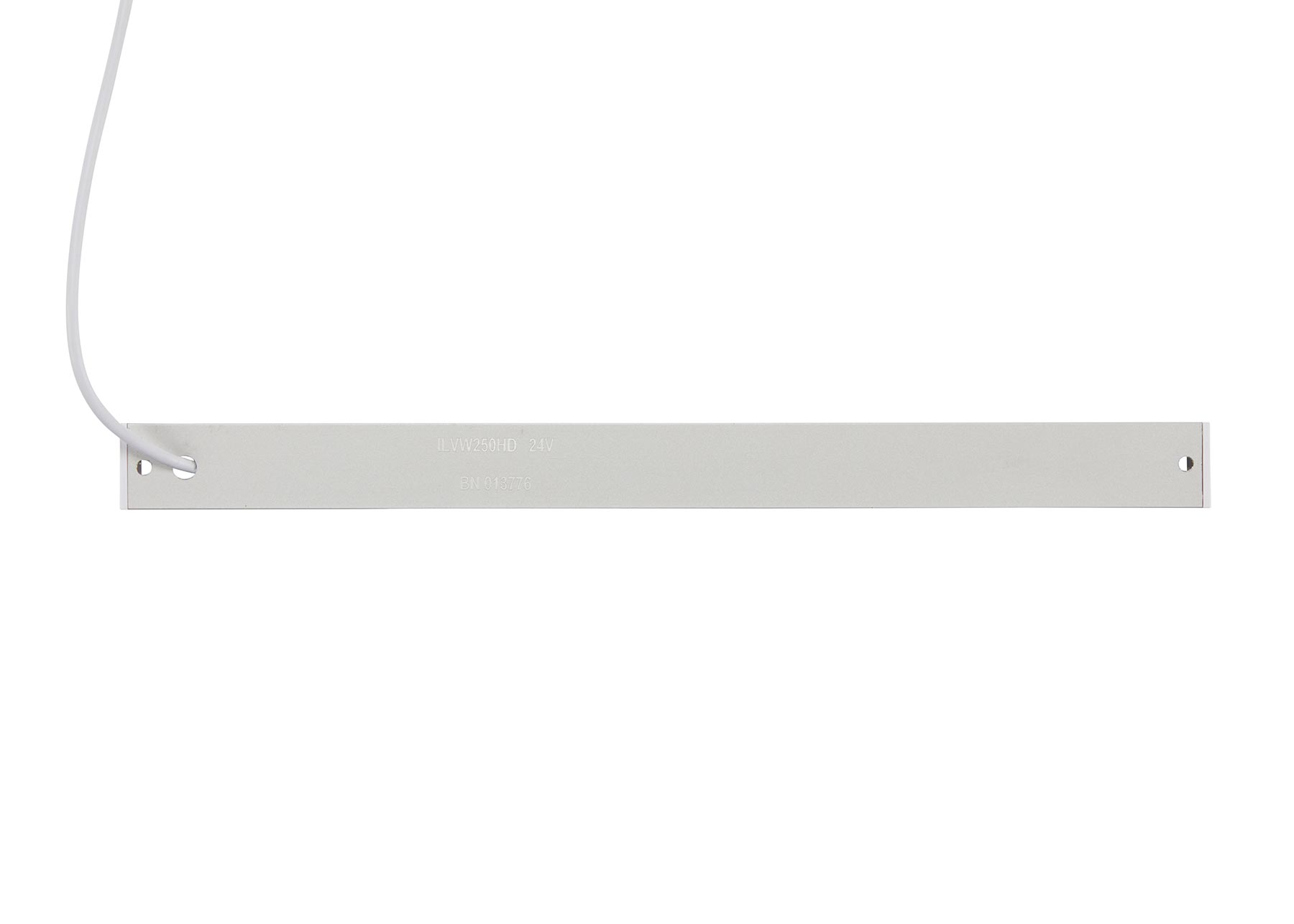

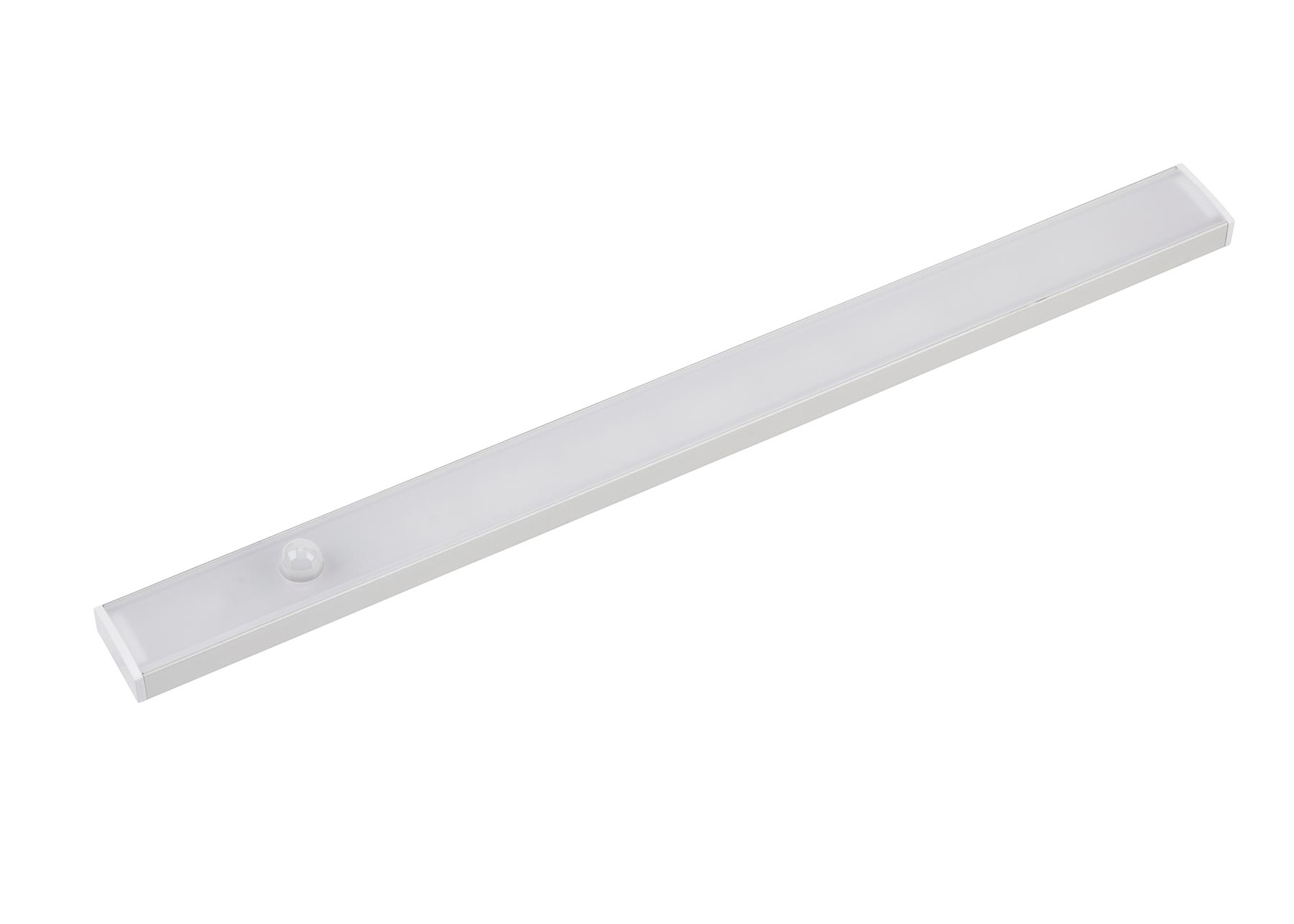

ILV Series High Density LED Strip Light - 312mm

PART NO: ILVW250HD

Product options

Product Overview:
- Slimline design.
- Surface mount.
- Light stays on for 30 seconds after the PIR is activated.
- This variant is 24V with PIR. Scroll down for more details.
- Other voltage and switching options available in other lengths of the ILV Series.
- Made to order. Lead times apply.
Warranty: 3 Years

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE	High Density LED Strip Light - 312mm, 24V, 3000K
PART NUMBER	ILVW250HD
IP RATING	IP20
VOLTAGE (V) DC	24
CURRENT DRAW (AMPS)	0.1A @ 24V
CABLE LENGTH (MM)	1000
CONNECTORS	None
LIGHT COLOUR	White
LENS COLOUR	Clear
LIGHT COLOUR TEMPERATURE (°KELVINS)	3000
INTEGRAL SWITCH	No
PIR	Yes
DIAMETER (MM)	N/A
LENGTH (MM)	250
HEIGHT (MM)	15.5
DEPTH (MM)	23
WEIGHT (KG)	0.069

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
