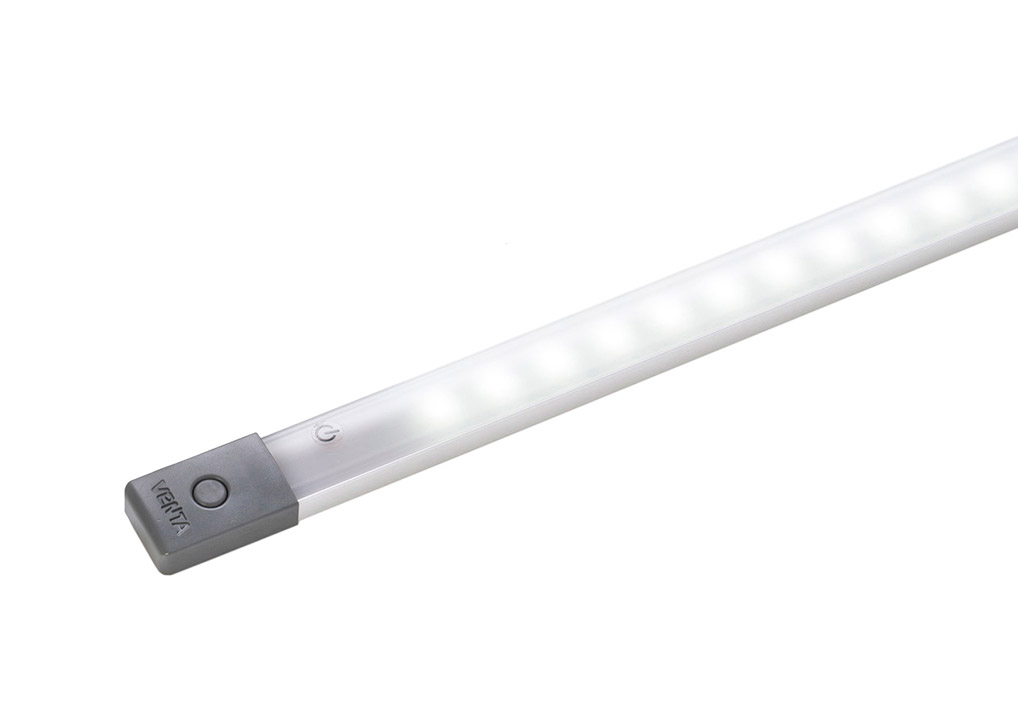

ILV Series High Power LED Strip Light, With Switch - 312mm

PART NO: ILV250S

Product Overview:
- Slimline design.
- Surface mount.
- 12V with a switch.
- Other voltage and switching options available in other lengths of the ILV Series.
- Some variants made to order. Lead times apply.
Warranty: 3 Years
Approvals: ECE R10.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE	High Power LED Strip Light - 310mm, 12V Switched	High Power LED Strip Light - 310mm, 12V Switched with Superseal Connector
PART NUMBER	ILV250S	ILV250SS
IP RATING	IP20	IP20
VOLTAGE (V) DC	12	12
CURRENT DRAW (AMPS)	0.11A @ 12V	0.11A @ 12V
CABLE LENGTH (MM)	1000	1040
CONNECTORS	None	SuperSeal
LIGHT COLOUR	White	White
LENS COLOUR	Clear	Clear
LIGHT COLOUR TEMPERATURE (°KELVINS)	6000	6000
INTEGRAL SWITCH	Yes	Yes
PIR	No	No
DIAMETER (MM)	N/A	N/A
LENGTH (MM)	310	310
HEIGHT (MM)	9	15.5
DEPTH (MM)	25	25
WEIGHT (KG)	0.078	0.082

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
