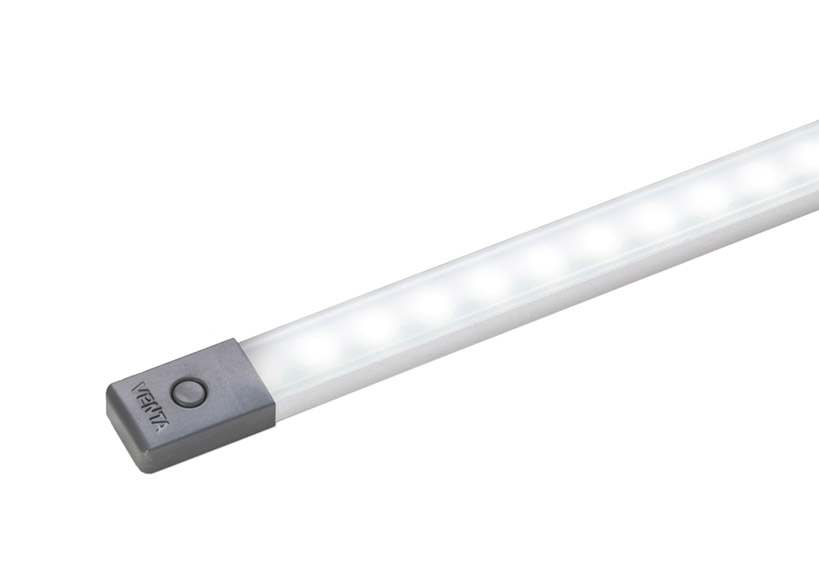

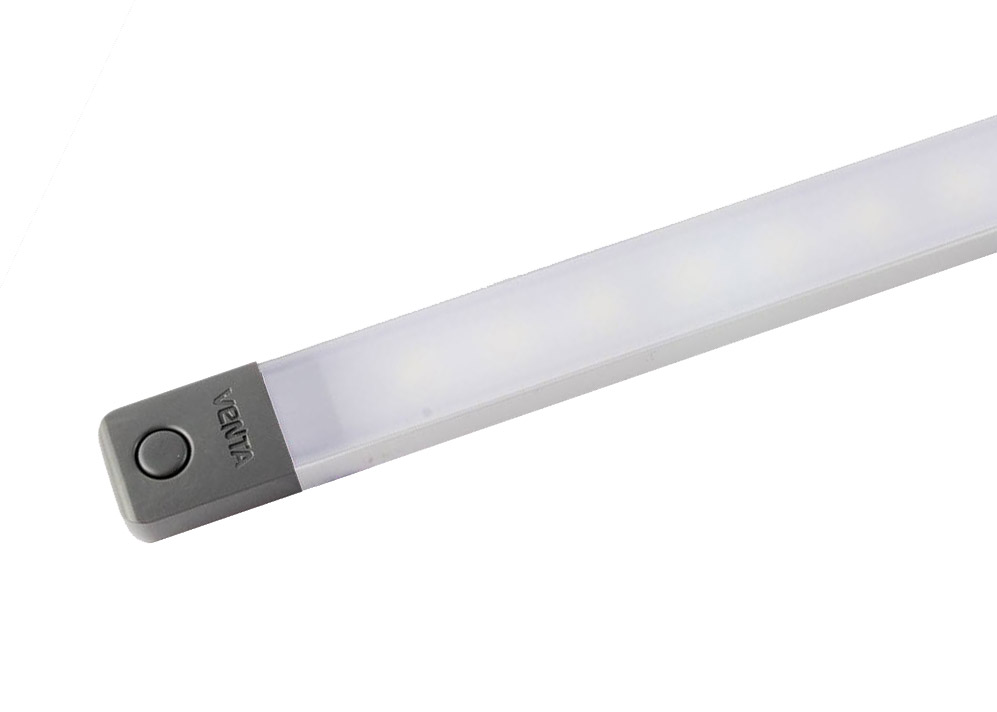

ILV Series High Power LED Strip Light - 362mm

PART NO: ILV300

Product options
  • Product Overview:
    • Slimline design.
    • Surface mount.
    • 12V with no switch.
    • Other voltage and switching options available in other lengths of the ILV Series.
    • Some variants made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE High Power LED Strip Light - 362mm, 12V High Power LED Strip Light - 362mm, 12V with Superseal Connector, 120mm Cable
PART NUMBER ILV300 ILV300TS
IP RATING IP20 IP20
VOLTAGE (V) DC 12 12
CURRENT DRAW (AMPS) 0.18A @ 12V 0.18A @ 12V
CABLE LENGTH (MM) 1040 120
CONNECTORS SuperSeal SuperSeal
LIGHT COLOUR White White
LENS COLOUR Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 6000 6000
INTEGRAL SWITCH No No
PIR No No
DIAMETER (MM) N/A N/A
LENGTH (MM) 360 360
HEIGHT (MM) 9 9
DEPTH (MM) 25 25
WEIGHT (KG) 0.105 0.072
