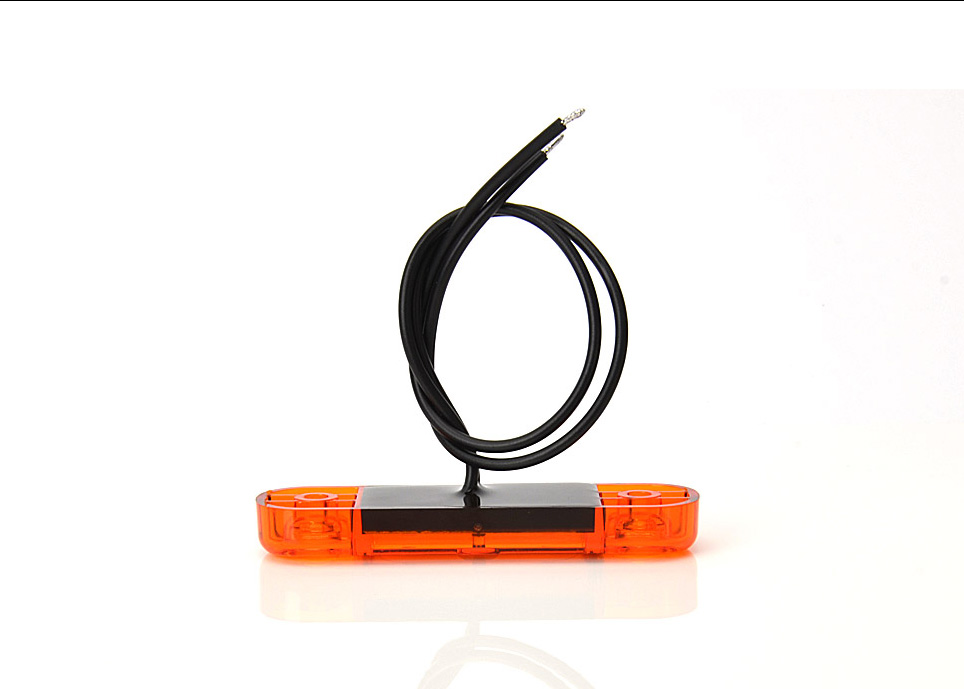

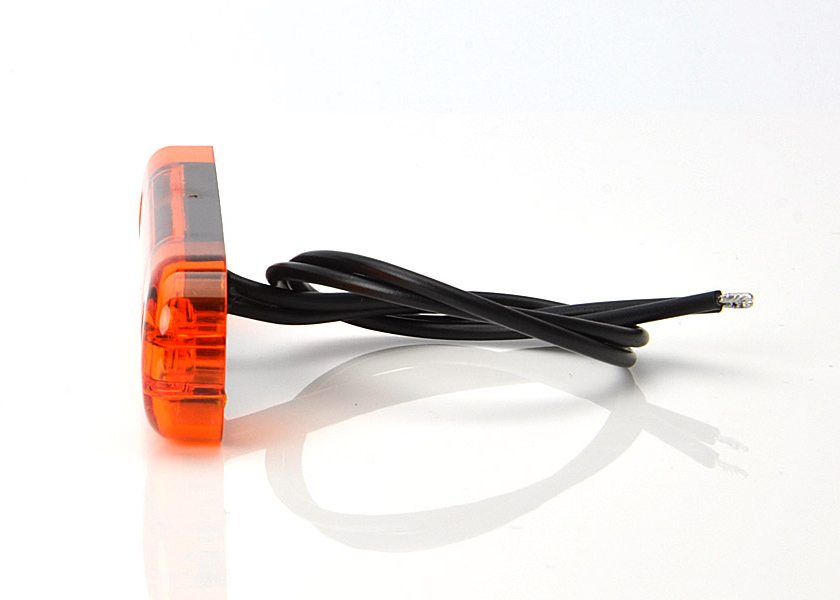

SM97 Series Compact LED Side Marker Light

PART NO: SM9701

Product options
  • Product Overview:
    • Surface mount.
    • Approved for vertical and horizontal mounting.
    • Front and rear marker light options also available.
  • Warranty: 3 Years
  • Approvals: ECE R10, R91.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Compact LED Side Marker Light
PART NUMBER SM9701
IP RATING IP68
VOLTAGE (V) DC 12/24
CURRENT DRAW (AMPS) 0.025A @ 12V, 0.029A @ 24V
CABLE LENGTH (MM) 220
CONNECTORS None
LIGHT COLOUR Amber
LENS COLOUR Amber
DIAMETER (MM) N/A
LENGTH (MM) 84
HEIGHT (MM) 24
DEPTH (MM) 10.4
WEIGHT (KG) 0.028
