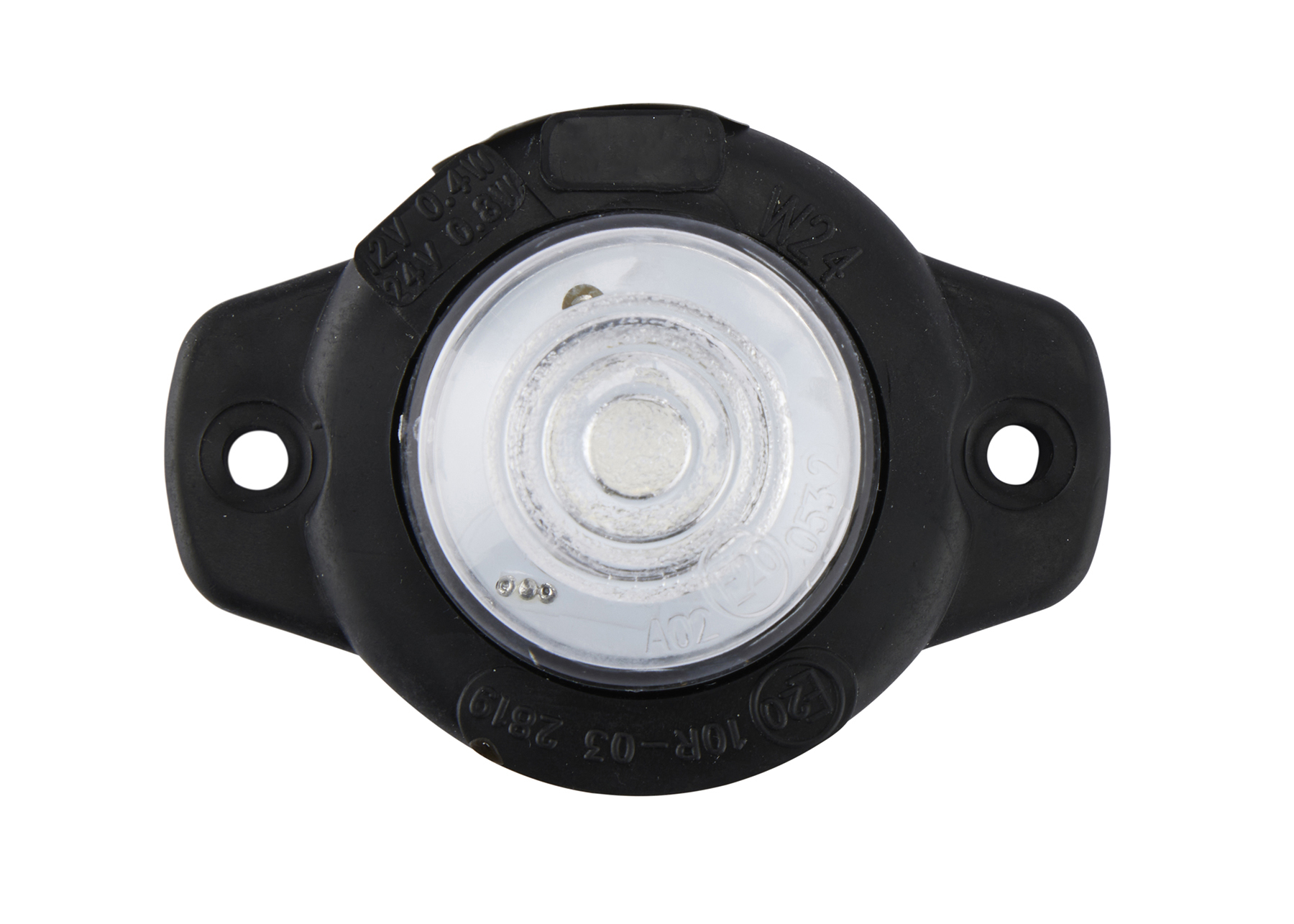

SM2404 Illuminated
SM2404 Off
SM2404 Front Off

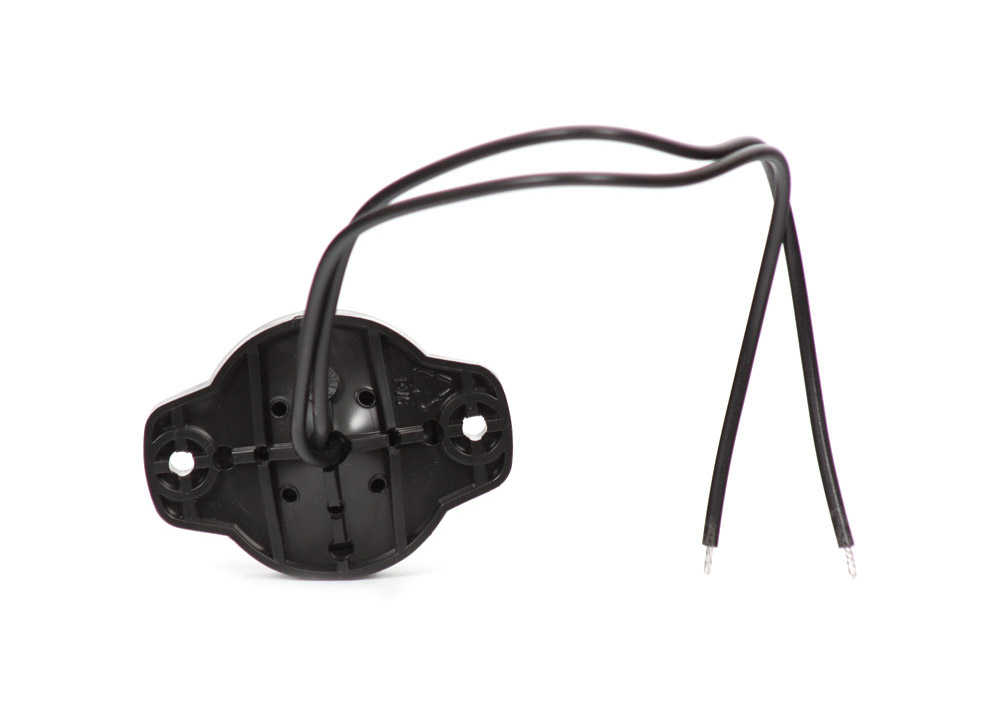

SM2404 Back

SM24 Series LED Front Marker Light

PART NO: SM2404

Product options
  • Product Overview:
    • Compact design.
    • Flexible rubber housing.
    • Dual polarity for foolproof installation.
    • Side, rear and blue variants also available.
  • Warranty: 3 Years
  • Approvals: ECE R7, R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Front Marker Light LED Front Marker Light with Superseal Connector
PART NUMBER SM2404 SM2404S
IP RATING IP68 IP68
VOLTAGE (V) DC 12/24 12/24
CURRENT DRAW (AMPS) 0.03A @ 12V, 0.03A @ 24V 0.03A @ 12V, 0.03A @ 24V
CABLE LENGTH (MM) 220
CONNECTORS None SuperSeal
LIGHT COLOUR White White
LENS COLOUR Clear Clear
DIAMETER (MM) N/A N/A
LENGTH (MM) 58 58
HEIGHT (MM) 42 42
DEPTH (MM) 28 27
WEIGHT (KG) 0.00258
