SM2401
SM2401 Front Off

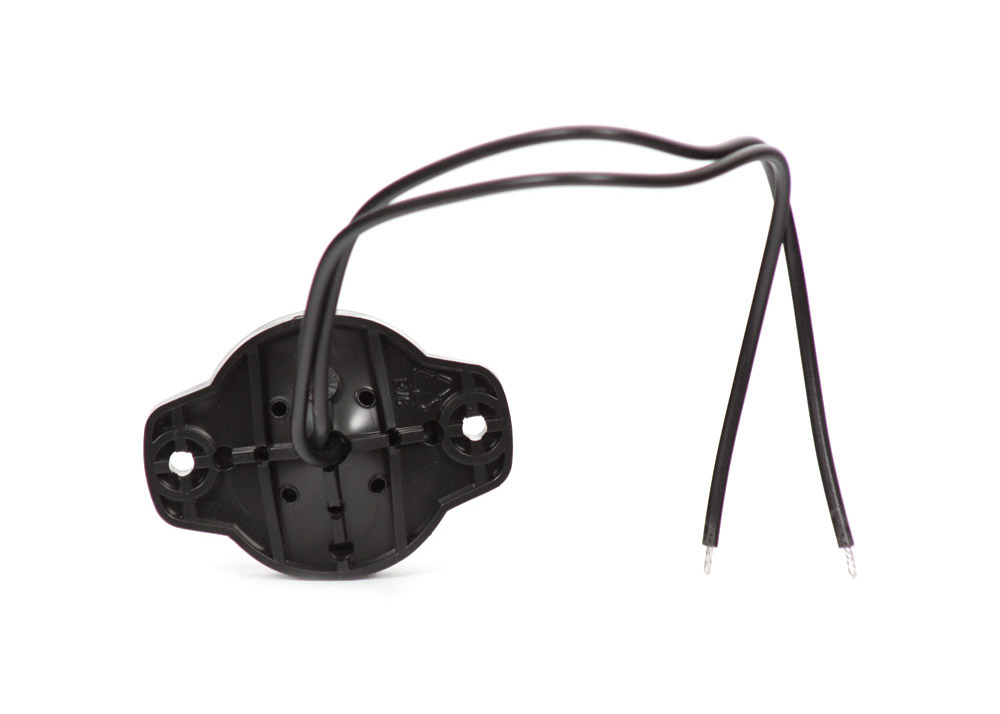

SM2401 Back

SM24 Series LED Side Marker Light

PART NO: SM2401

Product options
  • Product Overview:
    • Compact design.
    • Flexible rubber housing.
    • Dual polarity for foolproof installation.
    • Rear, front and blue variants also available.
  • Warranty: 3 Years
  • Approvals: ECE R10, R91.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Side Marker Light
PART NUMBER SM2401
IP RATING IP68
VOLTAGE (V) DC 12/24
CURRENT DRAW (AMPS) 0.03A @ 12V, 0.03A @ 24V
CABLE LENGTH (MM) 220
CONNECTORS None
LIGHT COLOUR Amber
LENS COLOUR Clear
DIAMETER (MM) N/A
LENGTH (MM) 58
HEIGHT (MM) 42
DEPTH (MM) 27
WEIGHT (KG) 0.00554
