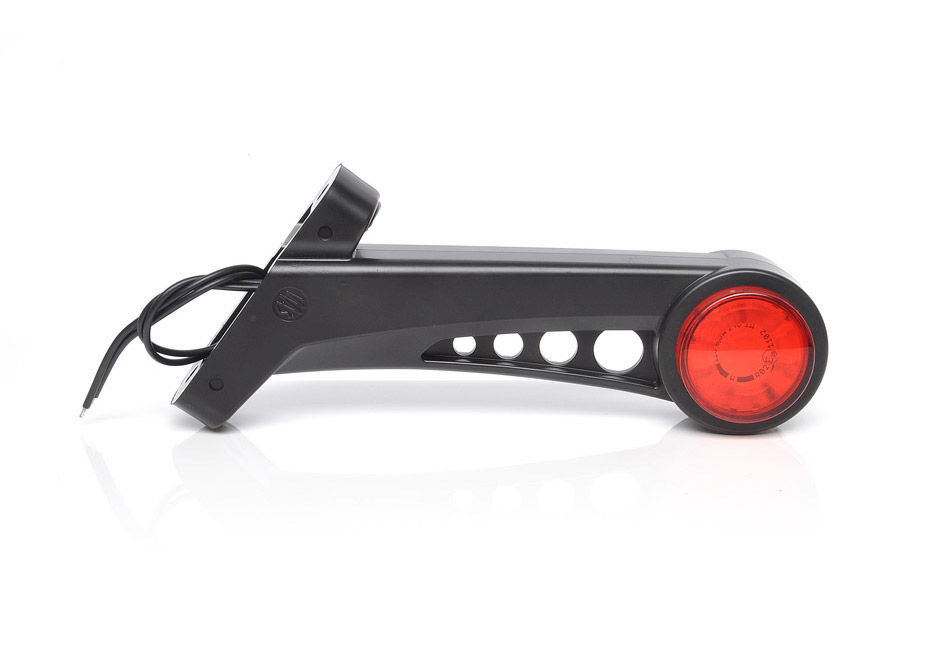

SLM604 Rear
SLM604 Rear

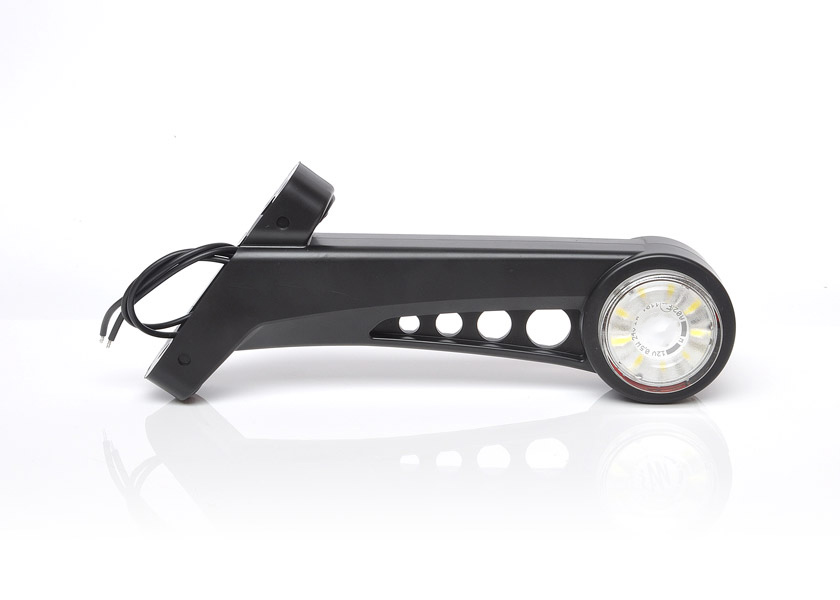

SLM604 Front

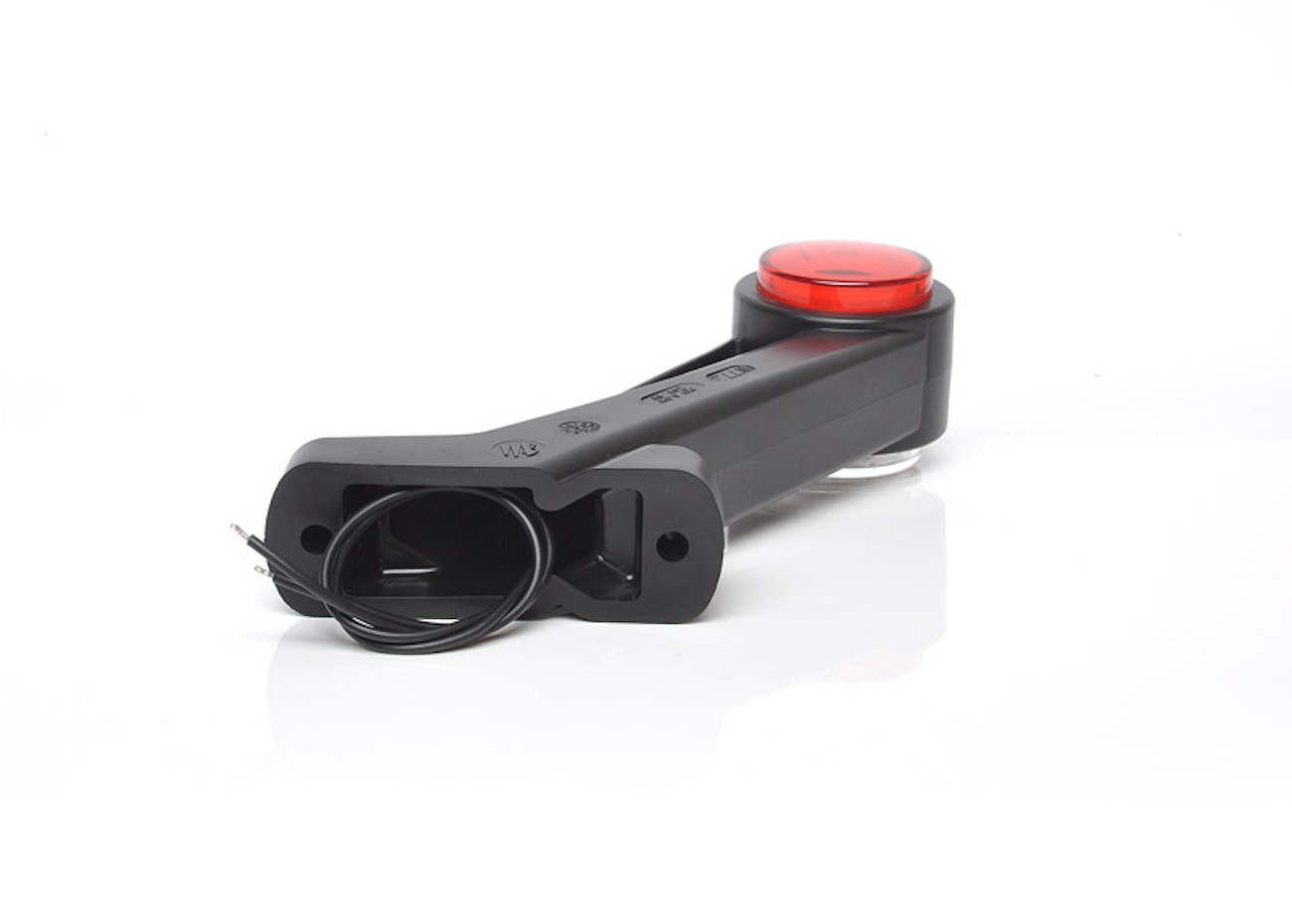

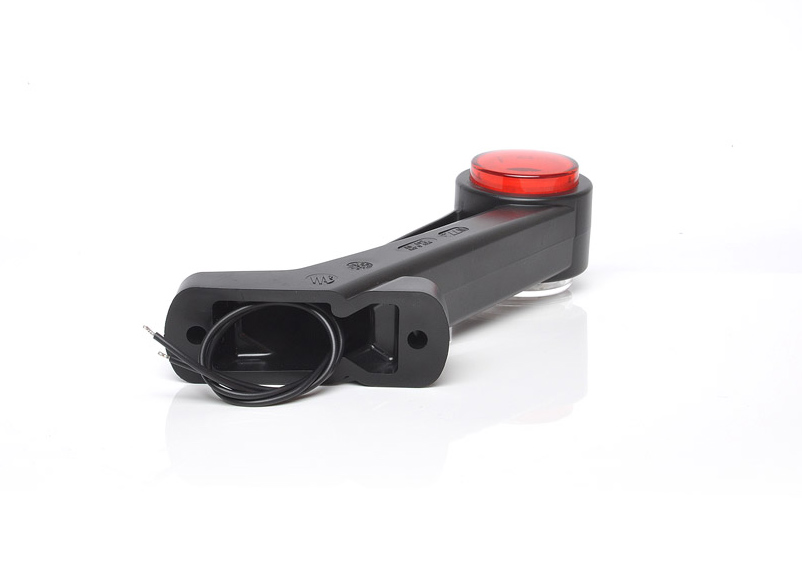

SLM604 Bottom

SLM604 Series LED Outline Marker Light - Front / Rear with Reflector

PART NO: SLM604L/22

Product options
  • Product Overview:
    • Robust flexible housing.
    • Dual polarity for foolproof installation.
    • Integrated reflector.
    • Short stalk with side marker option also available.
    • 2.2m cable.
  • Warranty: 3 Years
  • Approvals: ECE R7, R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Outline Marker Light - Front / Rear with Reflector - Left Side LED Outline Marker Light - Front / Rear with Reflector - Right Side
PART NUMBER SLM604L/22 SLM604R/22
IP RATING IP68 IP68
VOLTAGE (V) DC 12/24 12/24
CURRENT DRAW (AMPS) 0.042A @ 12V, 0.042A @ 24V 0.042A @ 12V, 0.042A @ 24V
CABLE LENGTH (MM) 2200 2200
CONNECTORS None None
LIGHT COLOUR Red/White Red/White
LENS COLOUR Red/Clear Red/Clear
DIAMETER (MM) N/A N/A
LENGTH (MM) 161 161
HEIGHT (MM) 180 180
DEPTH (MM) 37 37
WEIGHT (KG) 0.309 0.309

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
