RL198004
RL198004 With Bracket Back

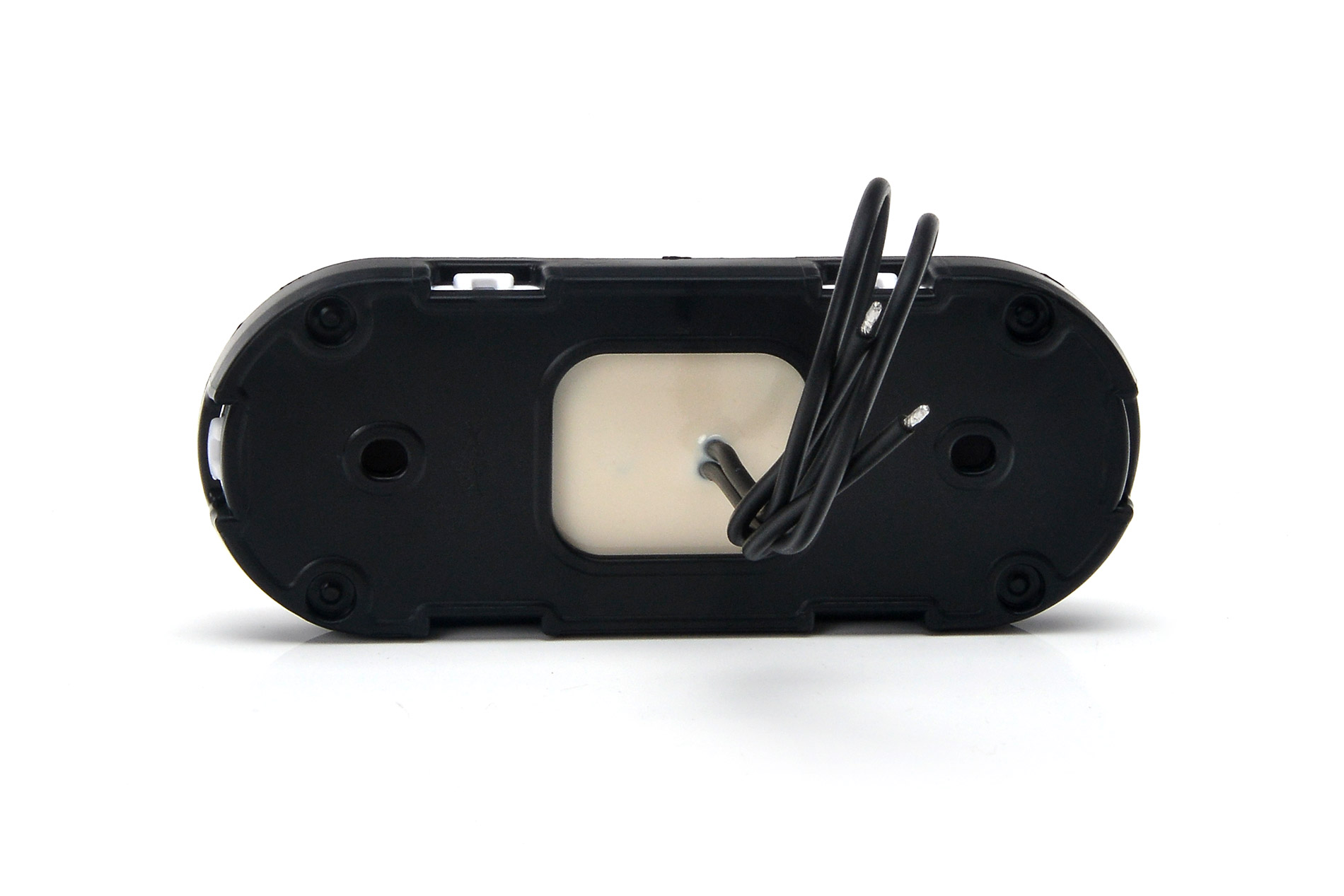

RL198004 With Mounting Plate Back

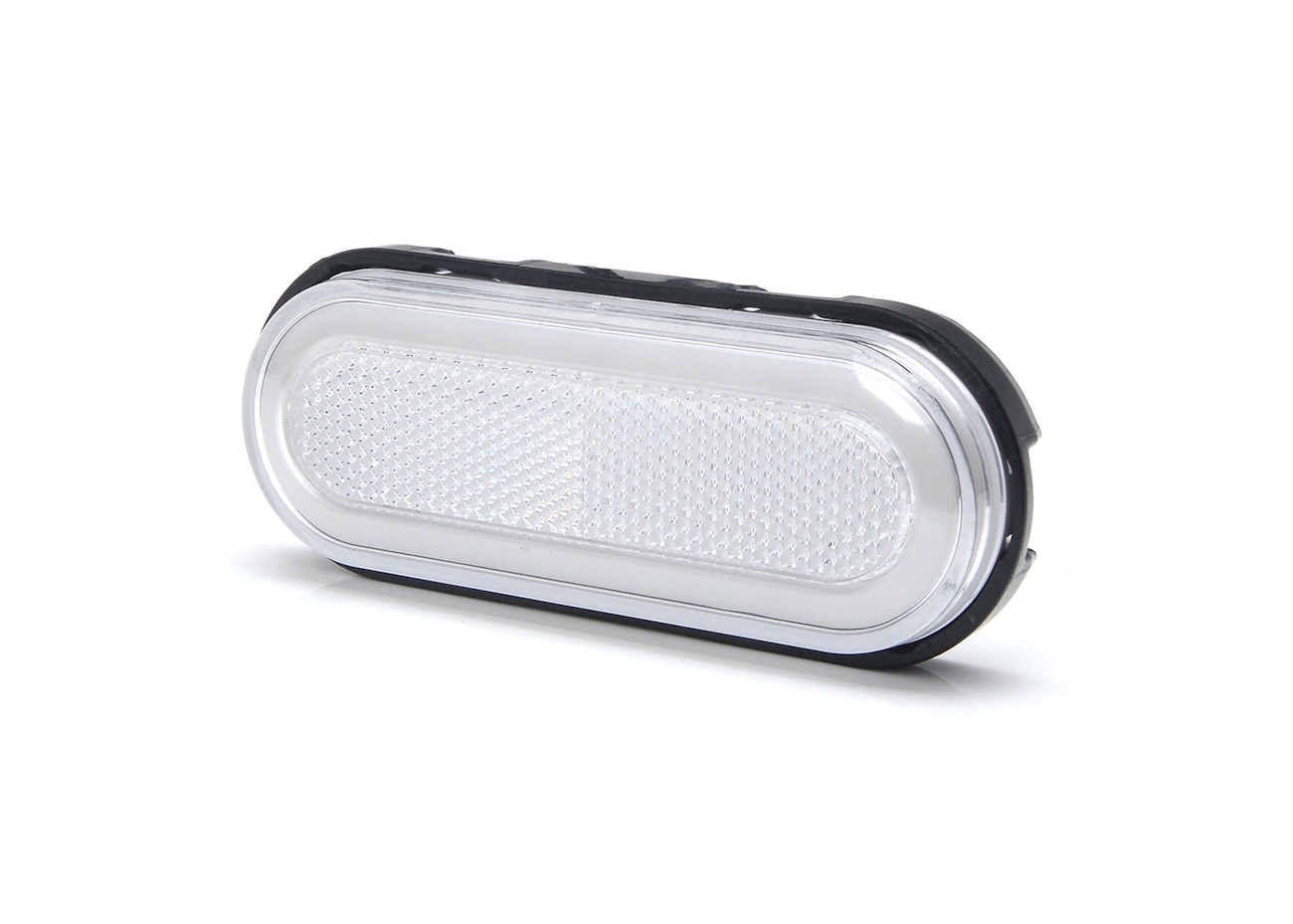

RL198 Series Dotless LED Front Marker Light with Reflector

PART NO: RL198004

Product options
  • Product Overview:
    • Modern, dotless side marker light with an integrated reflector.
    • Approved for vertical and horizontal mounting.
    • ADR-approved version available.
    • Supplied pre-terminated with a Superseal connector as standard for fast and simple installation.
    • Screws go through the back plate only and not the lamp, maintaining the integrity of the seal.
    • Side, side with direction indicator and rear marker light options also available.
  • Warranty: 3 Years
  • Approvals: ECE R3, R7, R10.
Contact Us
Play

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Dotless LED Front Marker Light with Reflector and Superseal Connector
PART NUMBER RL198004
IP RATING IP68
VOLTAGE (V) DC 12/24
CURRENT DRAW (AMPS) 0.058A @ 12V, 0.063A @ 24V
CABLE LENGTH (MM) 250
CONNECTORS SuperSeal
LIGHT COLOUR White
LENS COLOUR Clear
DIAMETER (MM) N/A
LENGTH (MM) 124
HEIGHT (MM) 49
DEPTH (MM) 20
WEIGHT (KG) 0.097
