WS0001 Illuminated
WS0001
WS0001 Illuminated
WS0001
WS0001 Side
WS0001 Side

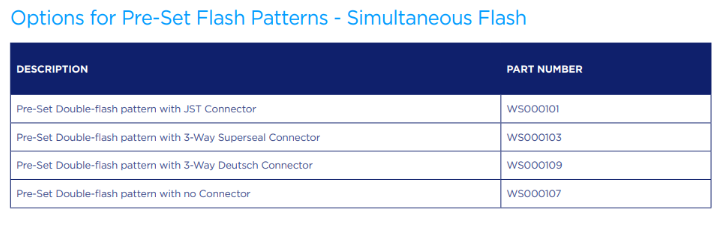

WS0001 Options for Simultaneous Flash

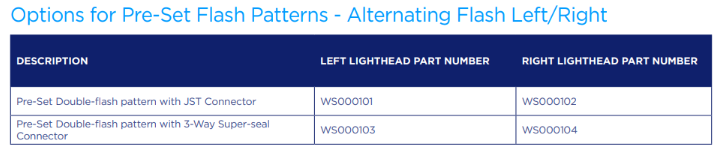

WS0001 Options for Alternating Flash Left/Right

V70 Series Horizontal R65 LED Lighthead - Amber

PART NO: WS0001

Product options
  • Product Overview:
    • Available pre-terminated with a range of connectors and pre-set to an R65 flash pattern for super-fast fitment.
    • 2.5mm radius edges for additional protection.
    • Multiple flash patterns.
    • Syncs with other directional units.
    • Sleek design and low profile to blend in to your vehicle.
    • Excellent light output for maximum visibility.
    • Robust aluminium housing and polycarbonate lens.
    • Vertical option also available in the V70 Series.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10, R65.
Contact Us
Play

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Horizontal R65 LED Lighthead - Amber Horizontal R65 LED Lighthead - Amber with JST Connector, Pre-set Flash Pattern 3 Horizontal R65 LED Lighthead - Amber with JST Connector, Pre-set Flash Pattern 4 Horizontal R65 LED Lighthead - Amber with SuperSeal Connector, Pre-set Flash Pattern 3 Horizontal R65 LED Lighthead - Amber with SuperSeal Connector, Pre-set Flash Pattern 4 Horizontal R65 LED Lighthead - Amber pre-set R65 Double Flash Pattern, Group 1, Pattern 3 Horizontal R65 LED Lighthead - Amber with 2-Way SuperSeal Connector, Pre-set to Flash Pattern 3 Horizontal R65 LED Lighthead - Amber with Deutsch Connector, Pre-set to Flash Pattern 3
PART NUMBER WS0001 WS000101 WS000102 WS000103 WS000104 WS000107 WS000108 WS000109
IP RATING IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67
VOLTAGE (V) DC 10-30 10-30 10-30 10-30 10-30 10-30 10-30 10-30
CURRENT DRAW (AMPS) 0.125A @ 12V, 0.076A @ 24V 0.125A @ 12V, 0.076A @ 24V 0.125A @ 12V, 0.076A @ 24V 0.125A @ 12V, 0.076A @ 24V 0.125A @ 12V, 0.076A @ 24V 0.125A @ 12V, 0.076A @ 24V 0.125A @ 12V, 0.076A @ 24V 0.125A @ 12V, 0.076A @ 24V
CABLE LENGTH (MM) 200 235 235 240 240 200 240 250
CONNECTORS None JST JST SuperSeal SuperSeal None SuperSeal Deutsch
LIGHT COLOUR Amber Amber Amber Amber Amber Amber Amber Amber
LENS COLOUR Clear Clear Clear Clear Clear Clear Clear Clear
DIAMETER (MM) N/A N/A N/A N/A N/A N/A N/A N/A
LENGTH (MM) 118 118 118 118 118 118 118 118
HEIGHT (MM) 11.4 11.4 11.4 11.4 11.4 11.4 11.4 11.4
DEPTH (MM) 29 29 29 29 29 29 29 29
WEIGHT (KG) 0.059 0.065 0.065 0.066 0.066 0.059 0.066 0.066
