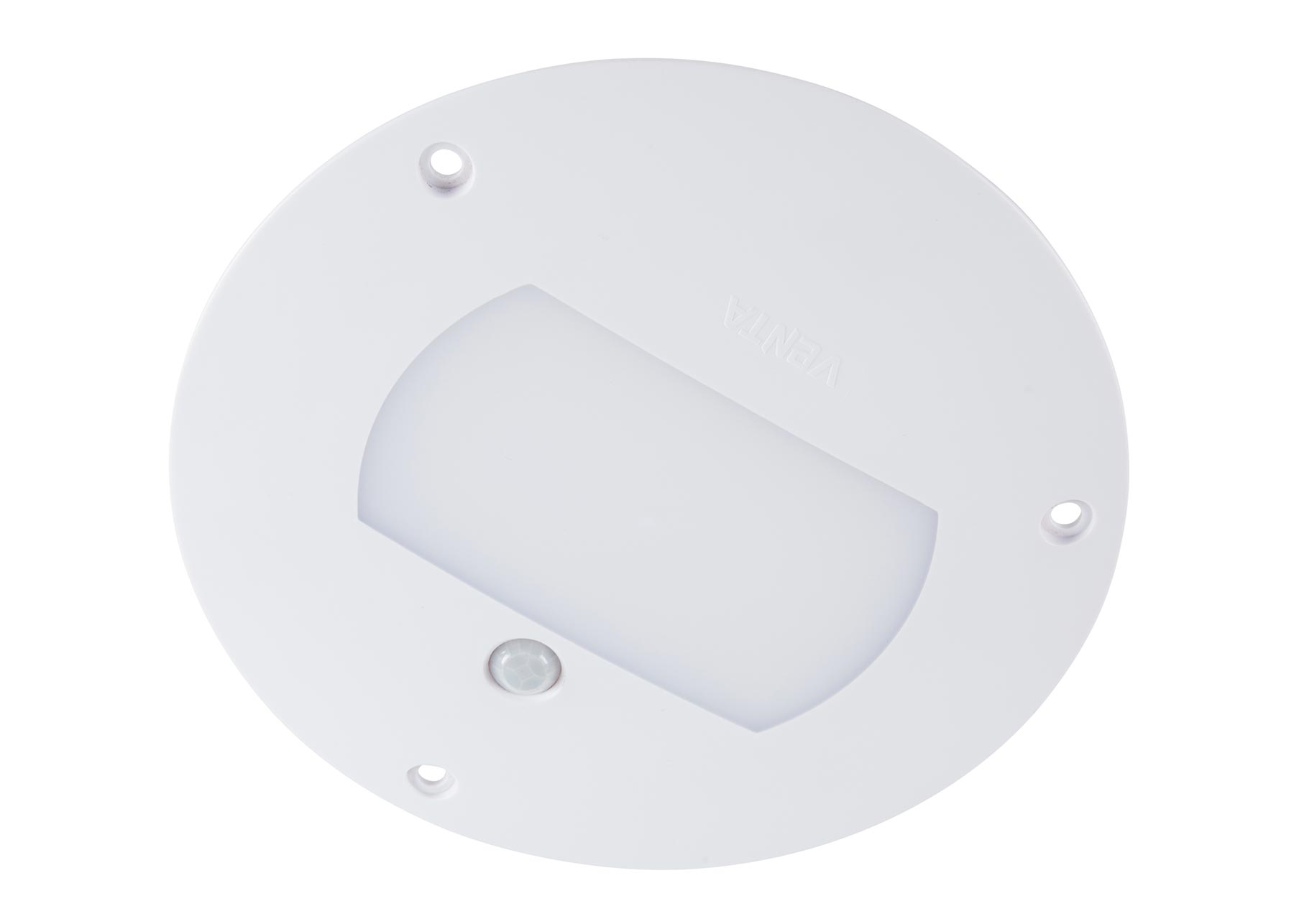

AU.25.4P.M.VG Illuminated
AU.25.4P.M.VG
AU.25.4P.M.VG Side
AU.25.4P.M.VG Front Illuminated

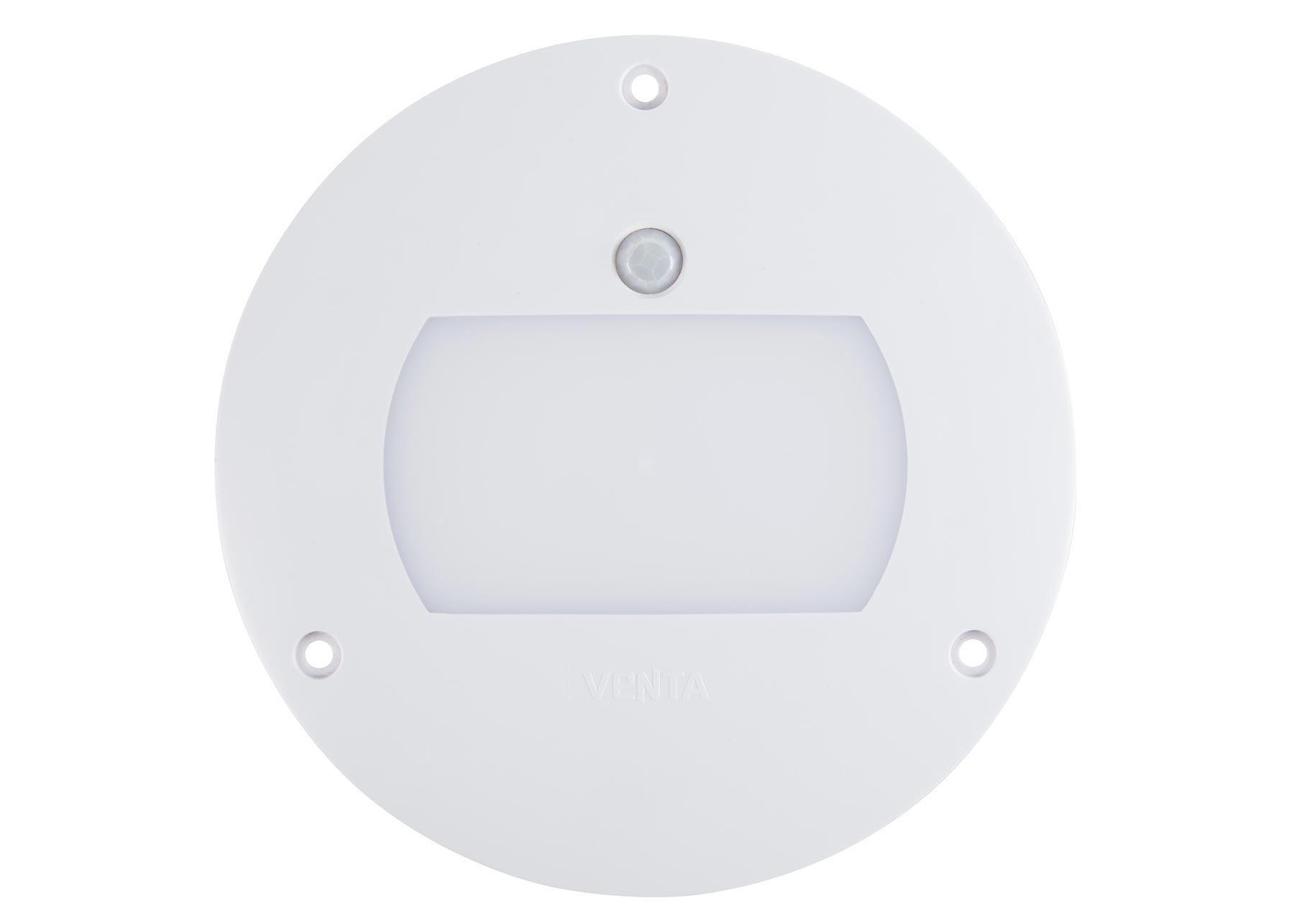

AU.25.4P.M.VG Front

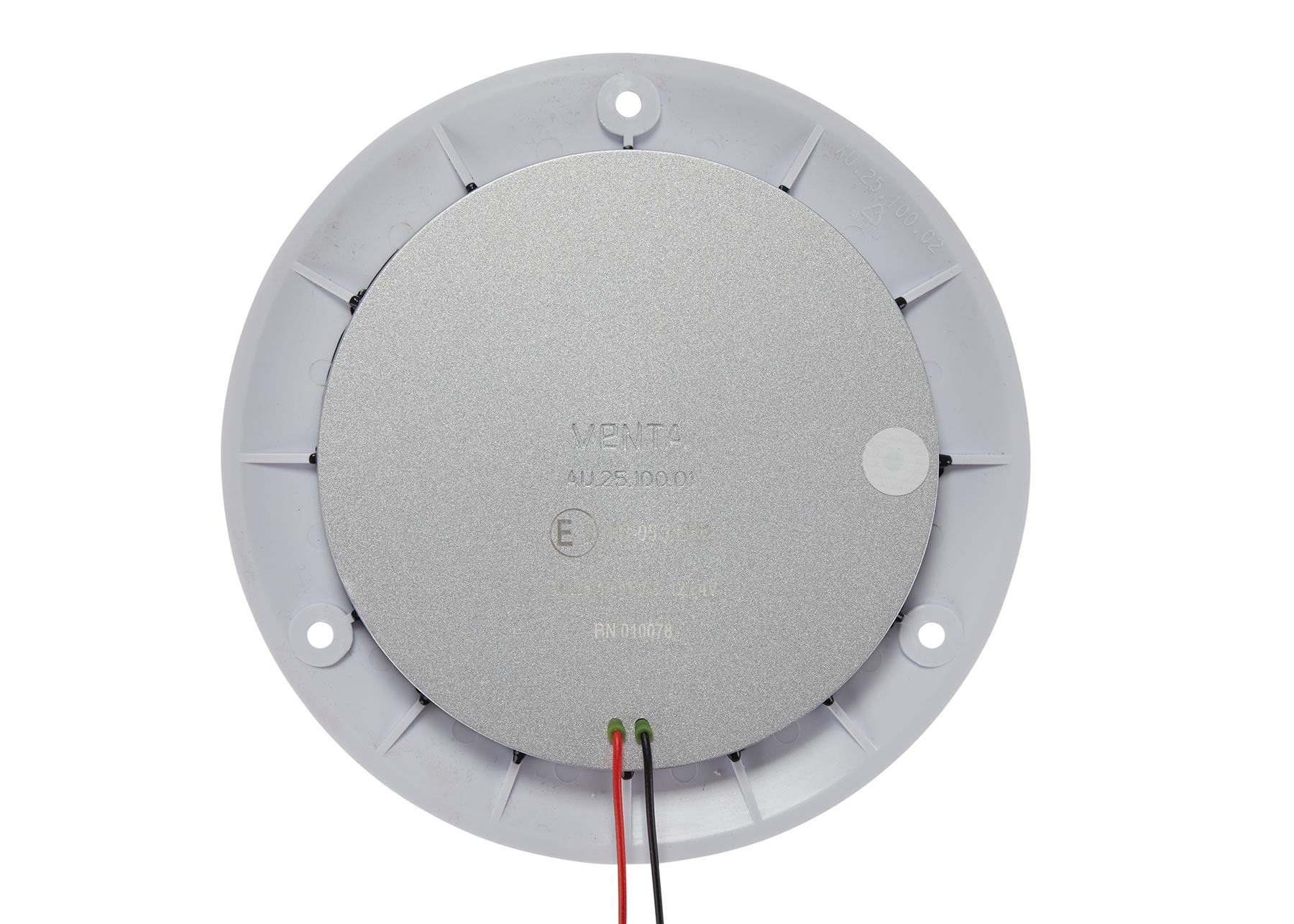

AU.25.4P.M.VG Back

AU.25 Series Round Dual Voltage LED Interior Light with PIR - Recessed Mount

PART NO: AU.25.4P.M.VG

Product options
  • Product Overview:
    • Provides a powerful, consistent and comfortable light spread for a range of interior applications.
    • 1,800 lumens.
    • Frosted lens gives an effective, homogenous output.
    • Wide and even light spread means fewer units are needed to achieve the same effect, saving time and money.
    • Strong polycarbonate lens and low profile design protects it from knocks and scrapes.
    • PIR sensor saves current draw on your vehicle. Light stays on for 30 seconds after the PIR is activated.
    • Non-PIR version also available.
    • Recessed mount.
    • Surface mount option also available.
    • Made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us
Play

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Round Dual Voltage LED Interior Light - Recessed Mount with PIR Round Dual Voltage LED Interior Light - Recessed Mount with PIR with Superseal Connector
PART NUMBER AU.25.4P.M.VG AU.25.4P.M.VG.S
IP RATING IP42 IP42
VOLTAGE (V) DC 12/24 12/24
CURRENT DRAW (AMPS) 0.8A @ 12V, 0.4A @24V 0.8A @ 12V, 0.4A @24V
CABLE LENGTH (MM) 200 240
CONNECTORS None SuperSeal
LIGHT COLOUR White White
LENS COLOUR Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 6000 6000
INTEGRAL SWITCH No No
PIR Yes Yes
DIAMETER (MM) 150 150
LENGTH (MM) N/A N/A
HEIGHT (MM) N/A N/A
DEPTH (MM) 18.5 18.5
WEIGHT (KG) 0.226 0.23
