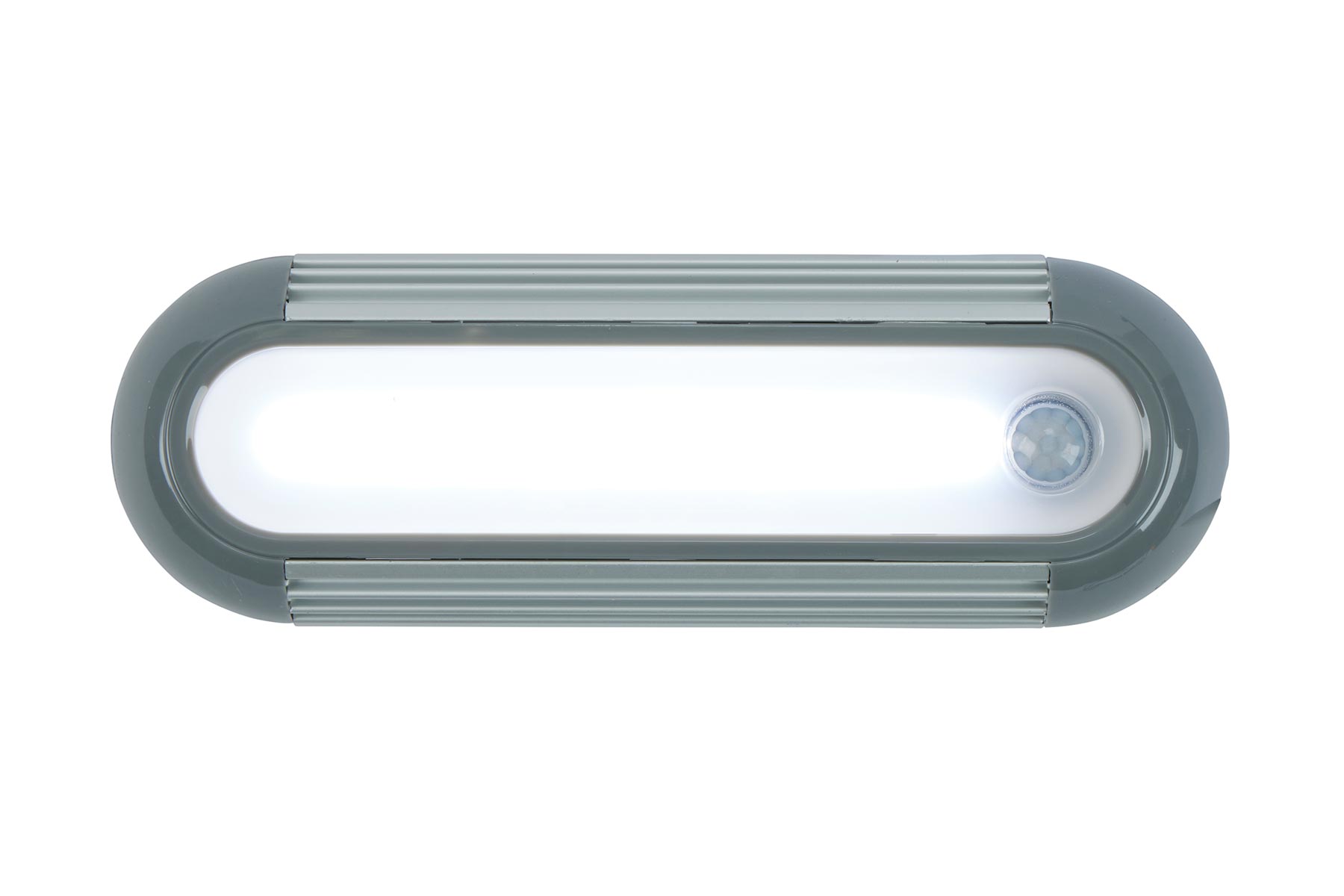

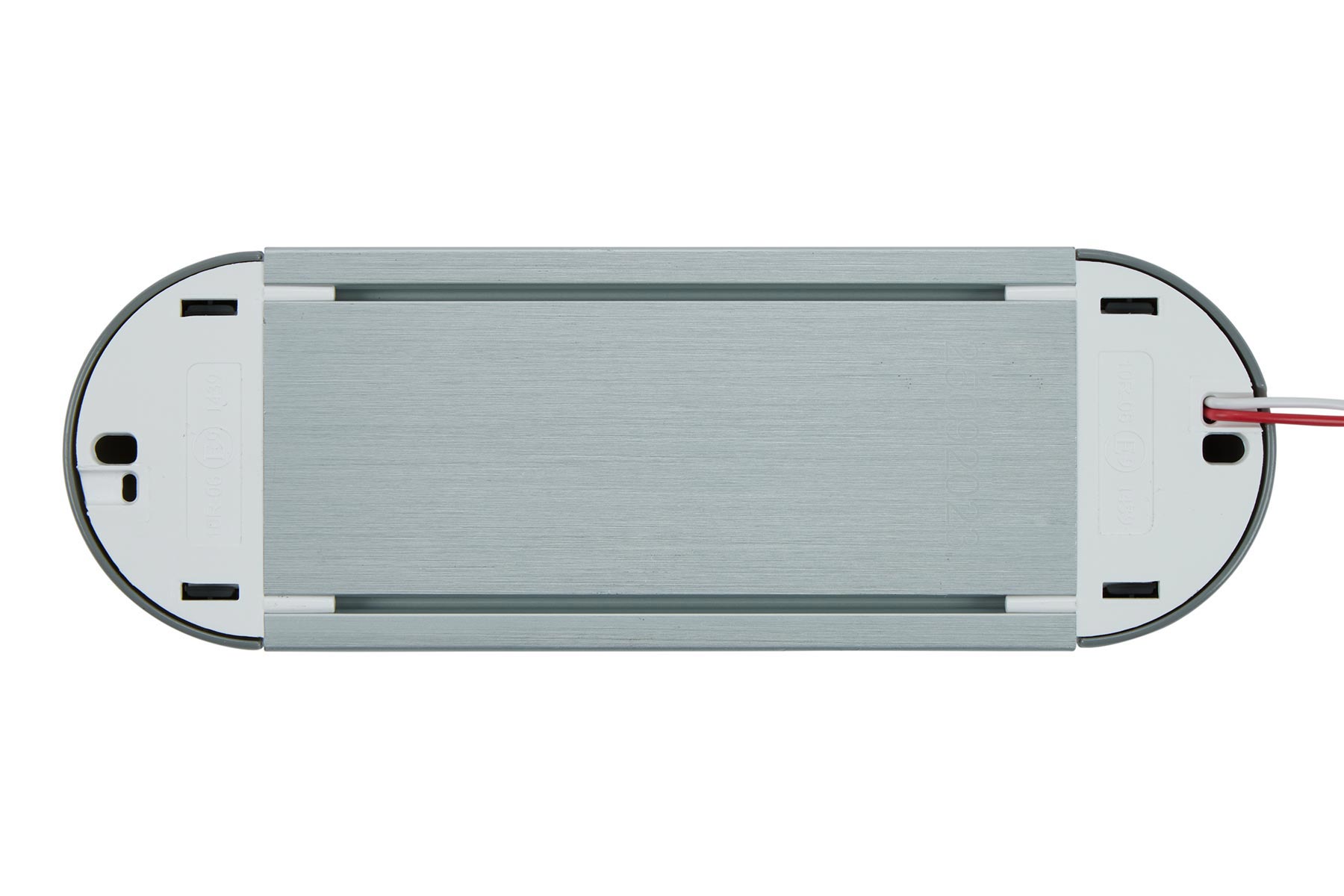

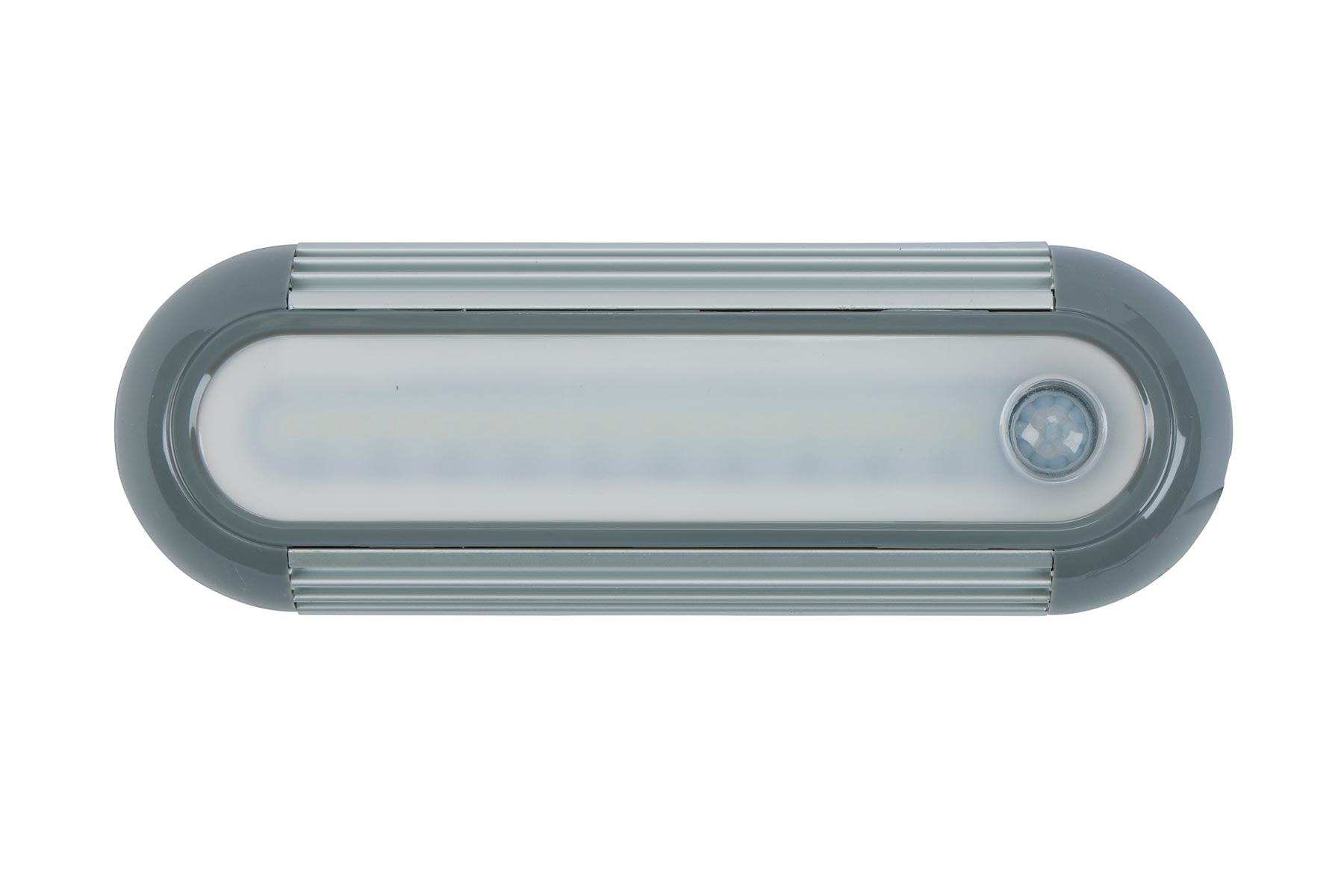

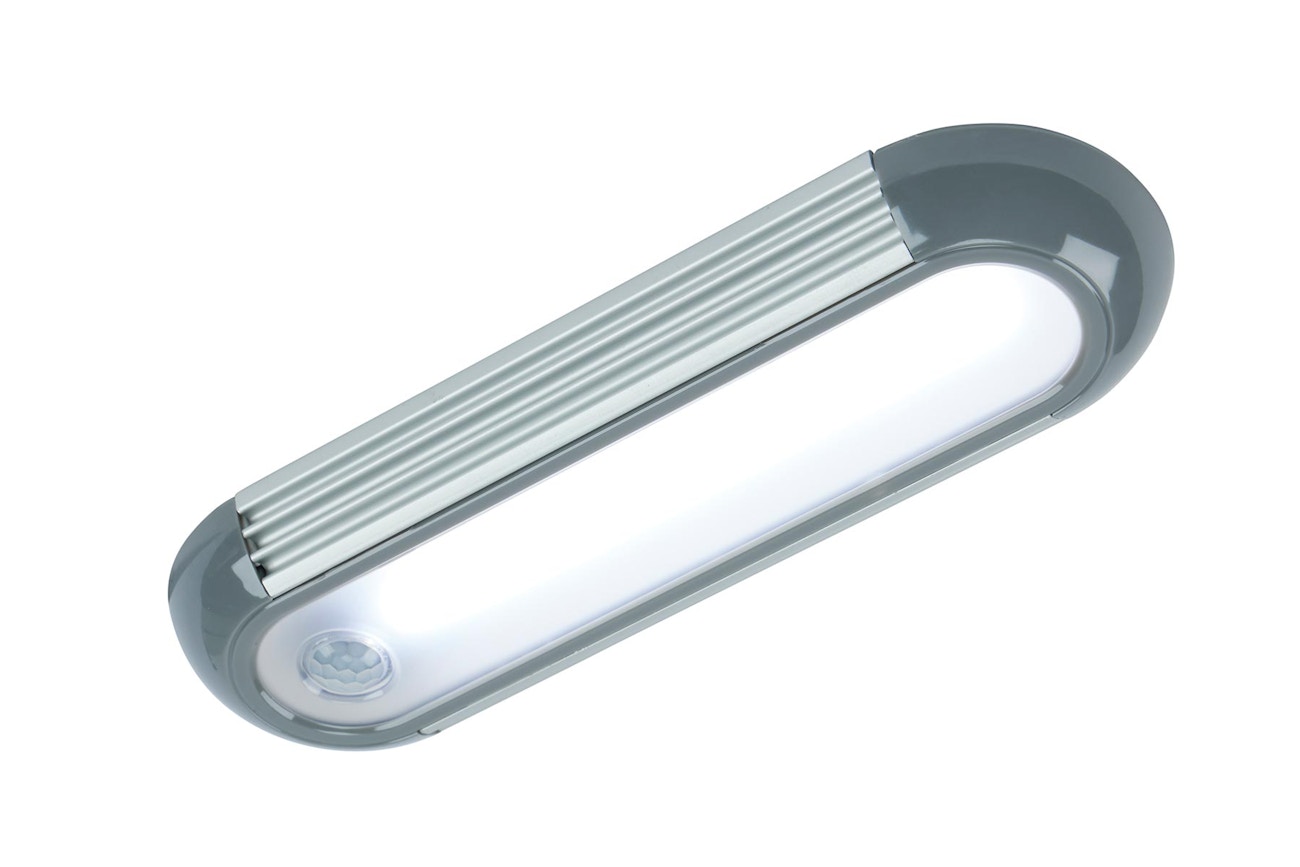

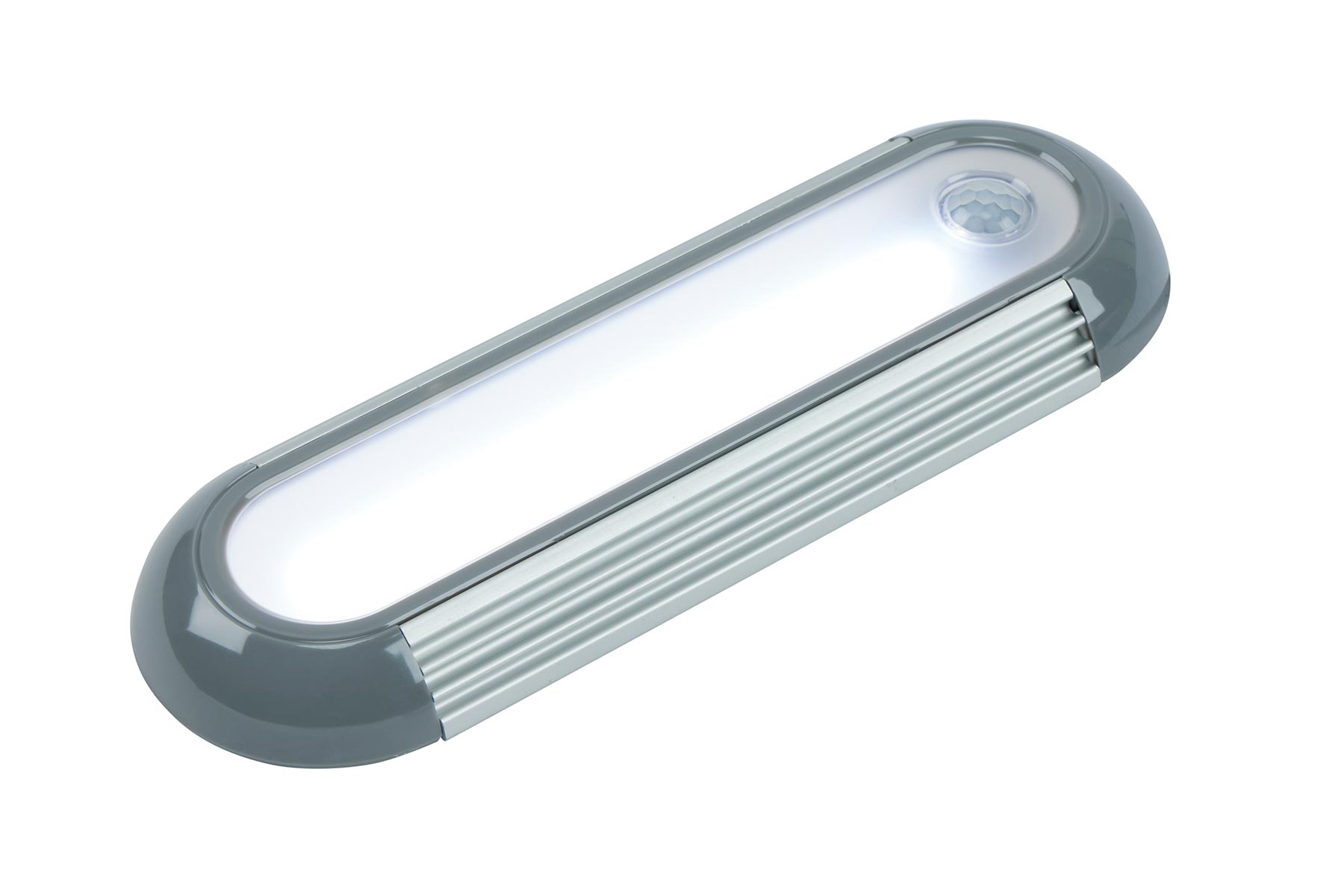

IL170 Series LED PIR Interior Light - Grey Housing

PART NO: IL170GPIR

Product options

Product Overview:
- Compact lamp fits well onto roof sticks.
- Integral PIR sensor.
- Diffused lens reduces glare.
- Very wide light spread of 120°.
- Robust housing with aluminium extrusion.
- Waterproof.
- Also available with white housing.
- Some variants are made to order. Lead times apply.
Warranty: 3 Years
Approvals: ECE R10.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE	LED PIR Interior Light - Grey Housing	LED PIR Interior Light - Grey Housing with Superseal Connector
PART NUMBER	IL170GPIR	IL170GPIRS
IP RATING	IP67	IP67
VOLTAGE (V) DC	12/24	12/24
CURRENT DRAW (AMPS)	0.9A @ 12V, 0.45A @ 24V	0.9A @ 12V, 0.45A @ 24V
CABLE LENGTH (MM)	190	230
CONNECTORS	None	SuperSeal
LIGHT COLOUR	White	White
LENS COLOUR	White	White
LIGHT COLOUR TEMPERATURE (°KELVINS)	6000	6000
INTEGRAL SWITCH	No	No
PIR	Yes	Yes
DIAMETER (MM)	N/A	N/A
LENGTH (MM)	172	172
HEIGHT (MM)	15	15
DEPTH (MM)	57	57
WEIGHT (KG)	0.142	0.146
