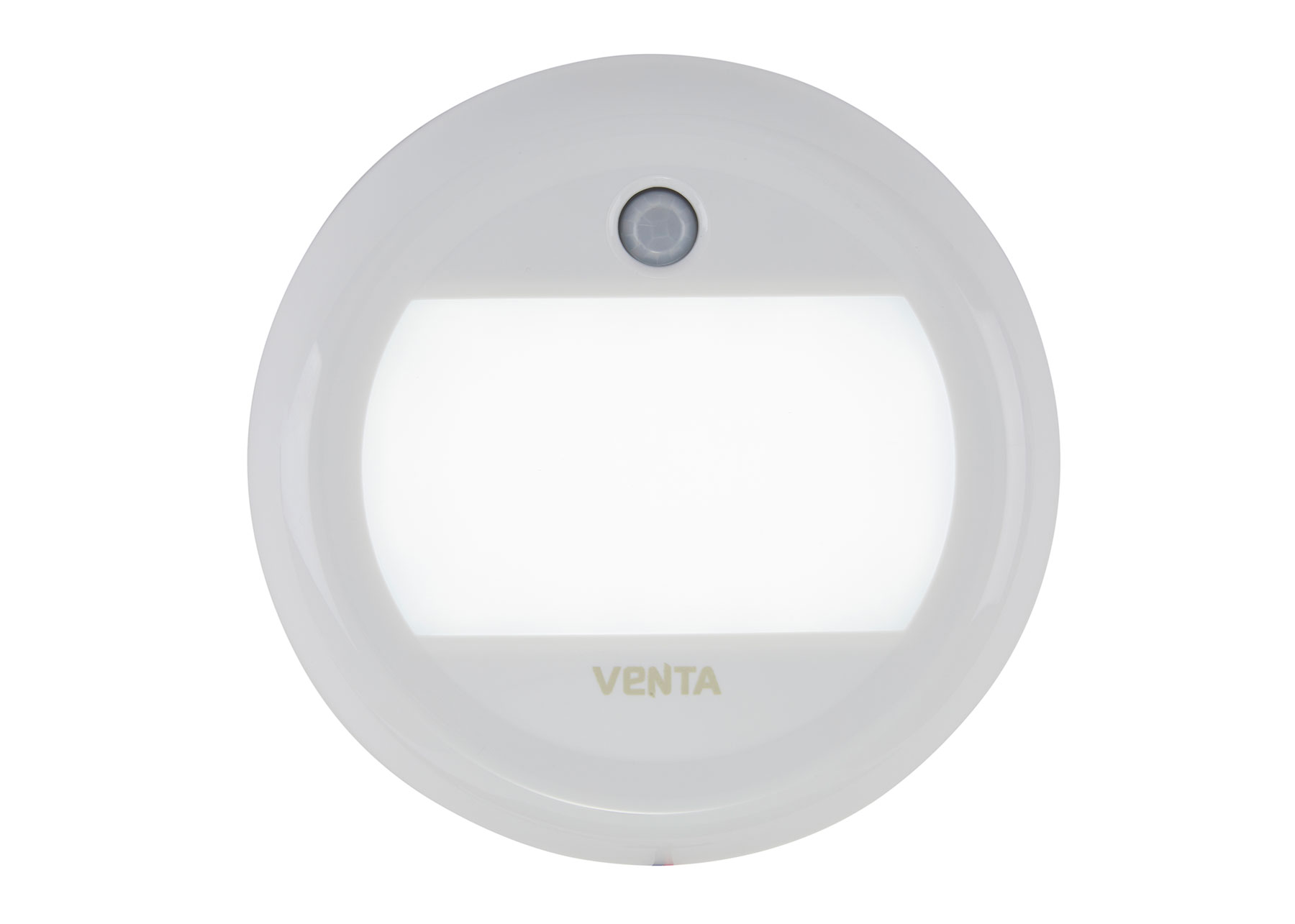

AU.25 Series Round Dual Voltage LED Interior Light with PIR - Surface Mount

PART NO: AU.25.4P.M.R

Product options

Product Overview:
- Provides a powerful, consistent and comfortable light spread for a range of interior applications.
- 1,800 lumens.
- Frosted lens gives an effective, homogenous output.
- Fully waterproof making it ideal for refrigerated vehicles or anywhere it could get wet.
- Wide and even light spread means fewer units are needed to achieve the same effect, saving time and money.
- Strong polycarbonate lens and low profile design protects it from knocks and scrapes.
- PIR sensor saves current draw on your vehicle. Light stays on for 30 seconds after the PIR is activated.
- Non-PIR version also available.
- Surface mount.
- Recessed option also available.
- Made to order. Lead times apply.
Warranty: 3 Years
Approvals: ECE R10.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE	Round Dual Voltage LED Interior Light - Surface Mount with PIR	Round Dual Voltage LED Interior Light - Surface Mount with PIR with Superseal Connector	Round Dual Voltage LED Interior Light - Surface Mount with PIR with Superseal Connector and Convoluted Tube
PART NUMBER	AU.25.4P.M.R	AU.25.4P.M.RS	AU.25.4PT.M
IP RATING	IP67	IP67	IP67
VOLTAGE (V) DC	12/24	10-30	12/24
CURRENT DRAW (AMPS)	2.1A @ 12V, 1A @ 24V	2.1A @ 12V, 1A @ 24V	2.1A @ 12V, 1A @ 24V
CABLE LENGTH (MM)	200	240	240
CONNECTORS	Pigtail	SuperSeal	SuperSeal
LIGHT COLOUR	White	White	White
LENS COLOUR	Clear	Clear	Clear
LIGHT COLOUR TEMPERATURE (°KELVINS)	6000	6000	6000
INTEGRAL SWITCH	No	No	No
PIR	Yes	Yes	Yes
DIAMETER (MM)	130	130	130
LENGTH (MM)	N/A	N/A	N/A
HEIGHT (MM)	N/A	N/A	N/A
DEPTH (MM)	18.5	18.5	18.5
WEIGHT (KG)	0.239	0.243	0.247

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
