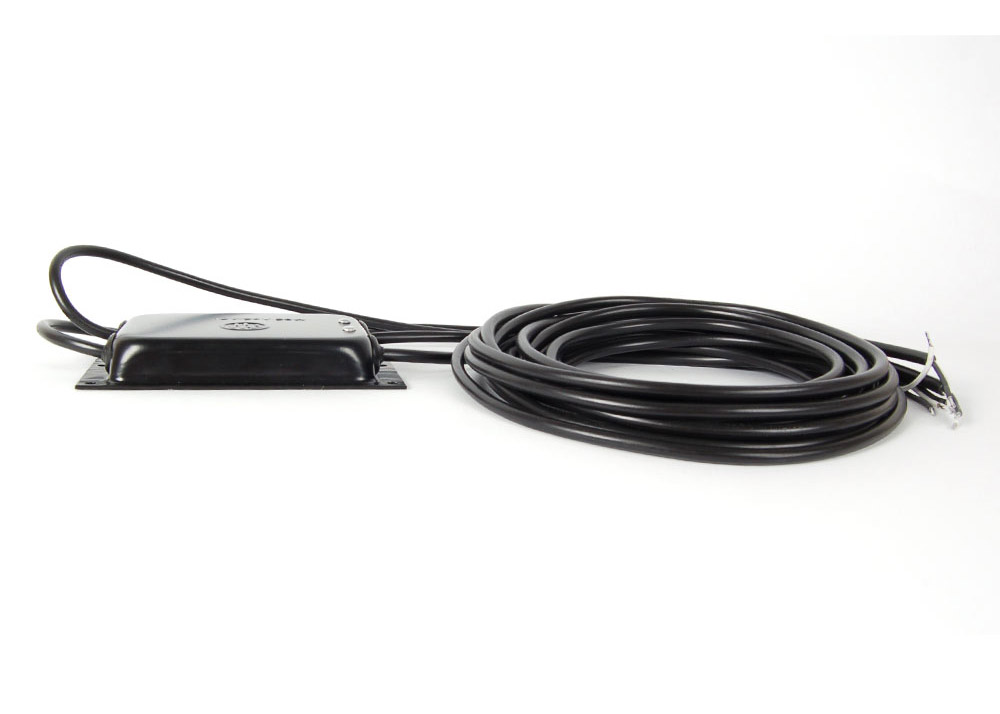

Intelligent Load Module - Double Channel

PART NO: LMI2

Product options
  • Product Overview:
    • Simulates the current draw for standard halogen direction indicator.
    • Monitors the state of the LED lamp.
    • Robust construction.
    • Fully sealed against water ingress.
    • Single and double channel versions available.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Intelligent Load Module - Double Channel, 2m Cable
PART NUMBER LMI2
IP RATING IP67
VOLTAGE (V) DC 12/24
CURRENT DRAW (AMPS) 2.16A @ 12V, 1.08A @ 24V
CABLE LENGTH (MM) 2000
CONNECTORS None
DIAMETER (MM) N/A
LENGTH (MM) 130
HEIGHT (MM) 90
DEPTH (MM) 20
WEIGHT (KG) 0.6
