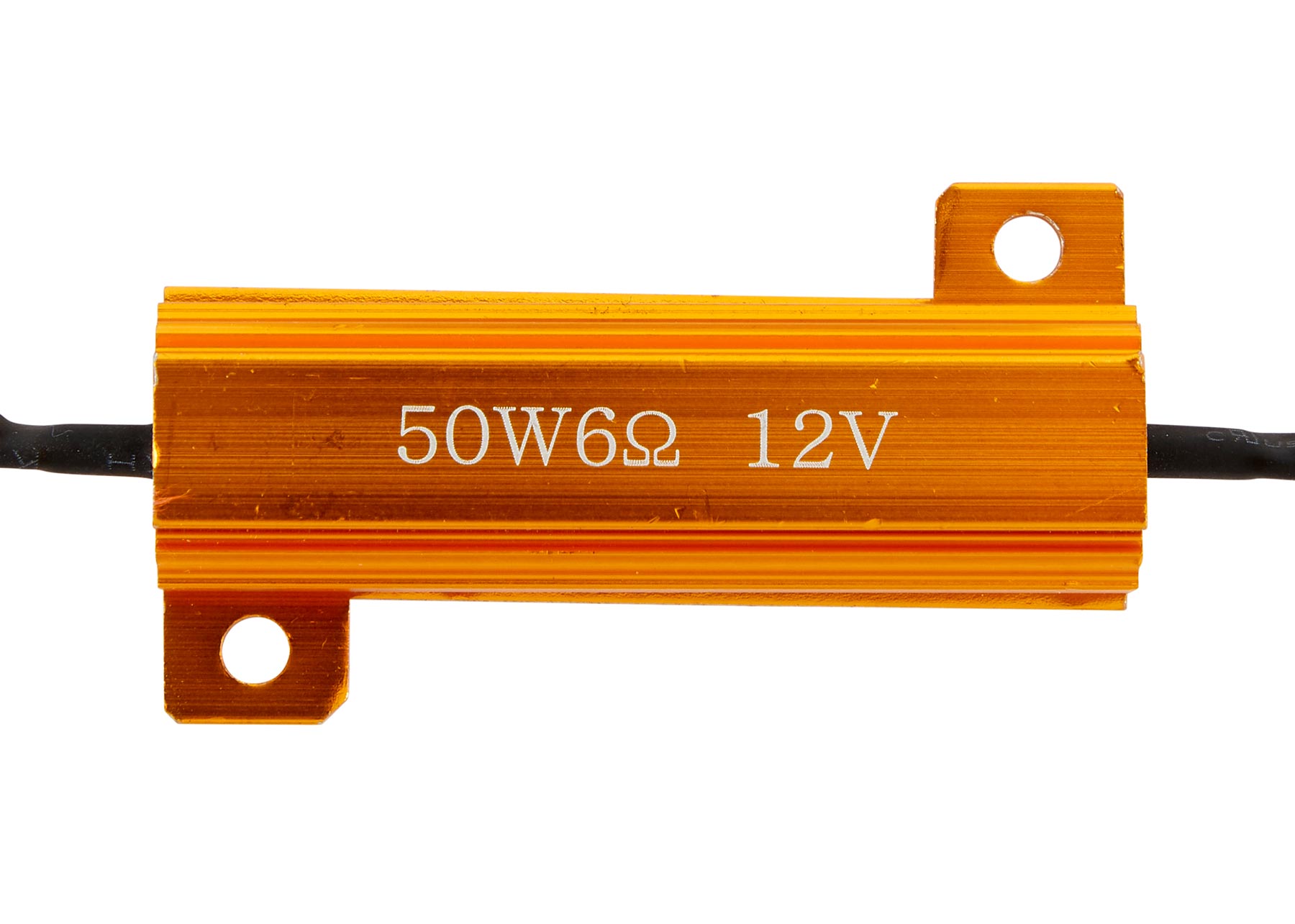

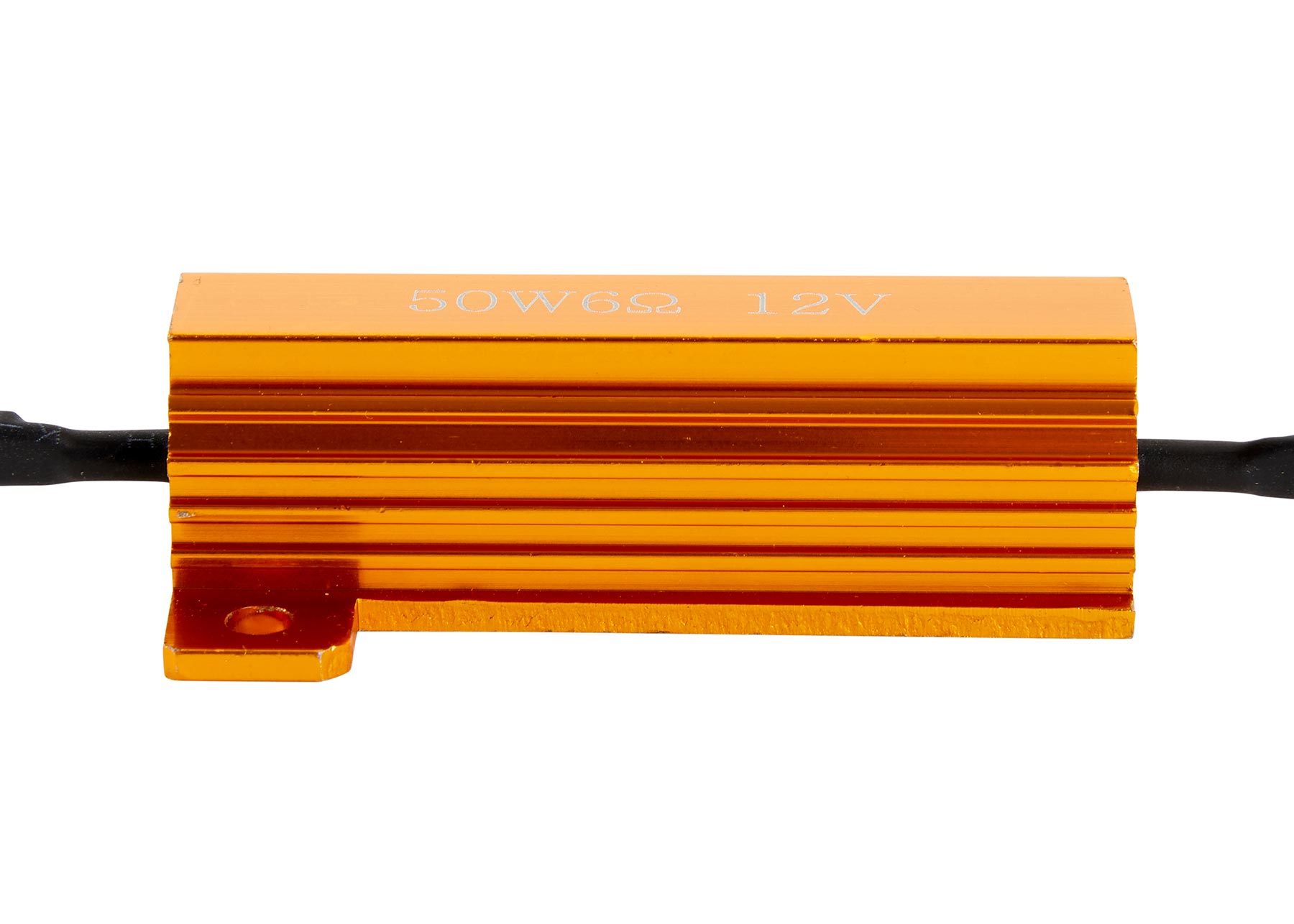

Load Module 12V, 50W, 6 ohm

PART NO: LM

Product options
  • Product Overview:
    • Simulates the current draw for standard halogen direction indicator.
    • No intelligence in loading.
    • Pre-plugged load module to create plug and play solution.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

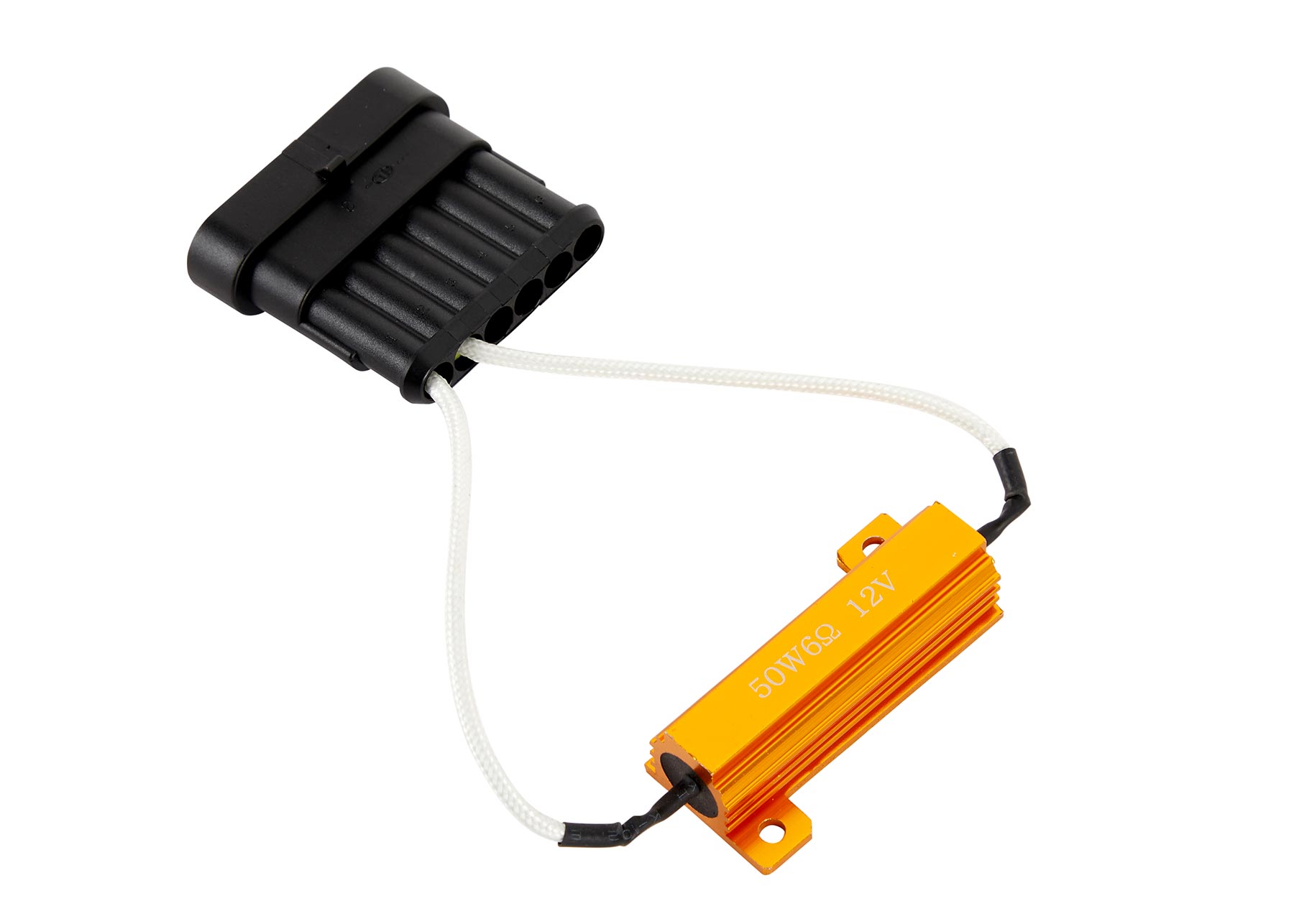

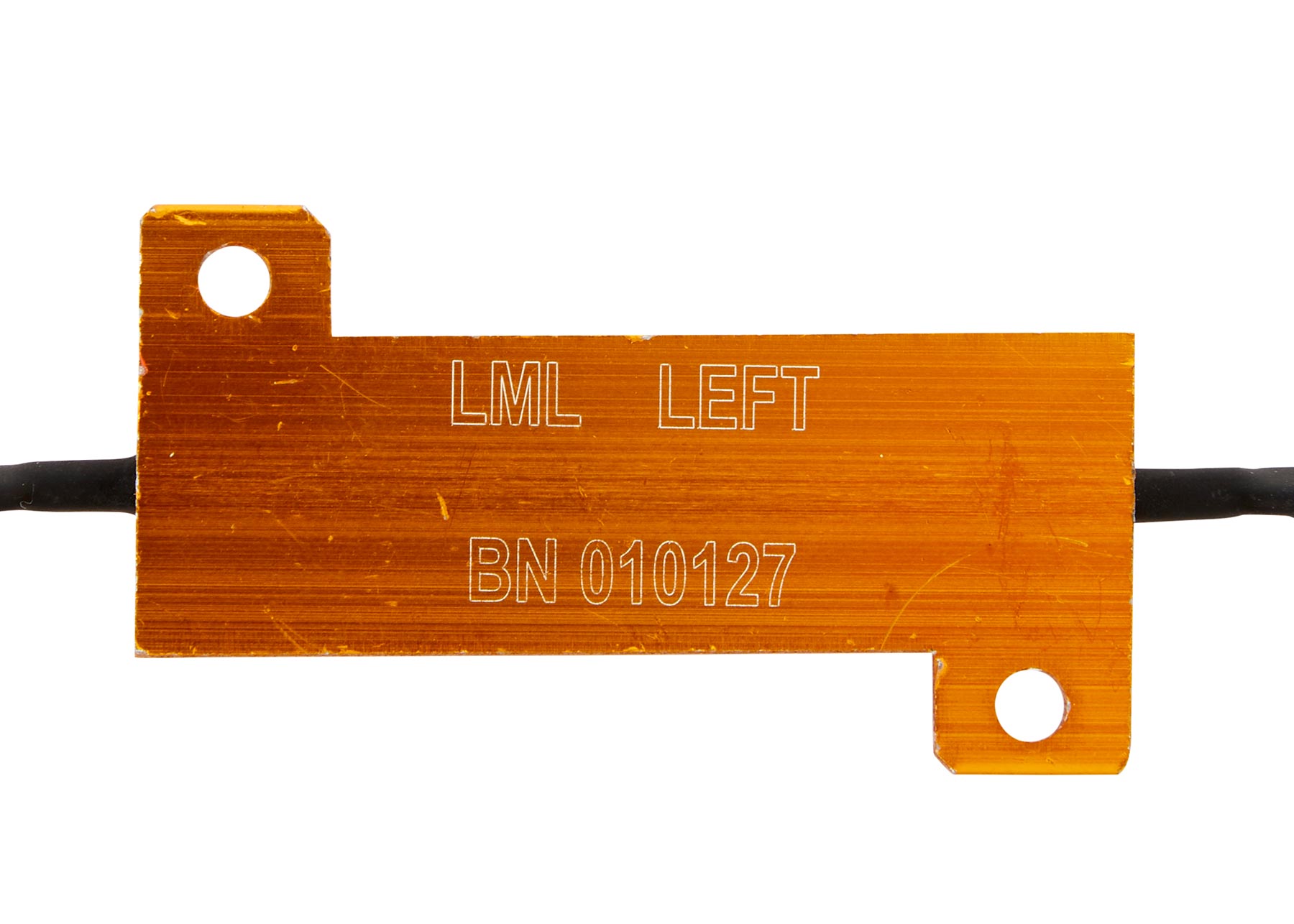

TITLE Load Module 12V, 50W, 6 ohm Load Module - Left Hand Load Module - Right Hand
PART NUMBER LM LML LMR
IP RATING IP51 IP51 IP51
VOLTAGE (V) DC 12 12 12
CURRENT DRAW (AMPS) 4.167A @ 12V 4.167A @ 12V 4.167A @ 12V
CABLE LENGTH (MM) 100 140 140
CONNECTORS None None None
DIAMETER (MM) N/A N/A N/A
LENGTH (MM) 50 50 50
HEIGHT (MM) 15.5 15.5 15.5
DEPTH (MM) 29 29 29
WEIGHT (KG) 0.027 0.042 0.042
