AN1141

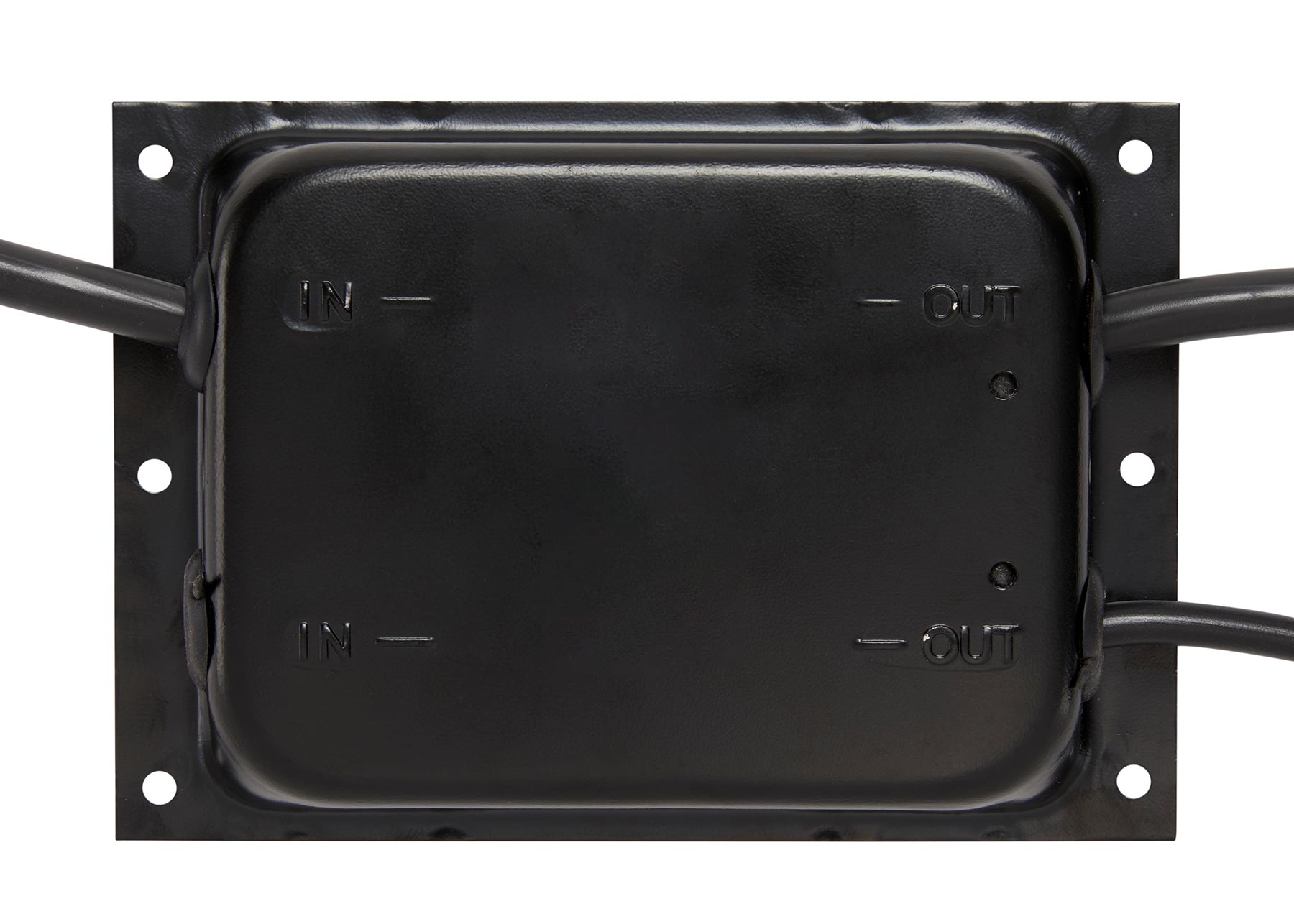

AN1141 Front
AN1141 Back

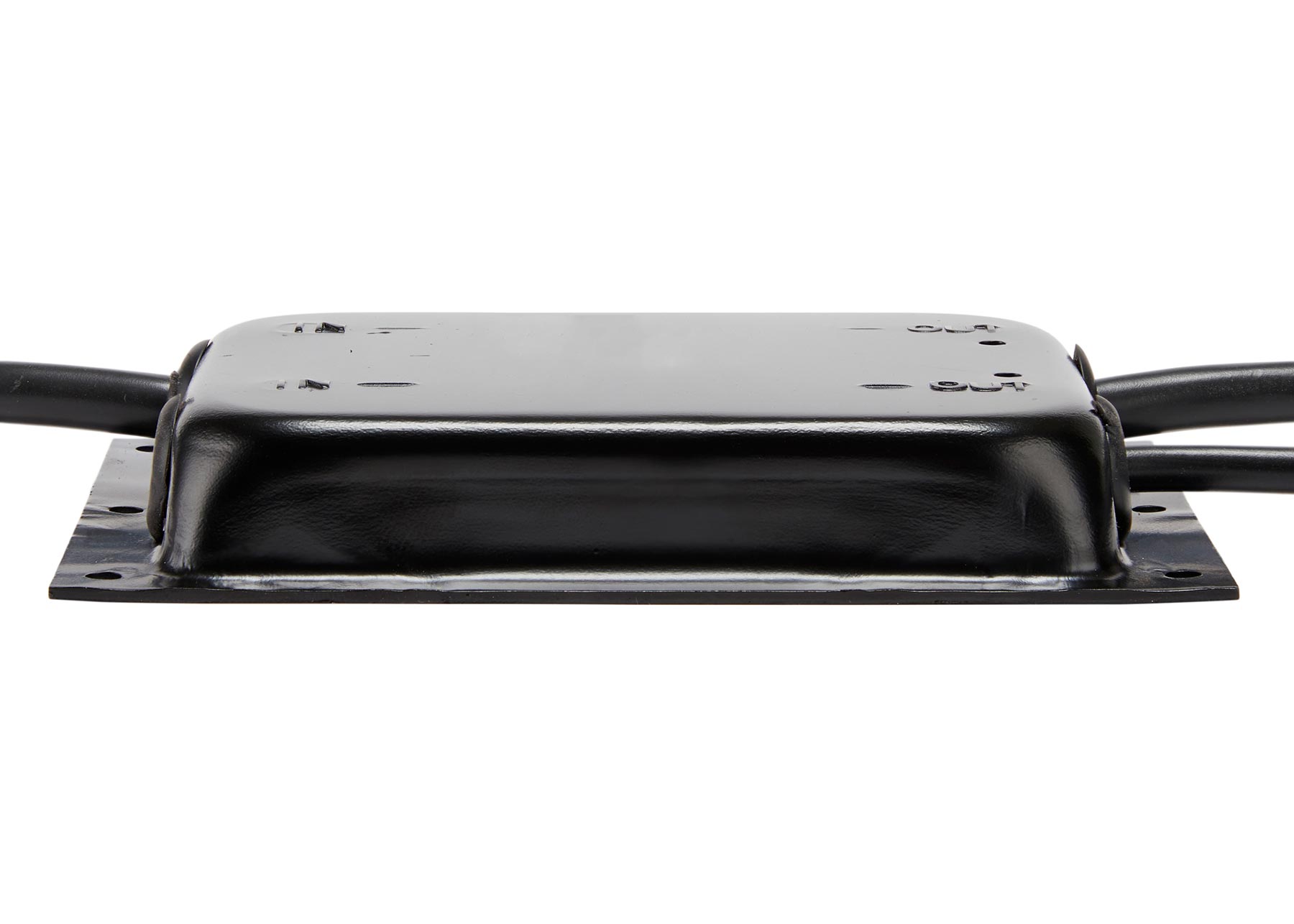

AN1141 Side

Side Marker Flasher Unit

PART NO: AN1141

Product options
  • Product Overview:
    • Controls the flashing of the vehicle’s side marker illumination system simultaneously to tail light direction indicator flashes.
    • A cost effective alternative to side marker indicators to meet updated Regulation 48 legislation.
    • Tyco chassis connectors.
    • Two-way Superseal connector on the marker light feed.
  • Warranty: 3 Years
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Side Marker Flasher Unit - Single Channel
PART NUMBER AN1141
IP RATING IP67
VOLTAGE (V) DC 12/24
CURRENT DRAW (AMPS) 2A @ 12V, 1A @ 24V
CABLE LENGTH (MM) 1000
CONNECTORS Tyco & Superseal
DIAMETER (MM) N/A
LENGTH (MM) 129
HEIGHT (MM) 20
DEPTH (MM) 90
WEIGHT (KG) 0.62
