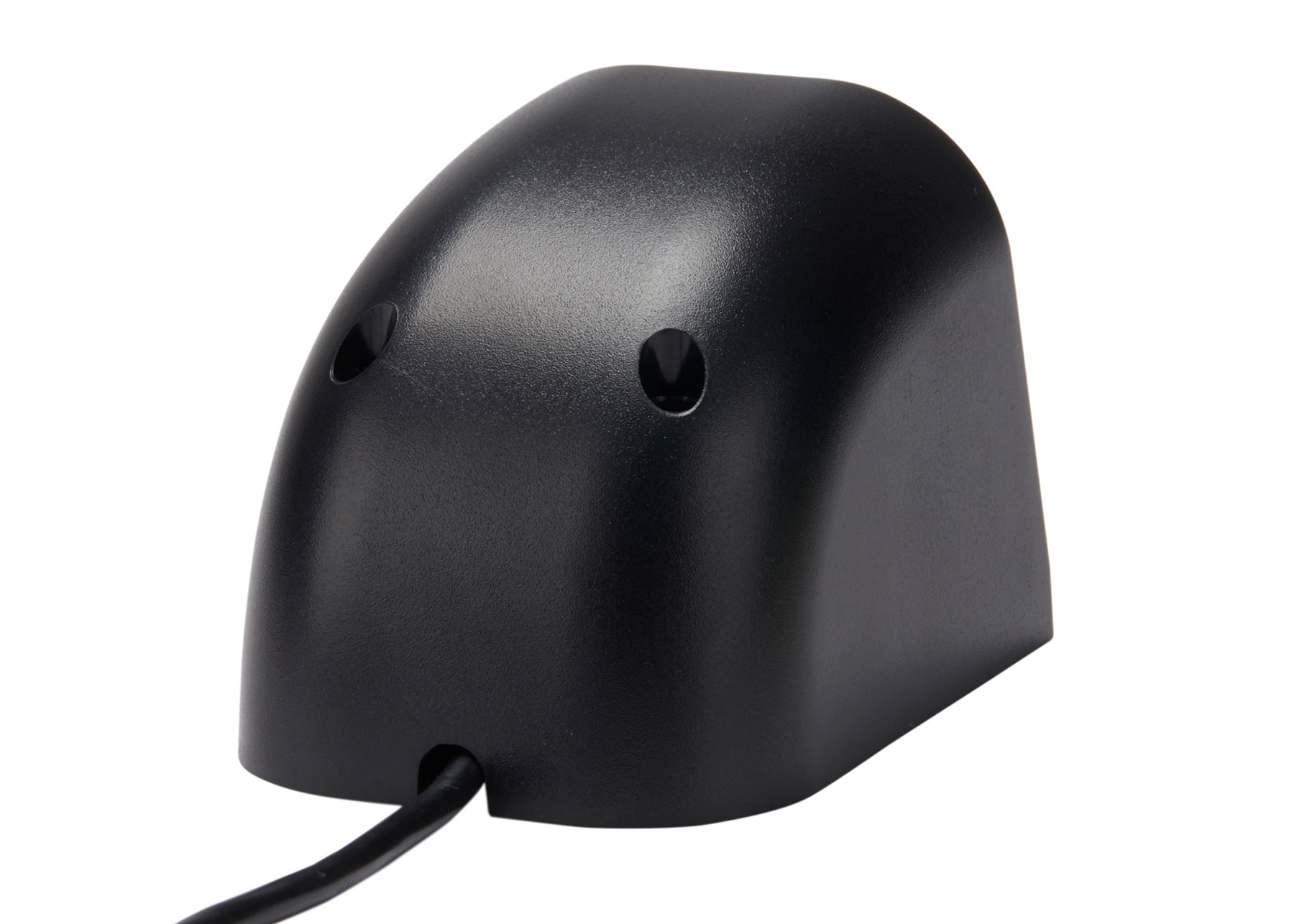

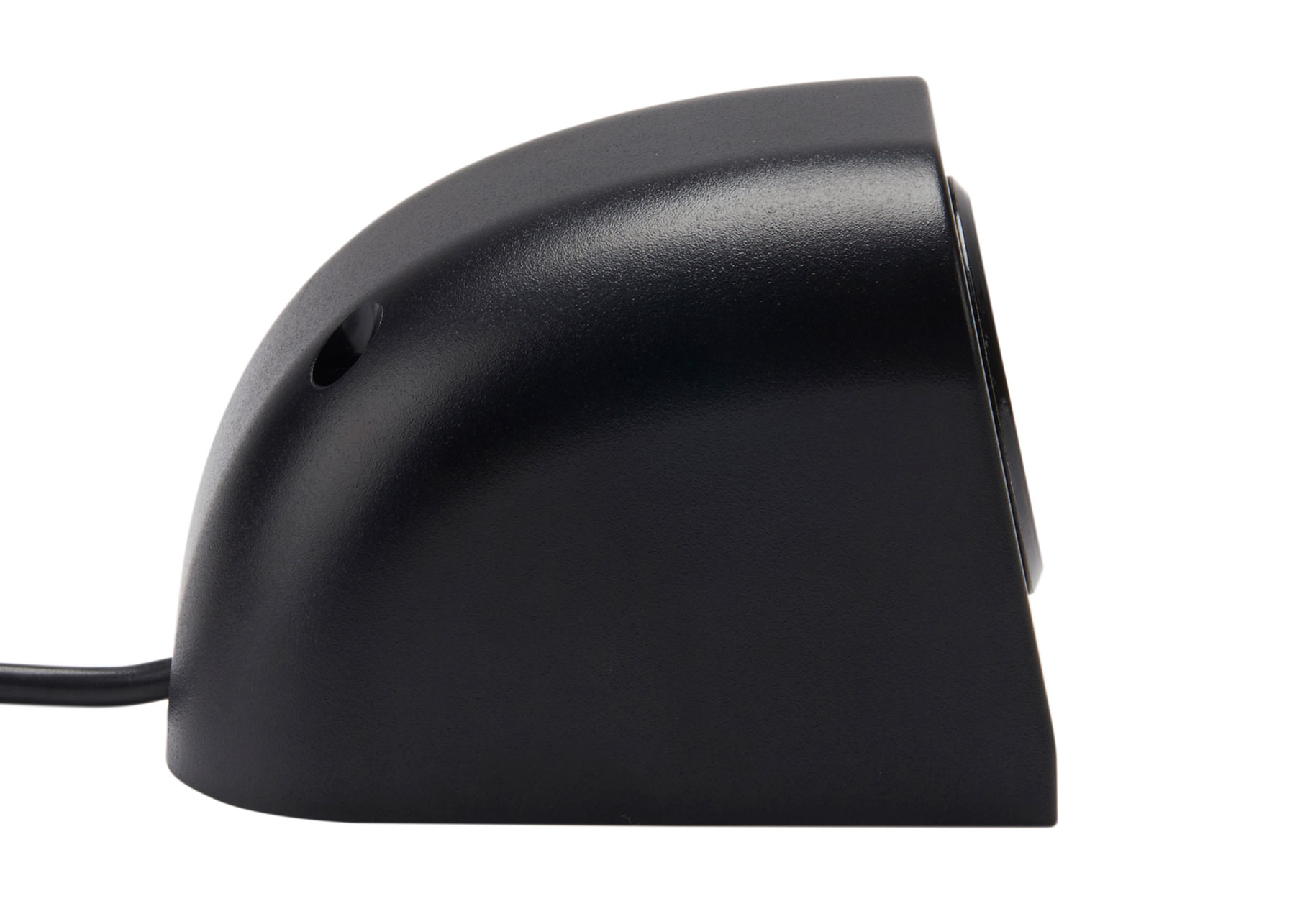

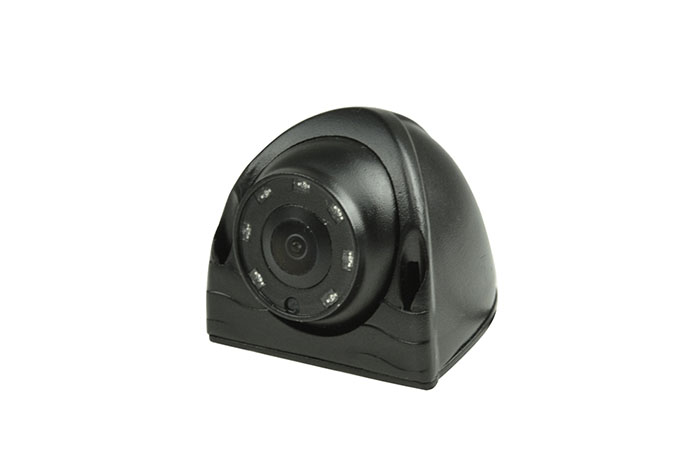

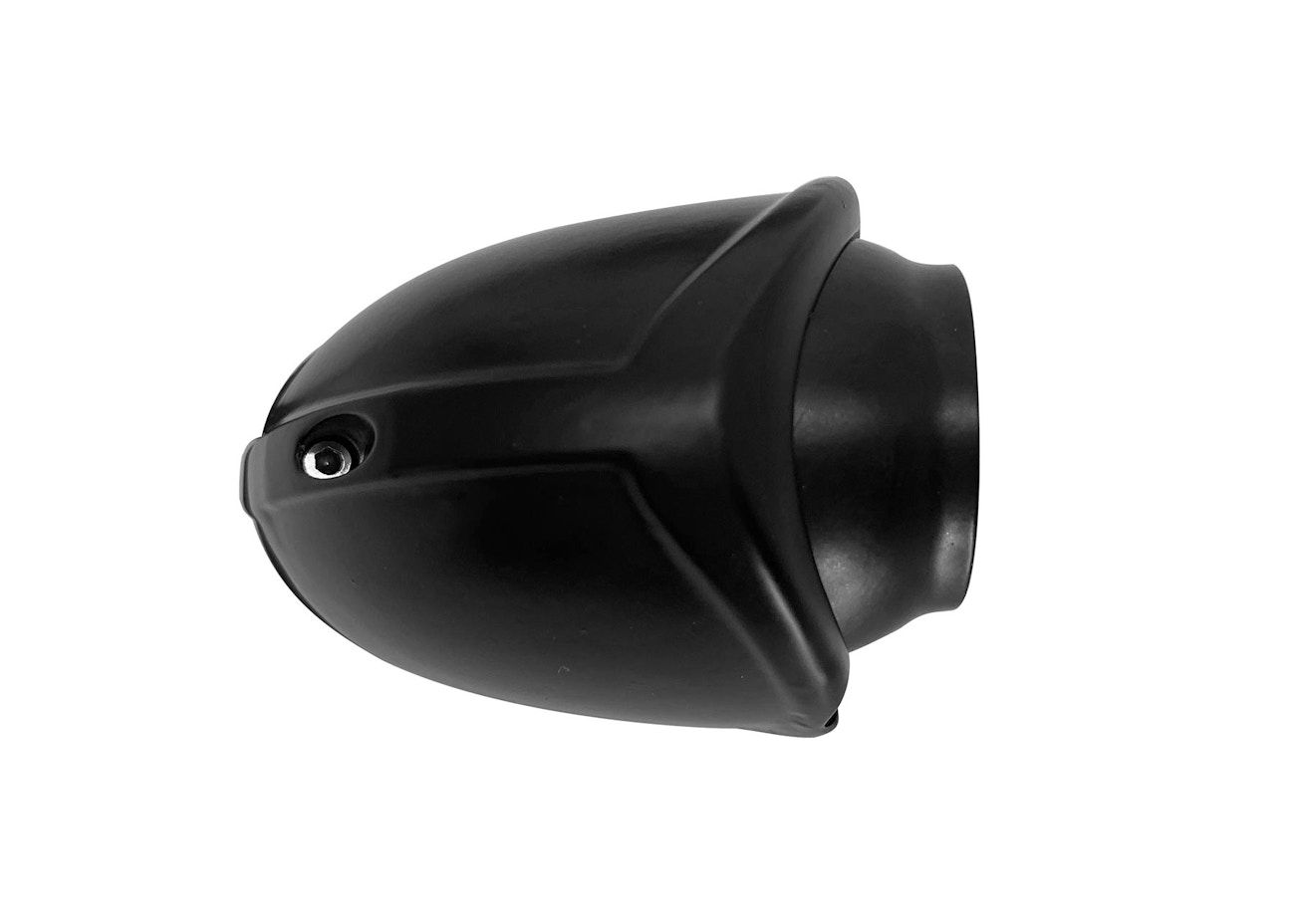

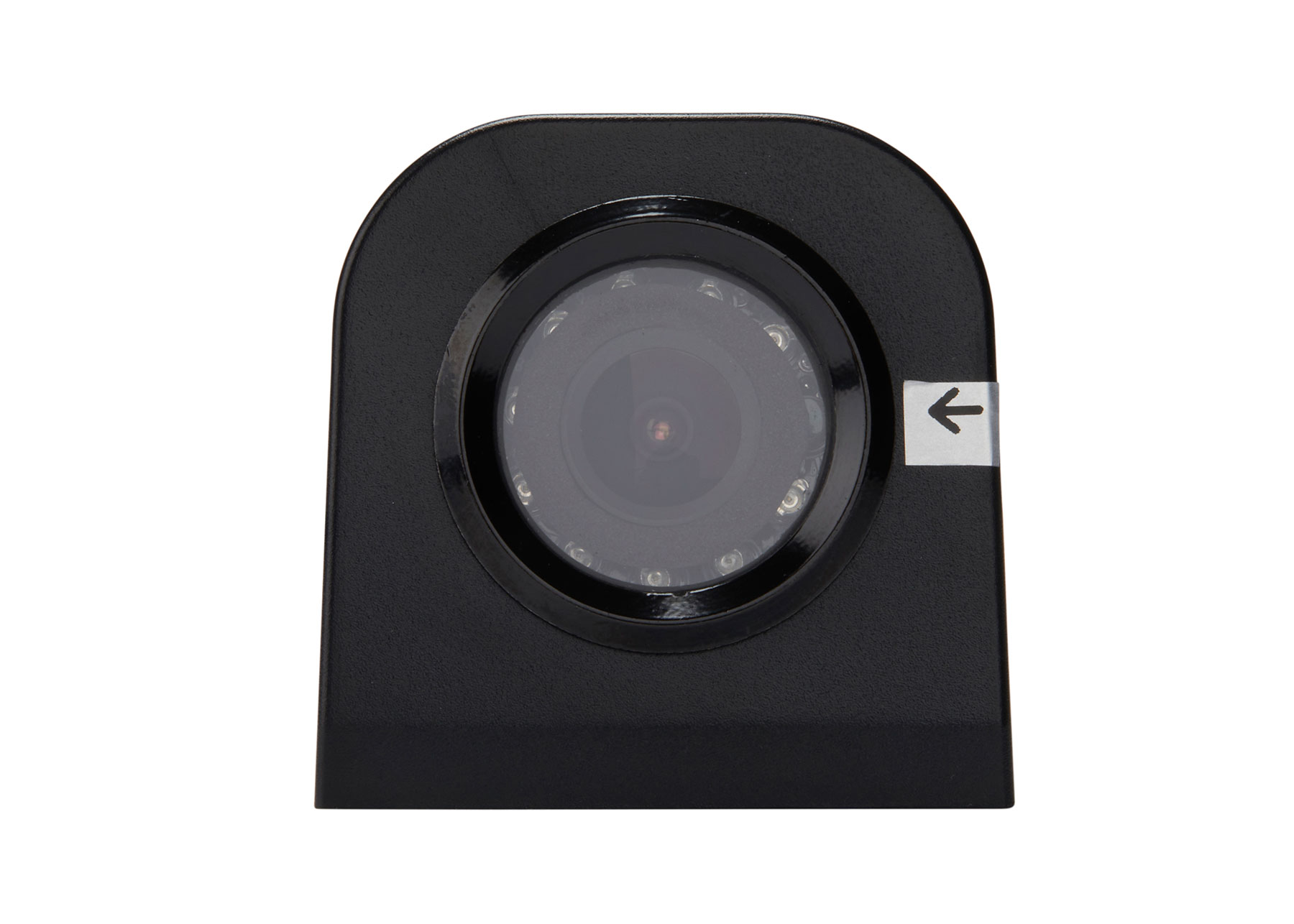

LED Side Camera with Night Vision

PART NO: RSC12

Product options
  • Product Overview:
    • Viewing angle: 120°.
    • Image type: 1/3 Colour CCD/CMOS.
    • TV system: NTSC/PAL.
    • Image: Left or right for selection.
    • Vibration rate: 10G.
    • Effective pixels: N: 510*492 pixels P: 500*582 pixels.
    • Horizontal resolution: 700TVL.
    • Video output: 1.0vp-p, 75Ohm.
    • BLC: Back light compensation (Auto).
    • White balance: Auto White Balance (Auto).
    • S/N ratio: ≥48dB.
    • Electronic shutter: 1/60~1/100,000 Sec.
    • Built-in lens: f: 2.8mm.
    • Materials: Aluminium/ABS.
  • Warranty: 3 Years
  • Approvals: ECE R10, S3.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Side Camera with Night Vision
PART NUMBER RSC12
IP RATING IP69K
VOLTAGE (V) DC 12/24
CURRENT DRAW (AMPS) 0.25A @ 12V, 0.125A @ 24V
CABLE LENGTH (MM) 450
CONNECTORS None
DIAMETER (MM) N/A
LENGTH (MM) 47
HEIGHT (MM) 50
DEPTH (MM) 65
WEIGHT (KG) 0.088
