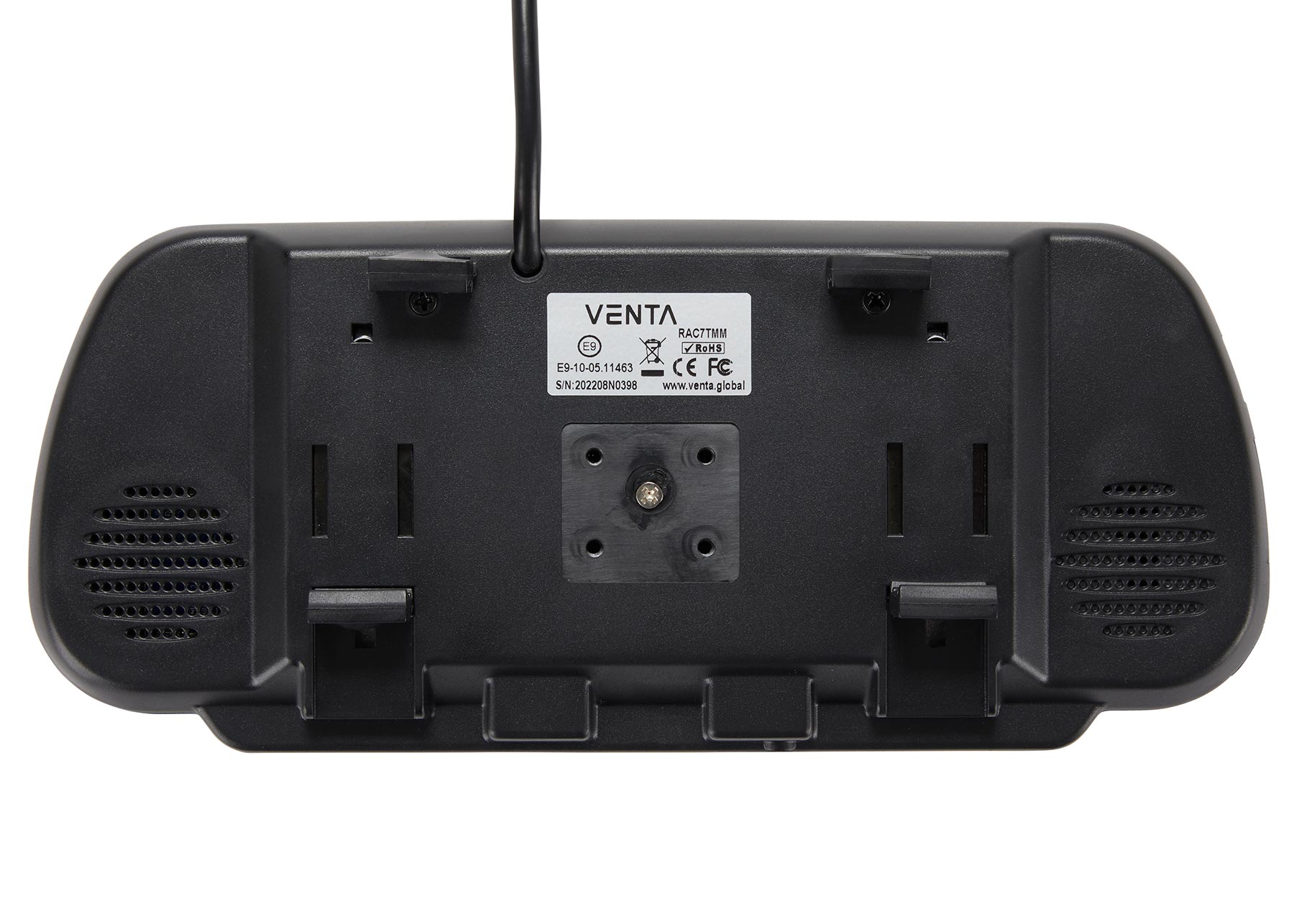

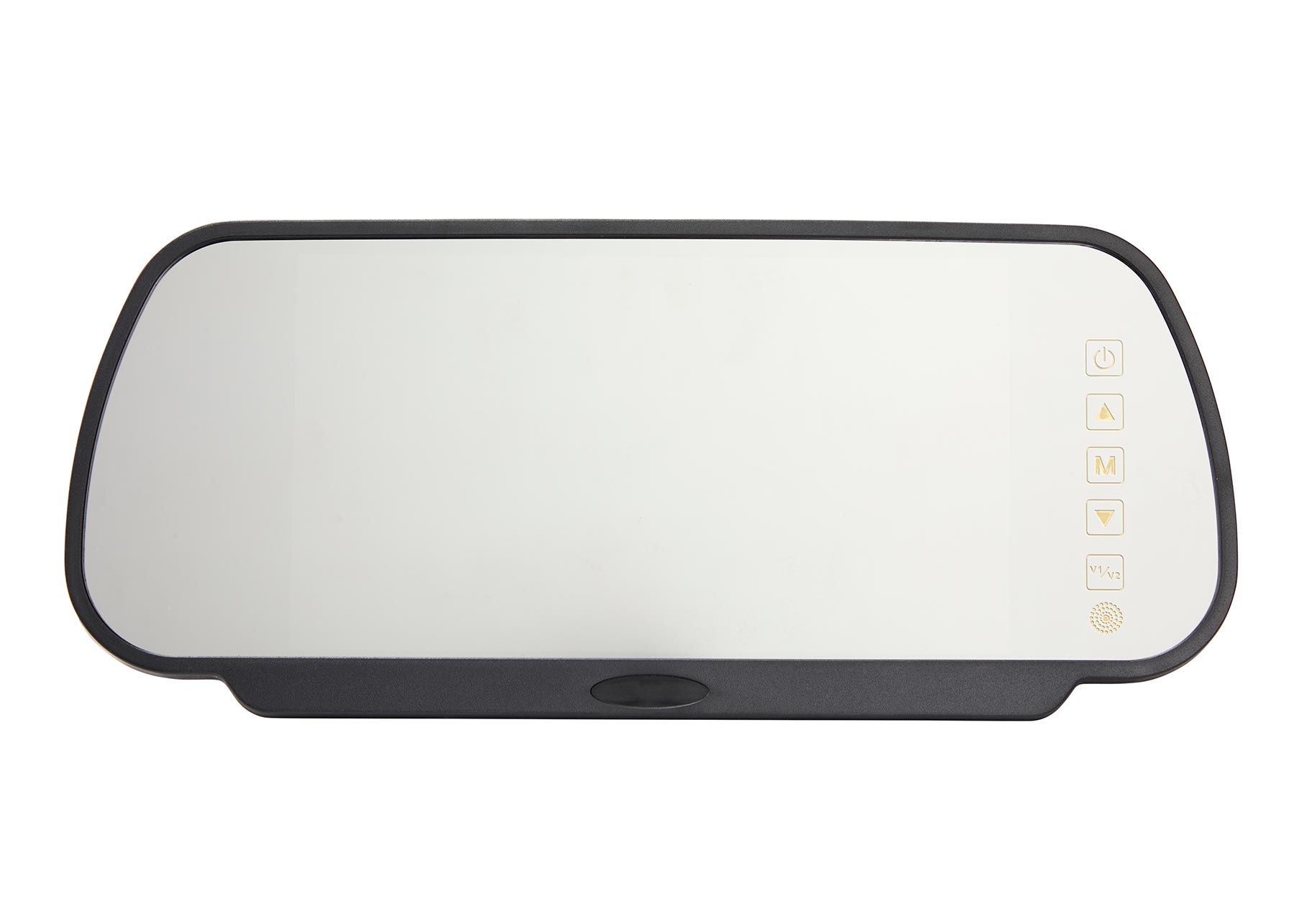

RAC7 Series 7" Touchscreen Mirror Monitor

PART NO: RAC7TMM

Product options
  • Product Overview:
    • Resolution: 480x234 RGB.
    • Screen ratio: 16:9.
    • Compatible system: PAL/NTSC (Automatic).
    • 4P or RVC connector.
    • Effective pixels: 510x492.
    • Luminance: 200cd/m2.
    • Double video input.
    • OSD menu.
    • Remote control.
  • Warranty: 3 Years
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE 7 Touchscreen Mirror Monitor
PART NUMBER RAC7TMM
IP RATING IP67
VOLTAGE (V) DC 12/24
CURRENT DRAW (AMPS) 0.216A @ 12V, 0.108A @ 24V
CABLE LENGTH (MM) 320
CONNECTORS None
DIAMETER (MM) N/A
LENGTH (MM) 250
HEIGHT (MM) 107
DEPTH (MM) 47
WEIGHT (KG) 0.456
