AN.MFRA.DV

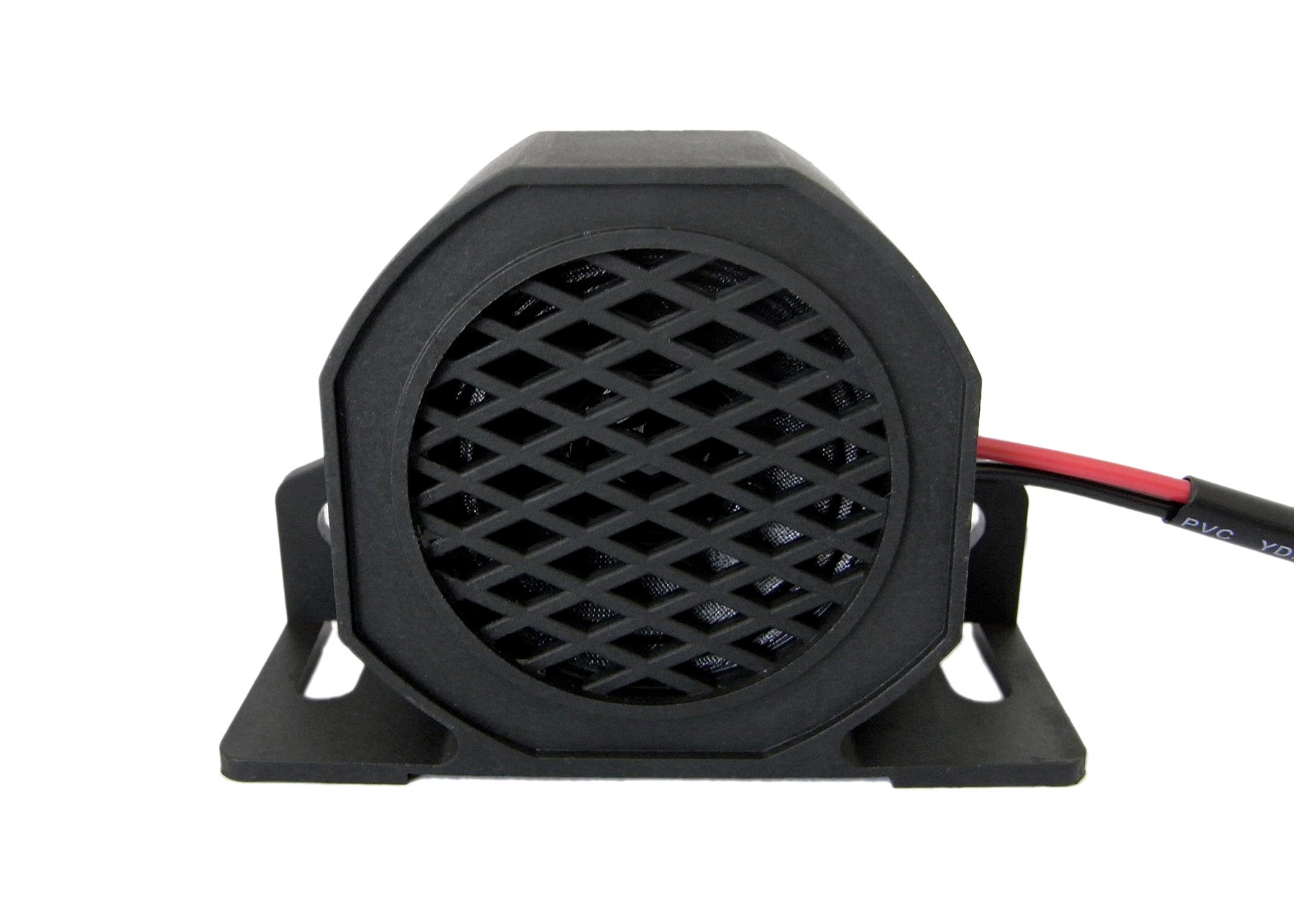

AN.MFRA.DV Front

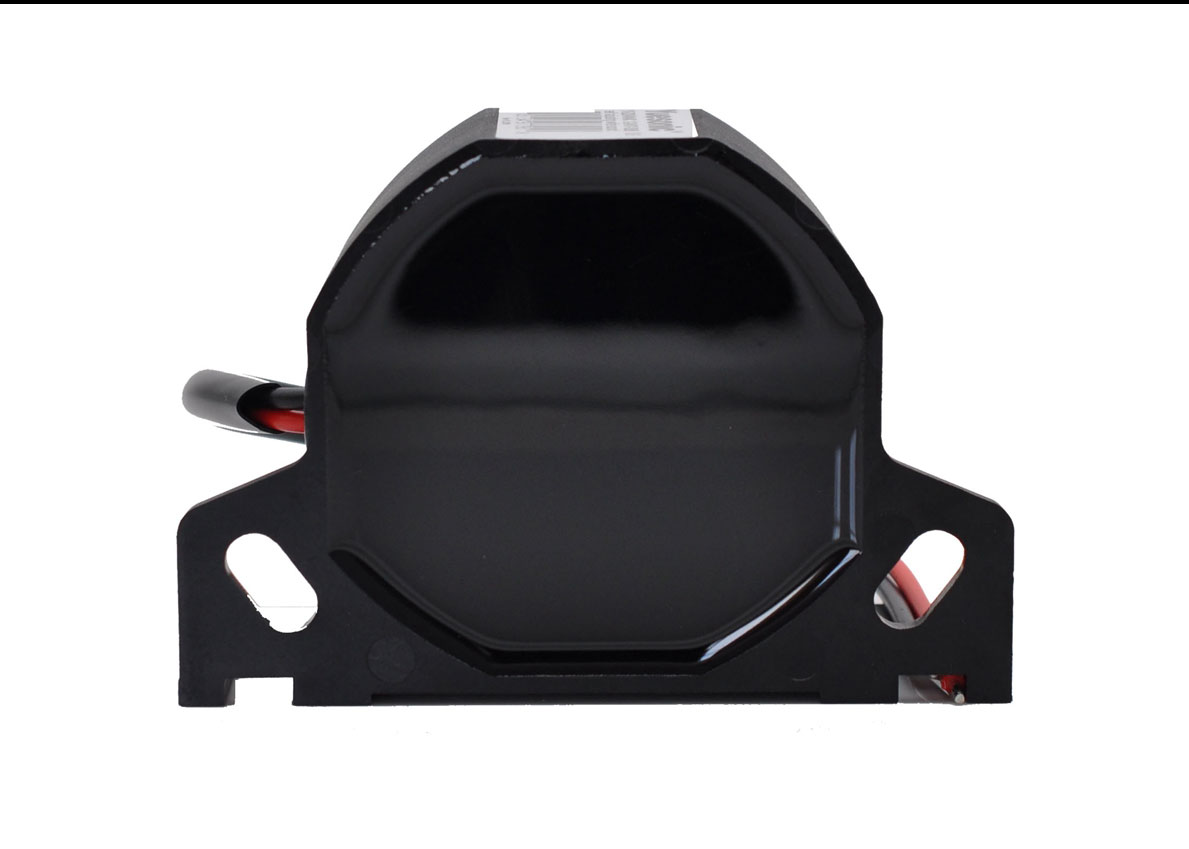

AN.MFRA.DV Back

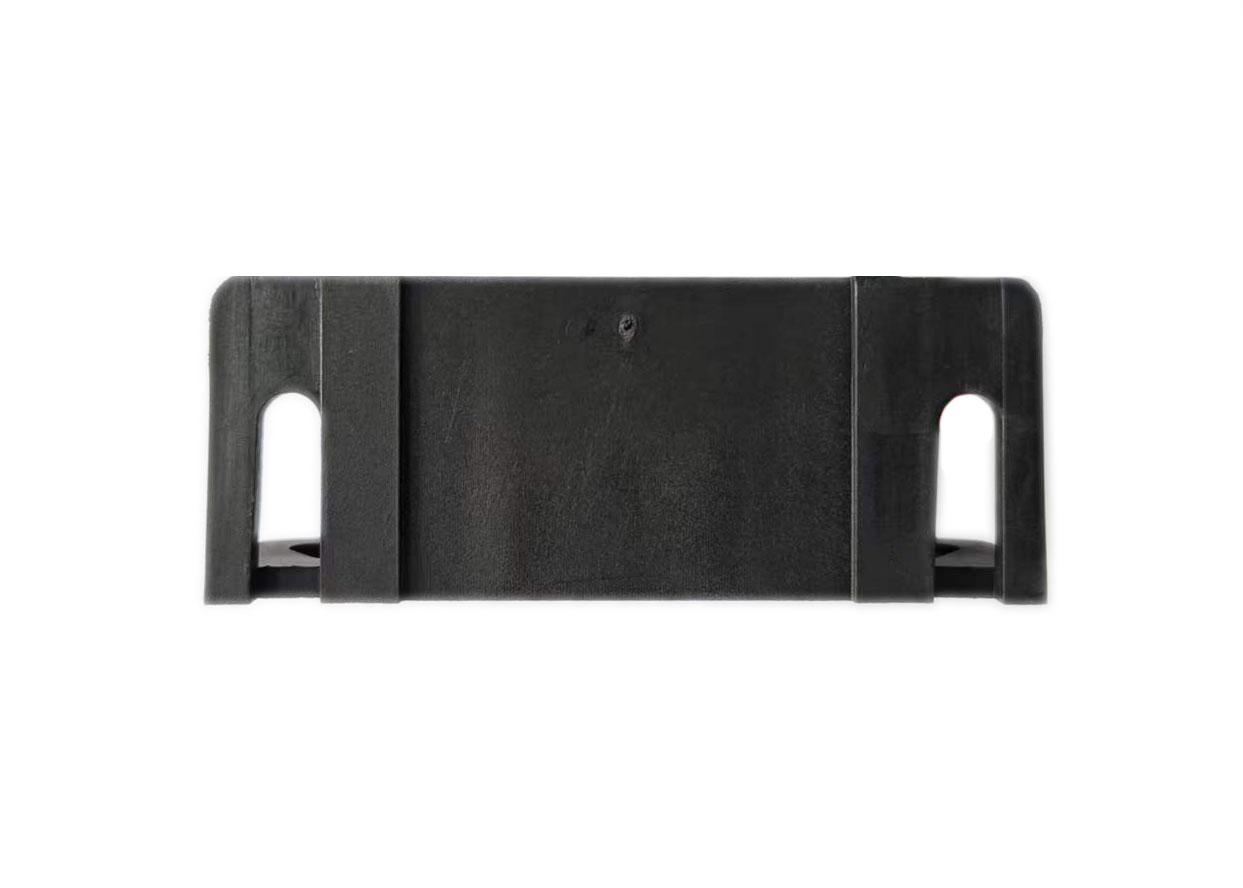

AN.MFRA.DV Bottom

Multi-Frequency Reverse Alarm

PART NO: AN.MFRA.DV

Product options
  • Product Overview:
    • White noise alarm.
    • Output: 102dB±3dB at 4ft.
    • Duty cycle: 0.68S± 10% (-50% ON 50% OFF).
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Multi-Frequency Reverse Alarm Multi-Frequency Reverse Alarm with Deutsch Connector Multi-Frequency Reverse Alarm with Superseal Connector
PART NUMBER AN.MFRA.DV AN.MFRA.DV.DC AN.MFRA.DV.S
IP RATING IP68 IP68
VOLTAGE (V) DC 12/24 12/24 12/24
CURRENT DRAW (AMPS) 0.184A @ 12V, 0.356 @ 24V 0.184A @ 12V, 0.356 @ 24V 0.184A @ 12V, 0.356 @ 24V
CABLE LENGTH (MM) 220 265 220
CONNECTORS None None SuperSeal
DIAMETER (MM) N/A N/A N/A
LENGTH (MM) 103.5 103.5 103.5
HEIGHT (MM) 71 71 71
DEPTH (MM) 40.5 40.5 40.5
WEIGHT (KG) 0.334 0.34 0.334

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
