RL682
RL682 Illuminated
RL682 Side

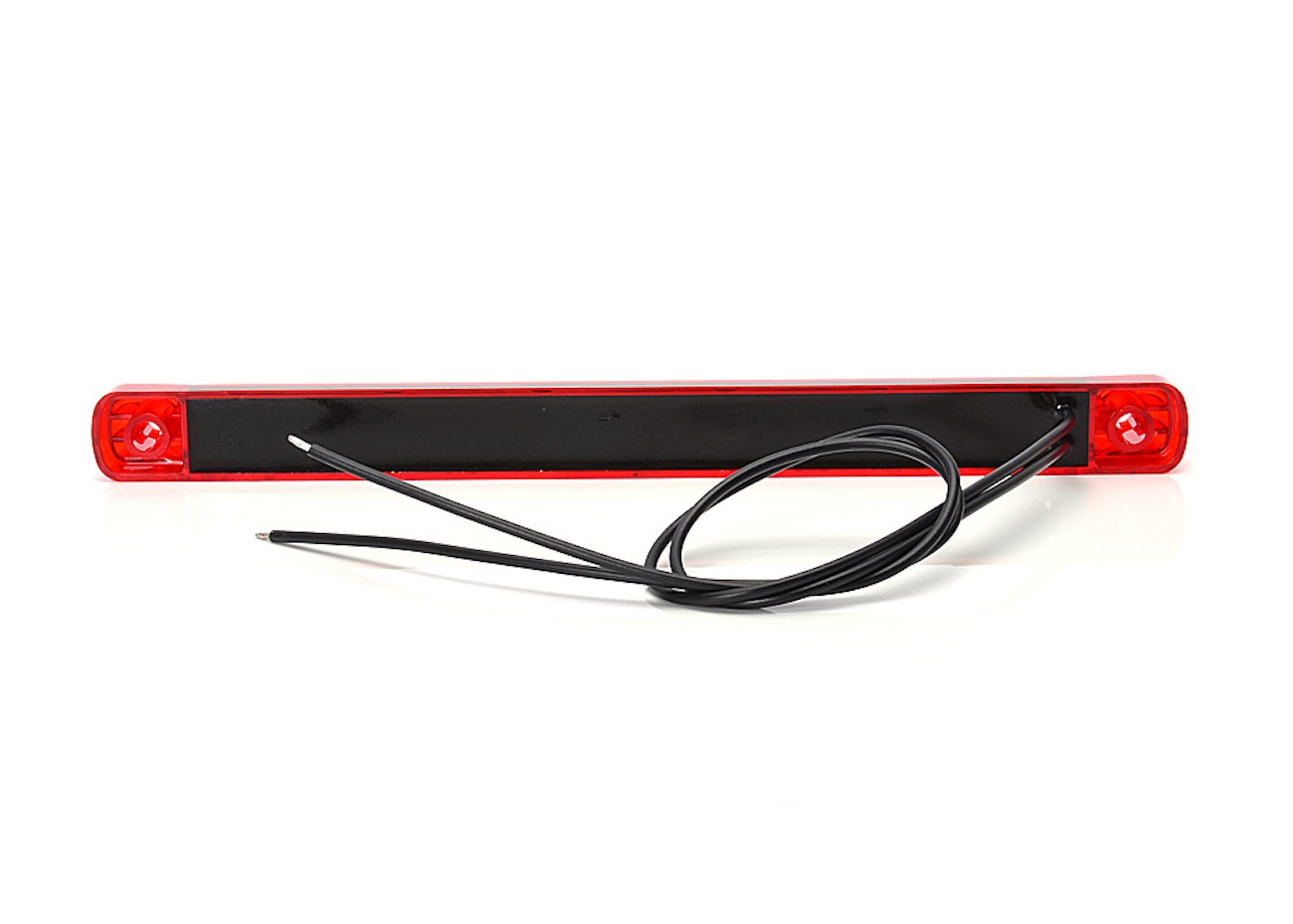

RL682 Back

RL682 Series Slimline LED 3rd Brake Light - Red Lens

PART NO: RL682

Product options
  • Product Overview:
    • Slimline surface mount design.
    • Robust construction.
    • Dual voltage.
    • Clear lens versions available.
    • Low profile option available.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R7, R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Slimline Surface Mount LED 3rd Brake Light - Red Lens Slimline Surface Mount LED 3rd Brake Light - Red Lens, 0.5m Cable Slimline Surface Mount LED 3rd Brake Light - Red Lens, 11m Cable Slimline Surface Mount LED 3rd Brake Light - Red Lens, 3m Cable Slimline Low Profile LED 3rd Brake Light - Red Lens Slimline Surface Mount LED 3rd Brake Light - Red Lens with Superseal Connector Slimline Surface Mount LED 3rd Brake Light - Red Lens with Superseal Connector, 5m Cable
PART NUMBER RL682 RL682/05 RL682/11 RL682/3 RL682/LP RL682S RL682S/5
IP RATING IP68 IP68 IP68 IP68 IP68 IP68 IP68
VOLTAGE (V) DC 12/24 12/24 12/24 12/24 12/24 12/24 12/24
CURRENT DRAW (AMPS) 0.108A @ 12V, 0.108A @ 24V 0.108A @ 12V, 0.108A @ 24V 0.108A @ 12V, 0.108A @ 24V 0.108A @ 12V, 0.108A @ 24V 0.058A @ 12V, 0.058A @ 24V 0.108A @ 12V, 0.108A @ 24V 0.108A @ 12V, 0.108A @ 24V
CABLE LENGTH (MM) 390 500 11000 3000 390 550 5040
CONNECTORS None None None None None SuperSeal SuperSeal
LIGHT COLOUR Red Red Red Red Red Red Red
LENS COLOUR Red Red Red Red Red Red Red
DIAMETER (MM) N/A N/A N/A N/A N/A N/A N/A
LENGTH (MM) 237 237 237 237 238 237 237
HEIGHT (MM) 20.5 20.5 20.5 20.5 21 20.5 20.5
DEPTH (MM) 22 22 22 22 10 22 22
WEIGHT (KG) 0.071 0.087 0.542 0.2 0.031 0.096 0.298
