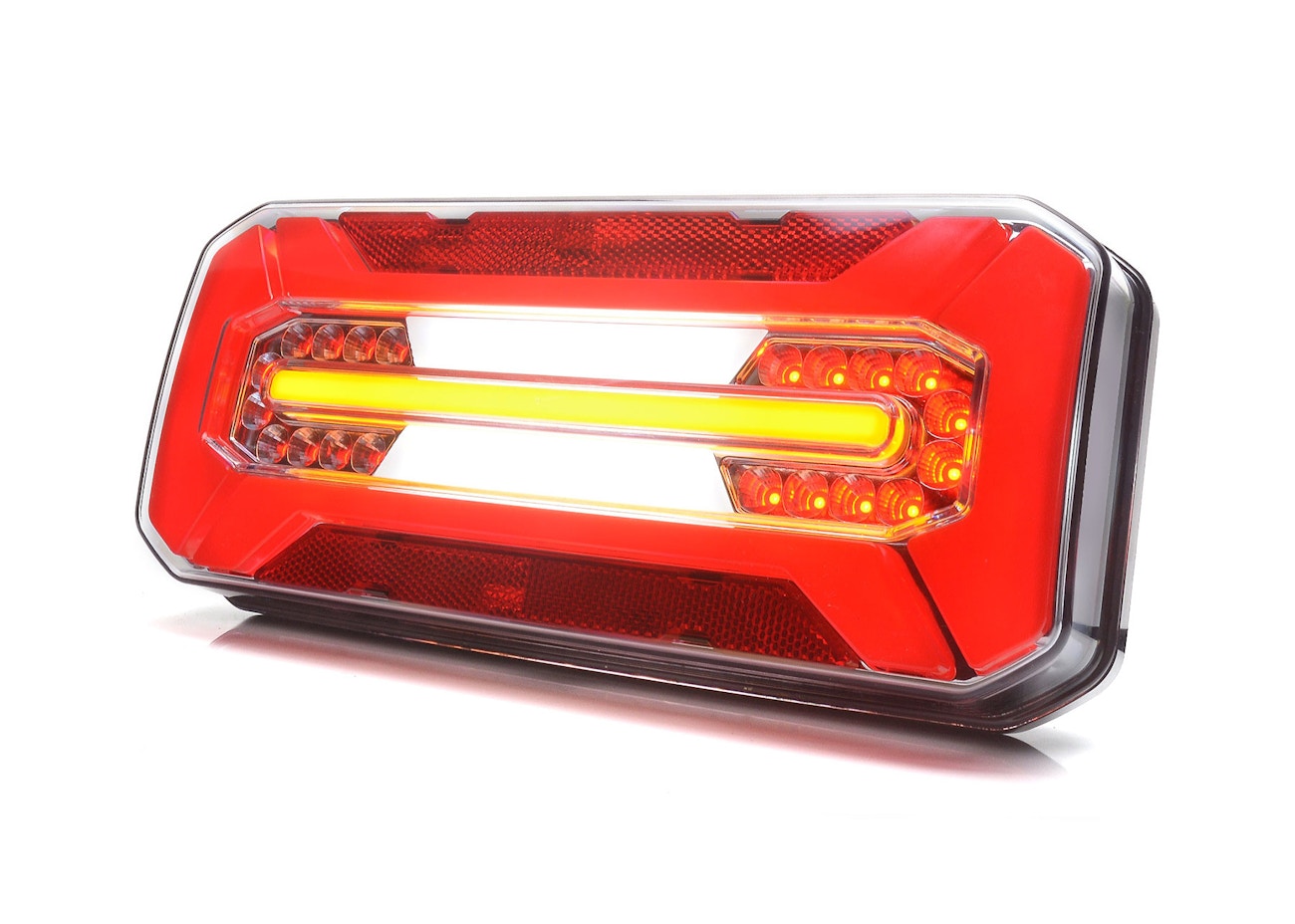

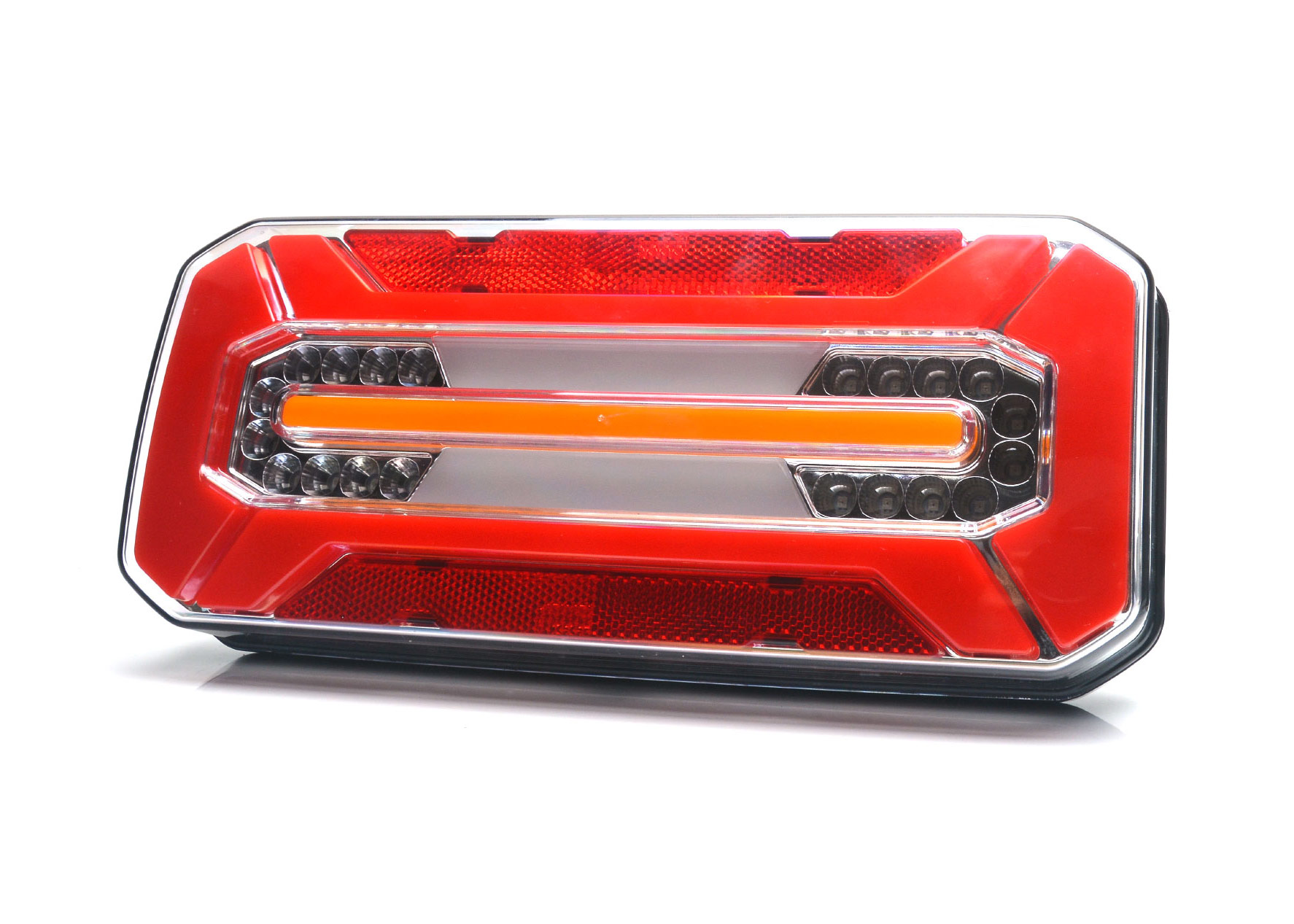

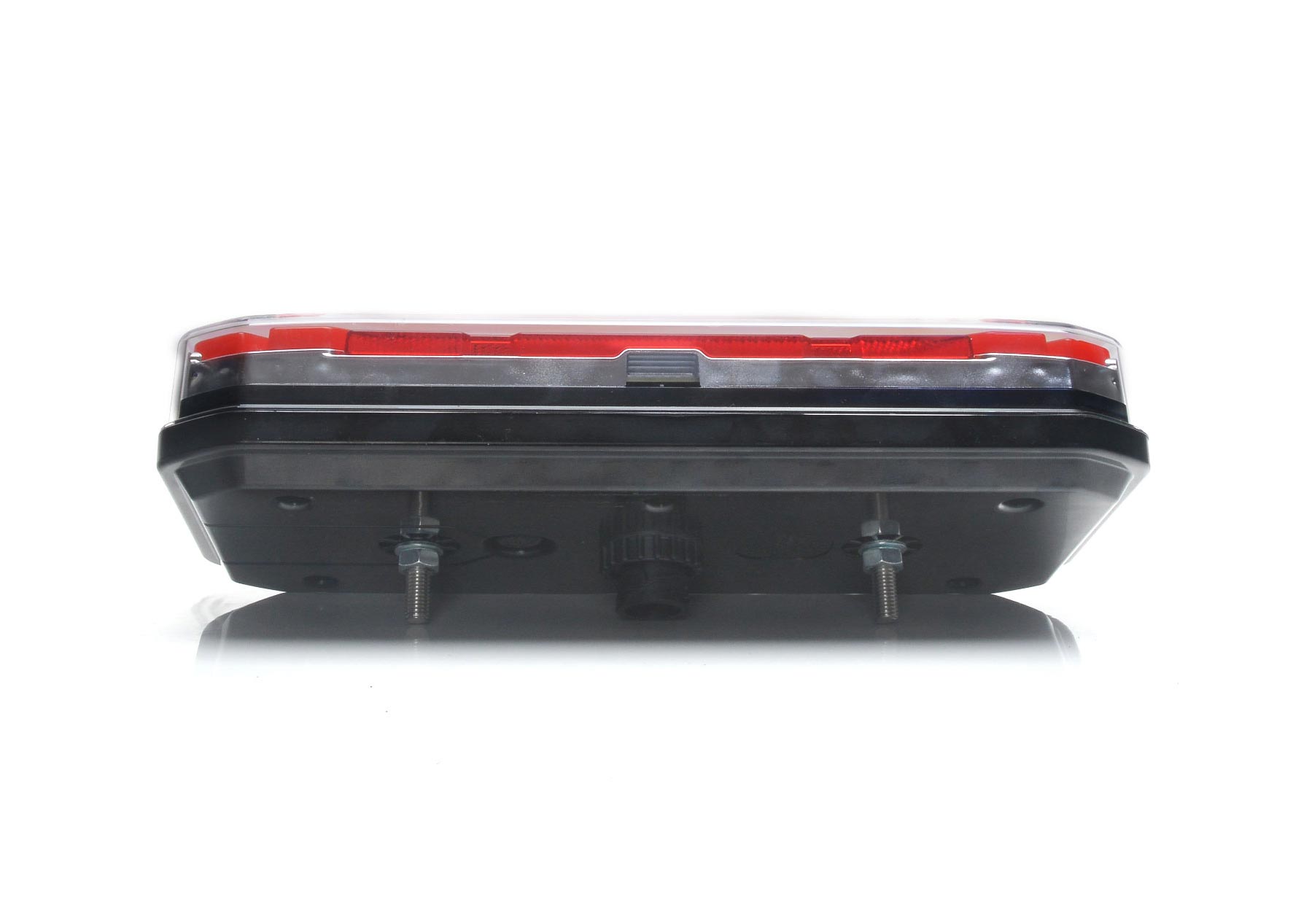

RL.185 Series LED Rear Combination Light

PART NO: RL.185.BTIFR.M

Product options
  • Product Overview:
    • Hidden LEDs.
    • Scratch resistant housing.
    • ADR-approved version available.

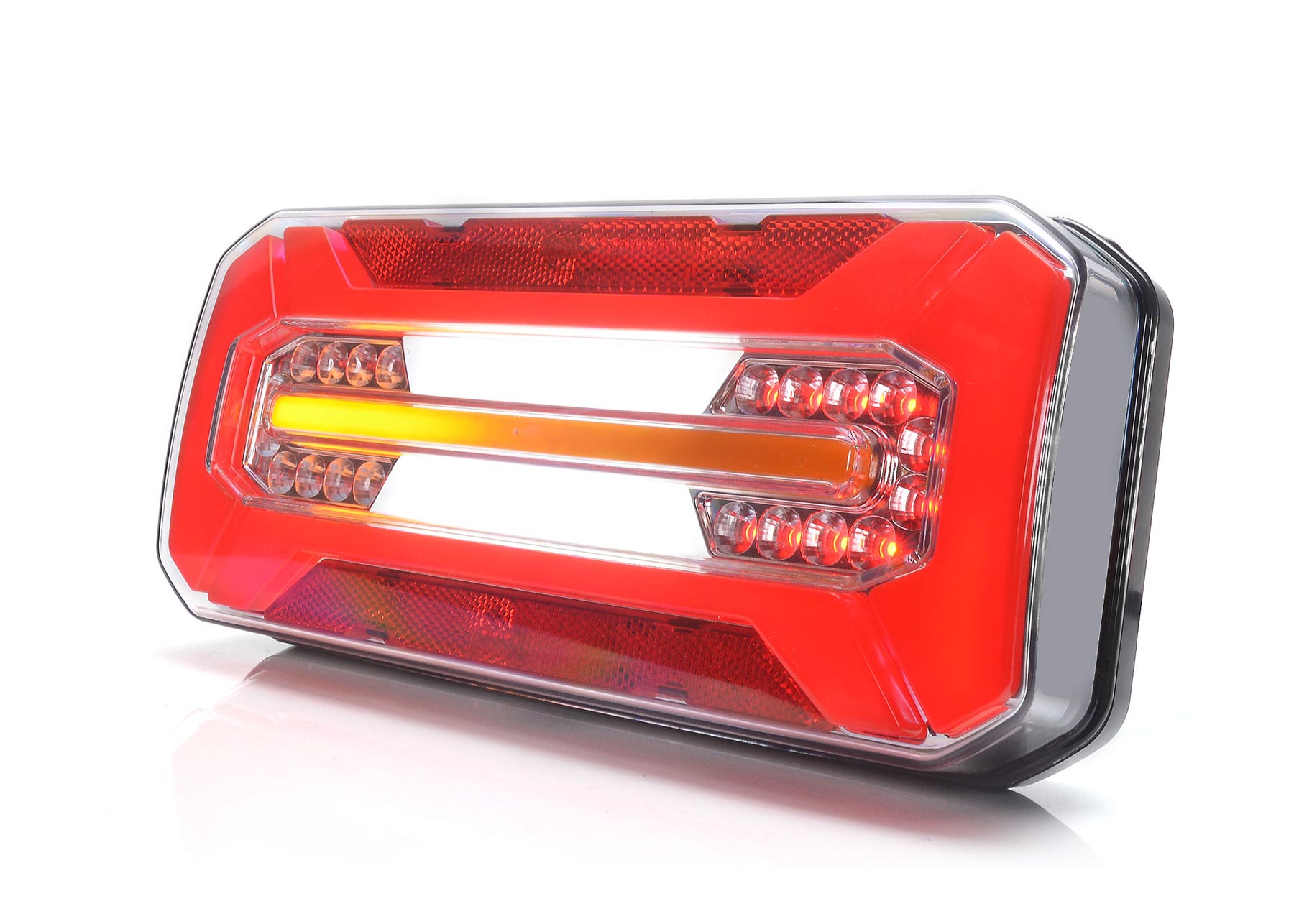

    • Static and dynamic indicator options available.
  • Warranty: 3 Years
  • Approvals: ECE R3, R4, R6, R7, R10, R23, R38, R91.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Rear Combination Light - Stop / Tail / Indicator / Fog / Reverse / Reflector LED Rear Combination Light - Stop / Tail / Progressive Indicator / Fog / Reverse / Reflector and Tyco Connector
PART NUMBER RL.185.BTIFR.M RL.185DD.BTIFR.M
IP RATING IP68 IP68
VOLTAGE (V) DC 12/24 12/24
CURRENT DRAW (AMPS) Stop: 0.104A @ 12V, 0.052A @ 24V, Tail: 0.108A @ 12V, 0.104A @ 24V, Indicator: 0.9A @ 12V, 0.45A @ 24V, Fog: 0.133A @ 12V, 0.066A @ 24V, Reverse: 0.375A @ 12V, 0.187A @ 24V Stop: 0.104A @ 12V, 0.052A @ 24V, Tail: 0.108A @ 12V, 0.104A @ 24V, Indicator: 0.9A @ 12V, 0.45A @ 24V, Fog: 0.133A @ 12V, 0.066A @ 24V, Reverse: 0.375A @ 12V, 0.187A @ 24V
CABLE LENGTH (MM)

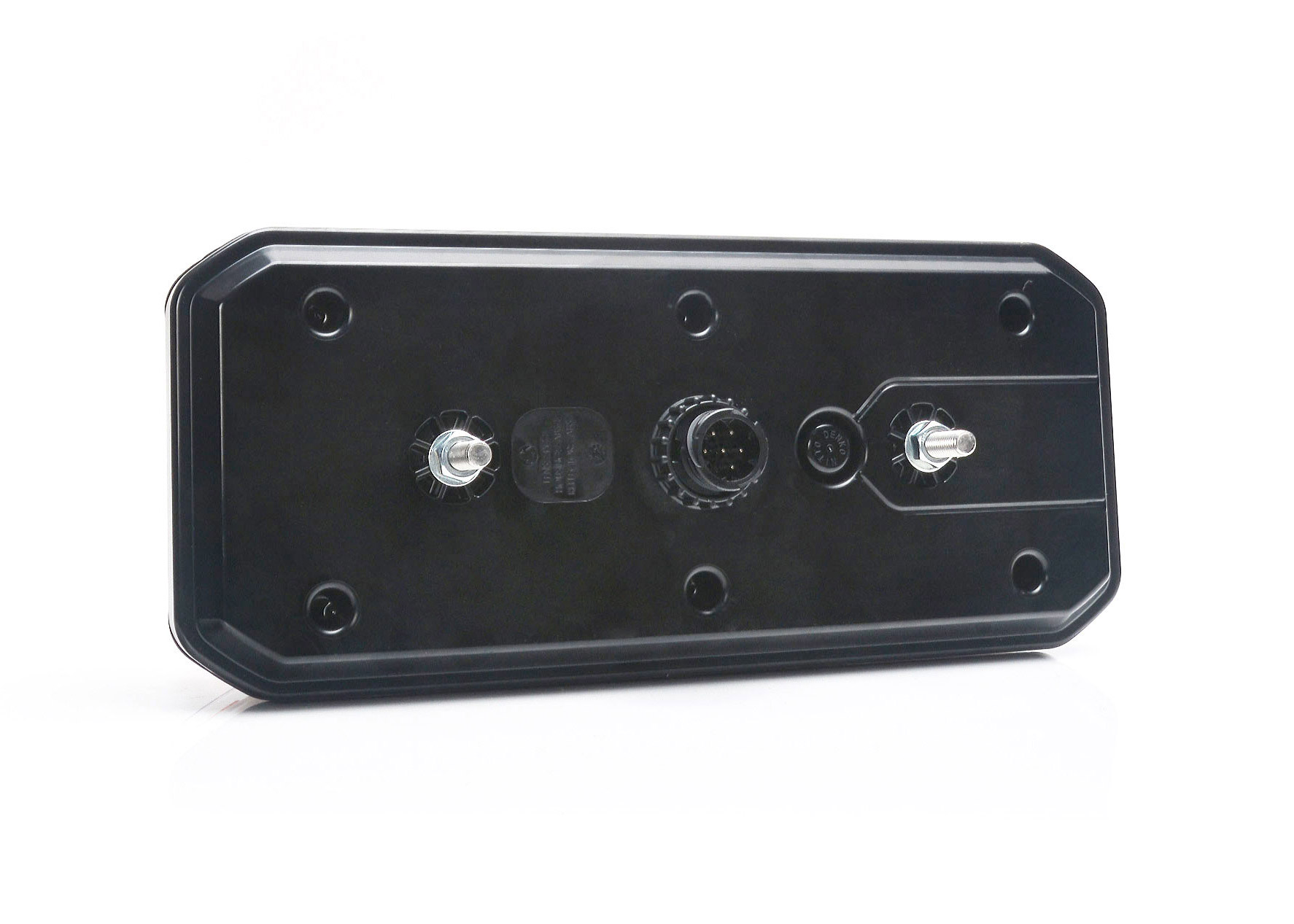

CONNECTORS Tyco Tyco
LIGHT COLOUR Red/White/Amber Red/White/Amber
LENS COLOUR Red/Amber/Clear Red/Amber/Clear
DIAMETER (MM) N/A N/A
LENGTH (MM) 306 306
HEIGHT (MM) 133 133
DEPTH (MM) 61 61
WEIGHT (KG) 1.025 1.025
