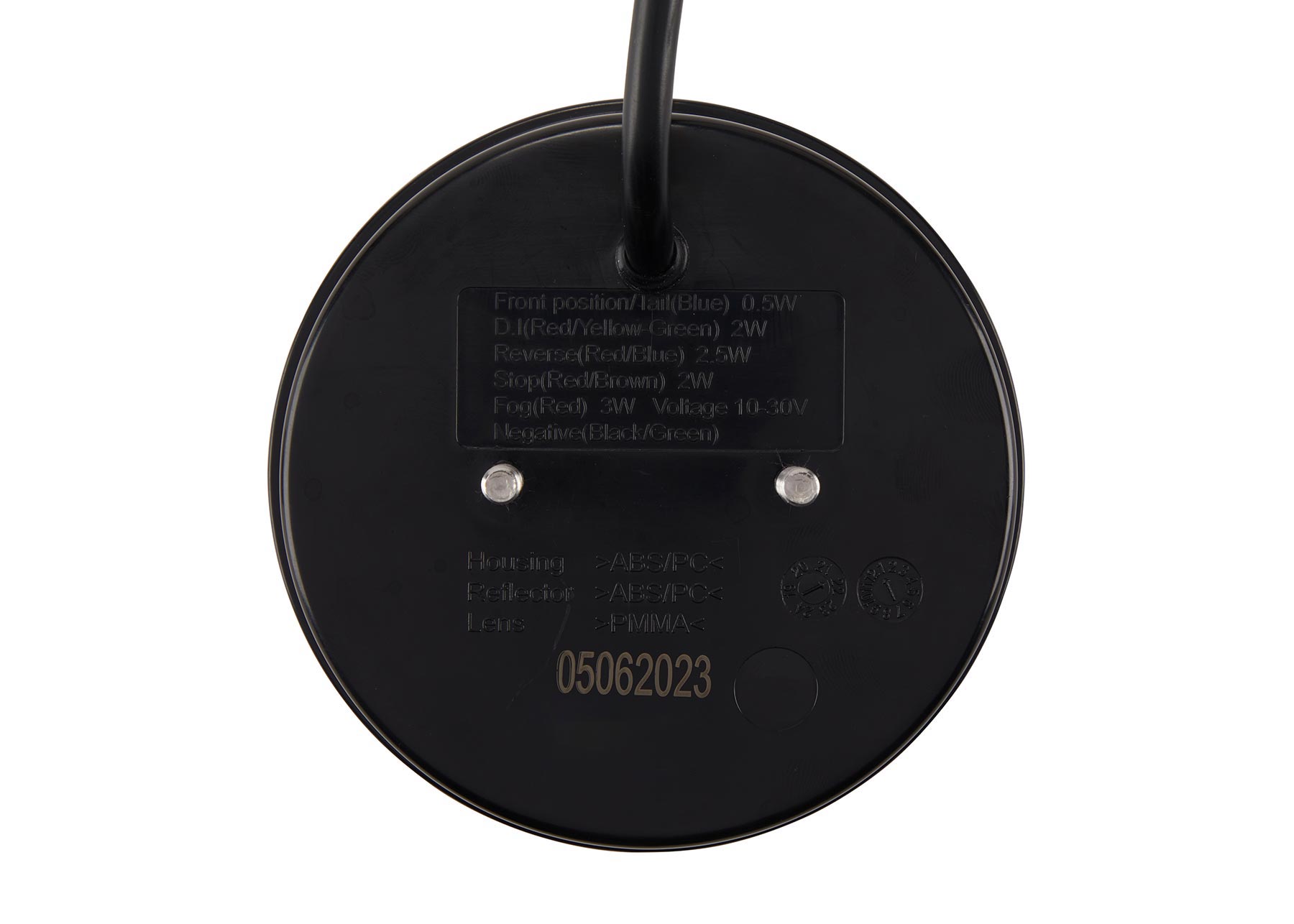

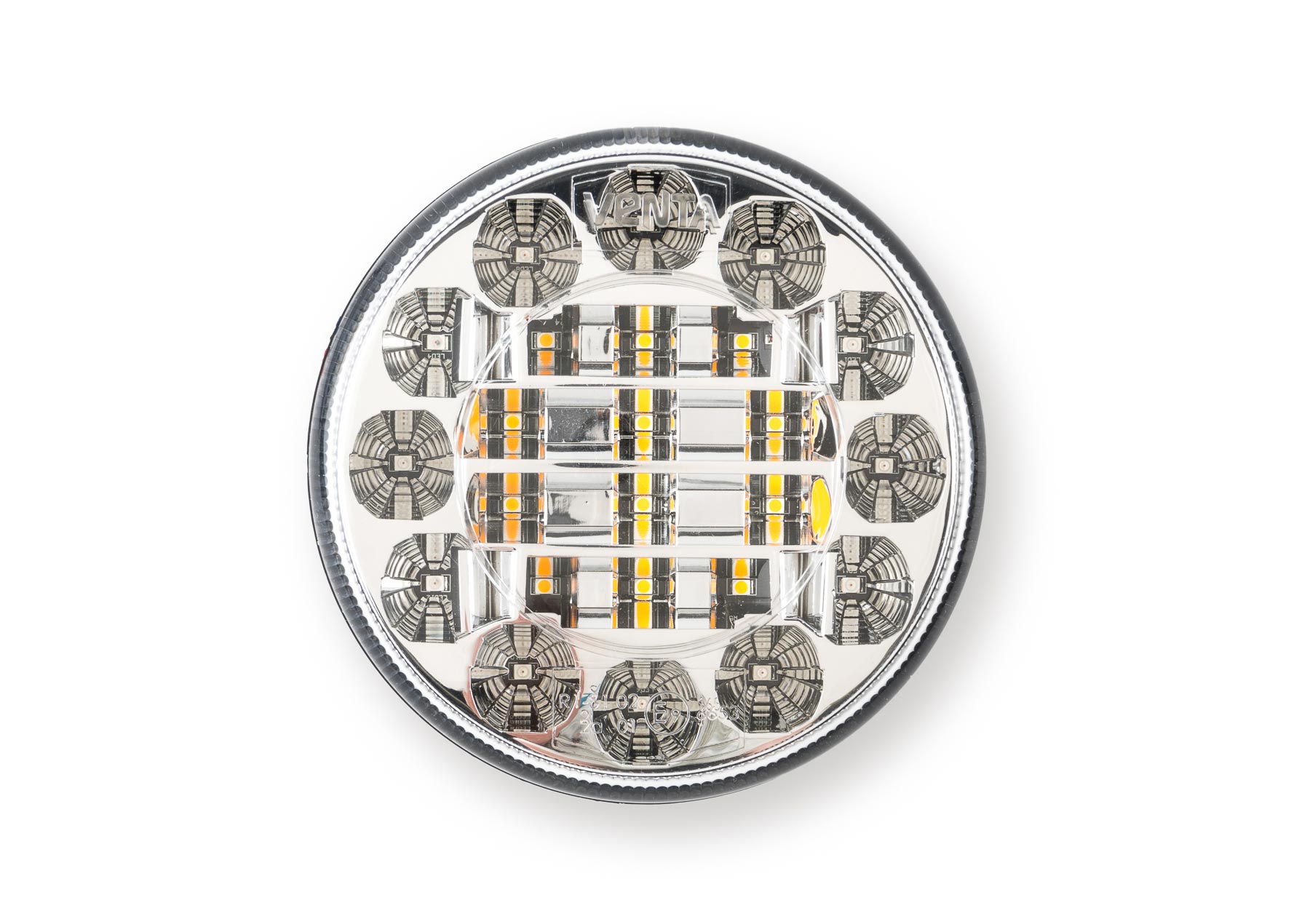

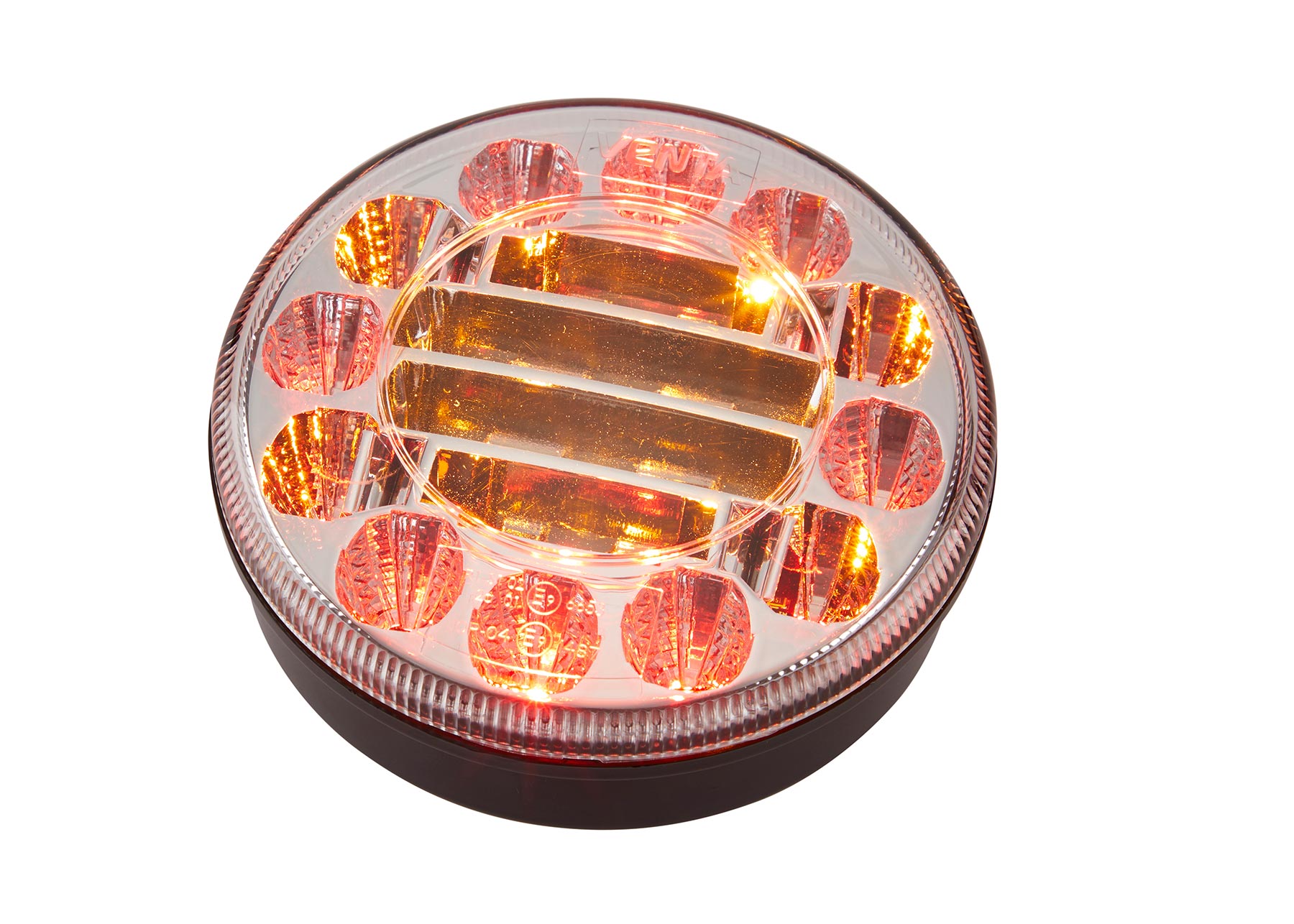

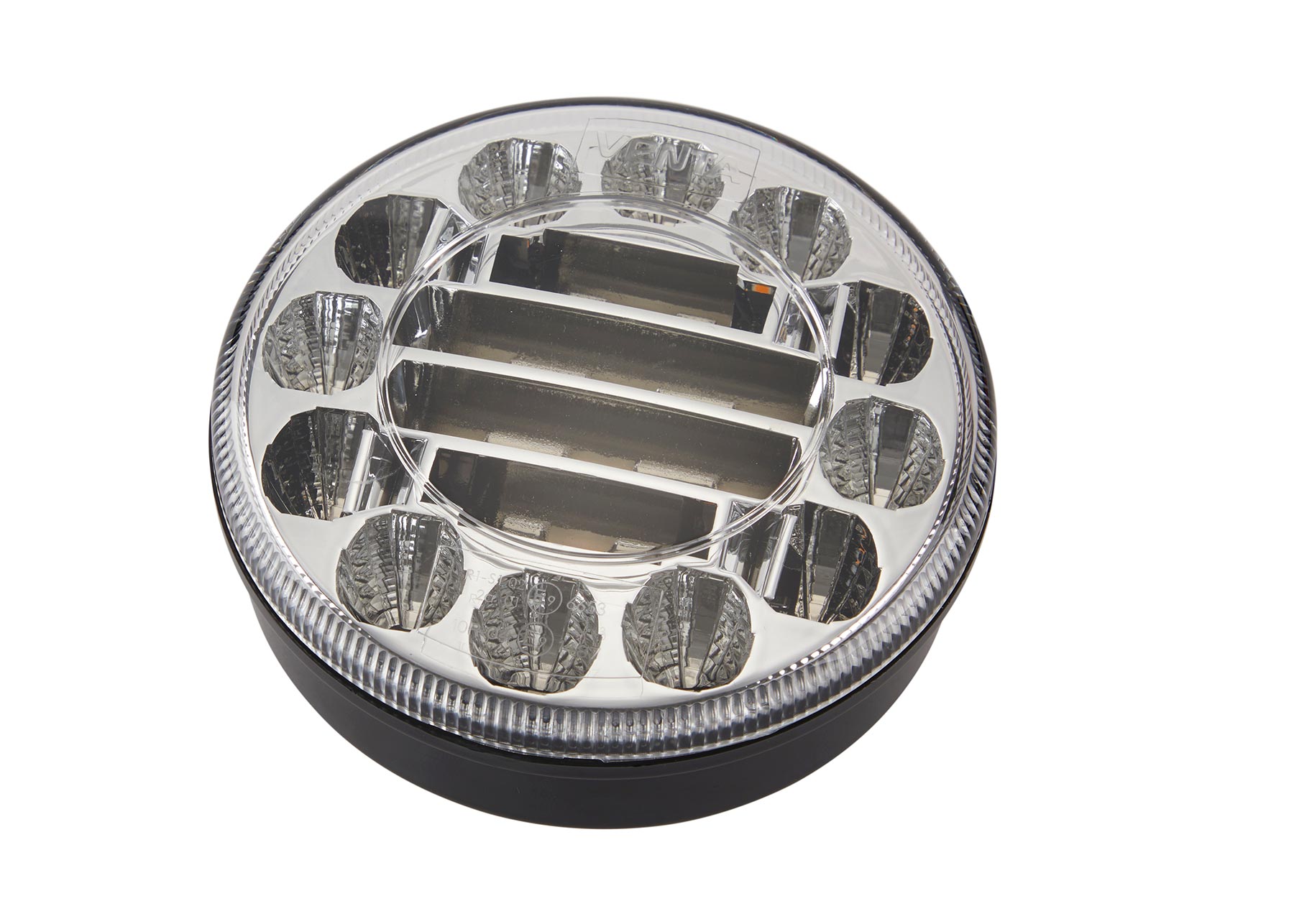

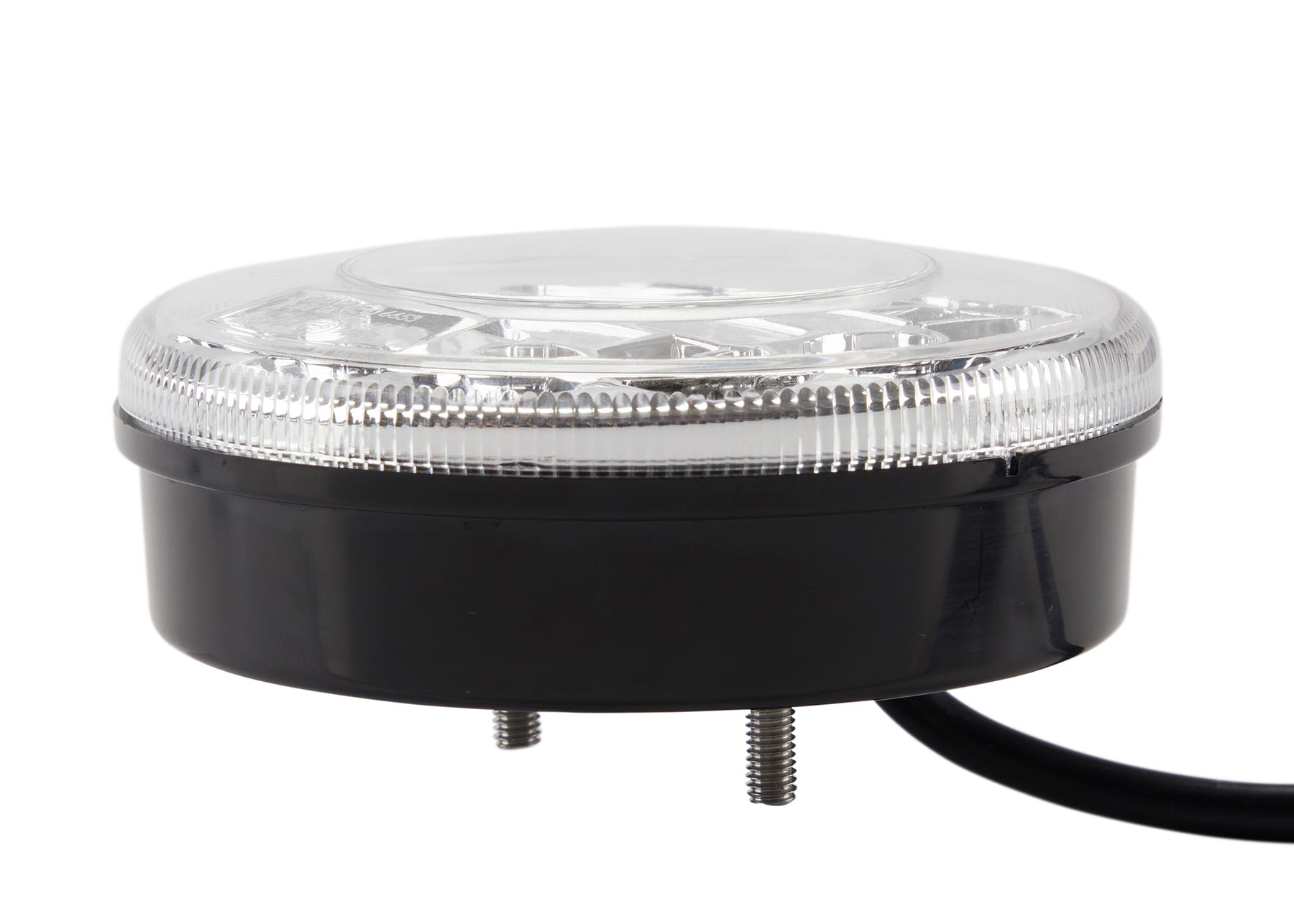

RL122 Series LED Rear Light - Stop / Tail / Indicator - Clear Lens

PART NO: RL122STIC22

Product options
  • Product Overview:
    • Clear lens
    • Surface mount design.
    • Dual voltage.
    • Red lens version also available.
    • Fog / reverse and front position / indicator options available in the same series.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R6, R7, R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE 122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens, 2.2m Cable 122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 1.8m Cable 122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 1.95m Cable 122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 2.1m Cable 122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Deutsch Connector, 2m Cable - Left Side
PART NUMBER RL122STIC22 RL122STIC18S RL122STIC195S RL122STIC21S RL122STIDCL
IP RATING IP67 IP67 IP67 IP67 IP67
VOLTAGE (V) DC 12/24 12/24 12/24 12/24 12/24
CURRENT DRAW (AMPS) Stop: 0.14A @12V, 0.07A @24V, Tail: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V Stop: 0.14A @12V, 0.07A @24V, Tail: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V Stop: 0.14A @12V, 0.07A @24V, Tail: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V Stop: 0.14A @12V, 0.07A @24V, Tail: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V Stop: 0.14A @12V, 0.07A @24V, Tail: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V
CABLE LENGTH (MM) 2200 1800 1950 2100 245
CONNECTORS None SuperSeal SuperSeal SuperSeal Deutsch
LIGHT COLOUR Red/Amber Red/Amber Red/Amber Red/Amber Red/Amber
LENS COLOUR Clear Clear Clear Clear Clear
DIAMETER (MM) 122 122 122 122 122
LENGTH (MM) N/A N/A N/A N/A N/A
HEIGHT (MM) N/A N/A N/A N/A N/A
DEPTH (MM) 43 43 43 43 43
WEIGHT (KG) 0.43 0.406 0.421 0.435 0.422
