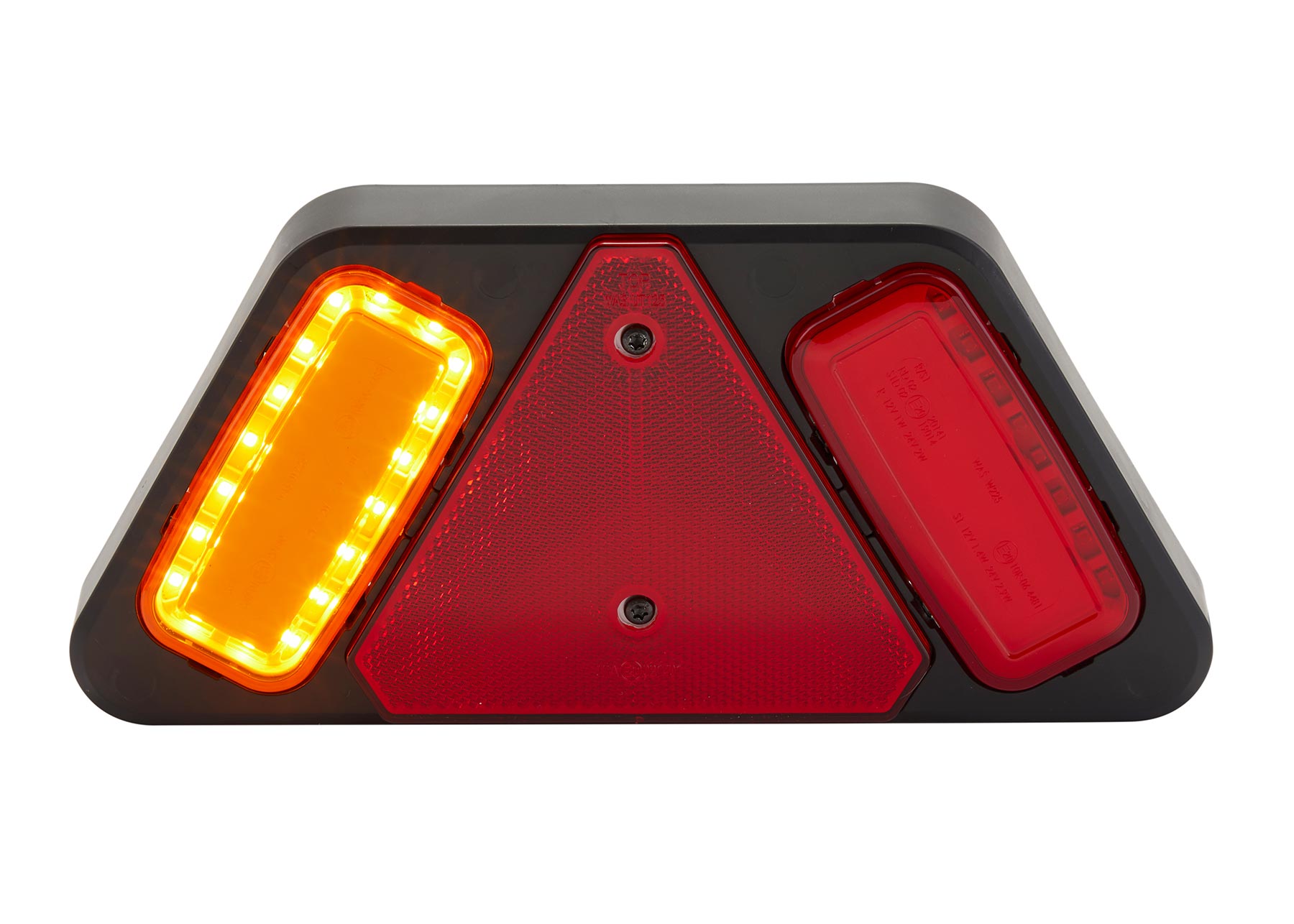

RL5736 Indicator

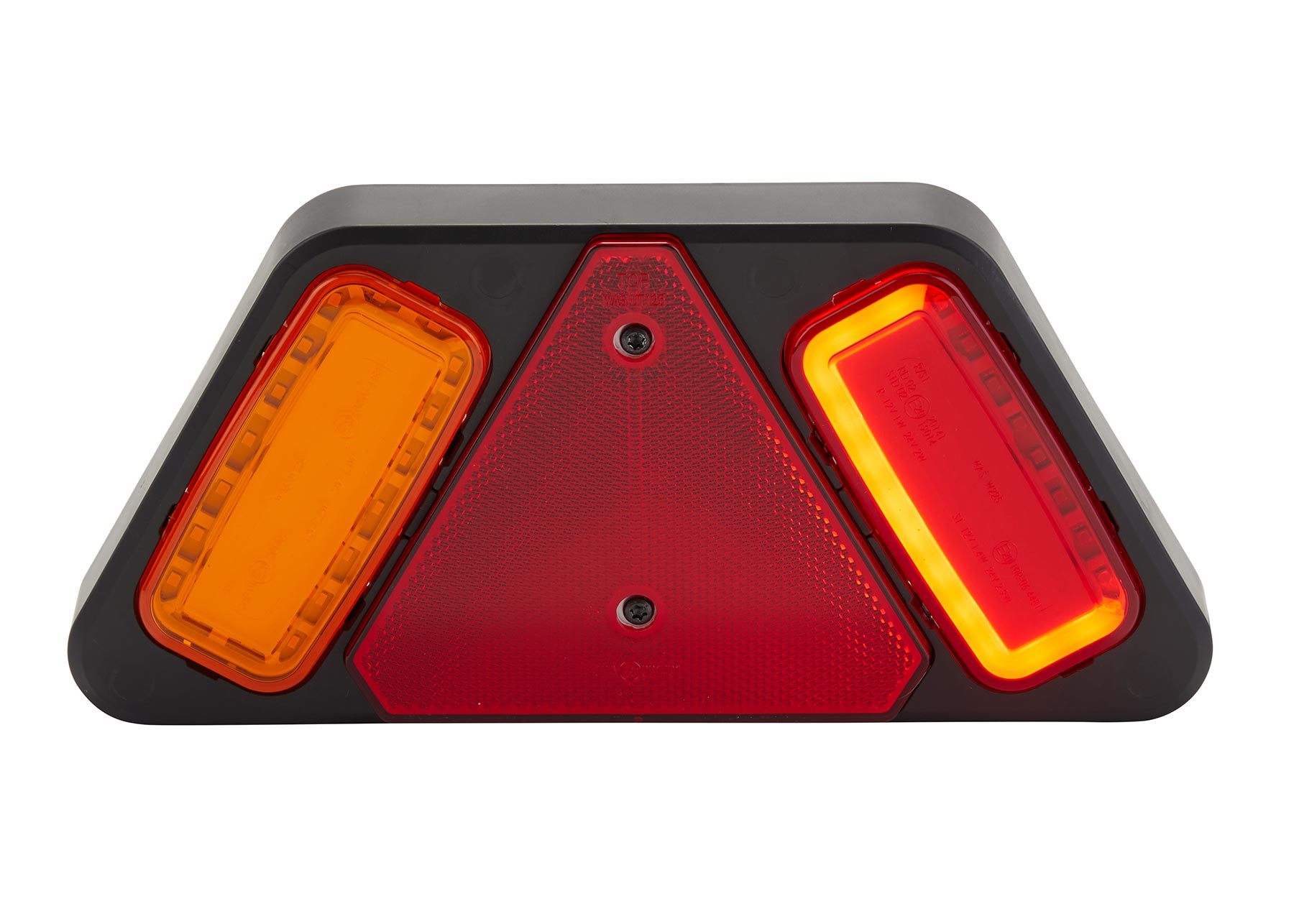

RL5736 Dotless Tail

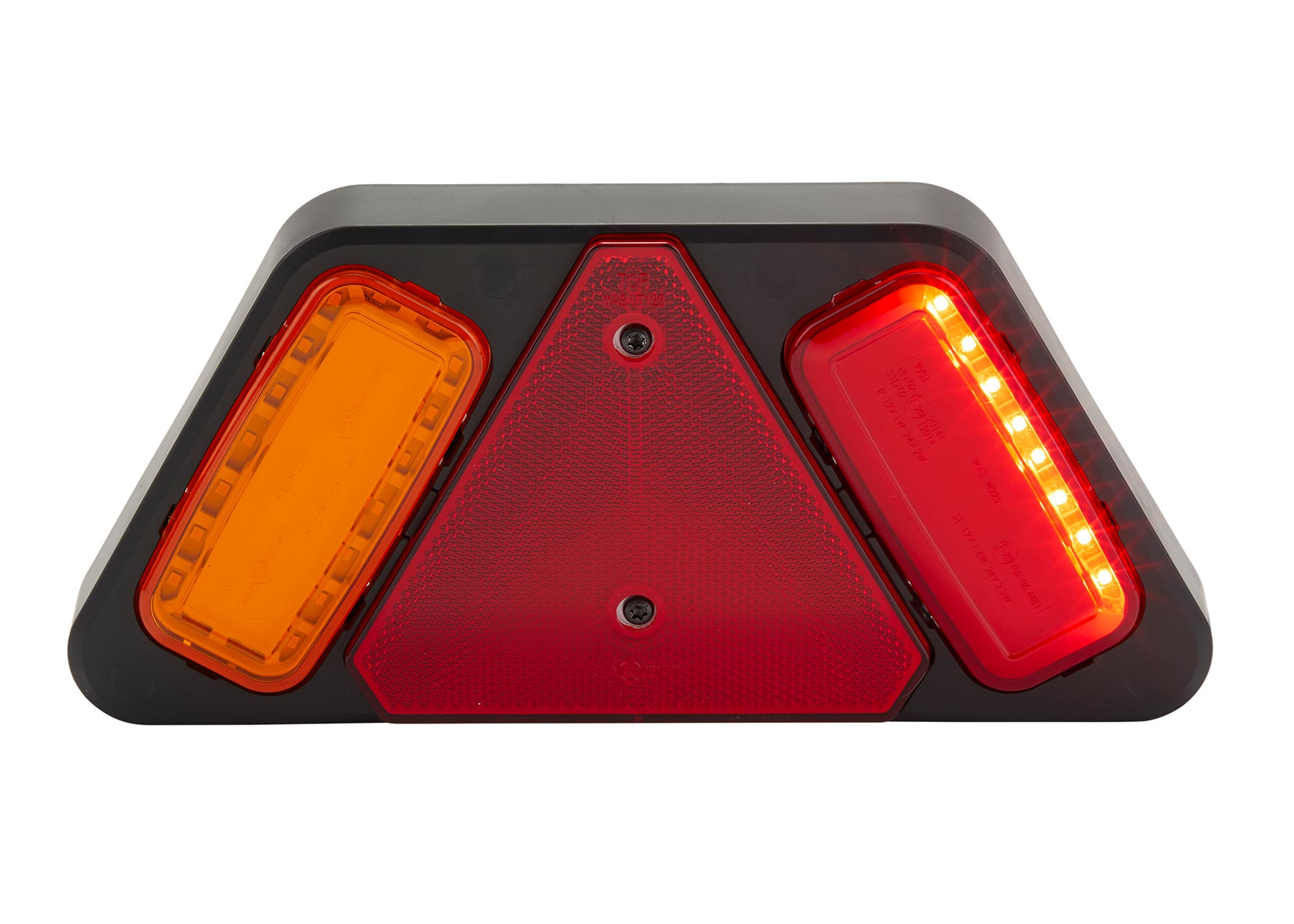

RL5736 Brake

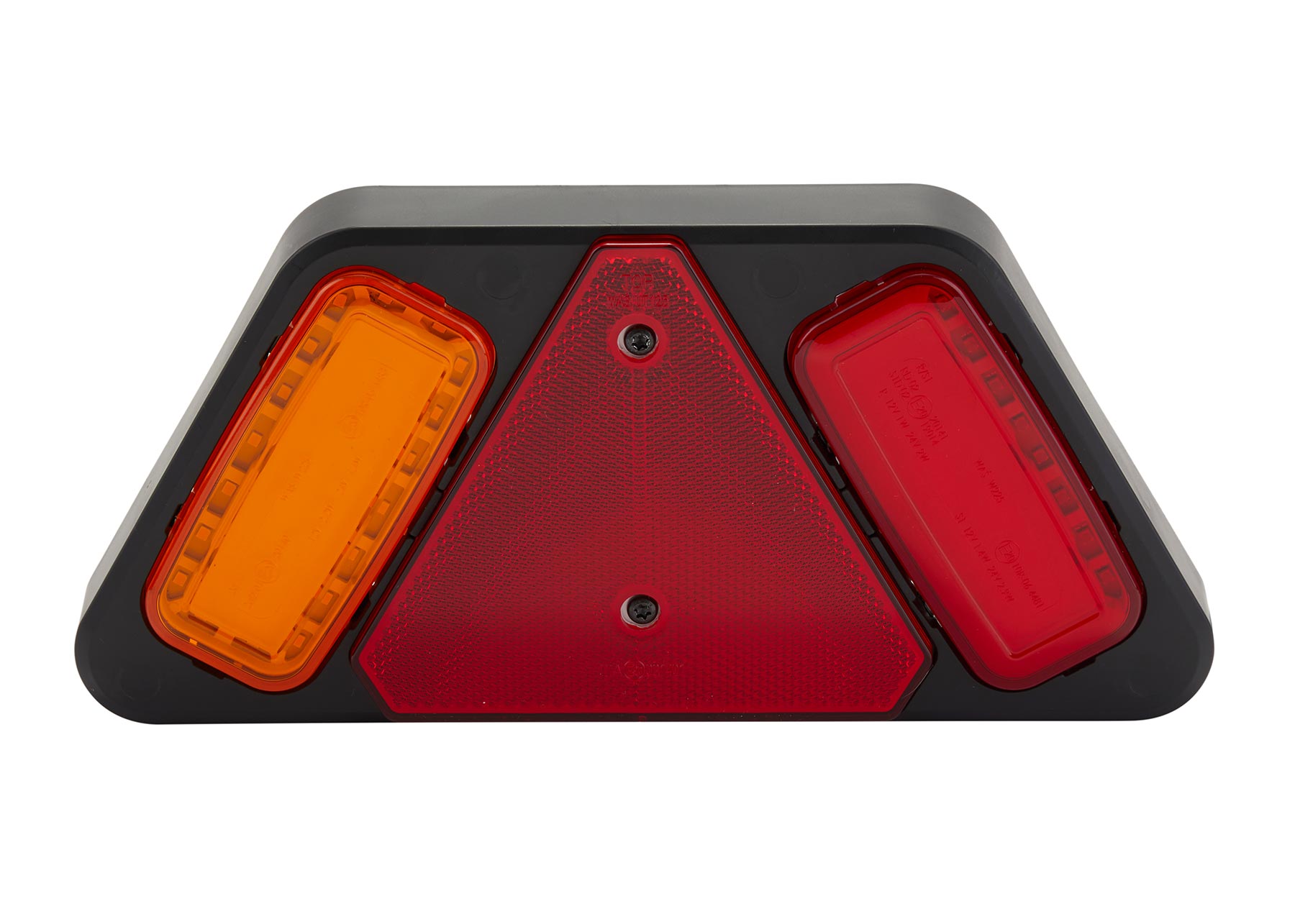

RL5736 Off

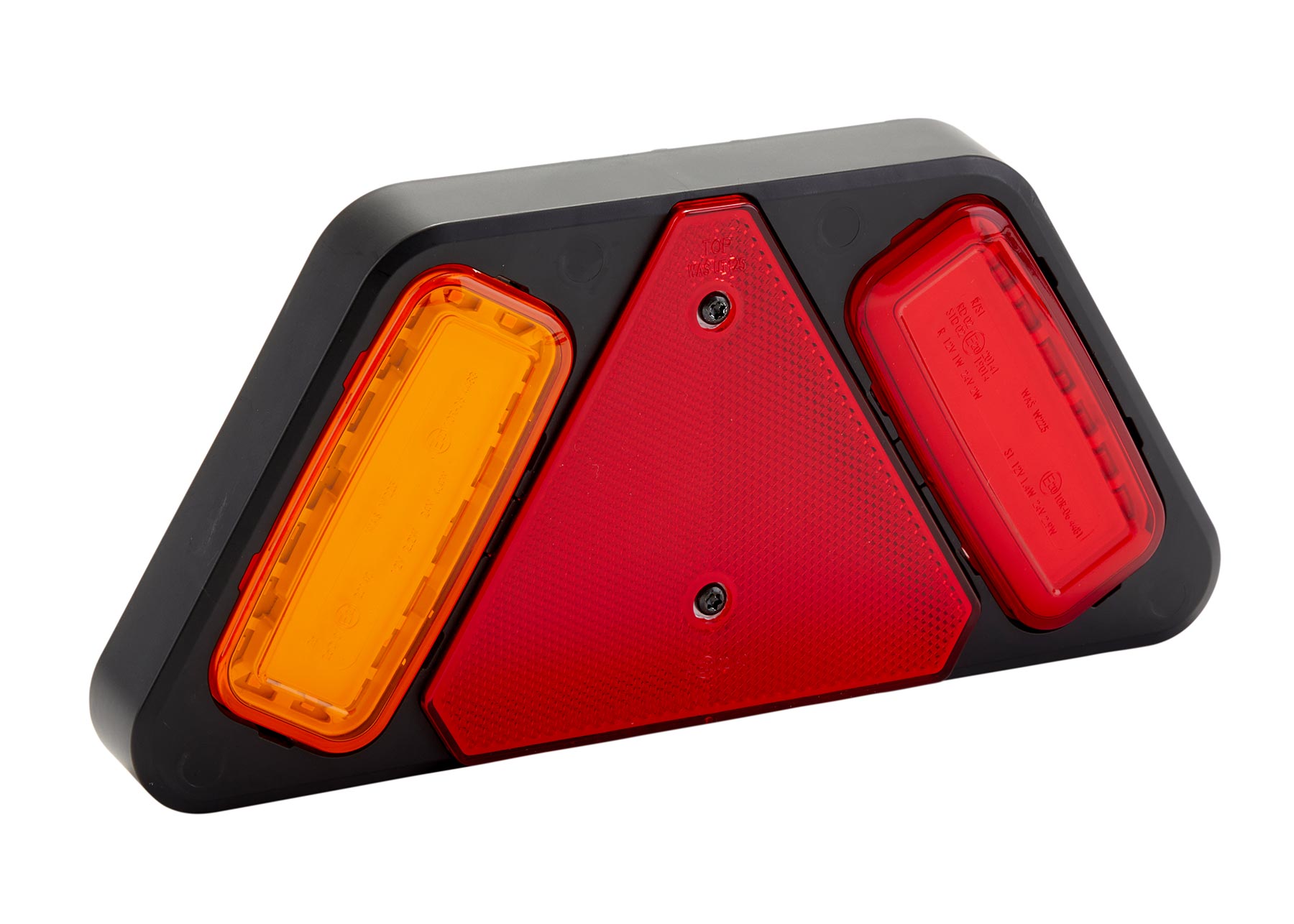

RL5736
RL5736 Back

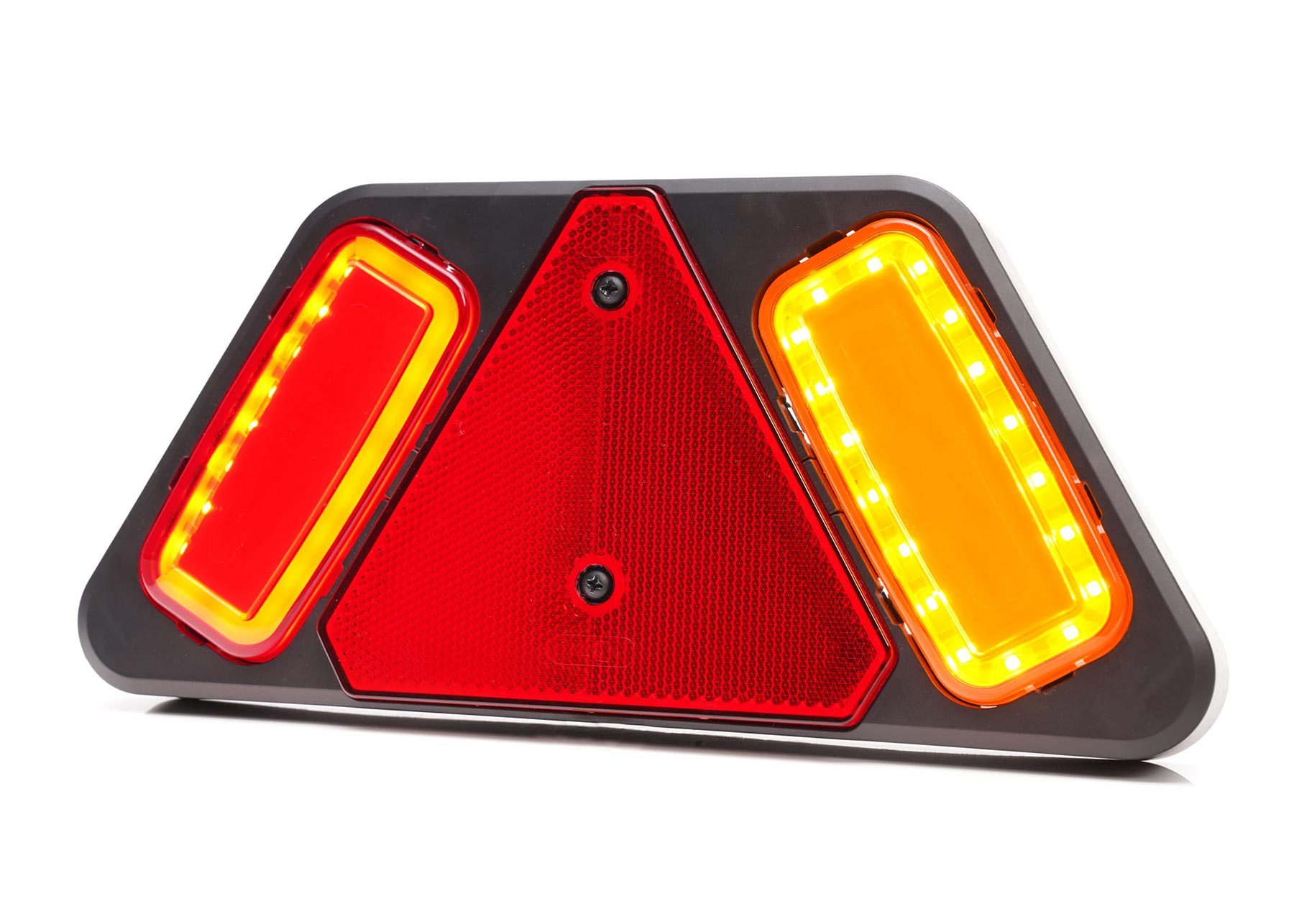

RL5737 Illuminated

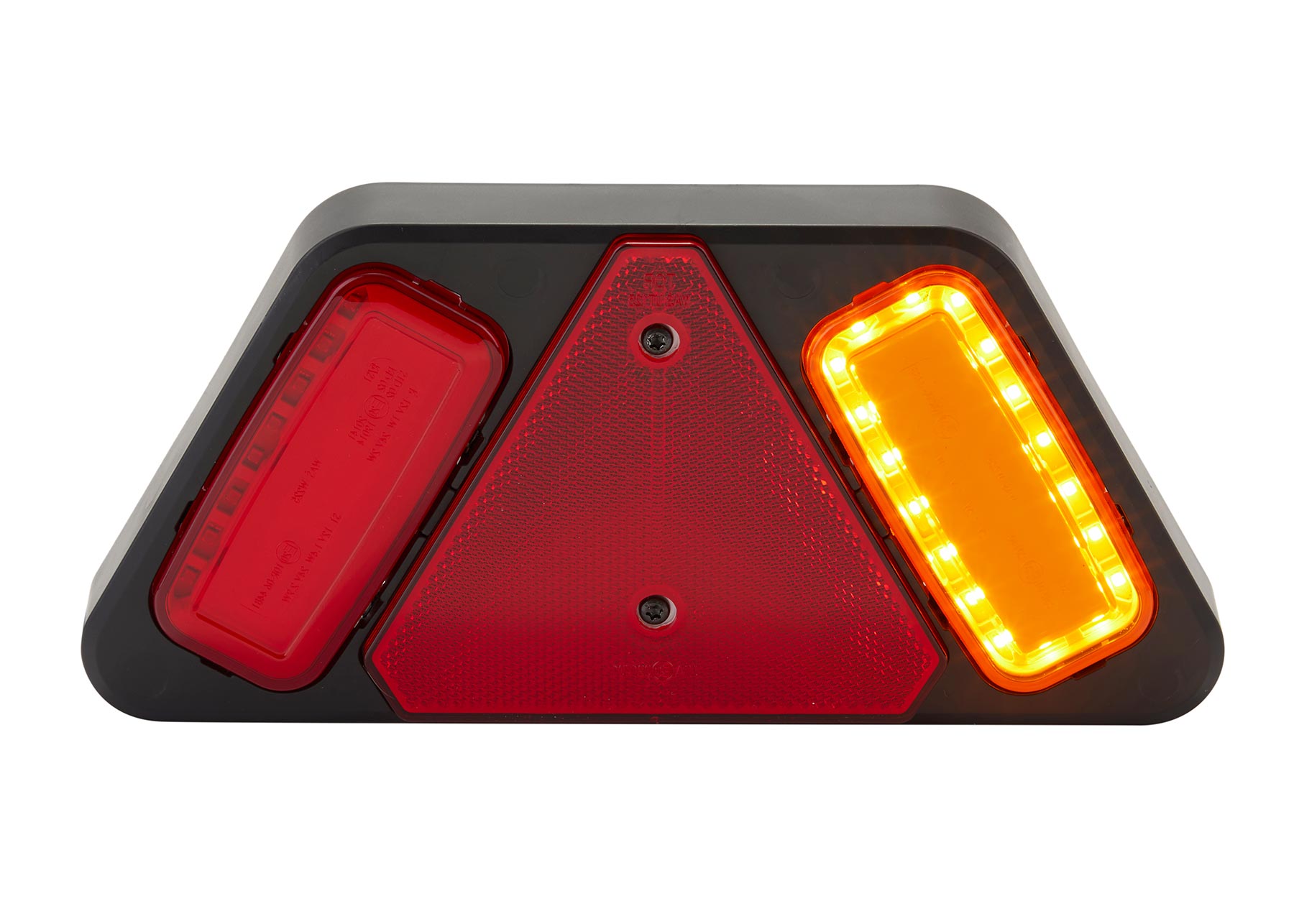

RL5737 Indicator

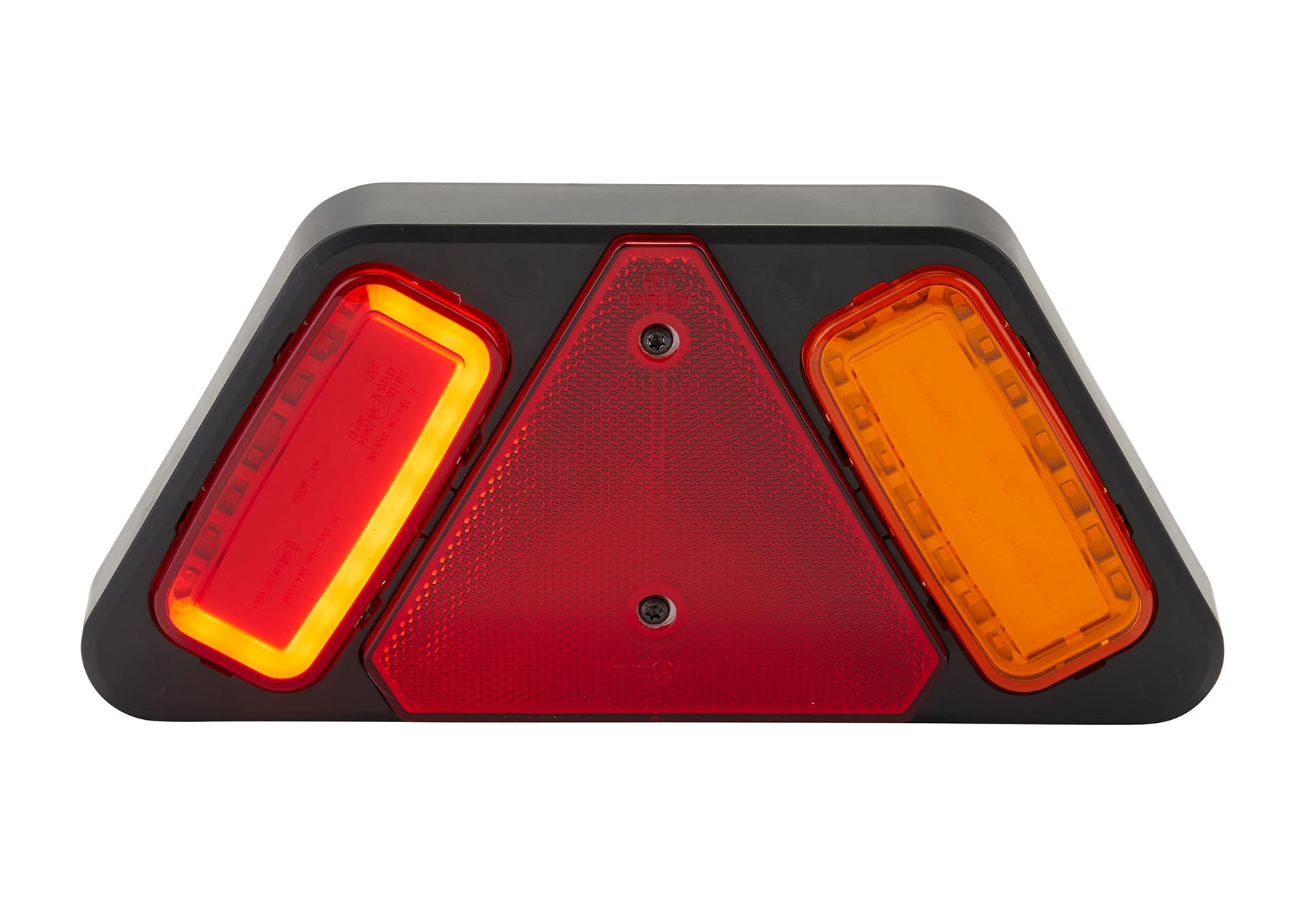

RL5737 Dotless Tail

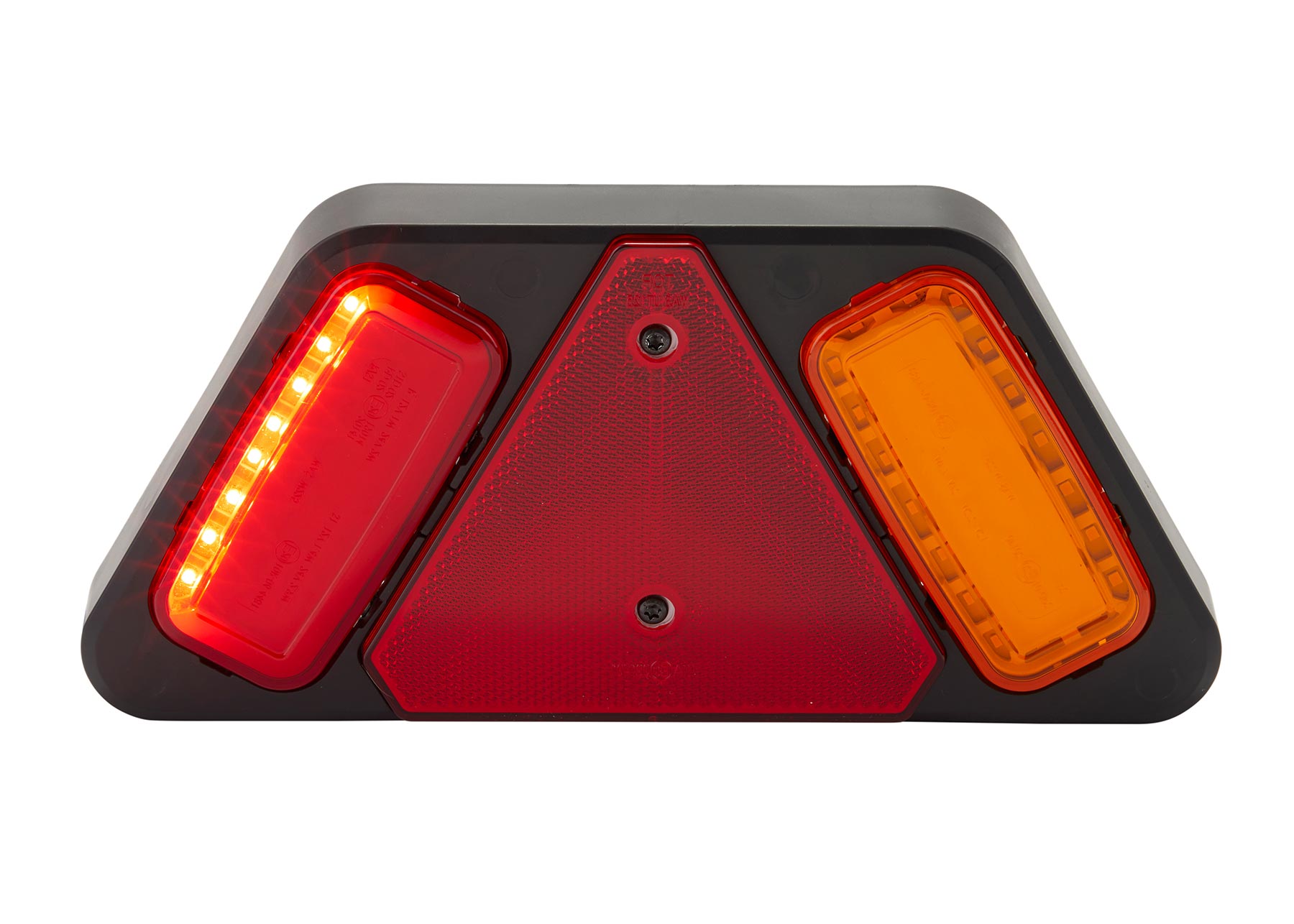

RL5737 Brake

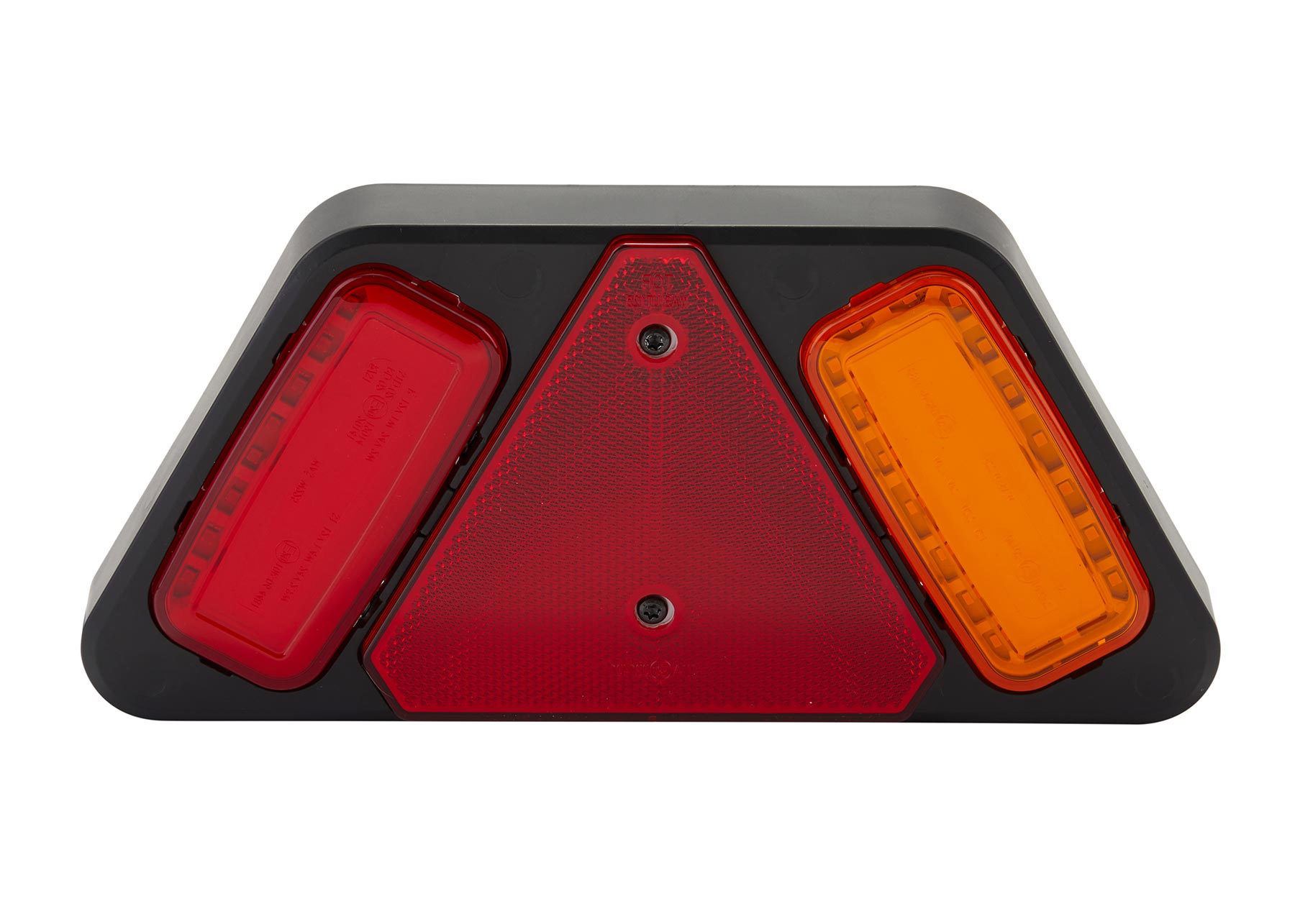

RL5737 Off

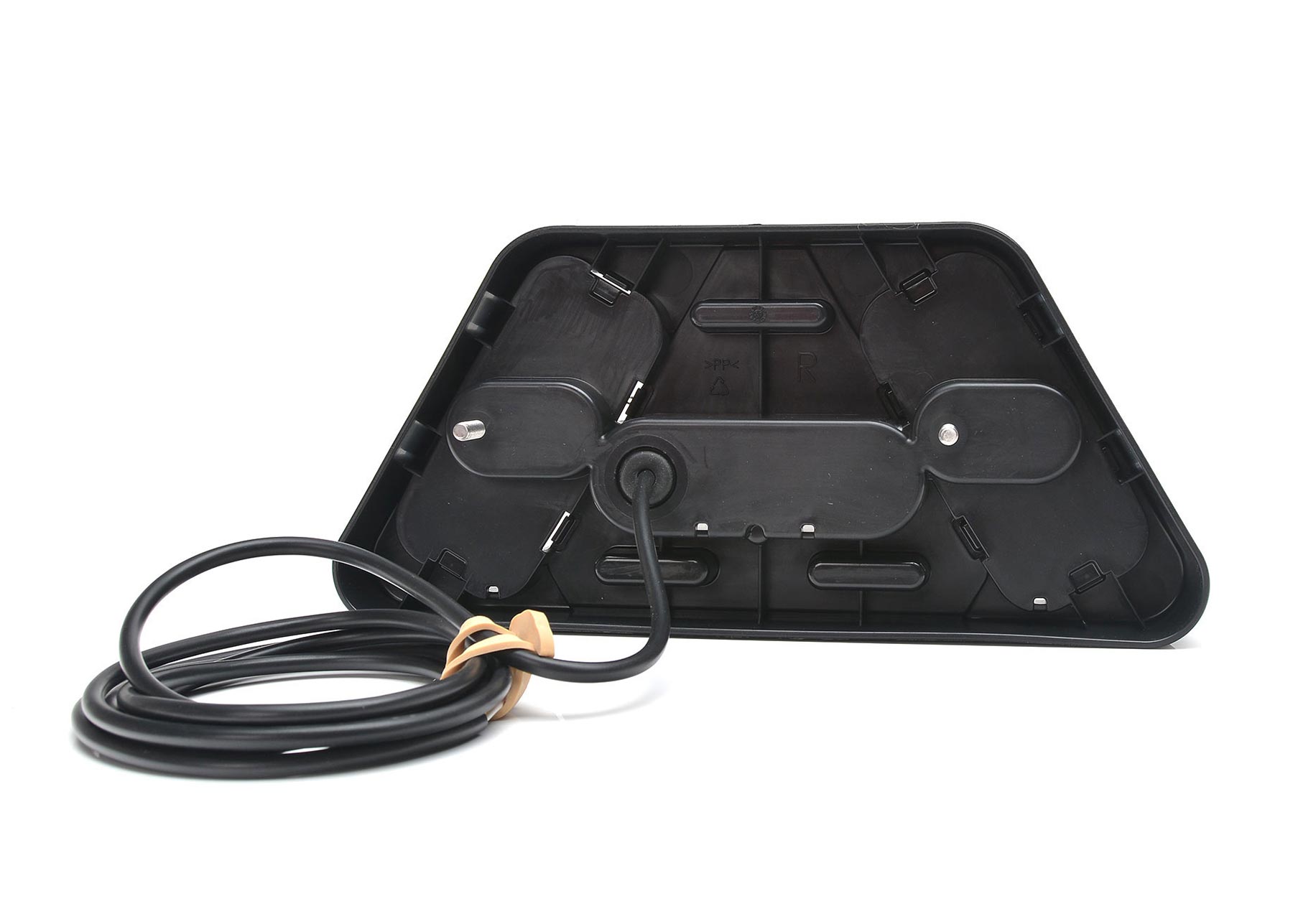

RL5737 Back

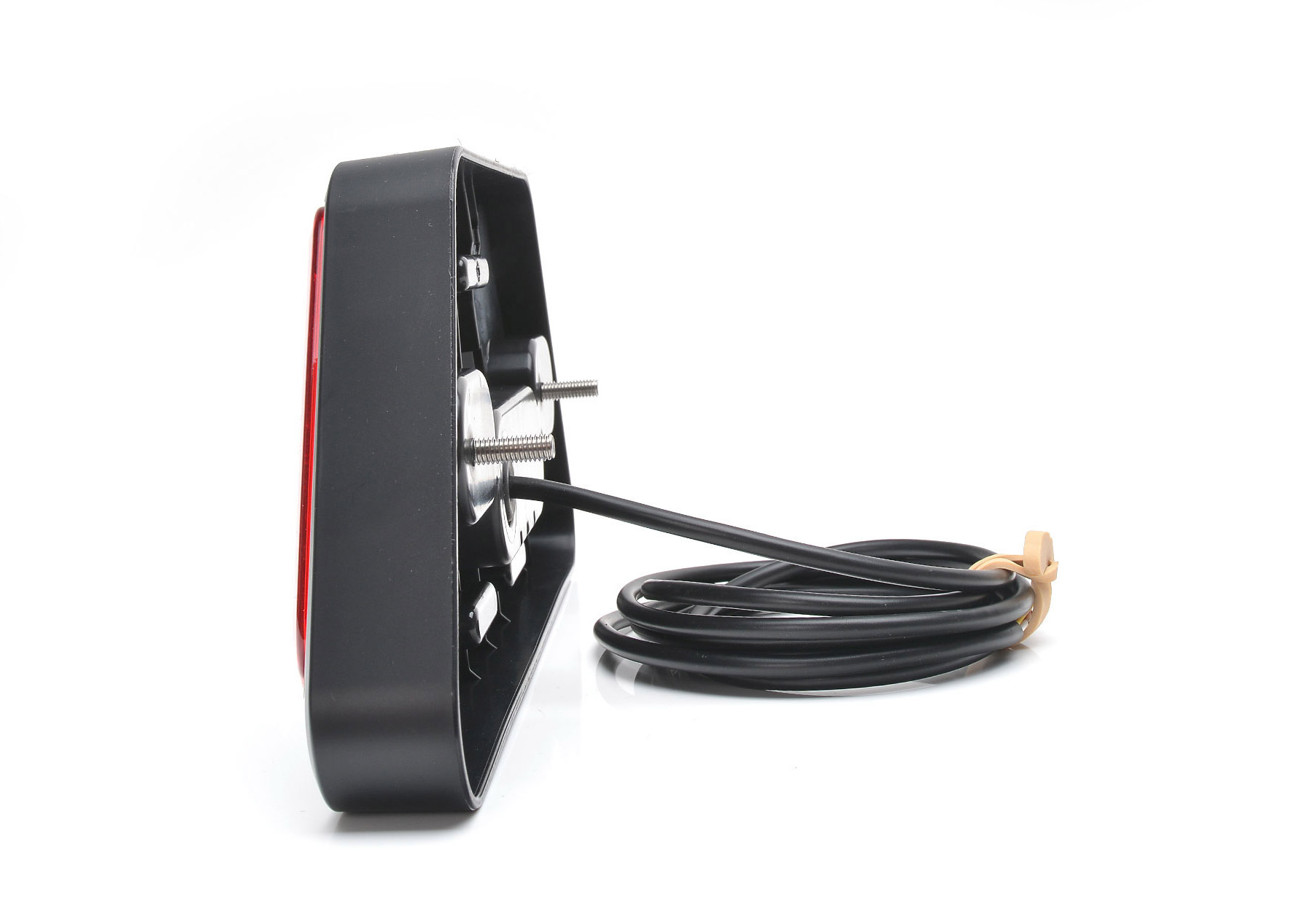

RL573 Series Side

RL573 Series LED Rear Combination Light

PART NO: RL5736

Product options
  • Product Overview:
    • Stop, tail, indicator light with in-built triangular reflector in one unit.
    • An ideal cost effective solution for the agriculture sector.
    • Homogenous light output.
    • Left hand and right hand versions available.
    • Comes with a 6-way Superseal connector as standard.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us
Play

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Rear Combination Light - Stop / Tail / Indicator / Reflector with Superseal Connector - Left Side LED Rear Combination Light - Stop / Tail / Indicator / Reflector with Superseal Connector - Right Side
PART NUMBER RL5736 RL5737
IP RATING IP69K IP69K
VOLTAGE (V) DC 12/24 12/24
CURRENT DRAW (AMPS) Stop: 0.092A @ 12V, 0.092A @ 24V, Tail: 0.065A @ 12V, 0.010A @ 24V, Indicator: 0.142A @ 12V, 0.142A @ 24V Stop: 0.092A @ 12V, 0.092A @ 24V, Tail: 0.065A @ 12V, 0.010A @ 24V, Indicator: 0.142A @ 12V, 0.142A @ 24V
CABLE LENGTH (MM) 2000 2000
CONNECTORS SuperSeal SuperSeal
LIGHT COLOUR Red/Amber Red/Amber
LENS COLOUR Red/Amber Red/Amber
DIAMETER (MM) N/A N/A
LENGTH (MM) 282 282
HEIGHT (MM) 132 132
DEPTH (MM) 35 35
WEIGHT (KG) 0.511 0.511
