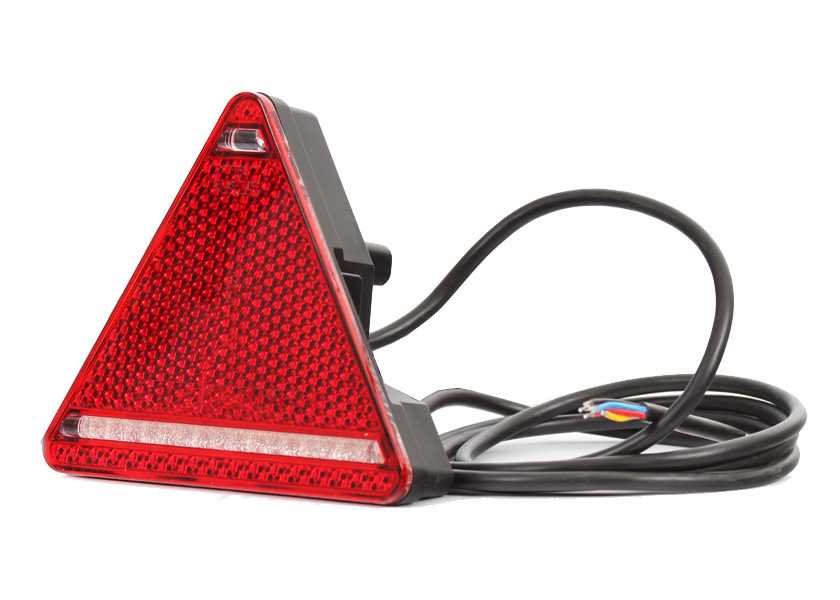

RL322.5

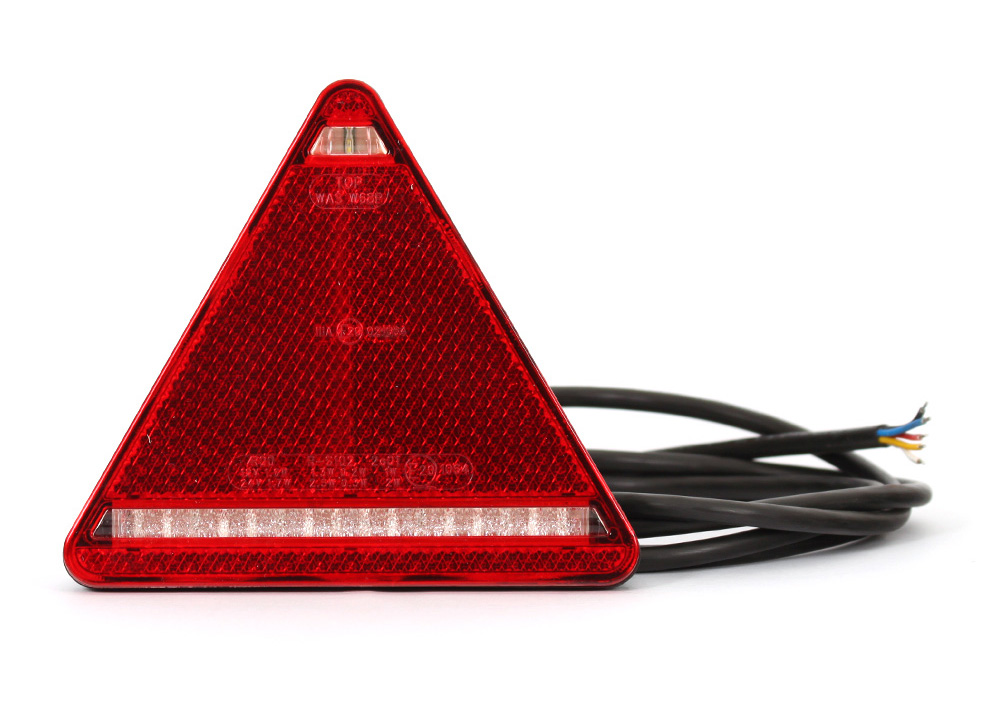

RL322.5
RL322.5

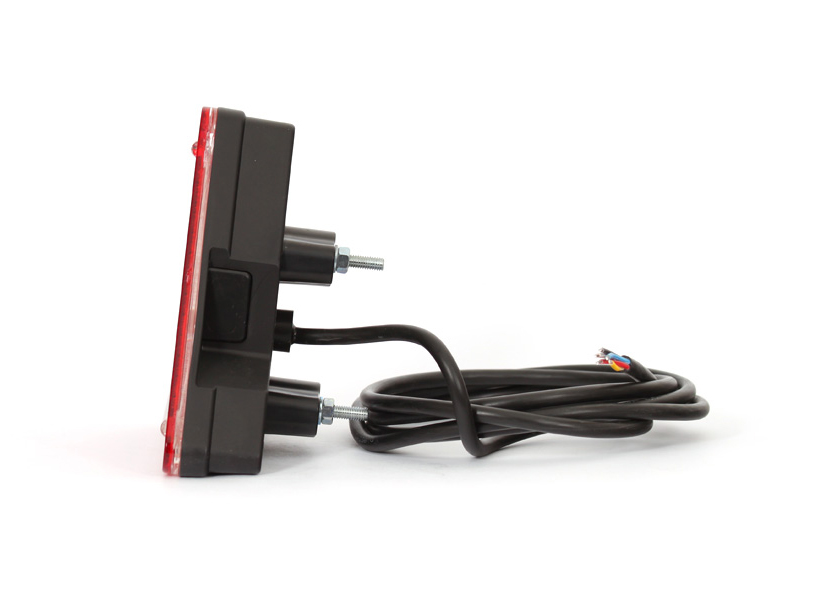

RL322.5 Side

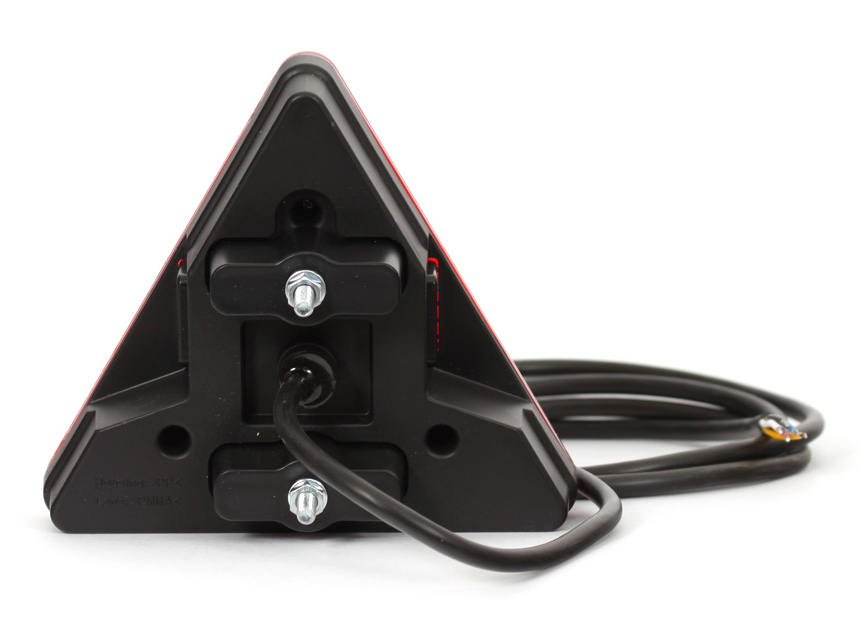

RL322.5 Back

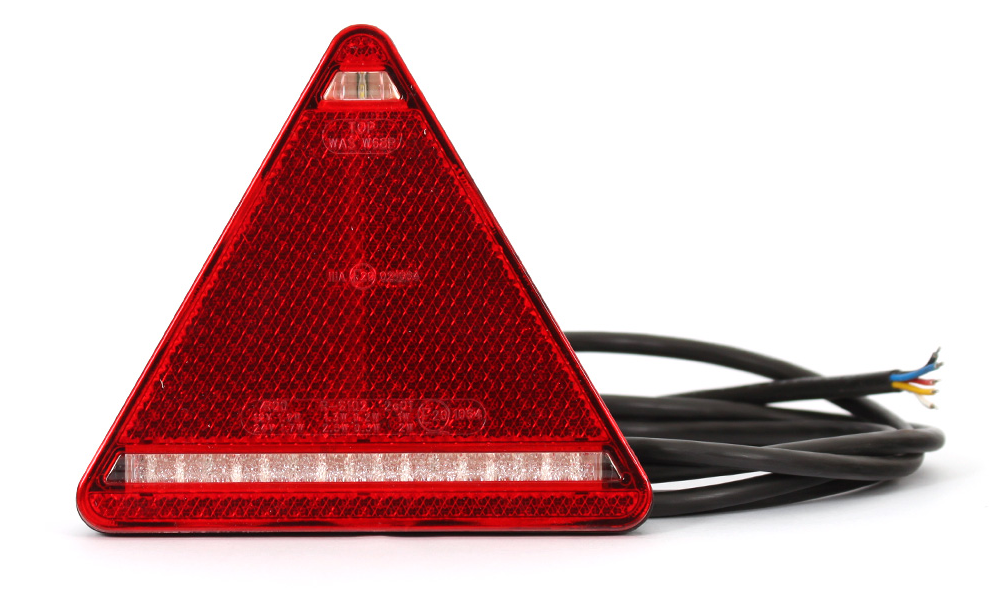

RL326S

LED Rear Combination Trailer Light - Stop / Tail / Indicator / Reverse

PART NO: RL322/5

Product options
  • Product Overview:
    • This product is being phased out from our range and replaced with our Triangular Combination Rear Light, part number RL1619.
    • Up to 5 functions in one light.
    • Superb space-saving design.
    • Rugged construction.
    • Integral triangular reflex reflector.
    • Stop / tail / indicator / fog / NPL / reflector options available in same series.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Rear Combination Trailer Light - Stop / Tail / Indicator / Reverse - Left Side, 5m Cable LED Rear Combination Trailer Light - Stop / Tail / Indicator / Reverse - Left Side with Superseal Connector LED Rear Combination Trailer Light - Stop / Tail / Indicator / Reverse - Right Side with Superseal Connector
PART NUMBER RL322/5 RL322S RL326S
IP RATING IP68 IP68 IP68
VOLTAGE (V) DC 12/24 12/24 12/24
CABLE LENGTH (MM) 5000 1850
CONNECTORS None SuperSeal SuperSeal
LIGHT COLOUR Red/White/Amber Red/White/Amber Red/Amber
LENS COLOUR Red/Clear Red/Clear Red/Clear
DIAMETER (MM) N/A N/A N/A
LENGTH (MM) 163 163 163
HEIGHT (MM) 144 144 144
DEPTH (MM) 39 39 39
