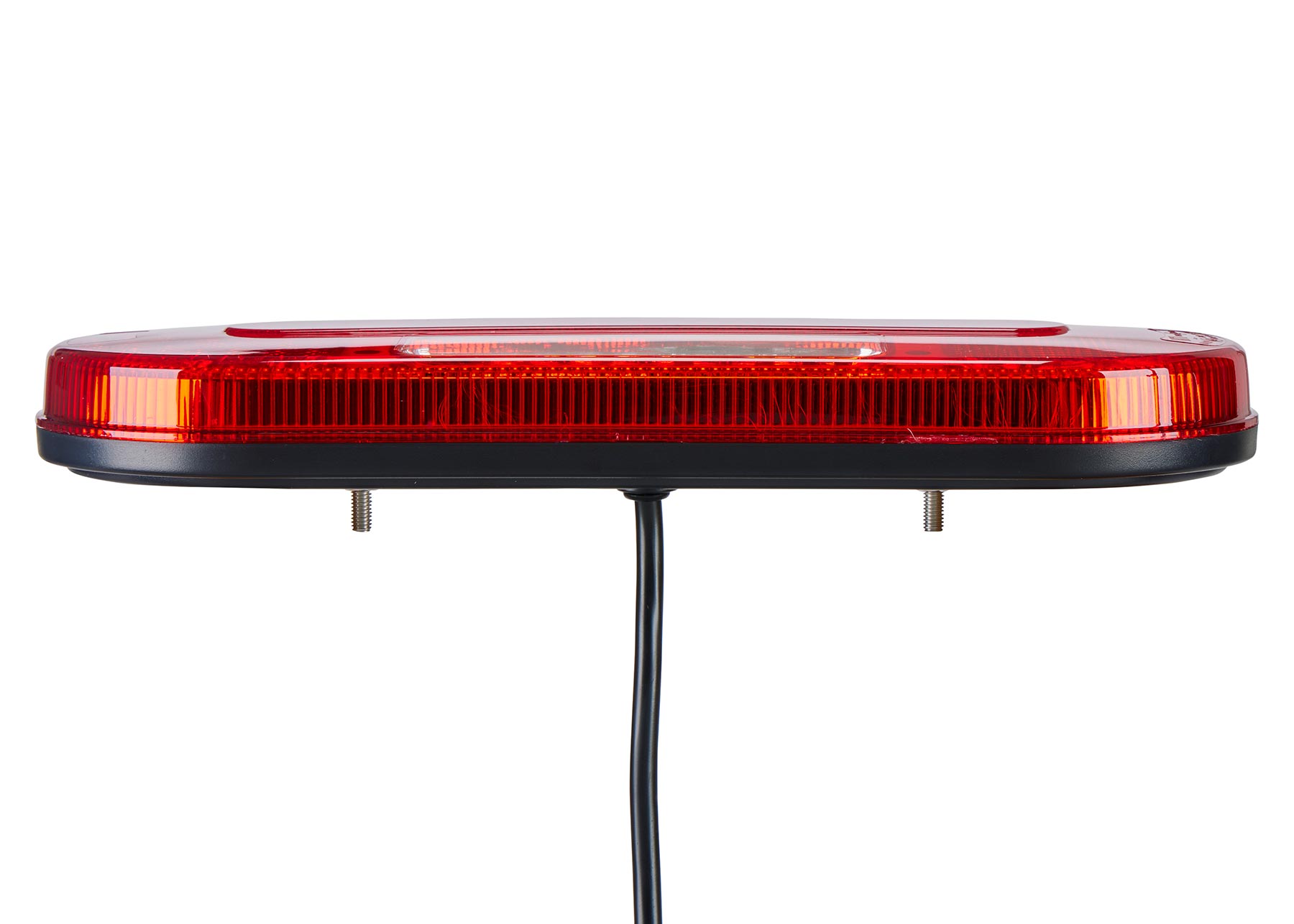

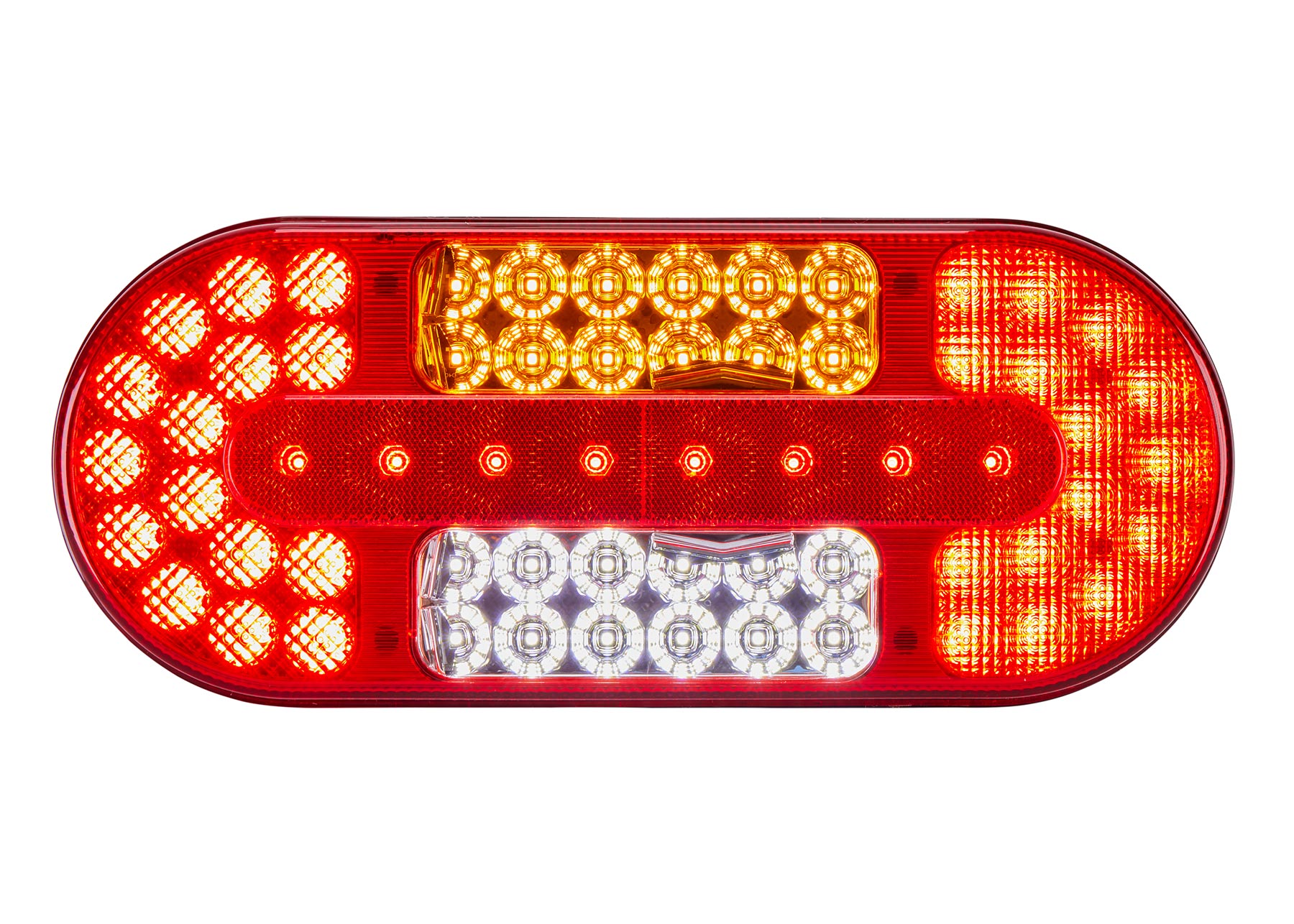

RL17 Series LED Combination Rear Light

PART NO: RL17L

Product options
  • Product Overview:
    • Stop / tail / indicator with fog and reverse functions.
    • Incorporates rear reflector.

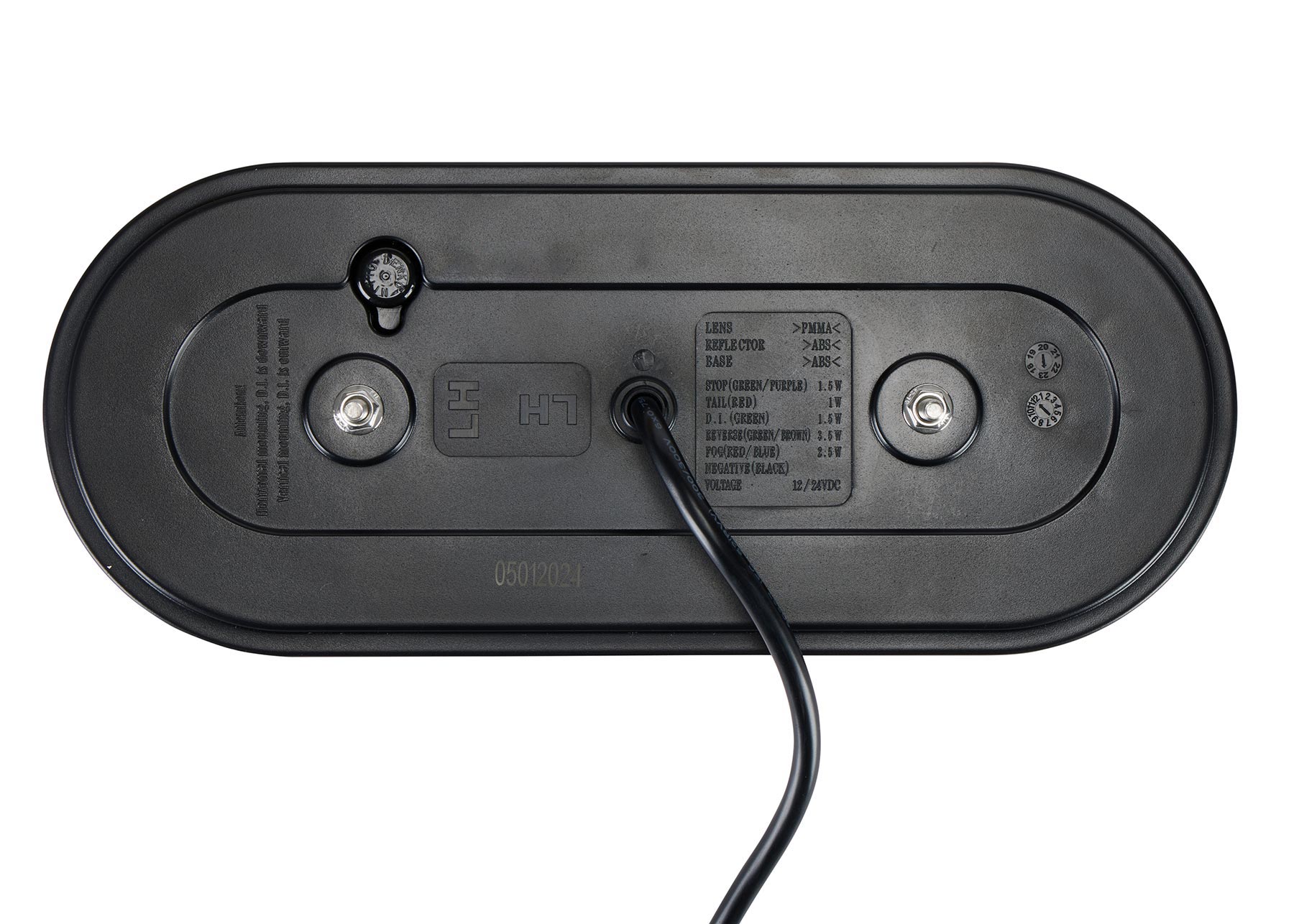

    • Twin stud mounting.
    • Materials: ABS housing with PMMA lens.
    • Dual voltage.
  • Warranty: 3 Years
  • Approvals: ECE R3, R6, R7, R10, R23, R38.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE LED Rear Combination Light - Stop / Tail / Indicator / Fog / Reverse - Left Side LED Rear Combination Light - Stop / Tail / Indicator / Fog / Reverse - Right Side
PART NUMBER RL17L RL17R
IP RATING IP67 IP67
VOLTAGE (V) DC 12/24 12/24
CONNECTORS None None
LIGHT COLOUR Red/White/Amber Red/White/Amber
LENS COLOUR Red/Amber/Clear Red/Amber/Clear
DIAMETER (MM) N/A N/A
LENGTH (MM) 323 323
HEIGHT (MM) 134 134
DEPTH (MM) 37.5 37.5
