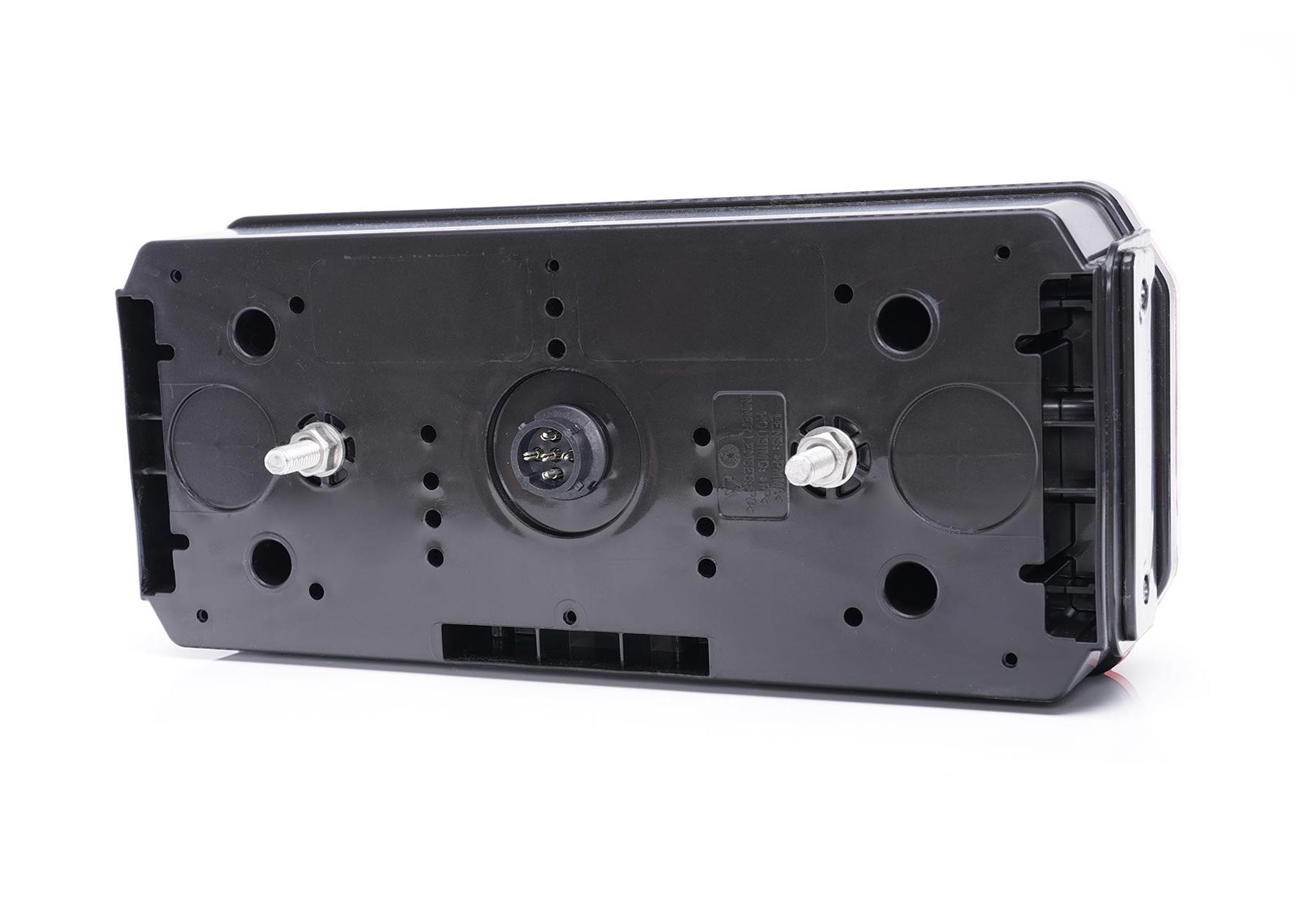

RL7627 Branded LED Trailer 3-Function Rear Light

PART NO: RL7627

Product options
  • Product Overview:
    • Designed for the back of trailers.
    • Customisable area behind the reflector illuminates branding of your choice providing additional brand exposure.
    • 3 rear light functions in one unit - stop / tail / indicator / reflector.
    • Dynamic indicator as standard (static indicator is also available).
    • Integrated 5-pin connector.
    • Optional marker light feed available.
    • Made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R4, R10, R148, R150.
Contact Us

The options available for this product are summarised below.

TITLE Branded LED Trailer Rear Light - Stop / Tail / Dynamic Indicator / Reflector with 5-Pin Connector - Left Hand Branded LED Trailer Rear Light - Stop / Tail / Dynamic Indicator / Reflector with 5-Pin Connector - Right Hand Branded LED Trailer Rear Light - Stop / Tail / Static Indicator / Reflector with 5-Pin Connector
PART NUMBER RL7627 RL762701 RL762702
IP RATING IP69K IP69K IP69K
VOLTAGE (V) DC 12/24 12/24 12/24
CURRENT DRAW (AMPS) Stop: 0.42A @ 12V, 0.21A @ 24V, Tail: 0.45A @ 12V, 0.23A @ 24V, Indicator: 1.75A @12V, 0.88A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V, Fog: 0.42A @ 12V, 0.21A @ 24V Stop: 0.42A @ 12V, 0.21A @ 24V, Tail: 0.45A @ 12V, 0.23A @ 24V, Indicator: 1.75A @12V, 0.88A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V, Fog: 0.42A @ 12V, 0.21A @ 24V Stop: 0.42A @ 12V, 0.21A @ 24V, Tail: 0.45A @ 12V, 0.23A @ 24V, Indicator: 1.75A @12V, 0.88A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V, Fog: 0.42A @ 12V, 0.21A @ 24V
CABLE LENGTH (MM)
CONNECTORS 5-Pin 5-Pin 5-Pin
LIGHT COLOUR Red/White/Amber Red/White/Amber Red/White/Amber
LENS COLOUR Red Red Red
DIAMETER (MM) N/A N/A N/A
LENGTH (MM) 302 302 302
HEIGHT (MM) 131 131 131
DEPTH (MM) 80 80 80
WEIGHT (KG) 1.21 1.21 1.21
