RL487 Illuminated

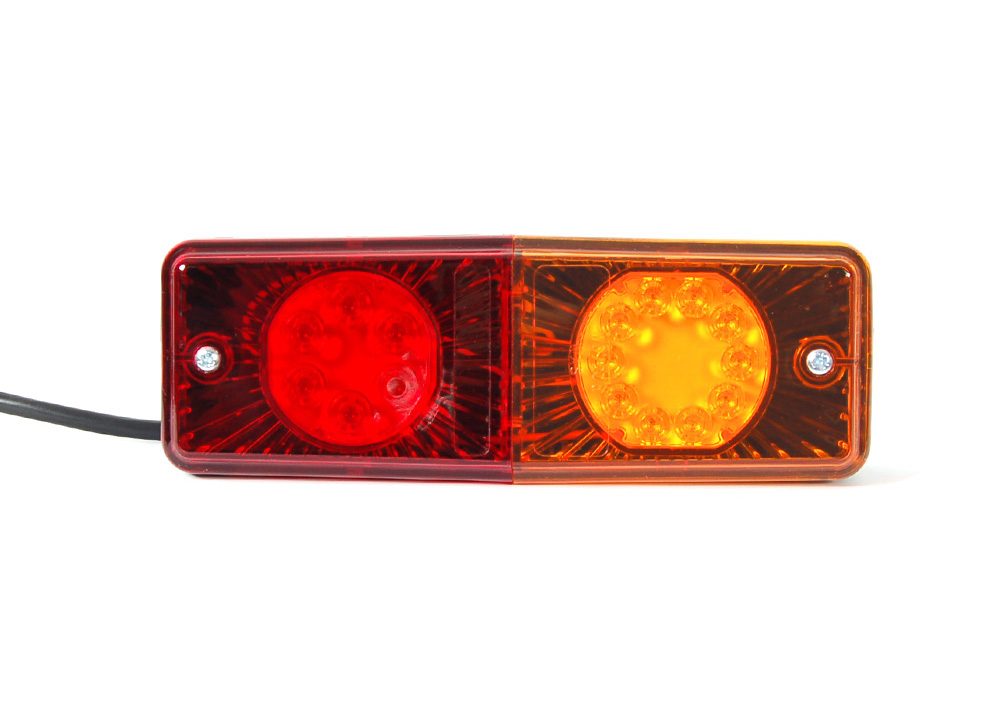

RL487 Off

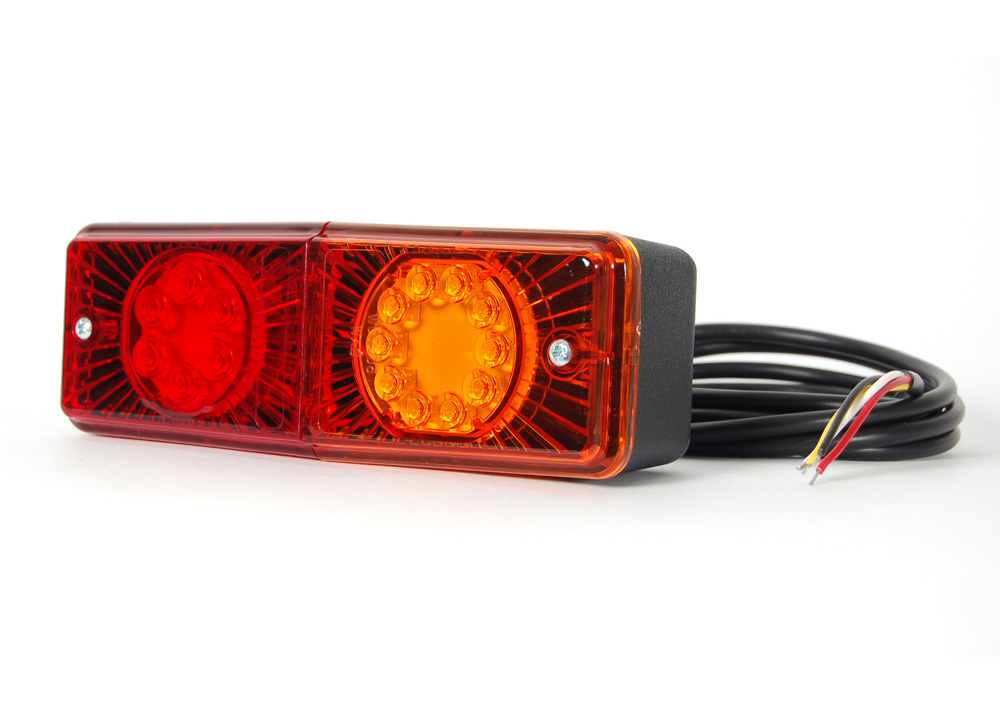

RL487
RL487 Side

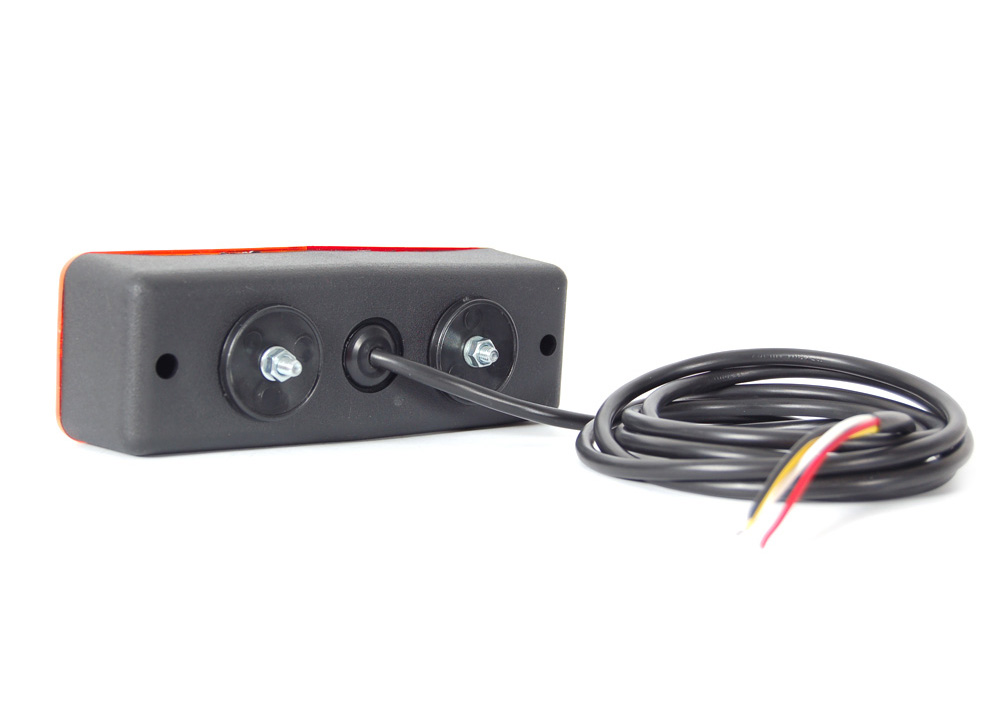

RL487 Back

Compact LED Rear Combination Light - Stop / Tail / Indicator

PART NO: RL487

Product options
  • Product Overview:
    • Dual voltage.
    • Optional surface or twin-stud mount.
  • Warranty: 3 Years
  • Approvals: ECE R7, R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Compact LED Rear Combination Light - Stop / Tail / Indicator
PART NUMBER RL487
IP RATING IP68
VOLTAGE (V) DC 12/24
CURRENT DRAW (AMPS) Stop: 0.07A @ 12V, 0.035A @ 24V, Tail: 0.01A @ 12V, 0.005A @ 24V, Indicator: 0.07A @ 12V, 0.035A @ 24V
CABLE LENGTH (MM) 2000
CONNECTORS None
LIGHT COLOUR Red/Amber
LENS COLOUR Red/Amber
DIAMETER (MM) N/A
LENGTH (MM) 200
HEIGHT (MM) 70
DEPTH (MM) 60
