- Designed for the back of rigid vehicles.
- Customisable area behind the reflector illuminates branding of your choice providing additional brand exposure.
- 5 rear light functions in one unit - stop / tail / indicator / fog / reverse / reflector.
- Dynamic indicator as standard (static indicator is also available).

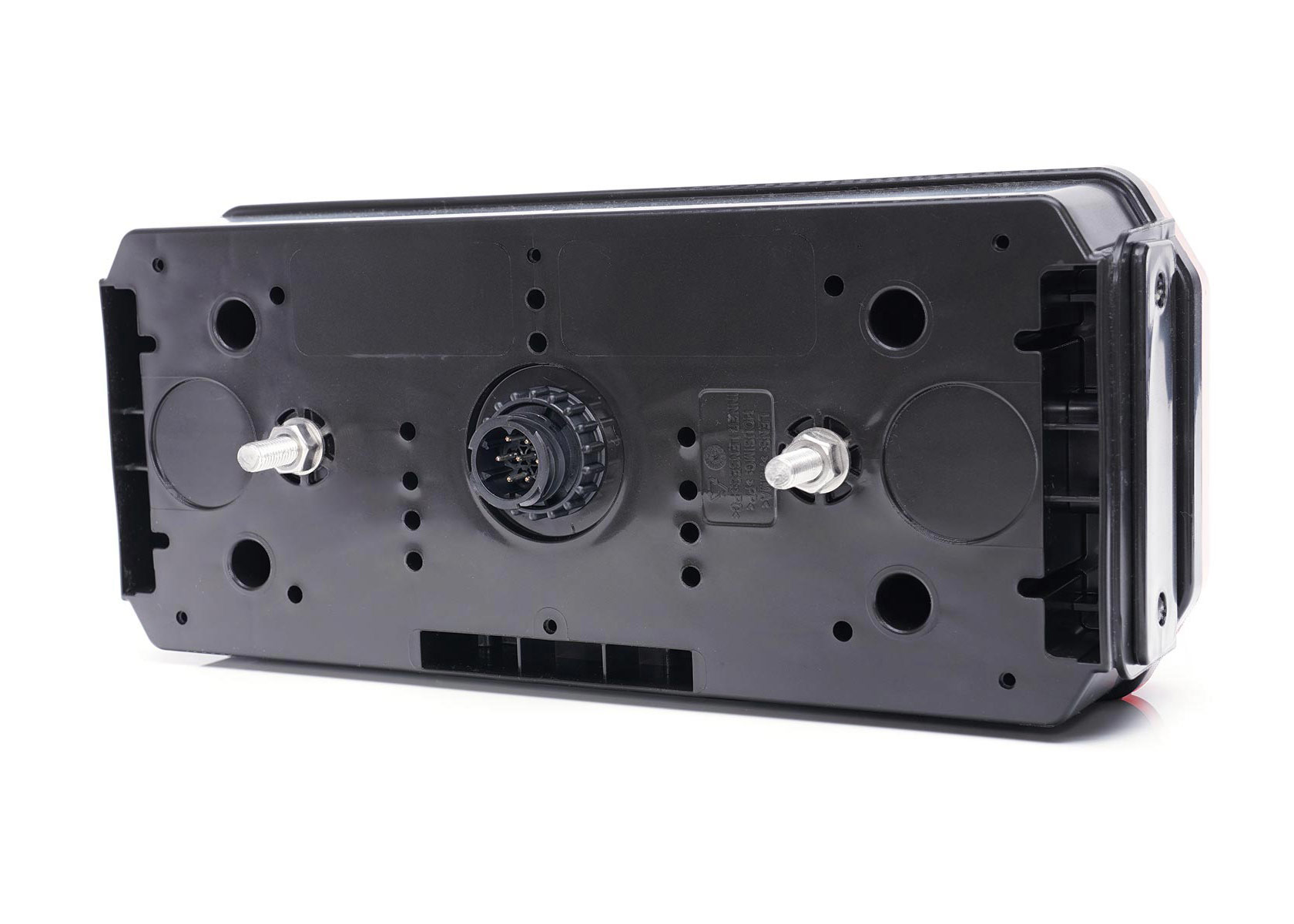

- Integrated Tyco connector.
- Optional marker light feed available.
- Made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R4, R10, R148, R150.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RL7626 | Branded LED Rigid Vehicle Rear Light - Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector with Tyco Connector - Left Hand | IP69K | 12/24 | Stop: 0.42A @ 12V, 0.21A @ 24V, Tail: 0.45A @ 12V, 0.23A @ 24V, Indicator: 1.75A @12V, 0.88A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V, Fog: 0.42A @ 12V, 0.21A @ 24V | Tyco | Red/White/Amber | Red | N/A | 1.172 | 131(H) X 302(L) X 58(D) | |
| RL762601 | Branded LED Rigid Vehicle Rear Light - Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector with Tyco Connector - Right Hand | IP69K | 12/24 | Stop: 0.42A @ 12V, 0.21A @ 24V, Tail: 0.45A @ 12V, 0.23A @ 24V, Indicator: 1.75A @12V, 0.88A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V, Fog: 0.42A @ 12V, 0.21A @ 24V | Tyco | Red/White/Amber | Red | N/A | 1.172 | 131(H) X 302(L) X 58(D) | |
| RL762602 | Branded LED Rigid Vehicle Rear Light - Stop / Tail / Static Indicator / Fog / Reverse / Reflector with Tyco Connector Left Hand | IP69K | 12/24 | Stop: 0.42A @ 12V, 0.21A @ 24V, Tail: 0.45A @ 12V, 0.23A @ 24V, Indicator: 1.75A @12V, 0.88A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V, Fog: 0.42A @ 12V, 0.21A @ 24V | Tyco | Red/White/Amber | Red | N/A | 1.172 | 131(H) X 302(L) X 58(D) | |
| RL762603 | Branded LED Rigid Vehicle Rear Light - Stop / Tail / Static Indicator / Fog / Reverse / Reflector with Tyco Connector - Right Hand | IP69K | 12/24 | Stop: 0.42A @ 12V, 0.21A @ 24V, Tail: 0.45A @ 12V, 0.23A @ 24V, Indicator: 1.75A @12V, 0.88A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V, Fog: 0.42A @ 12V, 0.21A @ 24V | Tyco | Red/White/Amber | Red | N/A | 1.172 | 131(H) X 302(L) X 58(D) |
Download Product Information
- RL7626 Product Spec Sheet Download
- RL762601 Product Spec Sheet Download
- RL762602 Product Spec Sheet Download
- RL762603 Product Spec Sheet Download
- RL7626 Technical Drawing Download
- RL762601 Technical Drawing Download
- RL762602 Technical Drawing Download
- RL762603 Technical Drawing Download
- RL7626 R150 Approval Download
- RL7626 R4 Approval Download
- RL7626 R148 Approvals Download
To download product materials, please login or register for an account.
