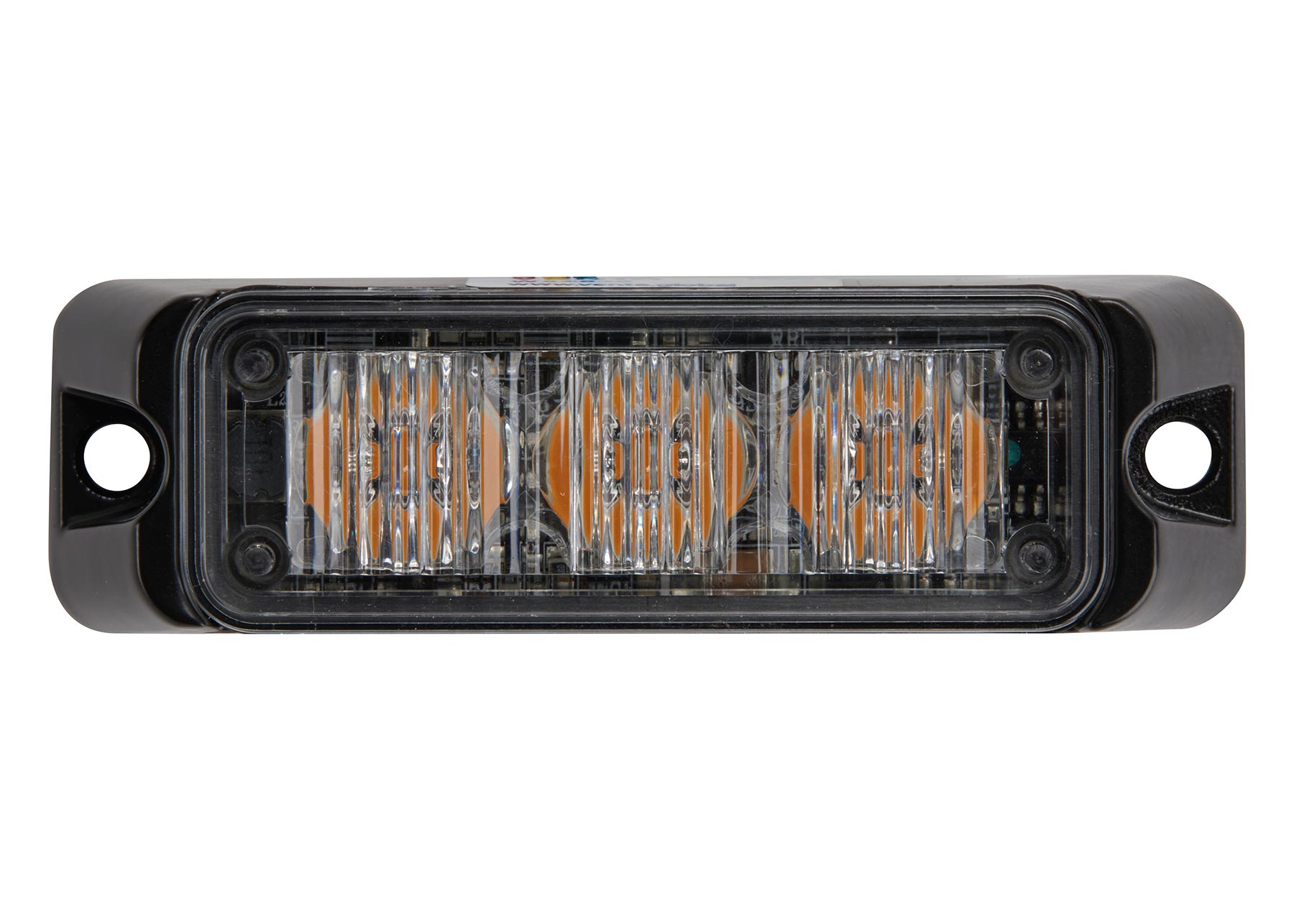

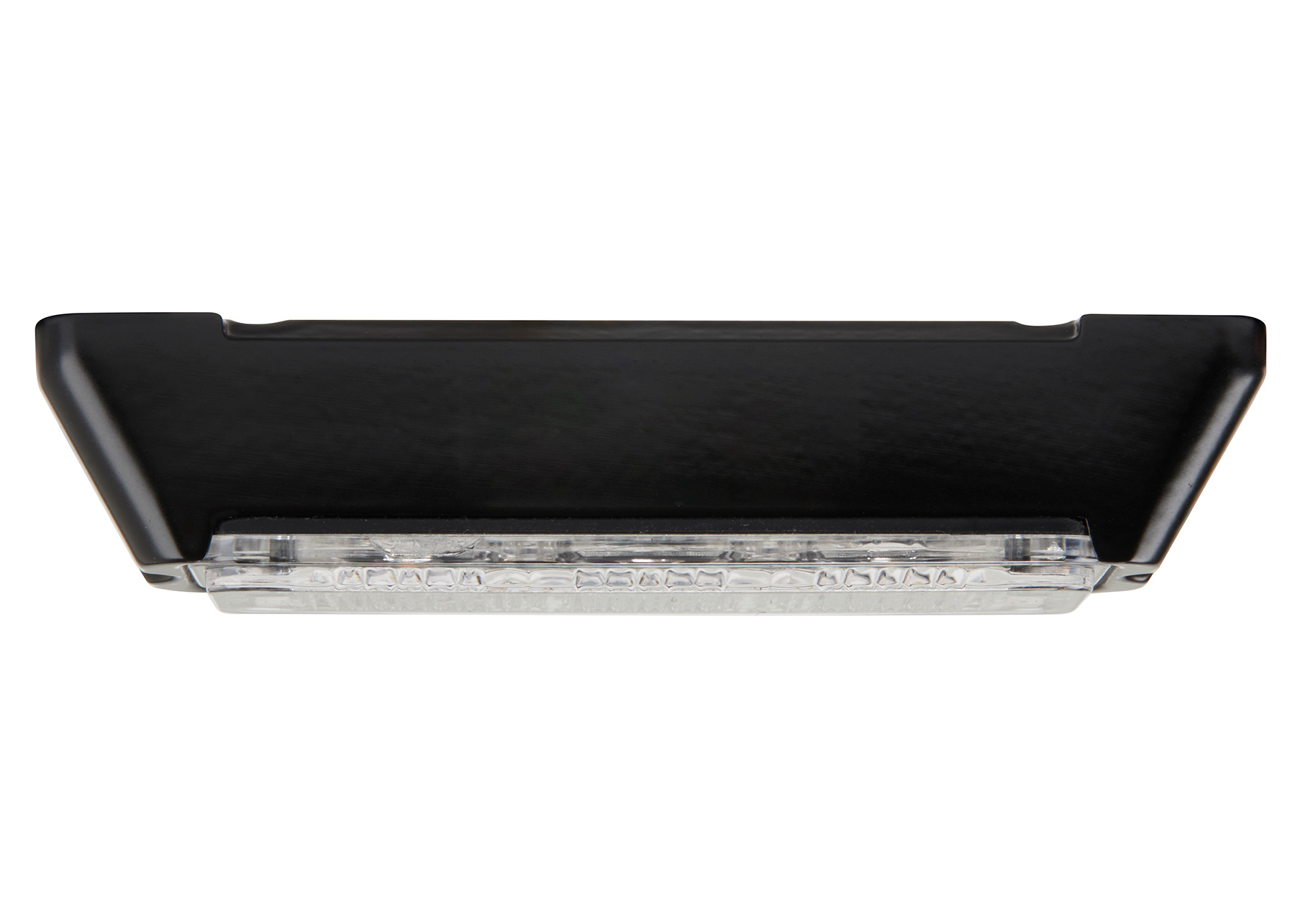

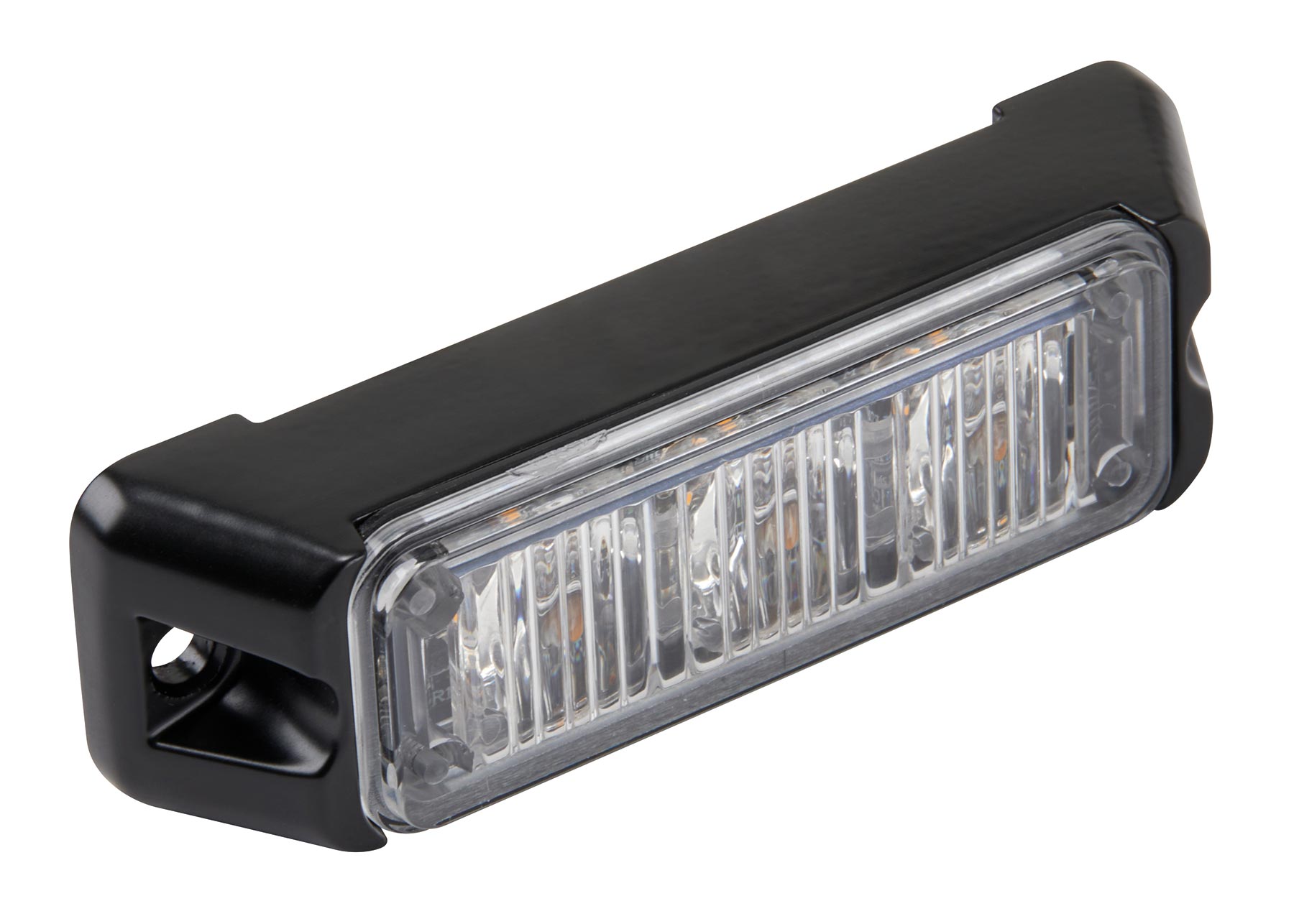

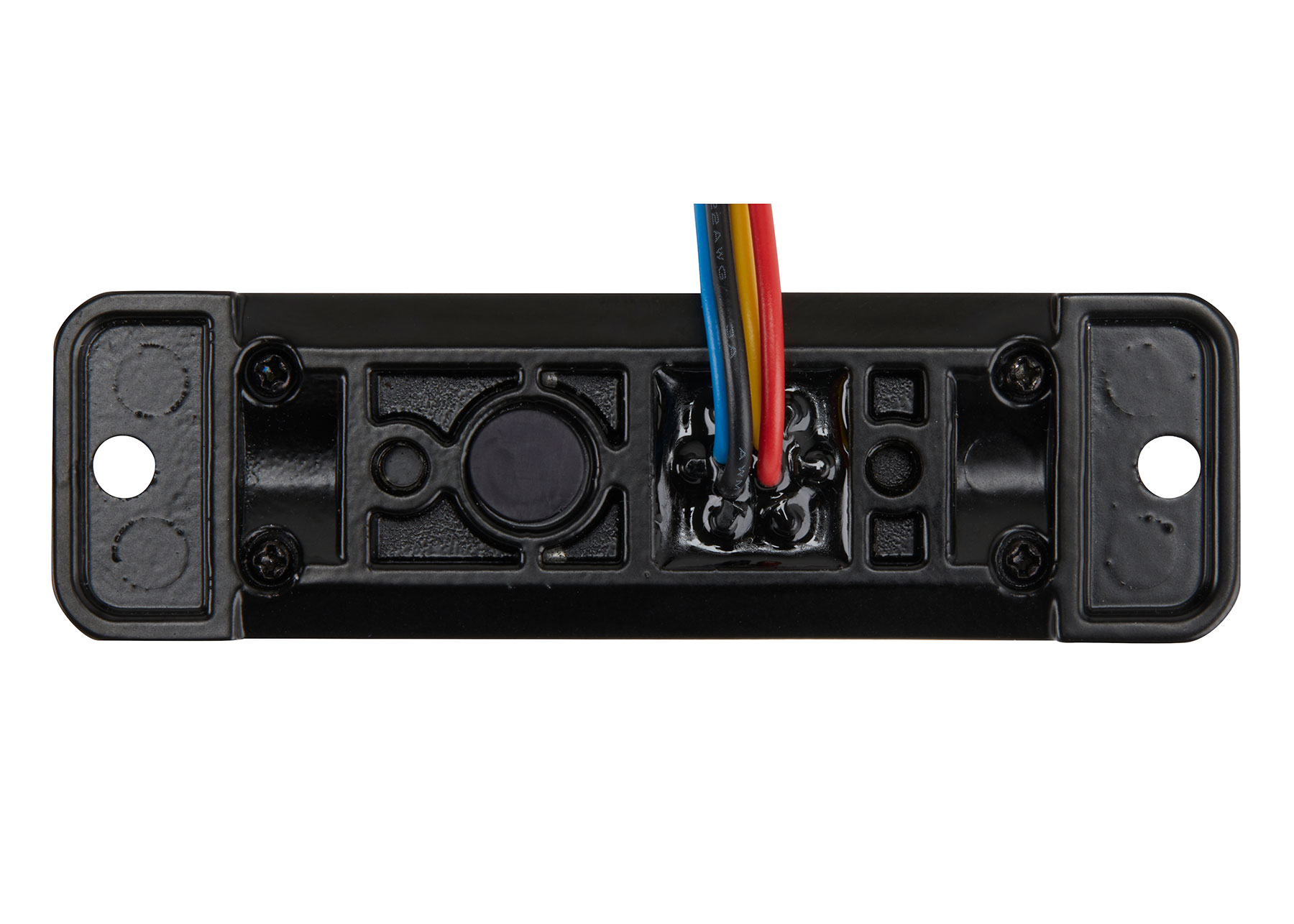

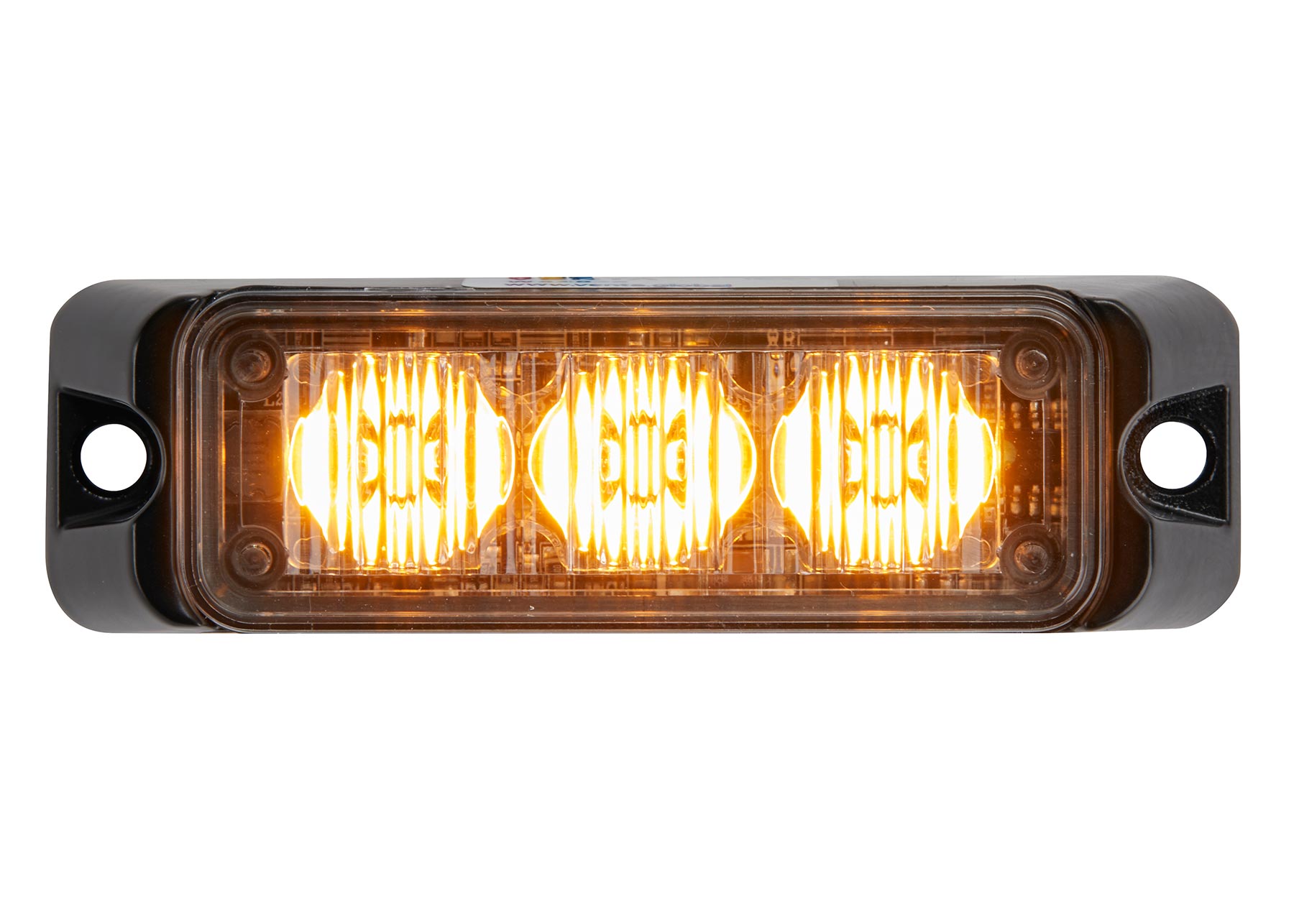

V20 Series R65 3-LED Lighthead - Amber

PART NO: WS4826

Product options
  • Product Overview:
    • Rugged aluminium housing with robust polycarbonate lens.
    • Synchronisable up to 8 lamps.
    • V20 Series available in amber, red, blue and green, all with a clear lens.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10, R65 Class 1, SAE.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE R65 3-LED Lighthead with Clear Lens - Amber R65 3-LED Lighthead with Clear Lens - Amber with Superseal Connector and Pre-Set to R65 Pattern Group 1
PART NUMBER WS4826 WS482602
IP RATING IP67 IP67
VOLTAGE (V) DC 10-30 10-30
CURRENT DRAW (AMPS) 0.6A @ 12V, 0.35A @ 24V 0.6A @ 12V, 0.35A @ 24V
CABLE LENGTH (MM) 200 200
CONNECTORS None SuperSeal
LIGHT COLOUR Amber Amber
LENS COLOUR Clear Clear
DIAMETER (MM) N/A N/A
LENGTH (MM) 82 82
HEIGHT (MM) 25 25
DEPTH (MM) 18 18
WEIGHT (KG) 0.685 0.685
