WS1795 Illuminated

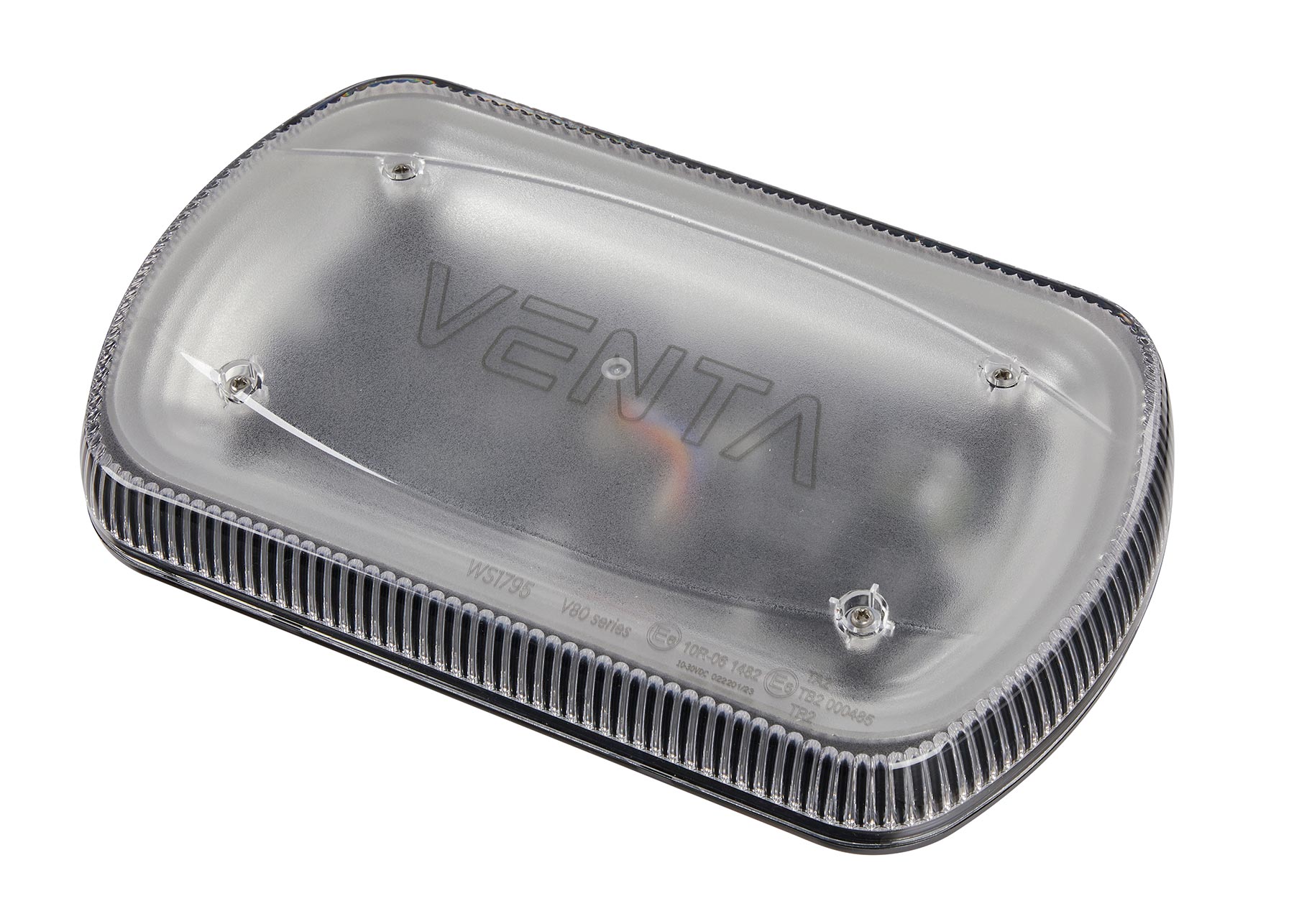

WS1795 Off

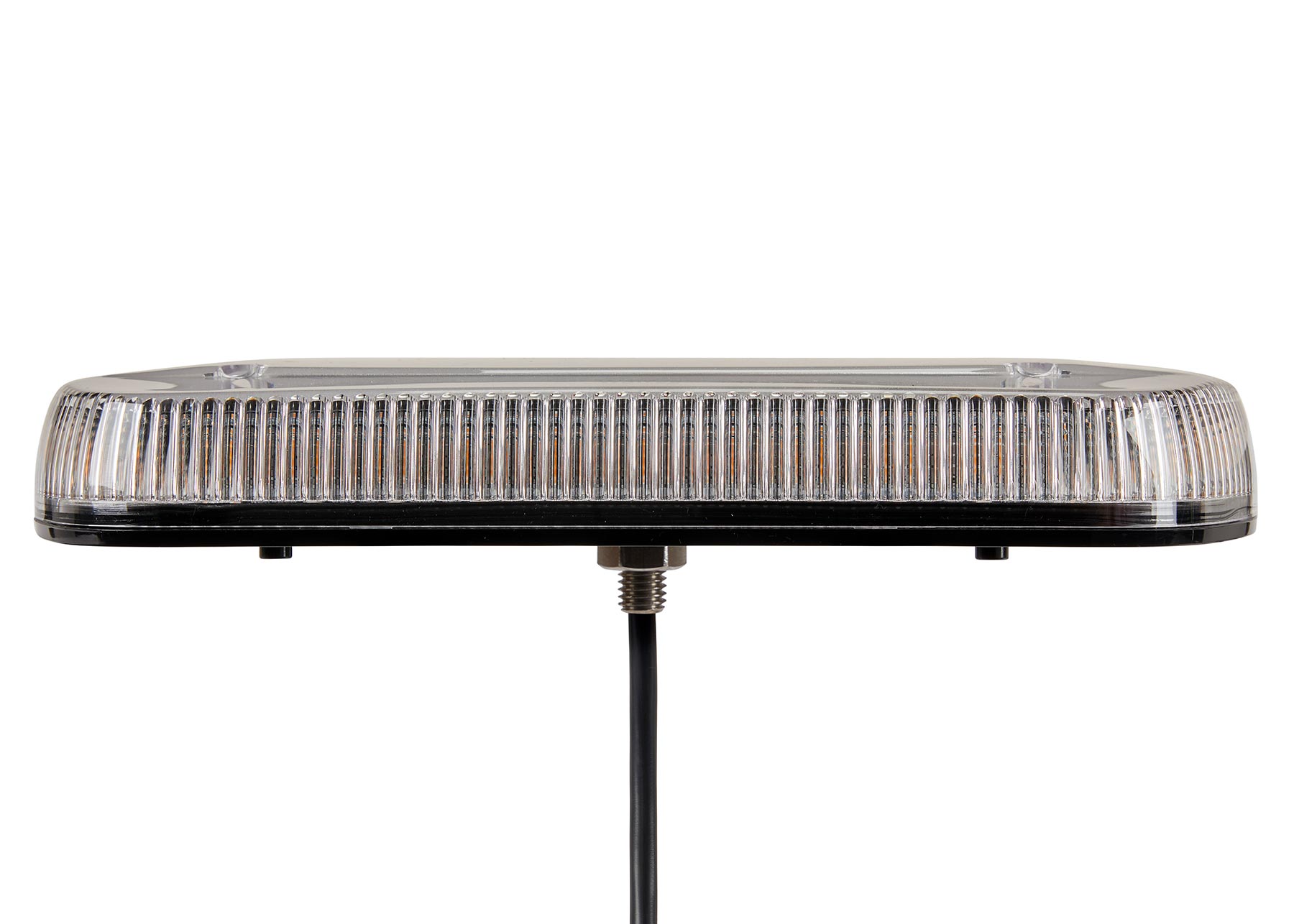

WS1795 Side

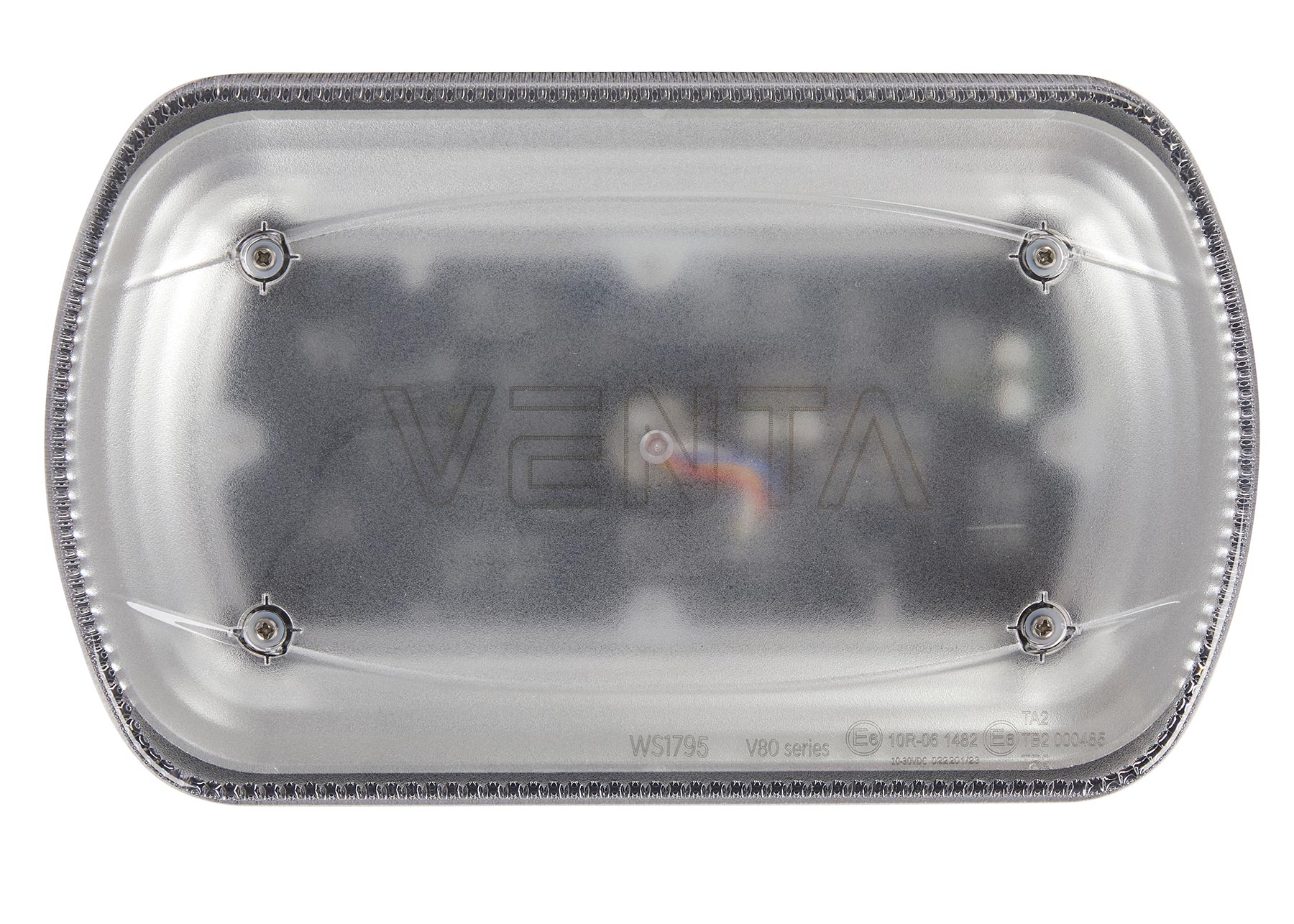

WS1795 Top

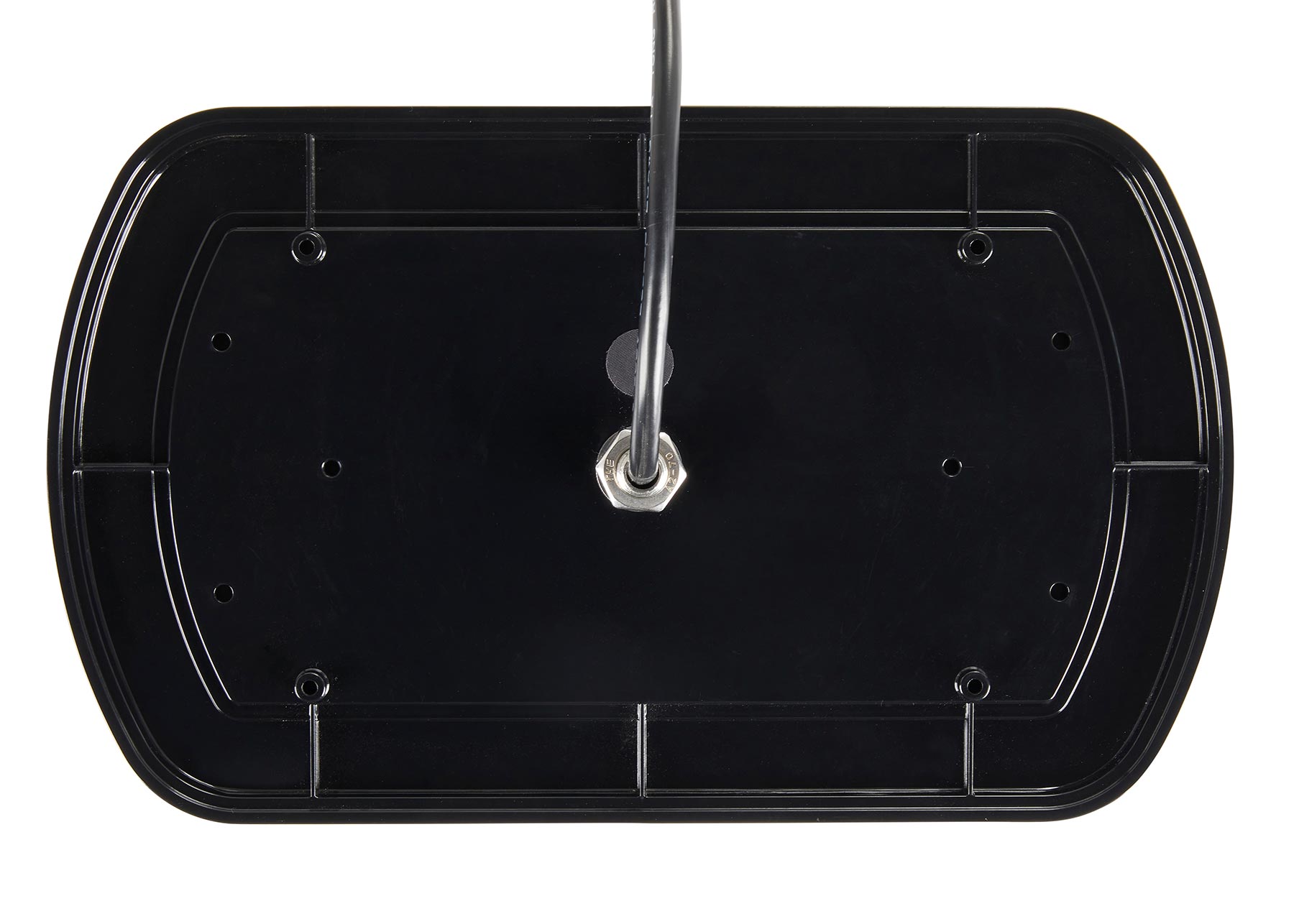

WS1795 Bottom
WS179502 Illuminated - with Mounting Brackets
WS179502 - with Mounting Brackets

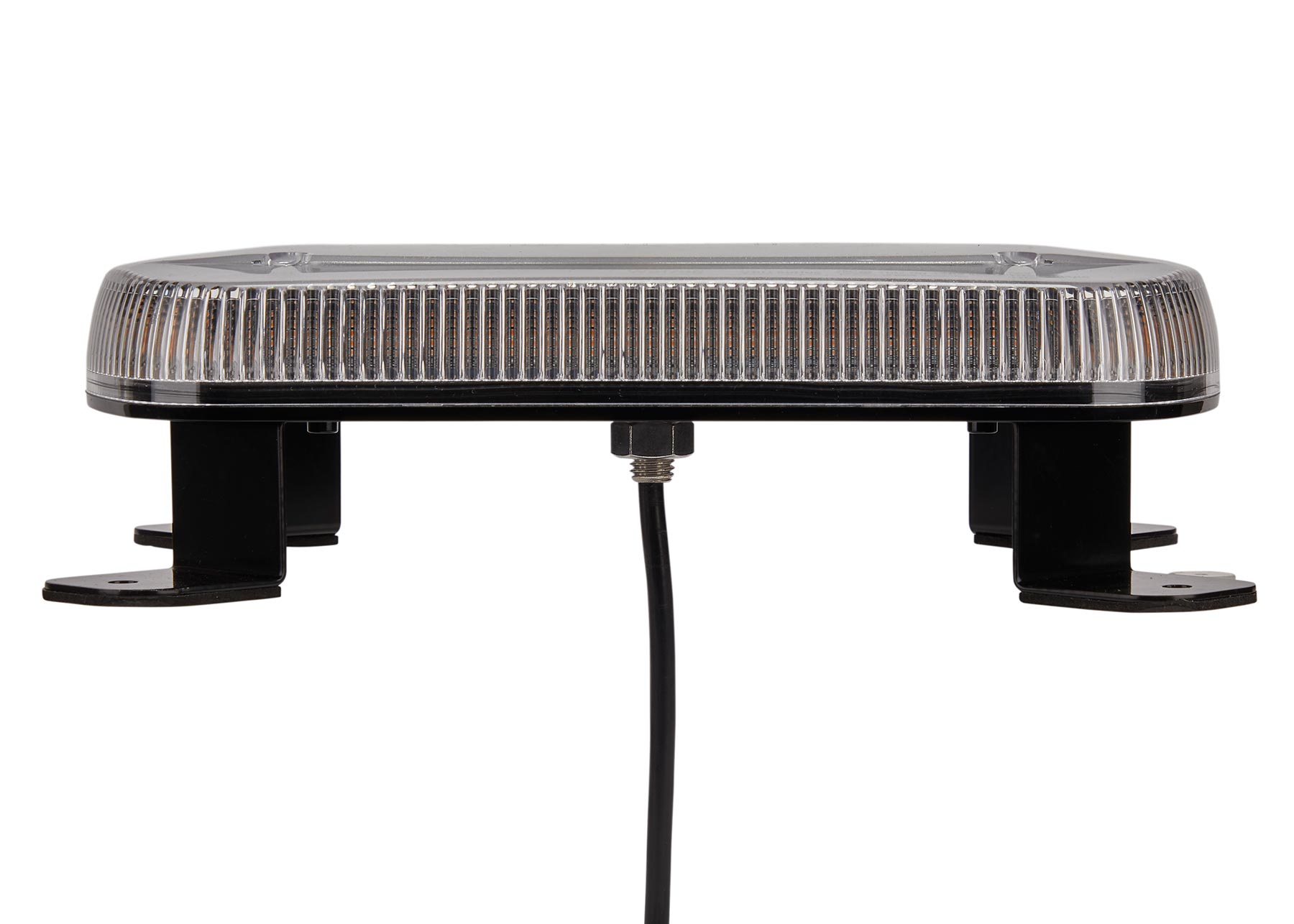

WS179502 - with Mounting Brackets Side

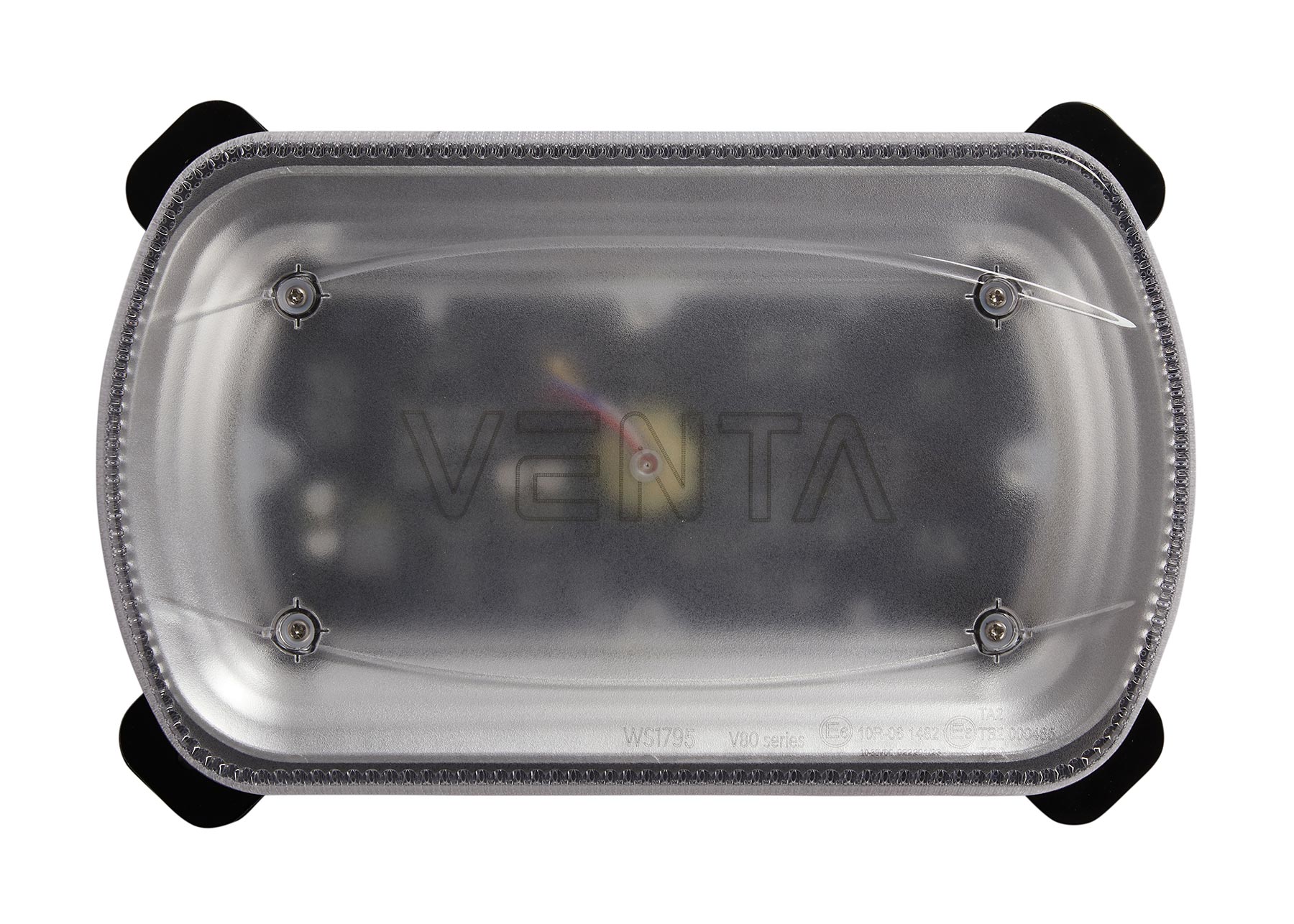

WS179502 - with Mounting Brackets Top

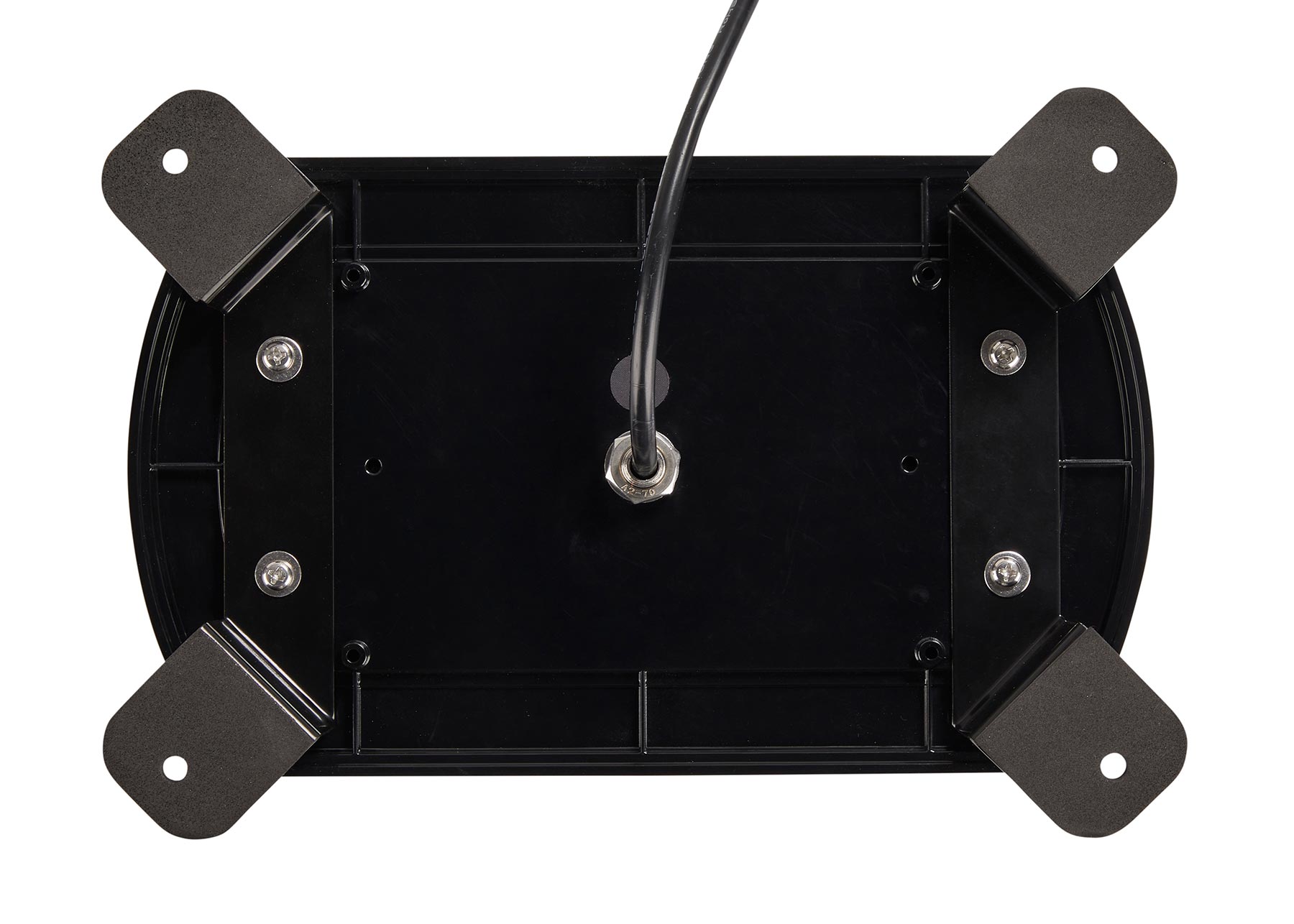

WS179502 - with Mounting Brackets Bottom

V80 Series R65 LED Minibar - Amber

PART NO: WS1795

Product options
  • Product Overview:
    • Unique optical design for optimum light output and ultimate light spread.
    • Ultra low profile design.
    • Lightweight design.
    • Polycarbonate lens and base.
    • Available in amber and blue.
    • Different mounting options available.
    • Mounting brackets are available if required.
  • Warranty: 3 Years
  • Approvals: ECE R10, ECE R65 Class 2, SAE Class 1.
Contact Us
Play

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE R65 LED Minibar - Amber - Permanent Mount R65 LED Minibar - Amber - Magnetic Mount R65 LED Minibar - Amber - Permanent Mount with Mounting Brackets R65 LED Minibar - Amber - Permanent Mount, Preset to R65 Double Flash Pattern with Superseal Connector
PART NUMBER WS1795 WS179501 WS179502 WS179503
IP RATING IP65 IP65 IP65 IP65
VOLTAGE (V) DC 12/24 12/24 12/24 12/24
CURRENT DRAW (AMPS) 5A @ 12V, 1.45A @ 24V 5A @ 12V, 1.45A @ 24V 5A @ 12V, 1.45A @ 24V 5A @ 12V, 1.45A @ 24V
CABLE LENGTH (MM) 2500 2500 2500 2500
CONNECTORS None None None SuperSeal
LIGHT COLOUR Amber Amber Amber Amber
LENS COLOUR Clear Clear Clear Clear
DIAMETER (MM) N/A N/A N/A N/A
LENGTH (MM) 284 284 284 284
HEIGHT (MM) 65 65 65 65
DEPTH (MM) 172 172 172 172
WEIGHT (KG) 0.9 0.9 0.9 0.9
