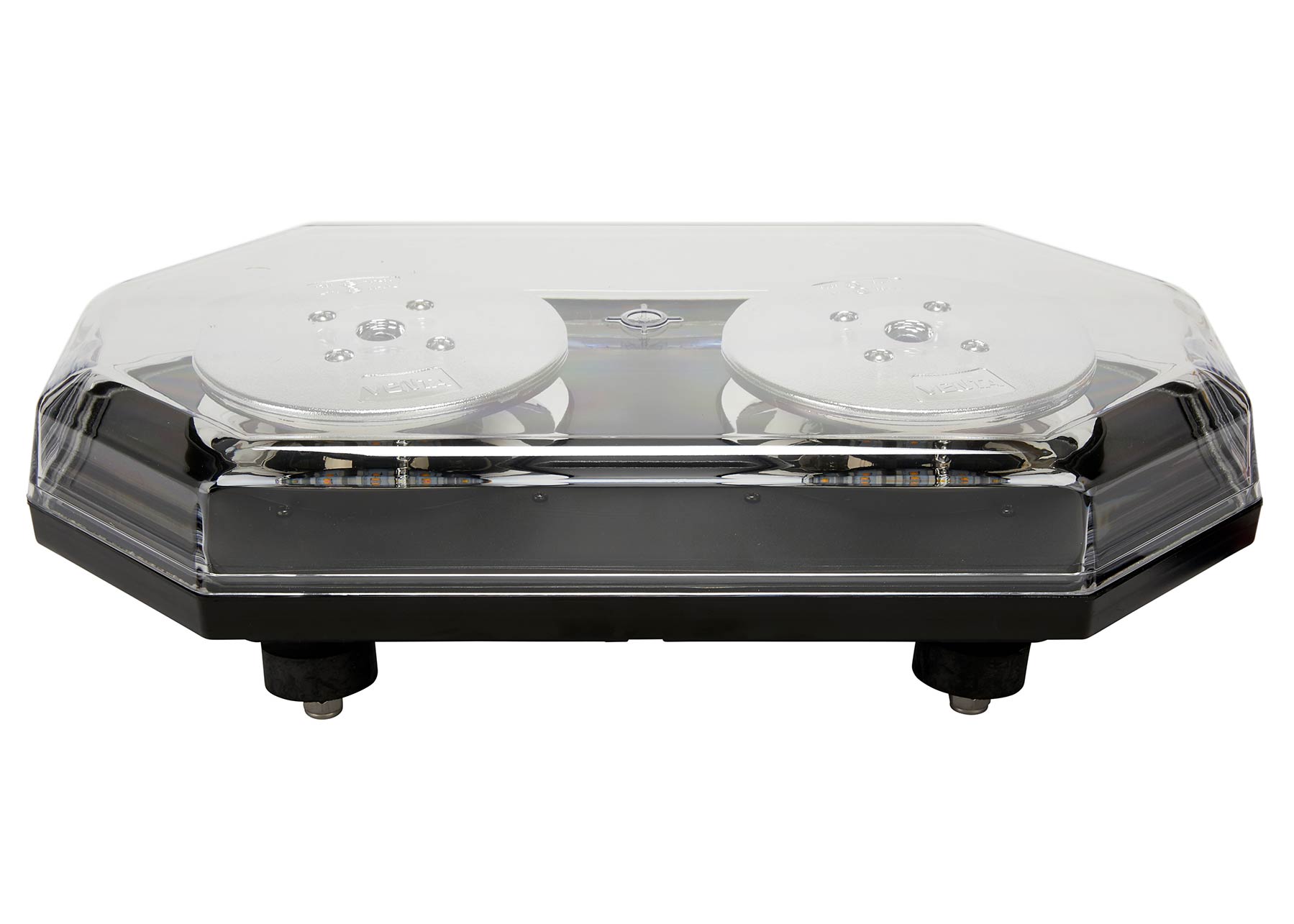

V90P Permanent Mount Front

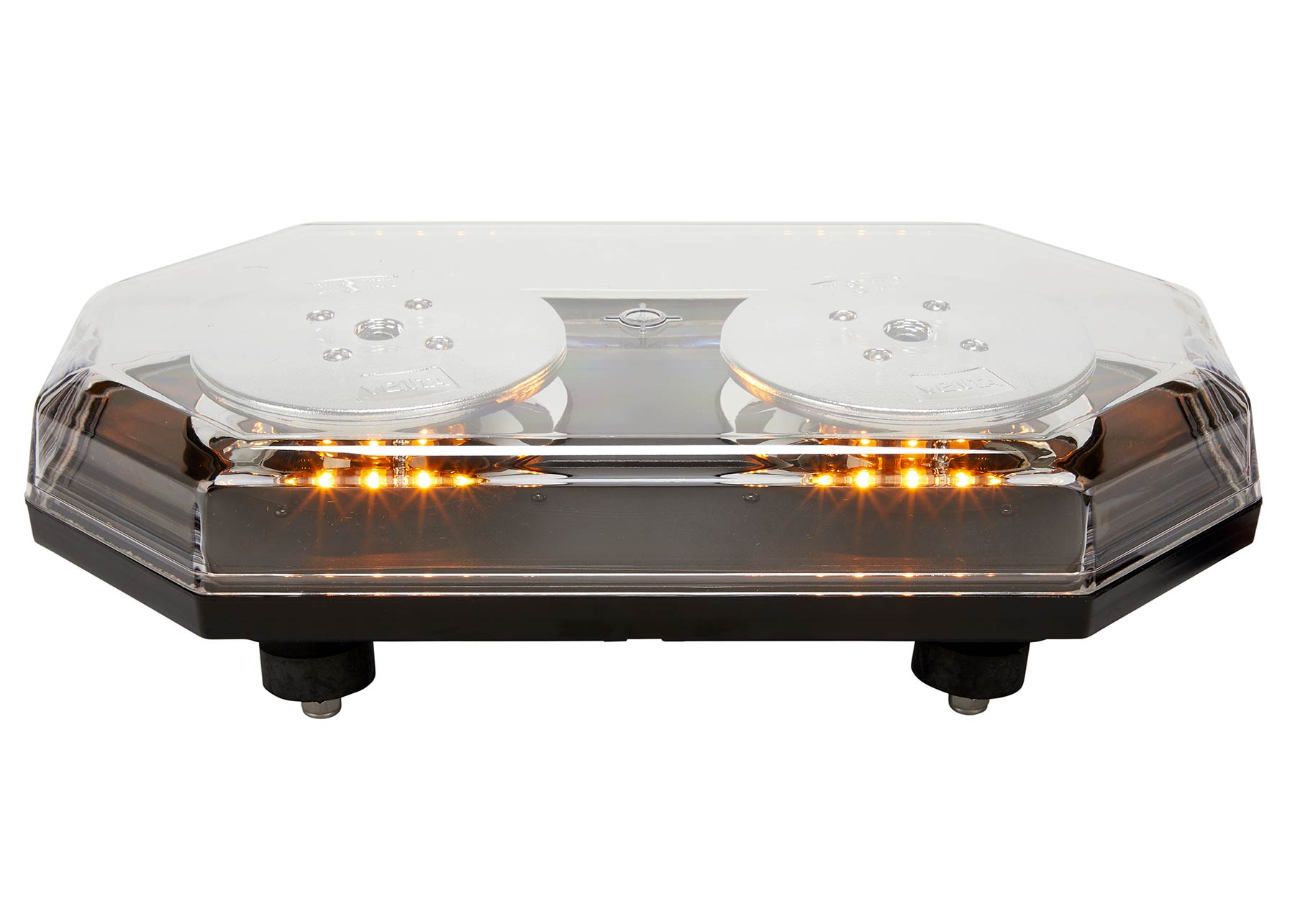

V90P Permanent Mount Front Illuminated

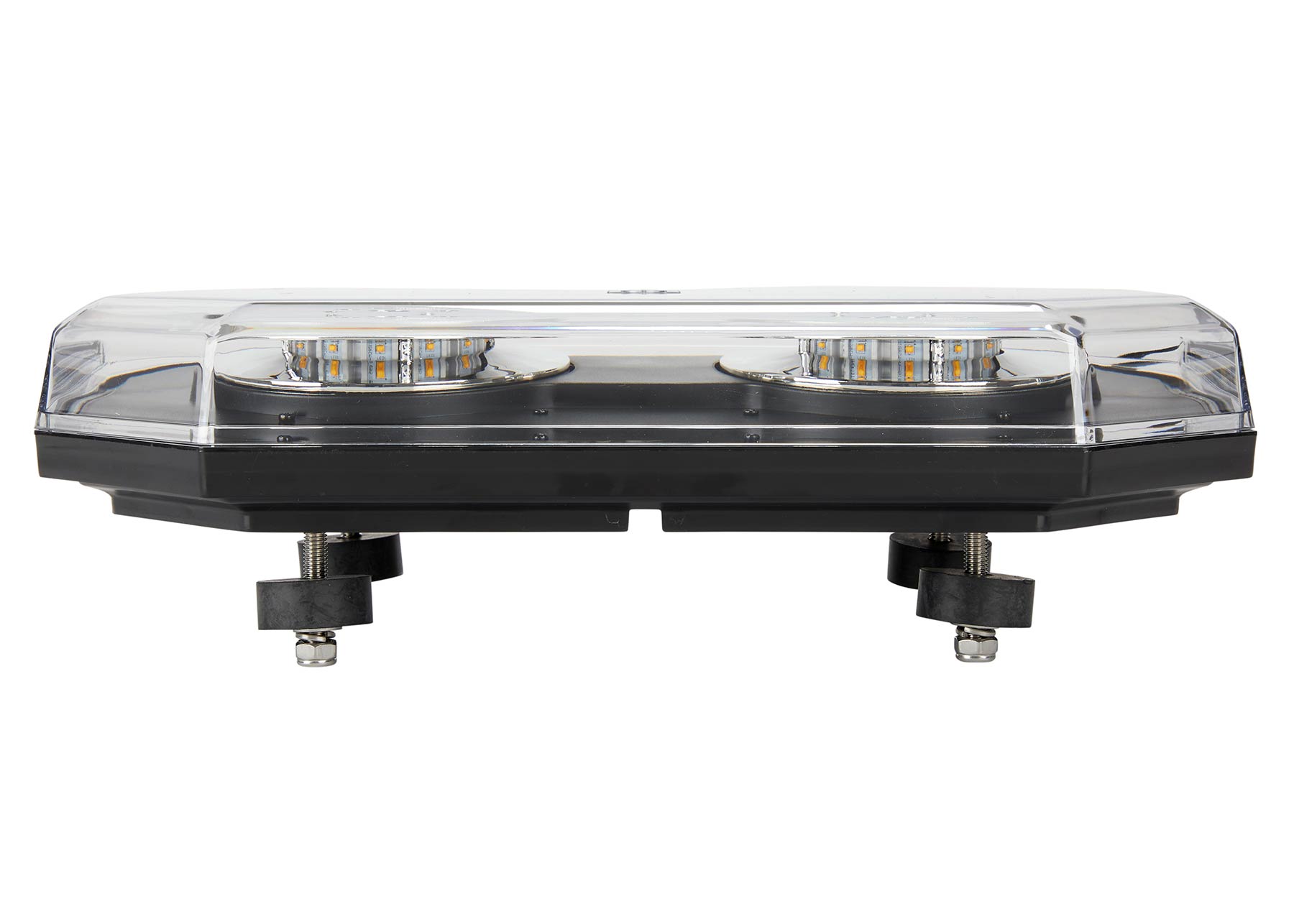

V90P Permanent Mount Side

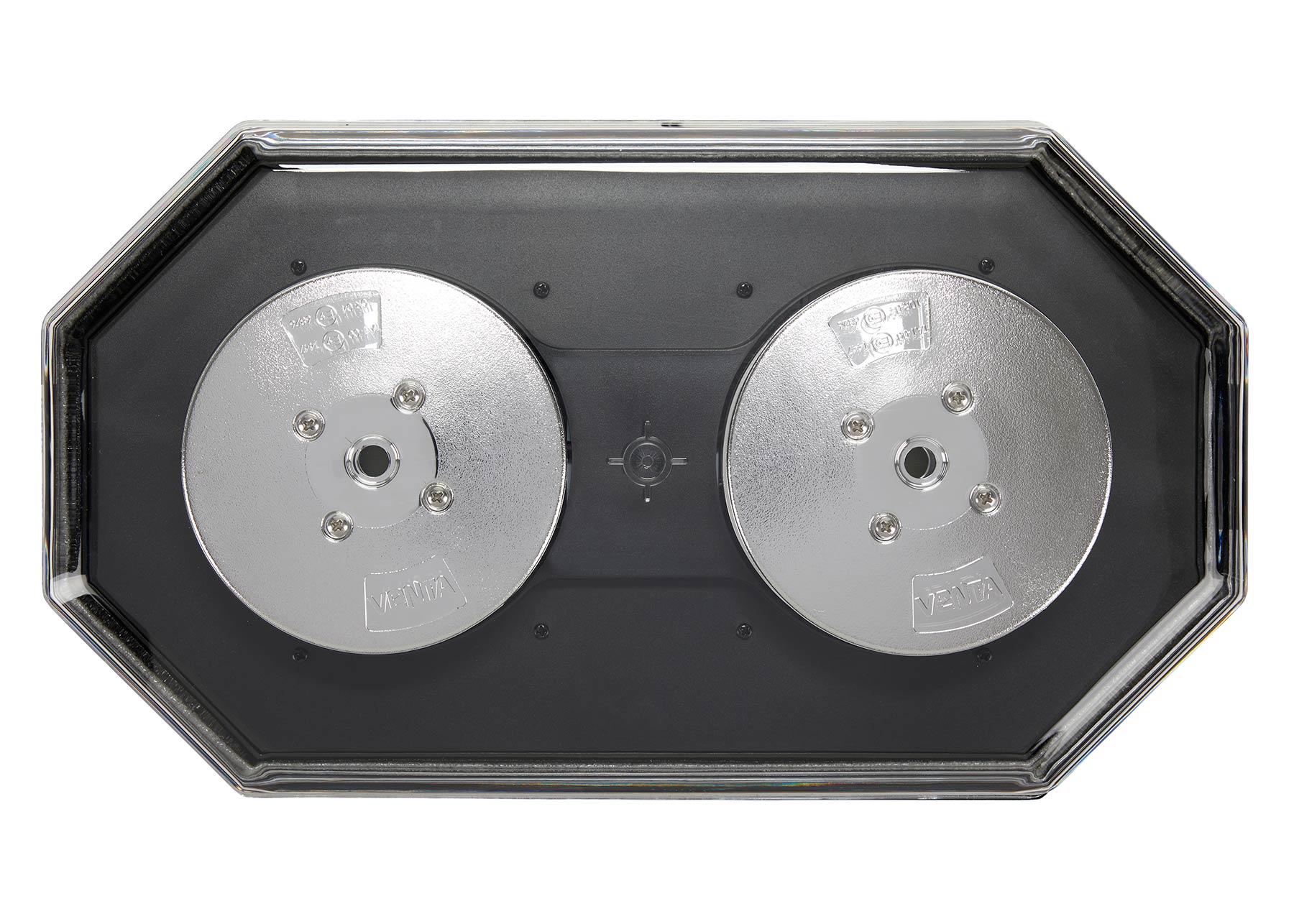

V90P Permanent Mount Top

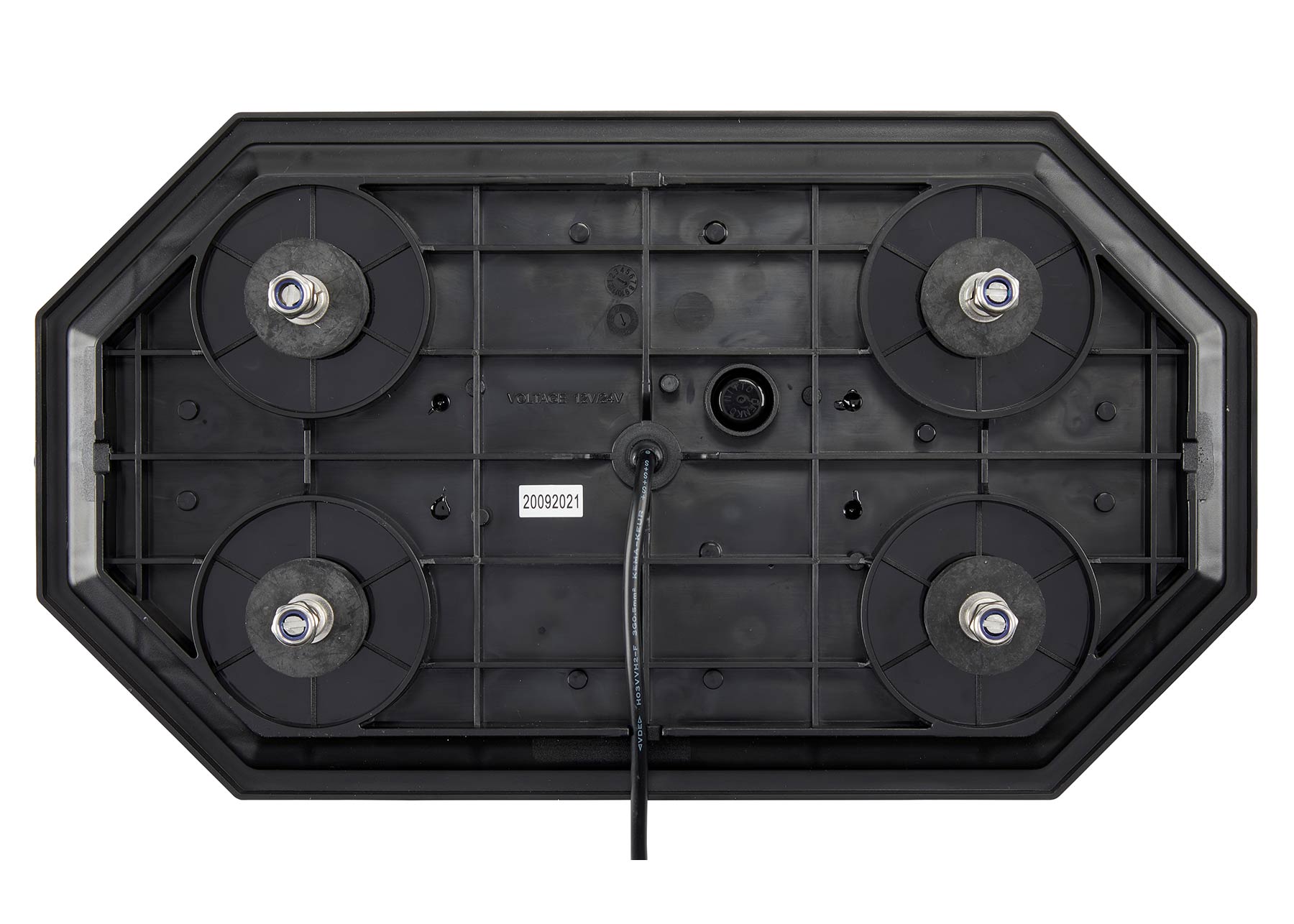

V90P Permanent Mount Bottom

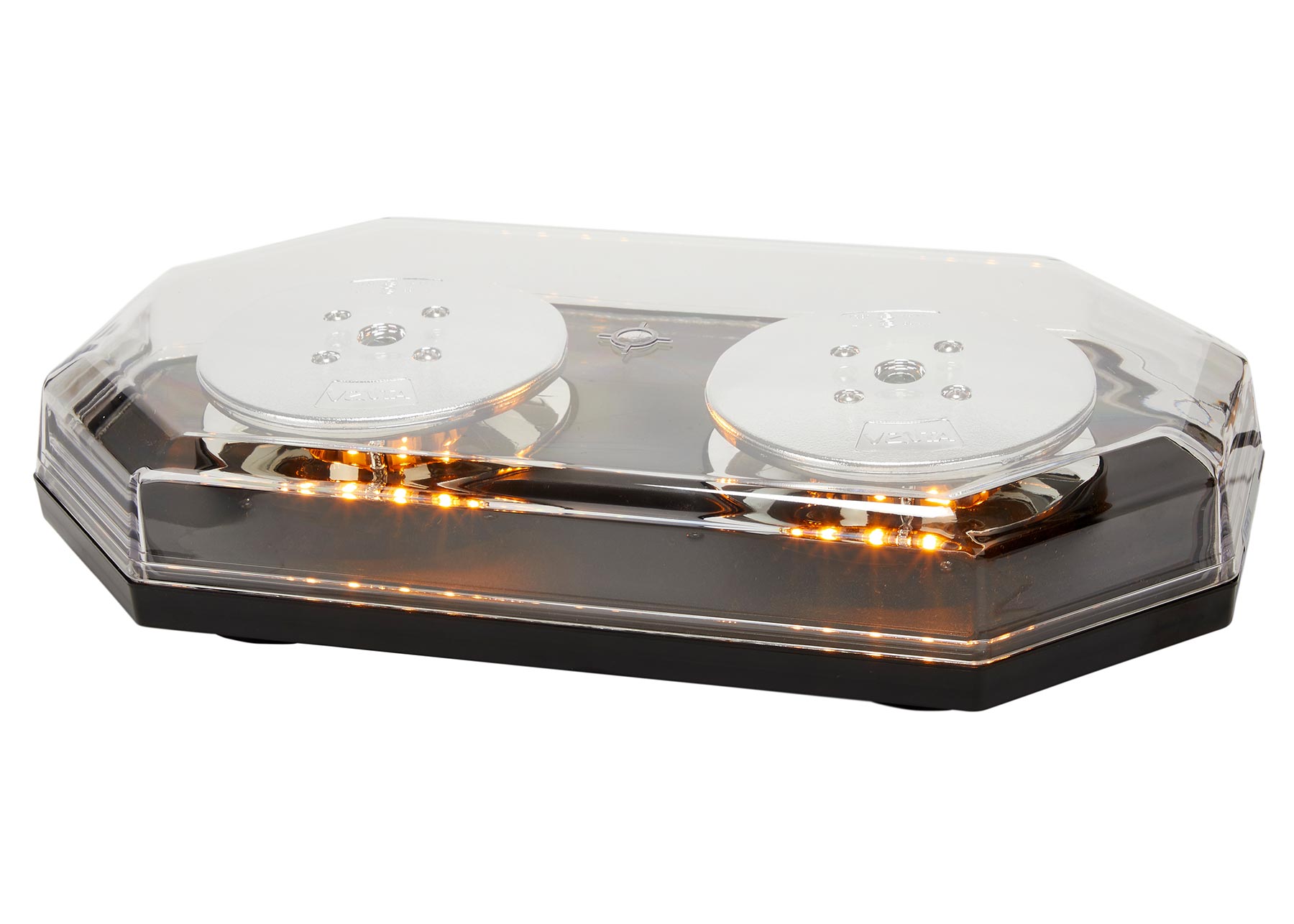

V90M Magnetic Mount Illuminated

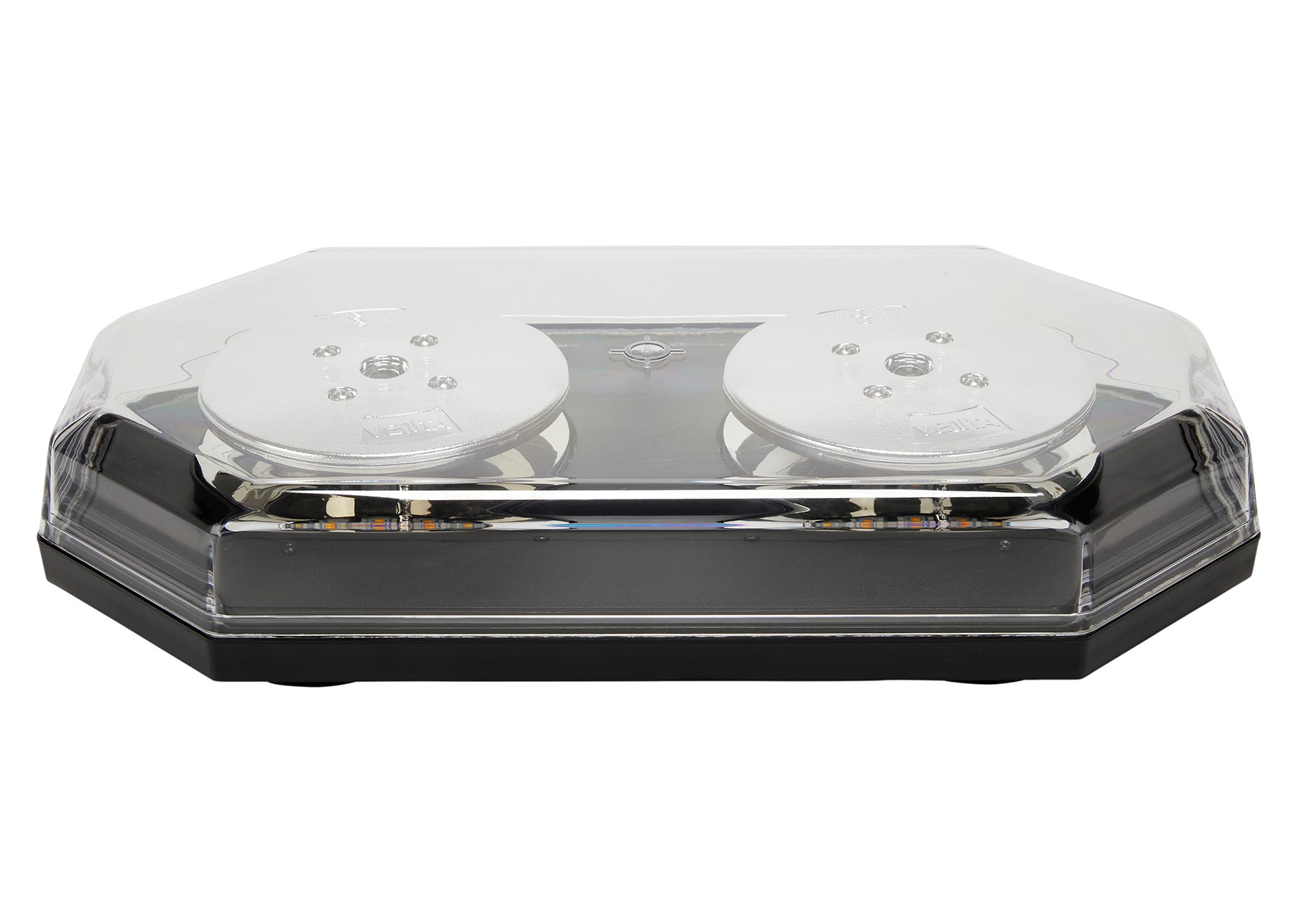

V90M Magnetic Mount Front

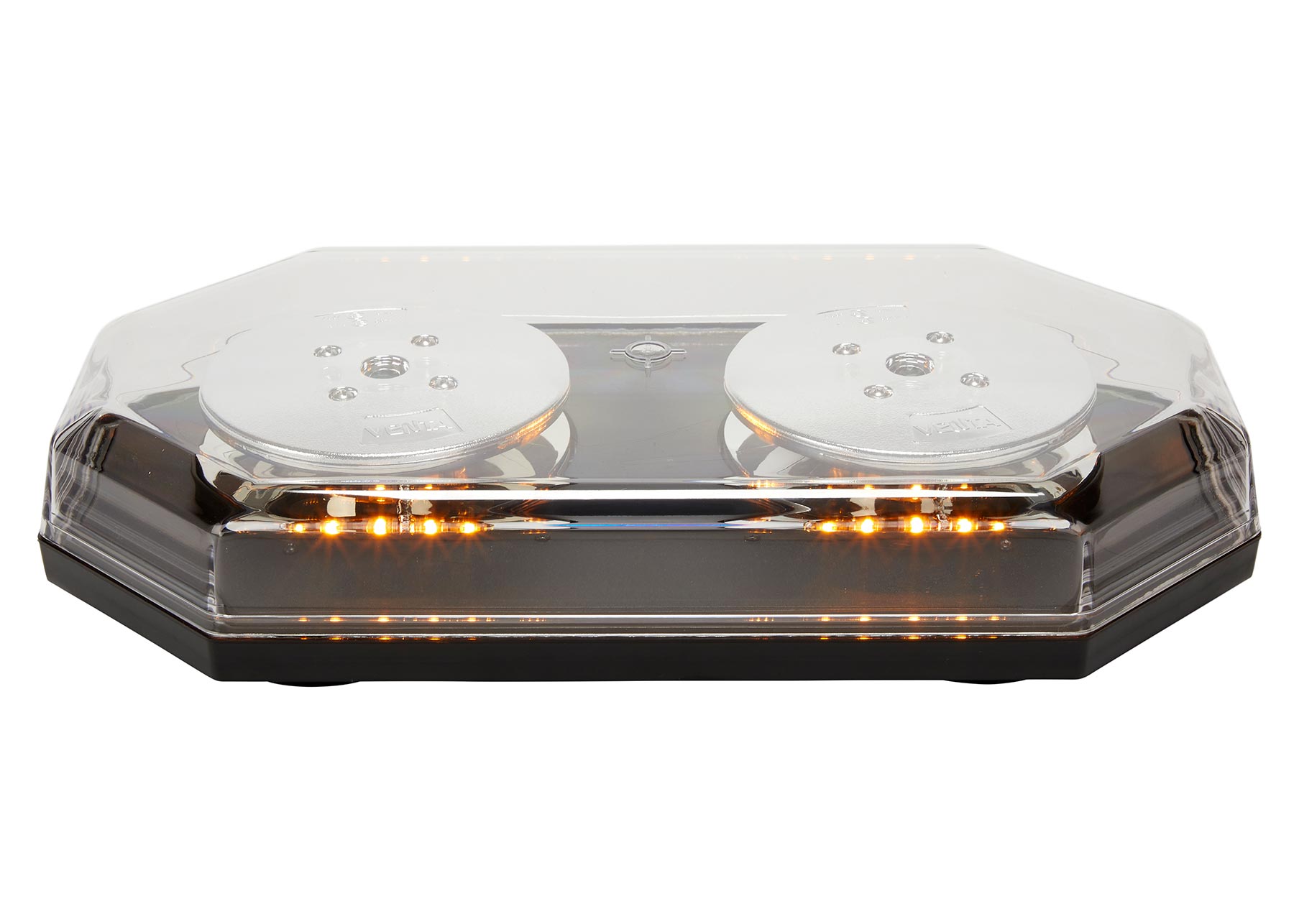

V90M Magnetic Mount Front Illuminated

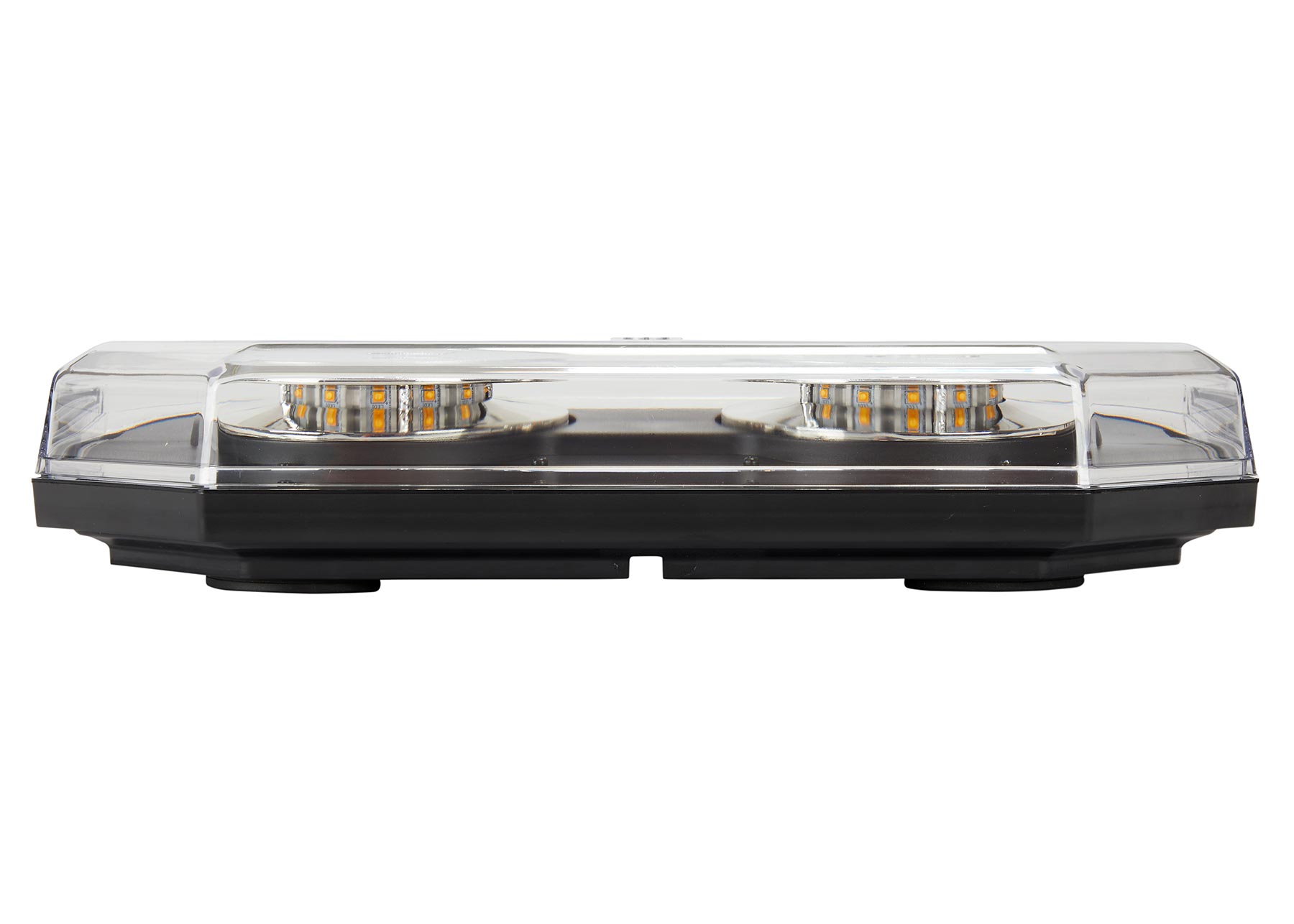

V90M Magnetic Mount Side

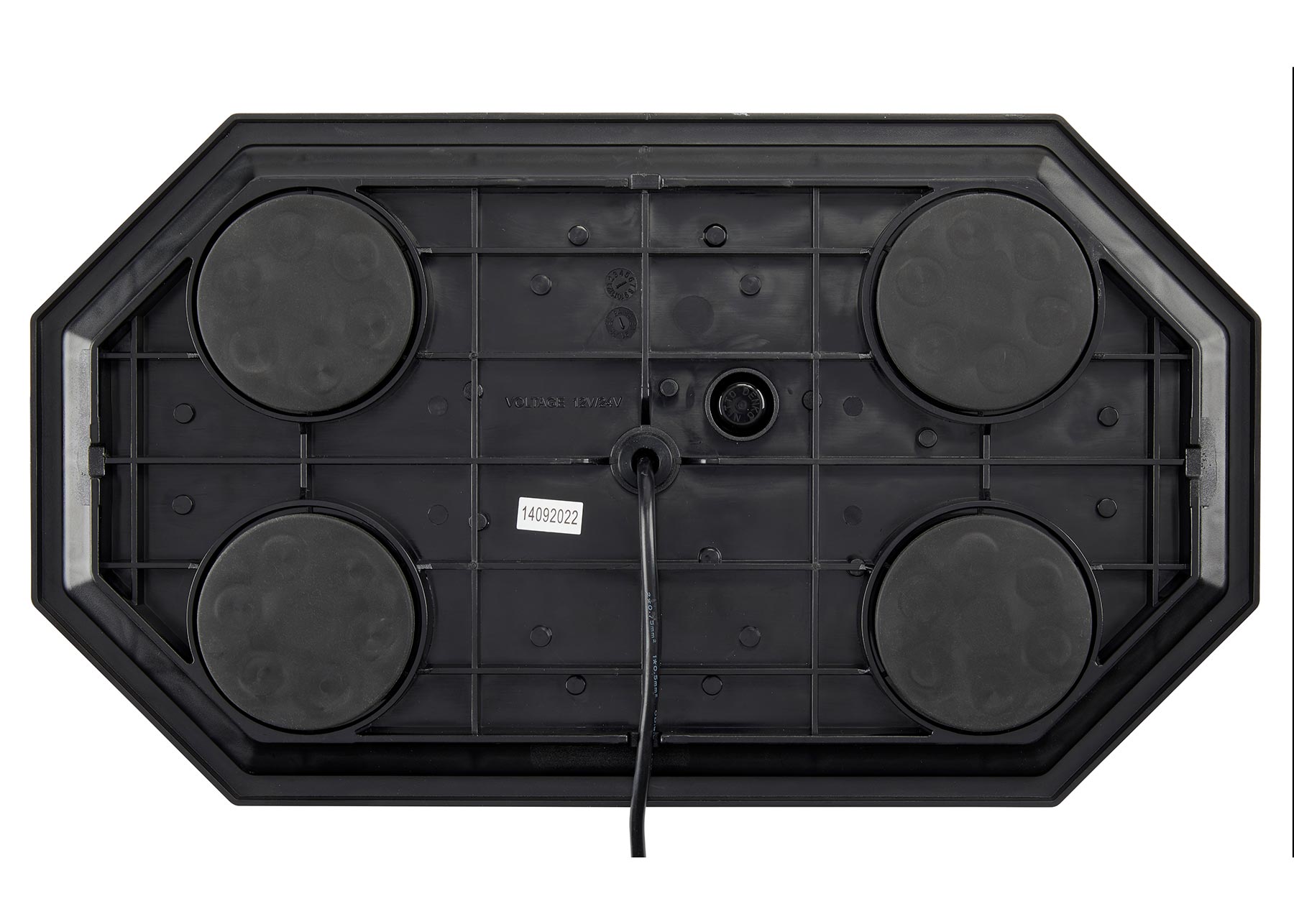

V90M Magnetic Mount Bottom
V90M Magnetic Mount Top

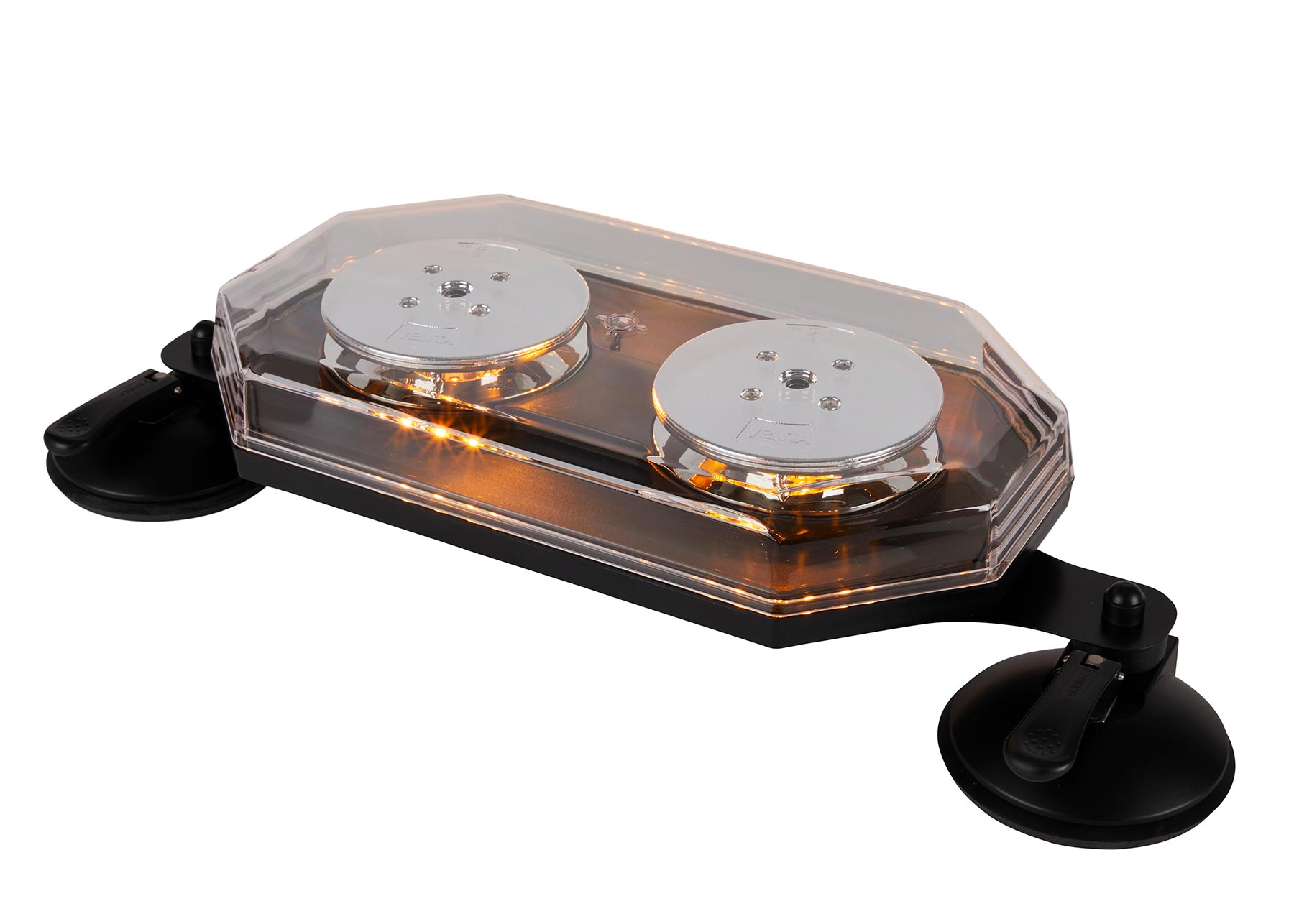

V90S Suction Mount Illuminated

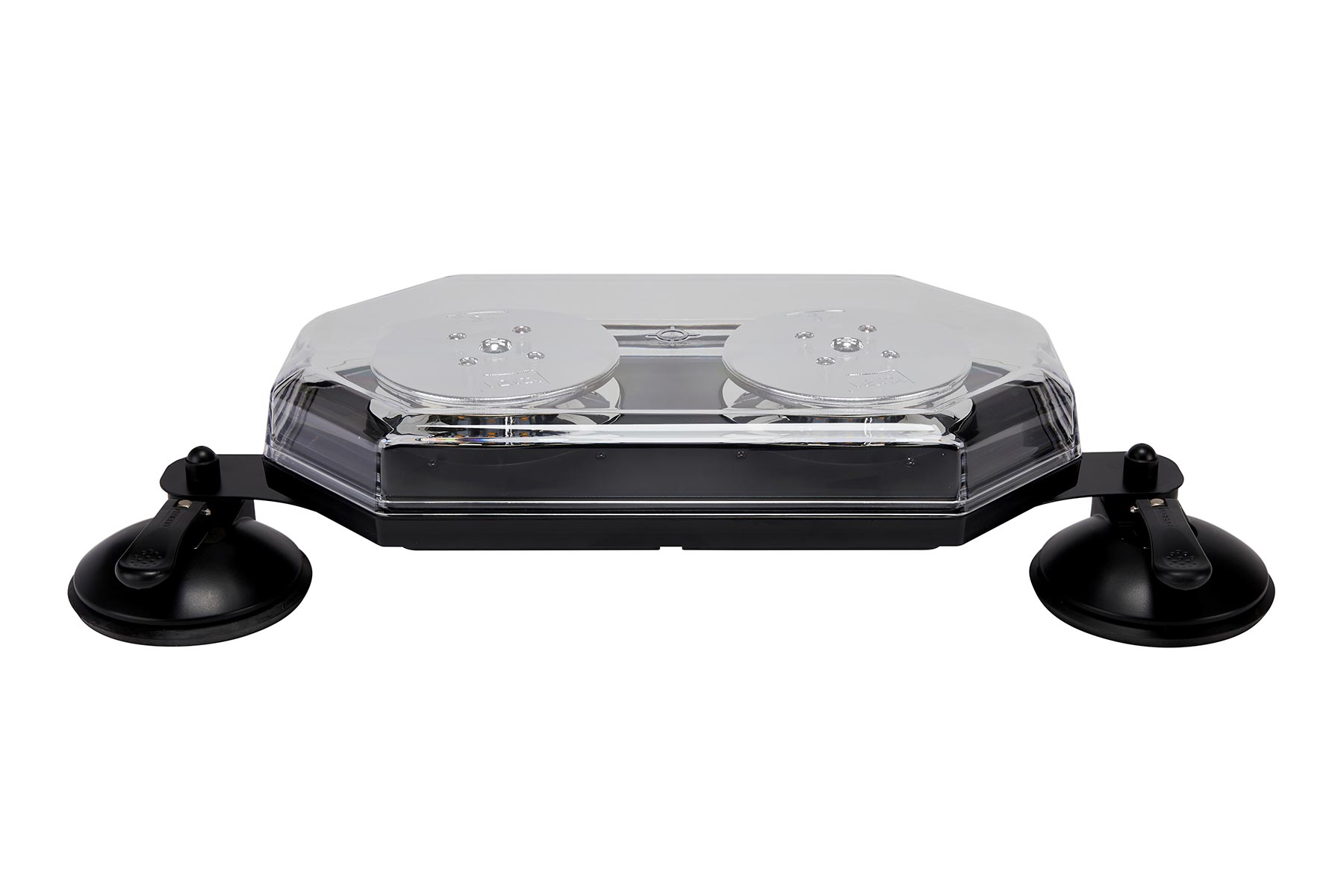

V90S Suction Mount Front

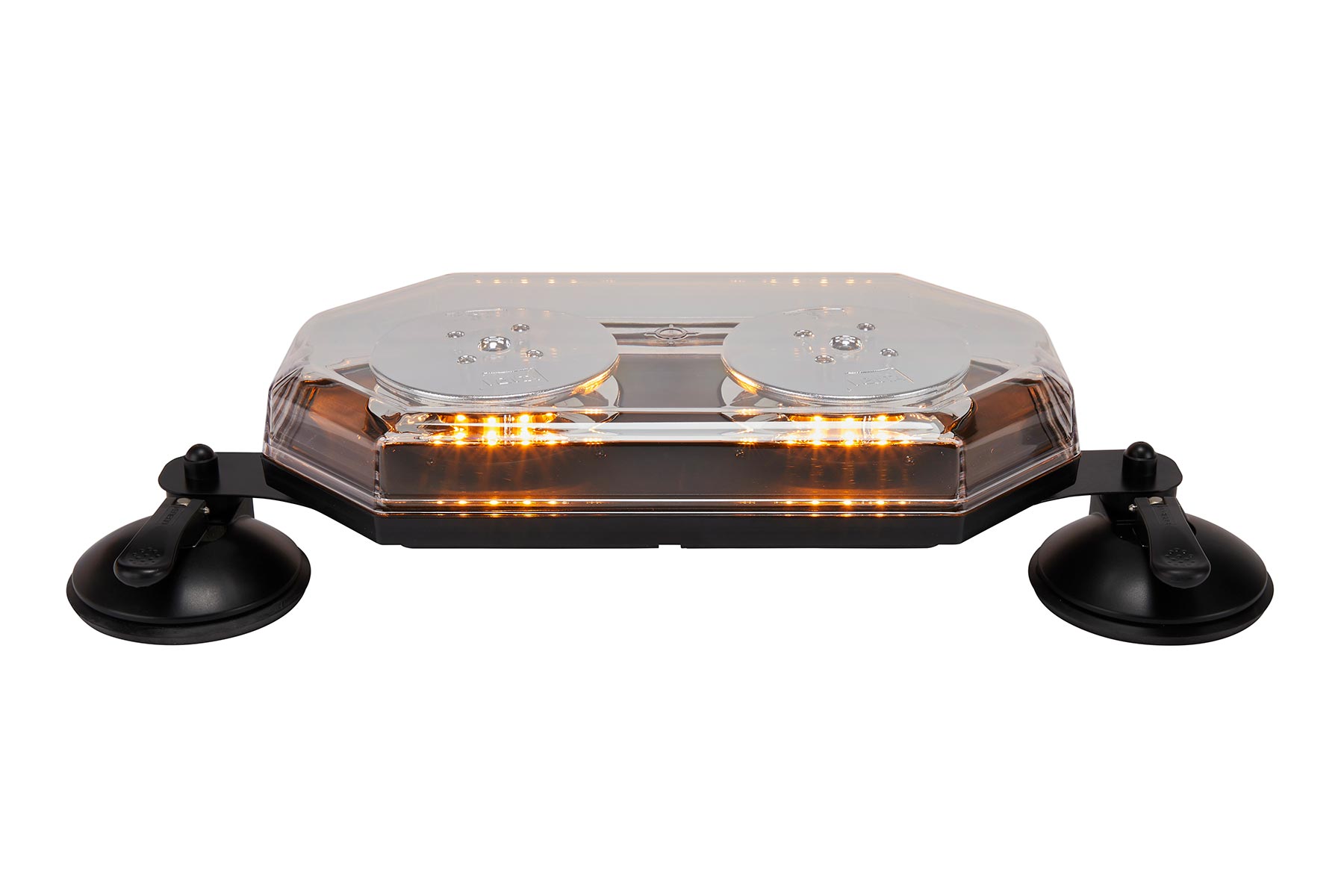

V90S Suction Mount Front Illuminated

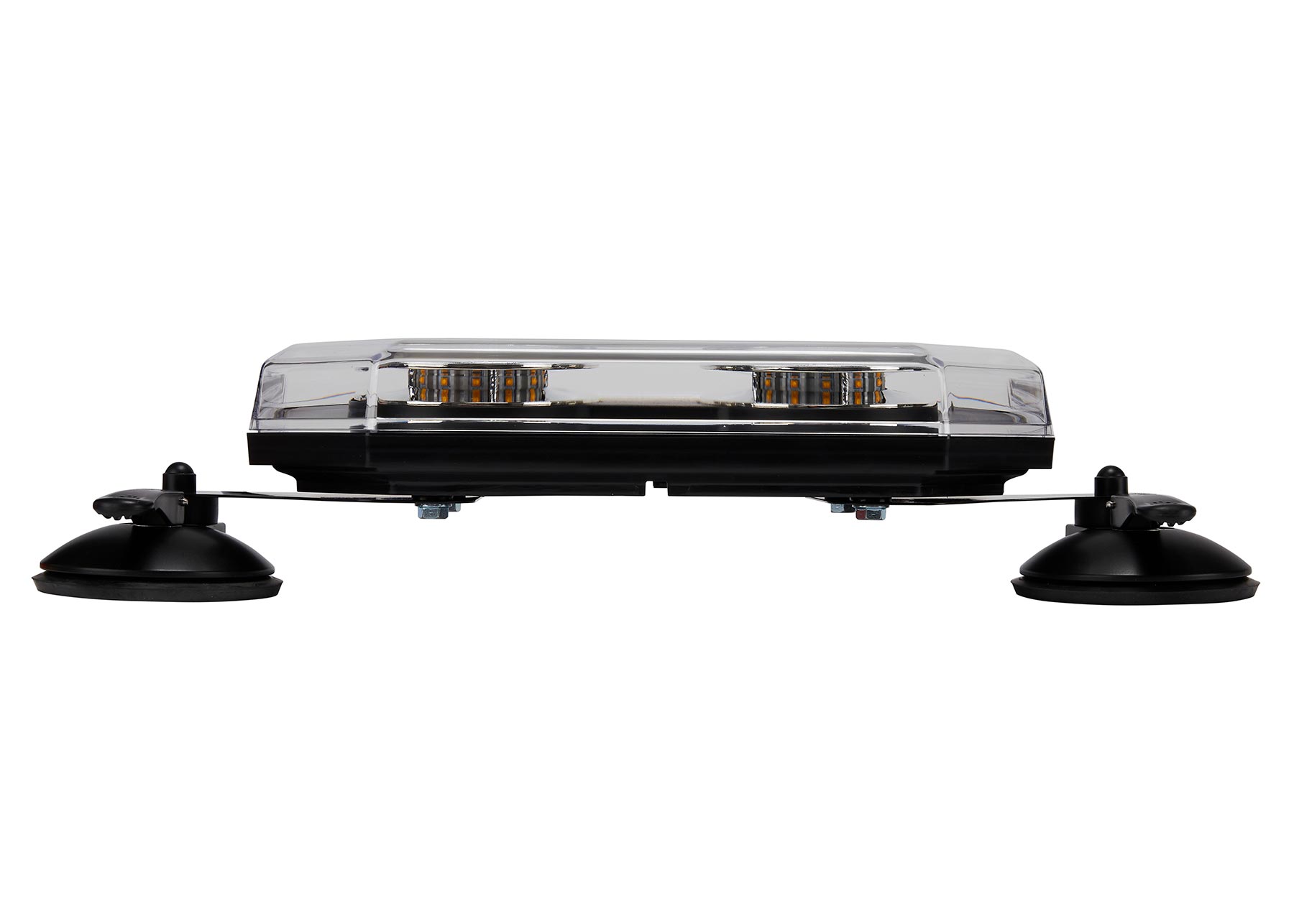

V90S Suction Mount Side

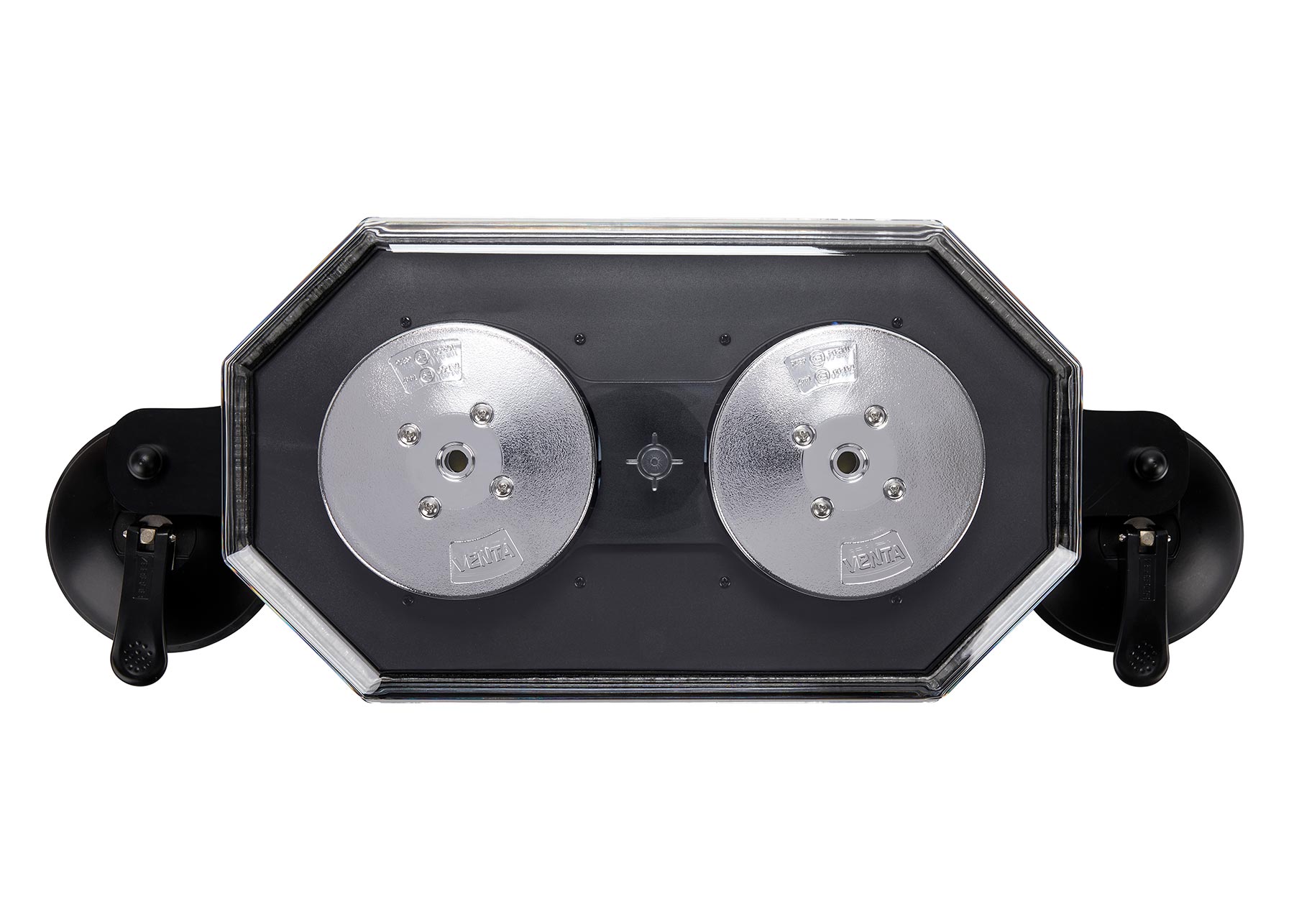

V90S Suction Mount Top

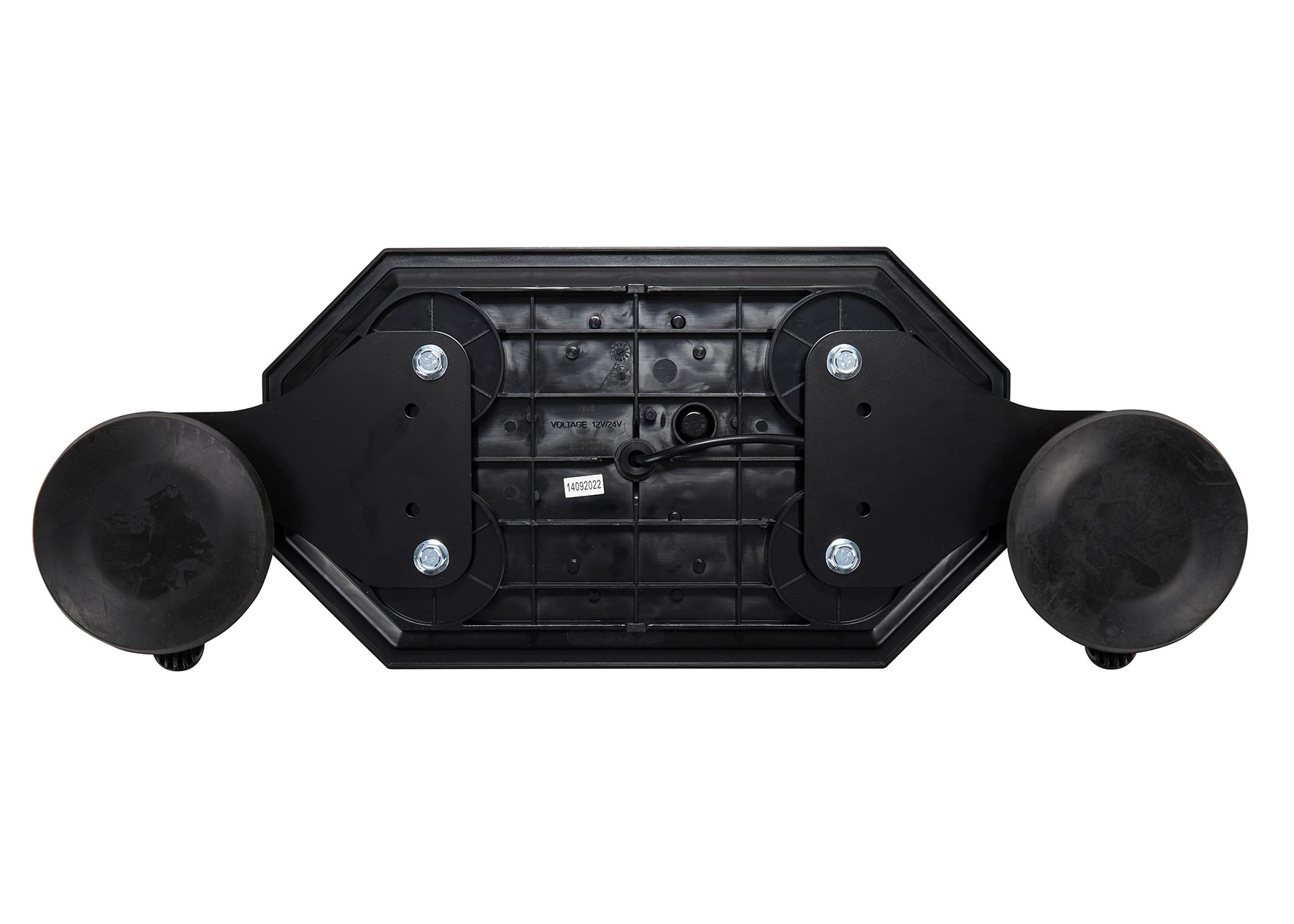

V90S Suction Mount Bottom

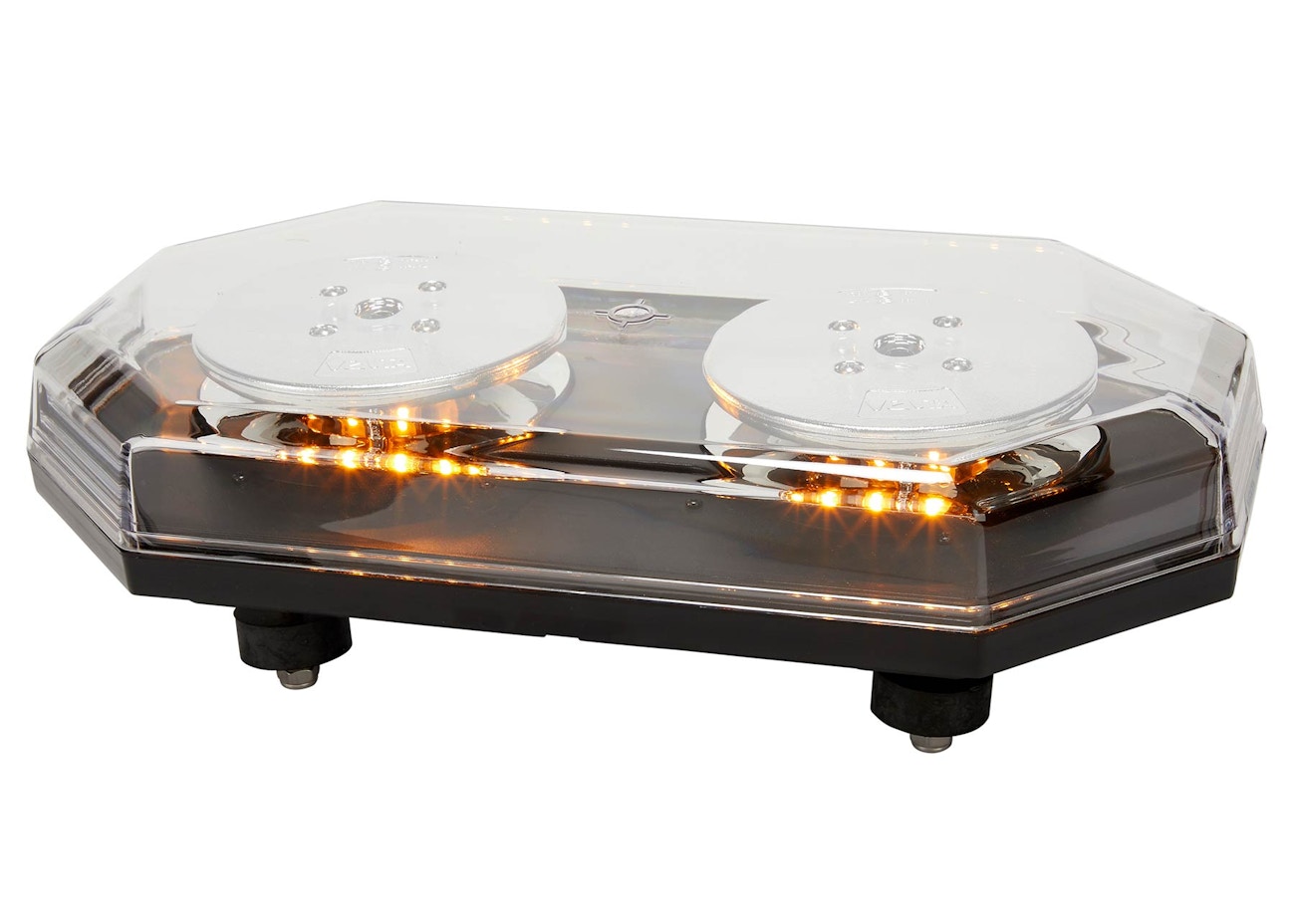

V90 Series R65 LED Minibar - Amber

PART NO: V90P

Product options
  • Product Overview:
    • A robust warning solution ideal for smaller vehicles.
    • Robust polycarbonate lens.
    • Different mounting options available in the V90 Series.
    • Selectable flash patterns.
    • Dual voltage.
    • Low profile design.
    • Intense warning signal.
    • Clear lens.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10, R65, Chapter 8.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE R65 LED Minibar - Amber - Permanent Mount R65 LED Minibar - Amber - Magnetic Mount R65 LED Minibar Amber - Permanent Mount with CAP168 Pattern R65 LED Minibar - Amber - Permanent Mount with Superseal Connector R65 LED Minibar - Amber - Suction Mount
PART NUMBER V90P V90M V90P/CAP168 V90PS V90S
IP RATING IP67 IP67 IP67 IP67 IP67
VOLTAGE (V) DC 12/24 12/24 12/24 12/24 12/24
CURRENT DRAW (AMPS) 4.2A @ 12V, 2A @ 24V 4.2A @ 12V, 2A @ 24V 4.2A @ 12V, 2A @ 24V 4.2A @ 12V, 2A @ 24V 4.2A @ 12V, 2A @ 24V
CABLE LENGTH (MM) 500 2500 500 540 2500
CONNECTORS None None None SuperSeal None
LIGHT COLOUR Amber Amber Amber Amber Amber
LENS COLOUR Clear Clear Clear Clear Clear
DIAMETER (MM) N/A N/A N/A N/A N/A
LENGTH (MM) 388 388 388 388 575
HEIGHT (MM) 70 70 70 70 102
DEPTH (MM) 220 220 220 220 220
WEIGHT (KG) 1.695 2.213 1.695 1.738 2.911
