WS1796 Off

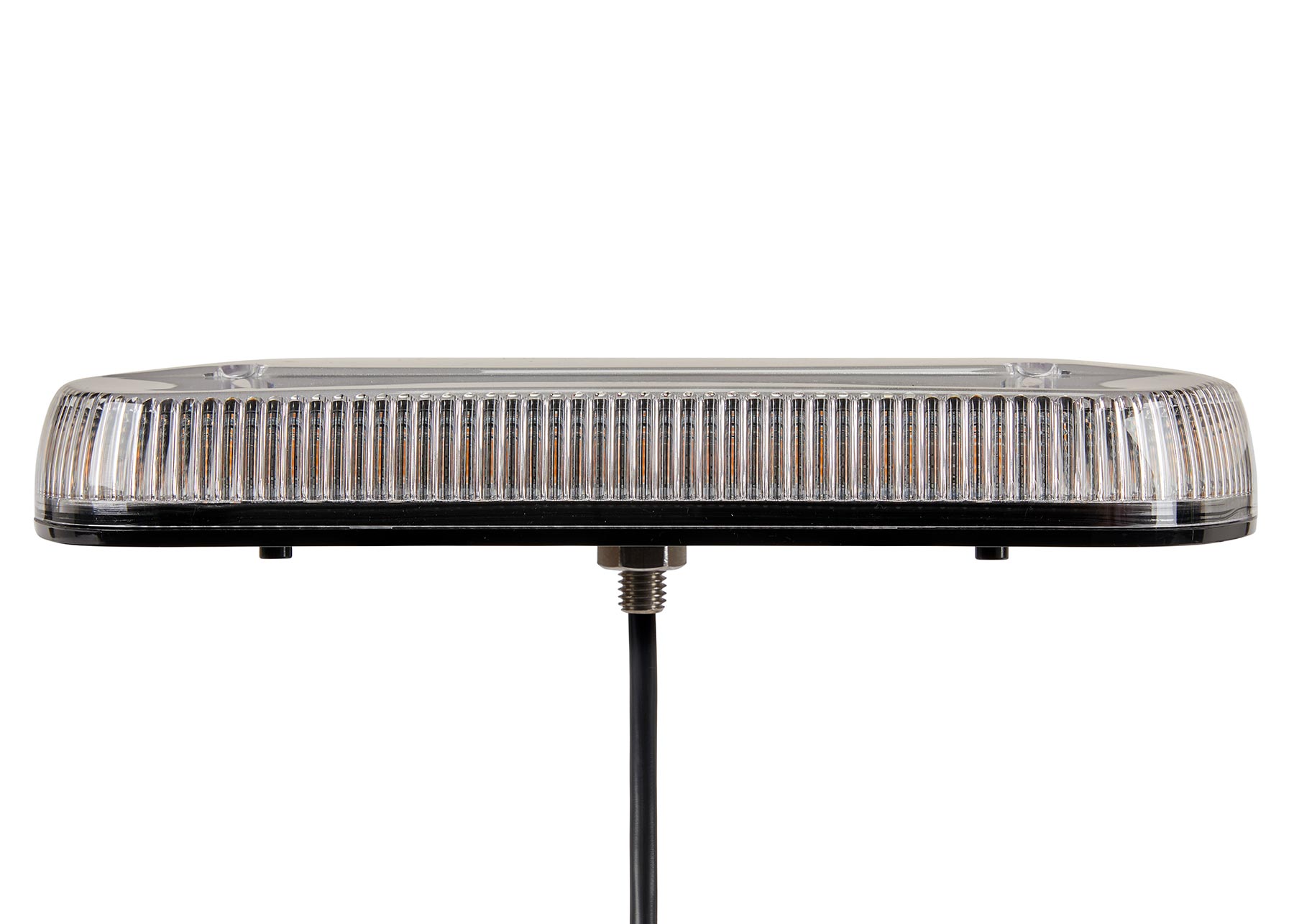

WS1796 Side

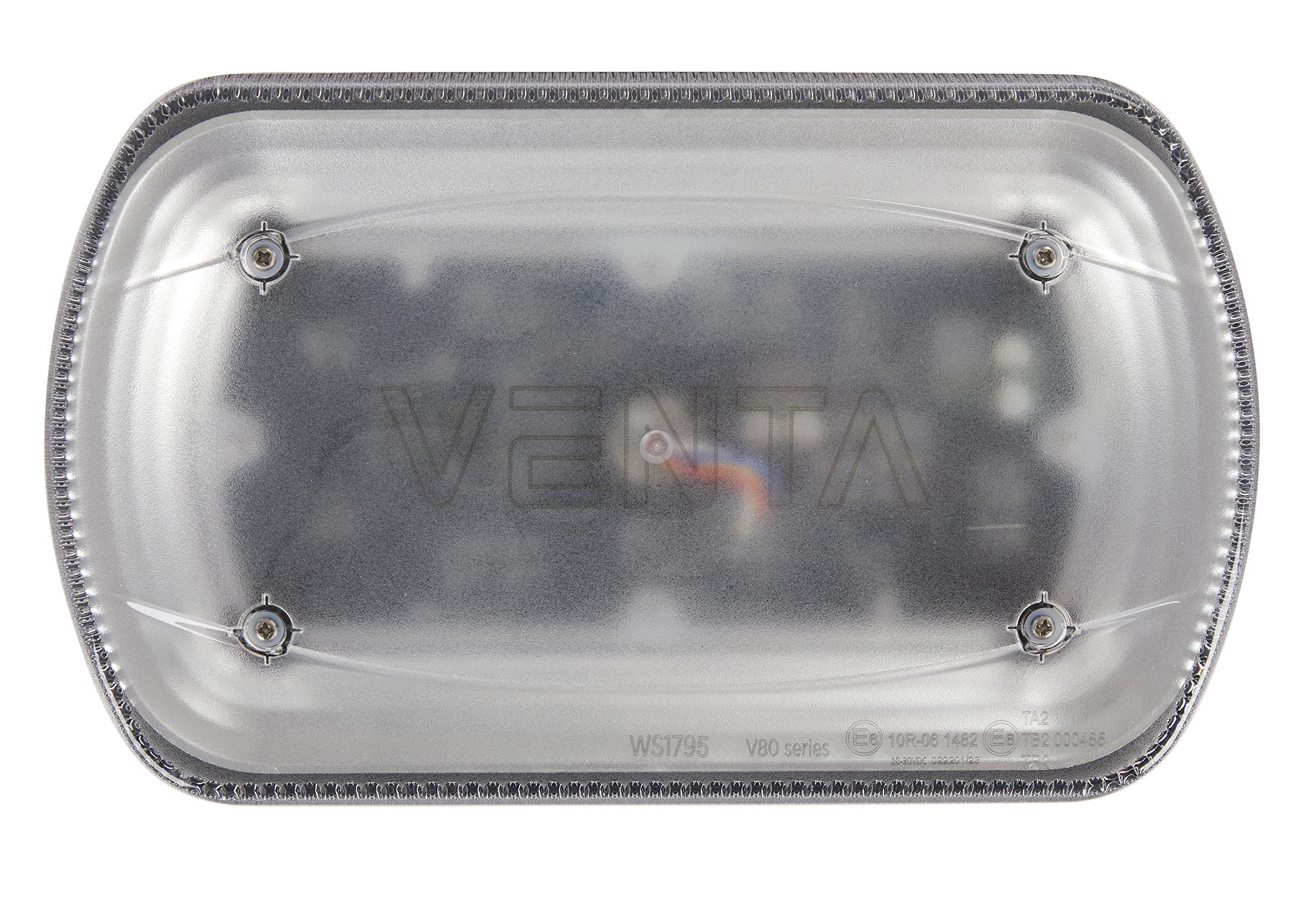

WS1796 Top

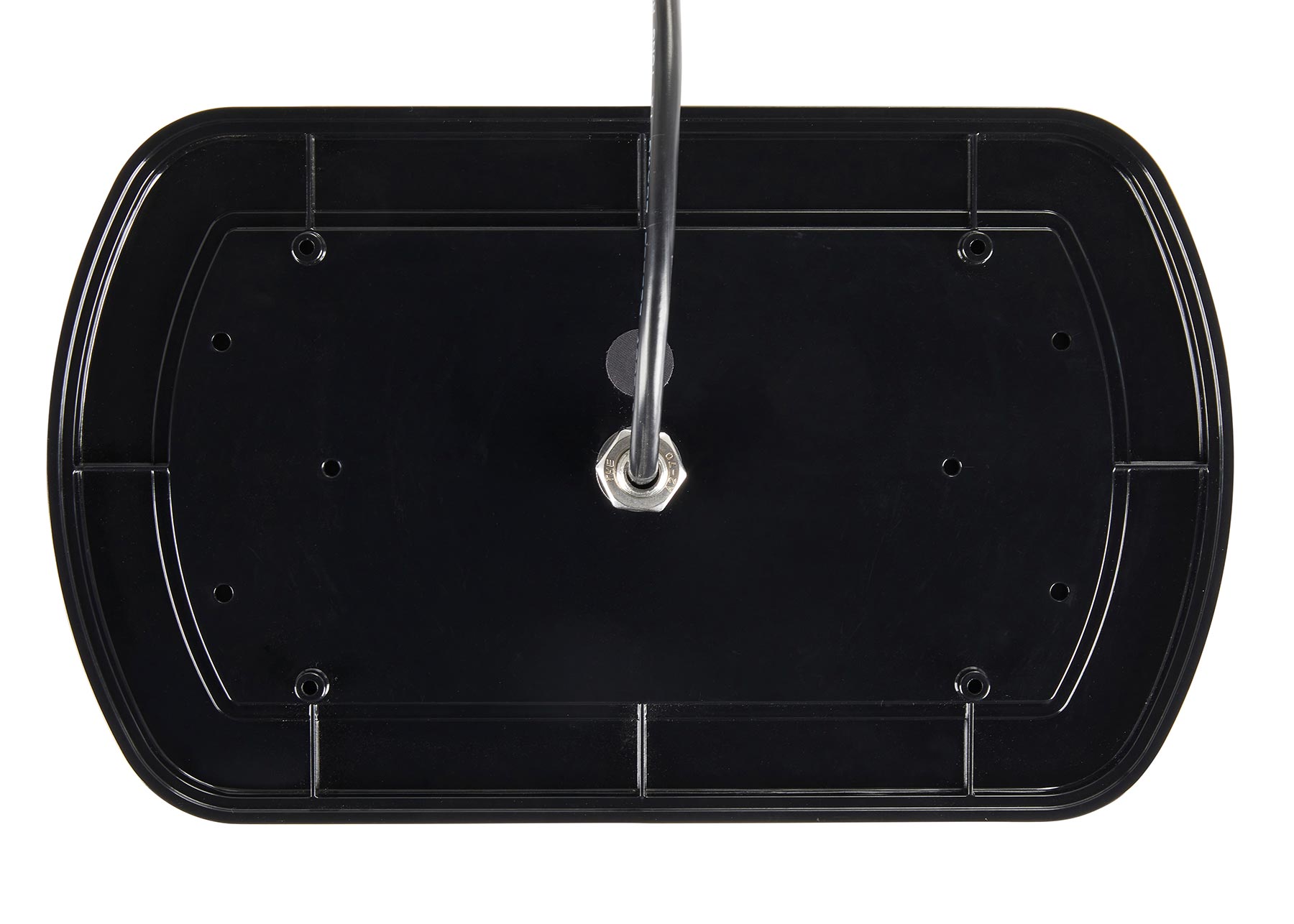

WS1796 Bottom

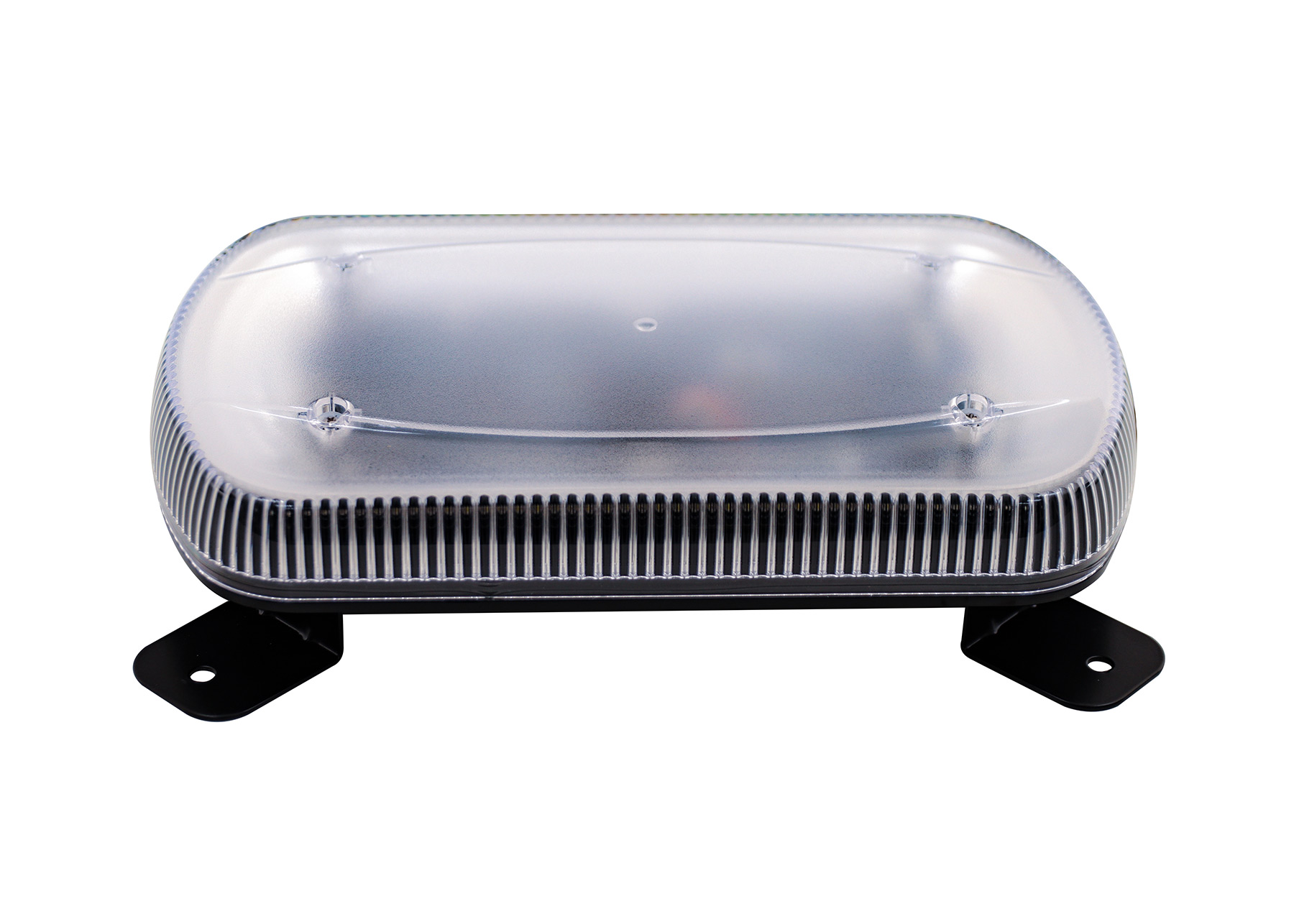

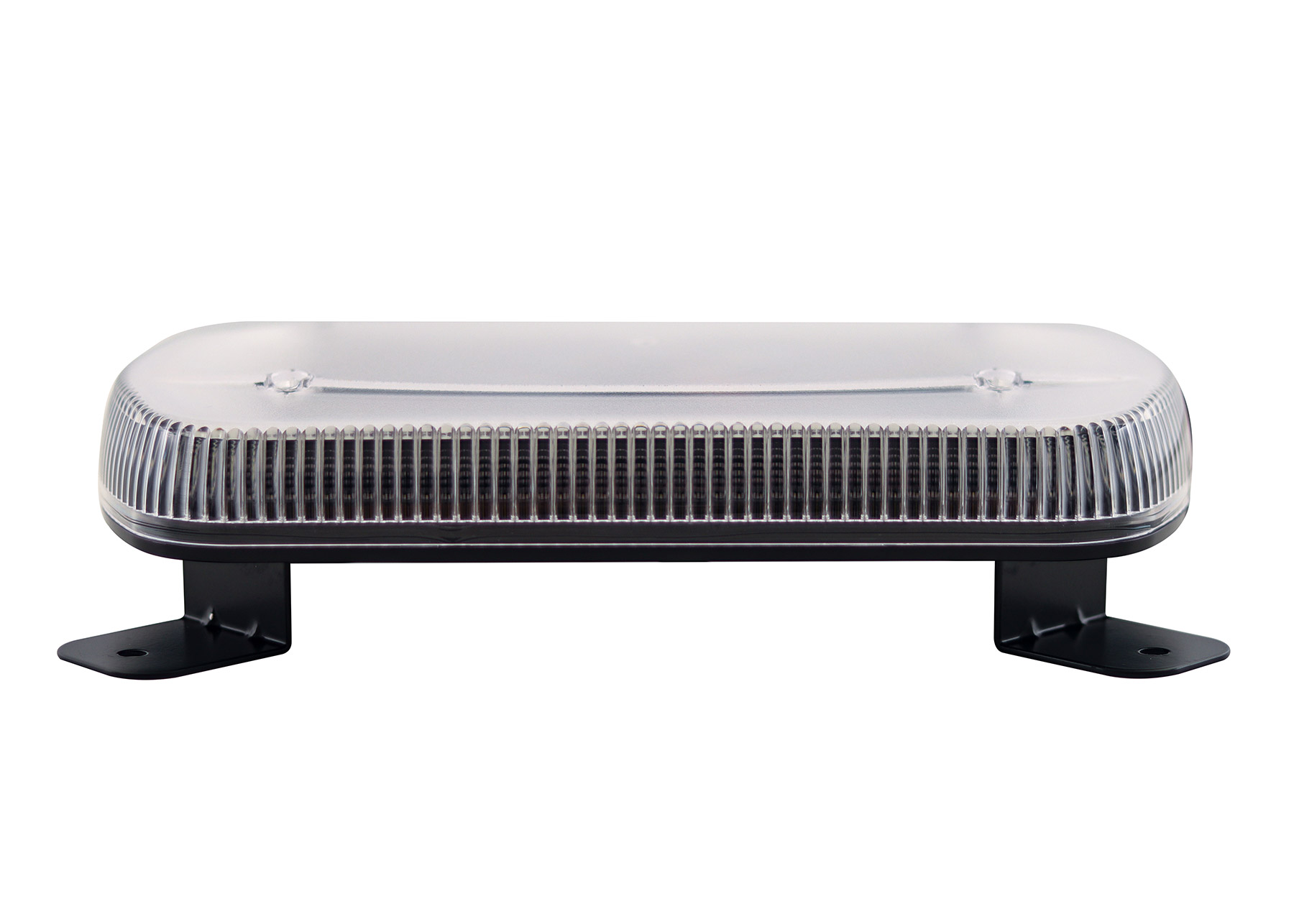

WS1796 with Brackets Side
WS1796 with Brackets Top

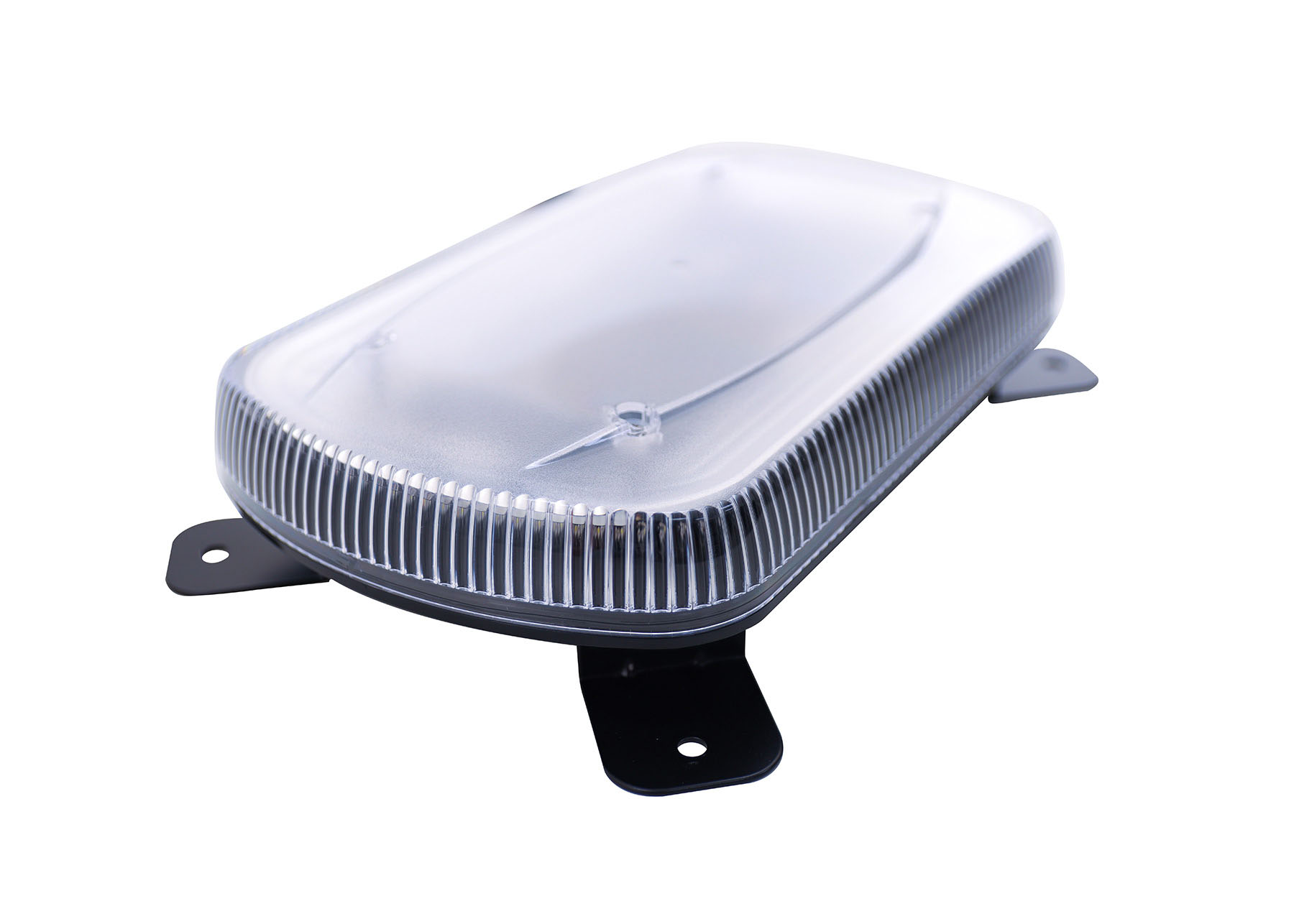

WS1796 with Brackets

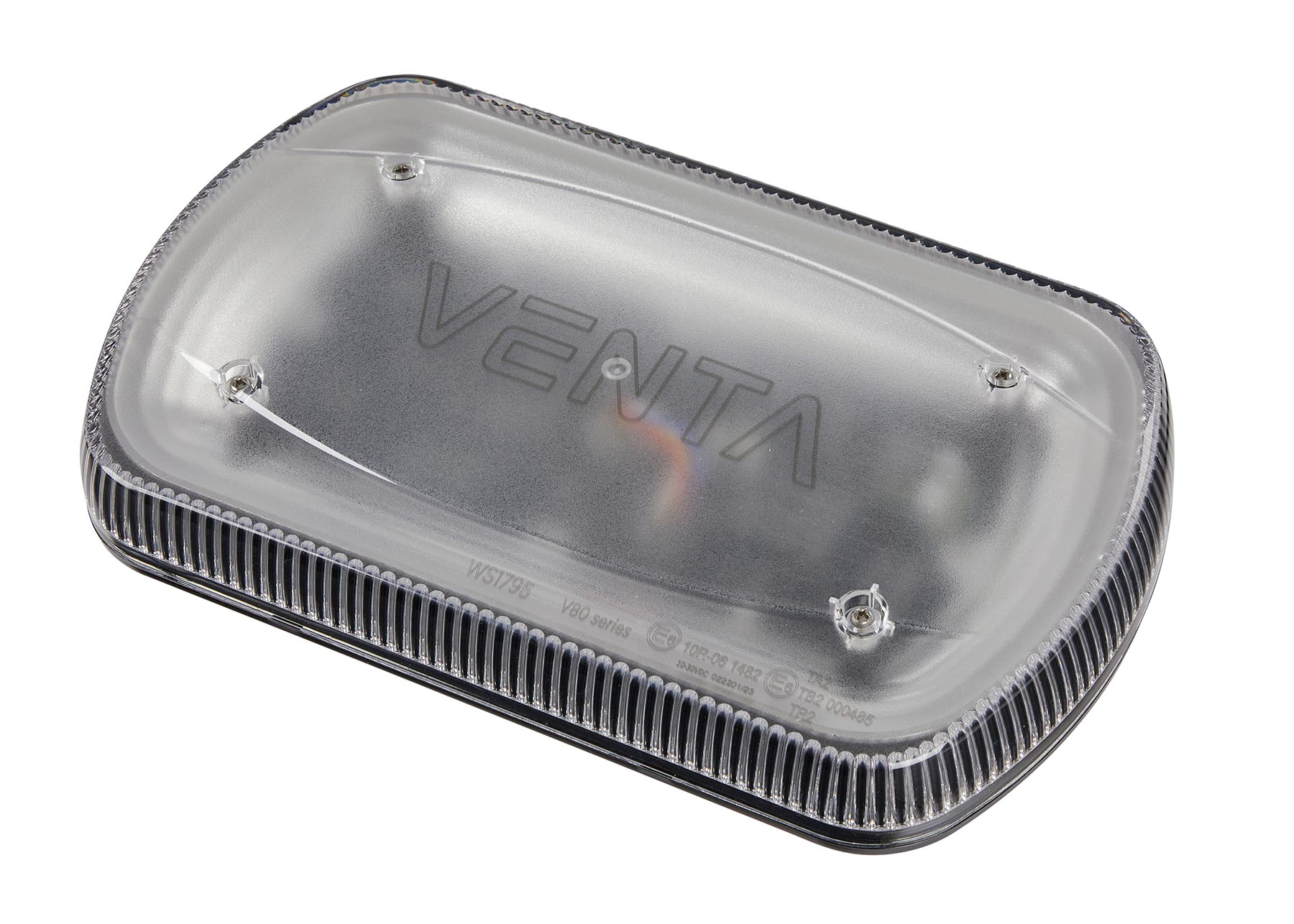

V80 Series R65 LED Minibar - Blue

PART NO: WS1796

Product options
  • Product Overview:
    • Unique optical design for optimum light output and ultimate light spread.
    • Ultra low profile design.
    • Lightweight design.
    • Polycarbonate lens and base.
    • Available in amber and blue.
    • Different mounting options available.
    • Mounting brackets are available if required.
    • Made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10, ECE R65 Class 2, SAE Class 1.
Contact Us
Play

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

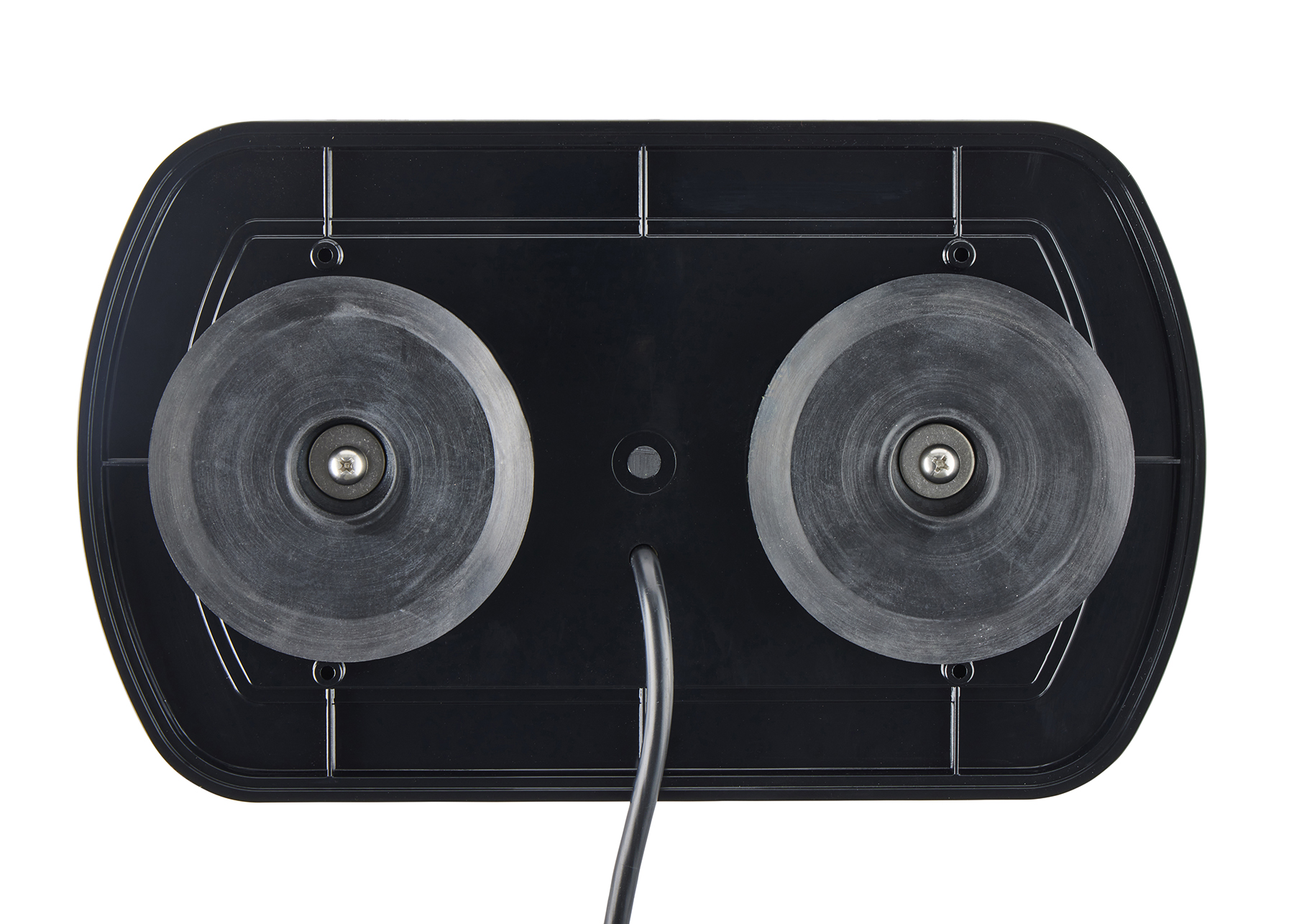

TITLE R65 LED Minibar - Blue - Permanent Mount R65 LED Minibar - Blue - Magnetic Mount
PART NUMBER WS1796 WS179601
IP RATING IP65 IP65
VOLTAGE (V) DC 12/24 12/24
CURRENT DRAW (AMPS) 5A @ 12V, 1.45A @ 24V 5A @ 12V, 1.45A @ 24V
CABLE LENGTH (MM) 2500 2500
CONNECTORS None None
LIGHT COLOUR Blue Blue
LENS COLOUR Clear Clear
DIAMETER (MM) N/A N/A
LENGTH (MM) 284 284
HEIGHT (MM) 65 65
DEPTH (MM) 172 172
WEIGHT (KG) 0.9 0.9
