- Surface mount design.
- Dual voltage.

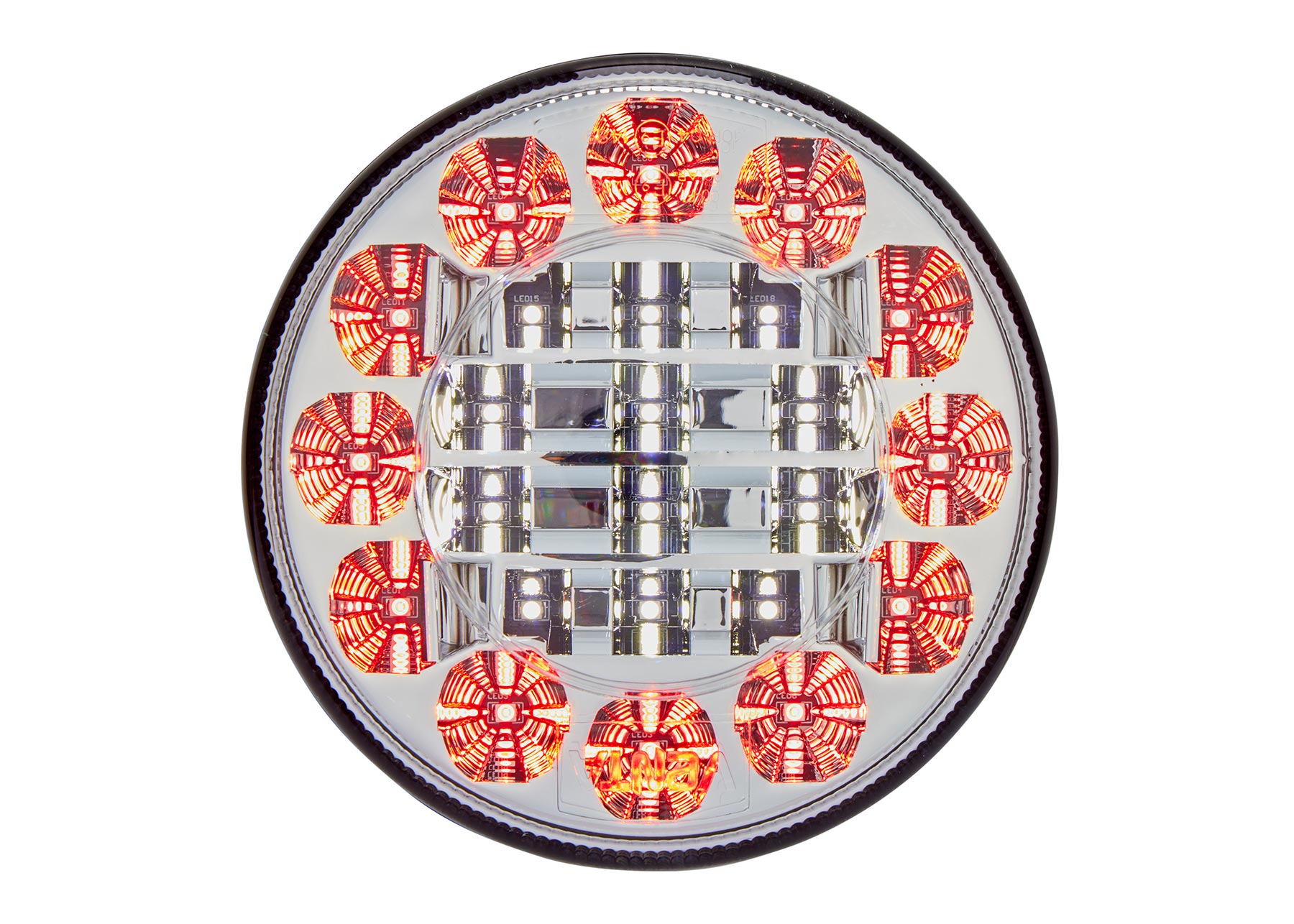

- Clear lens version also available.
- Fog / reverse and front position / indicator options available in the same series.
- Some variants are made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R6, R7, R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

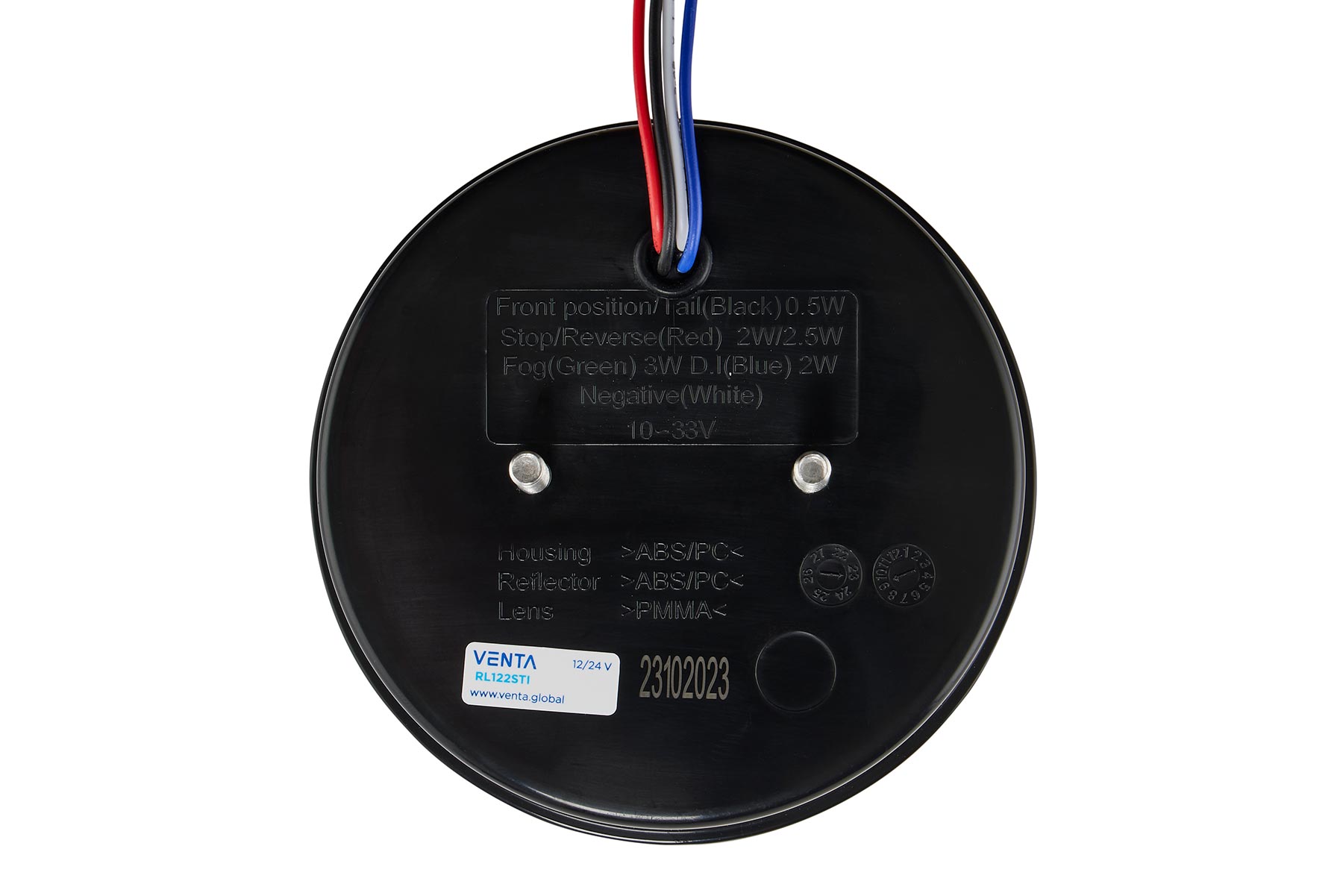

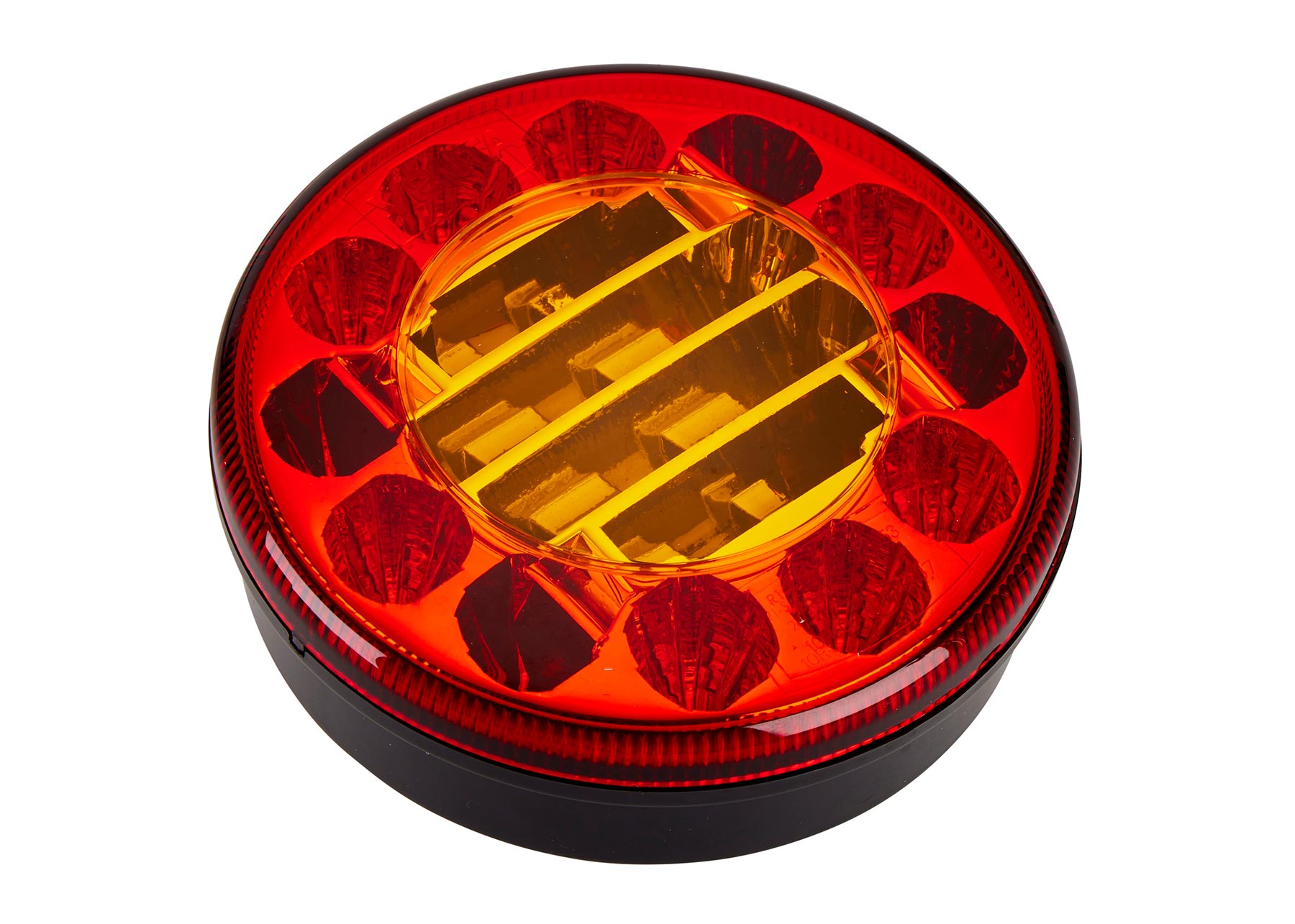

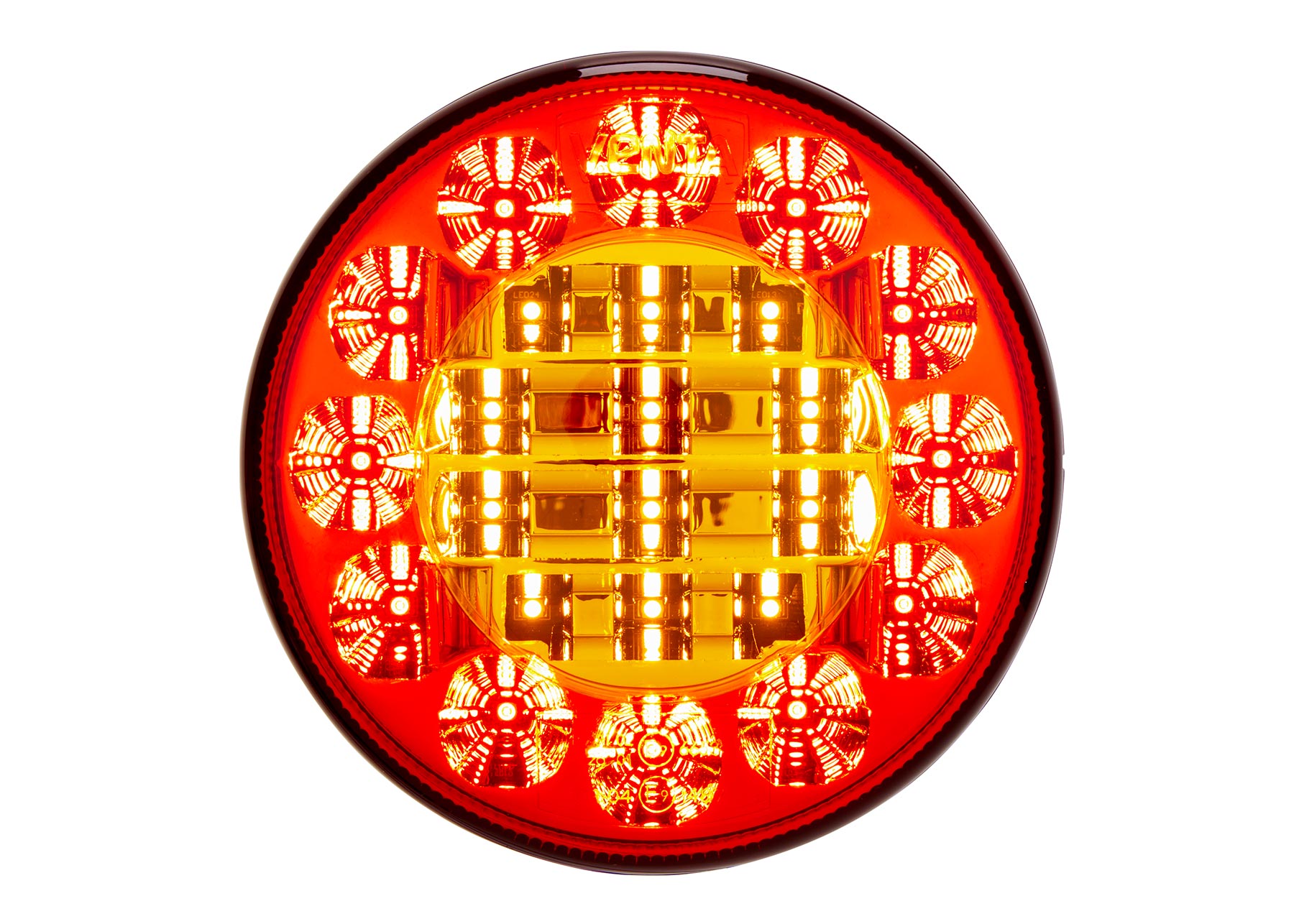

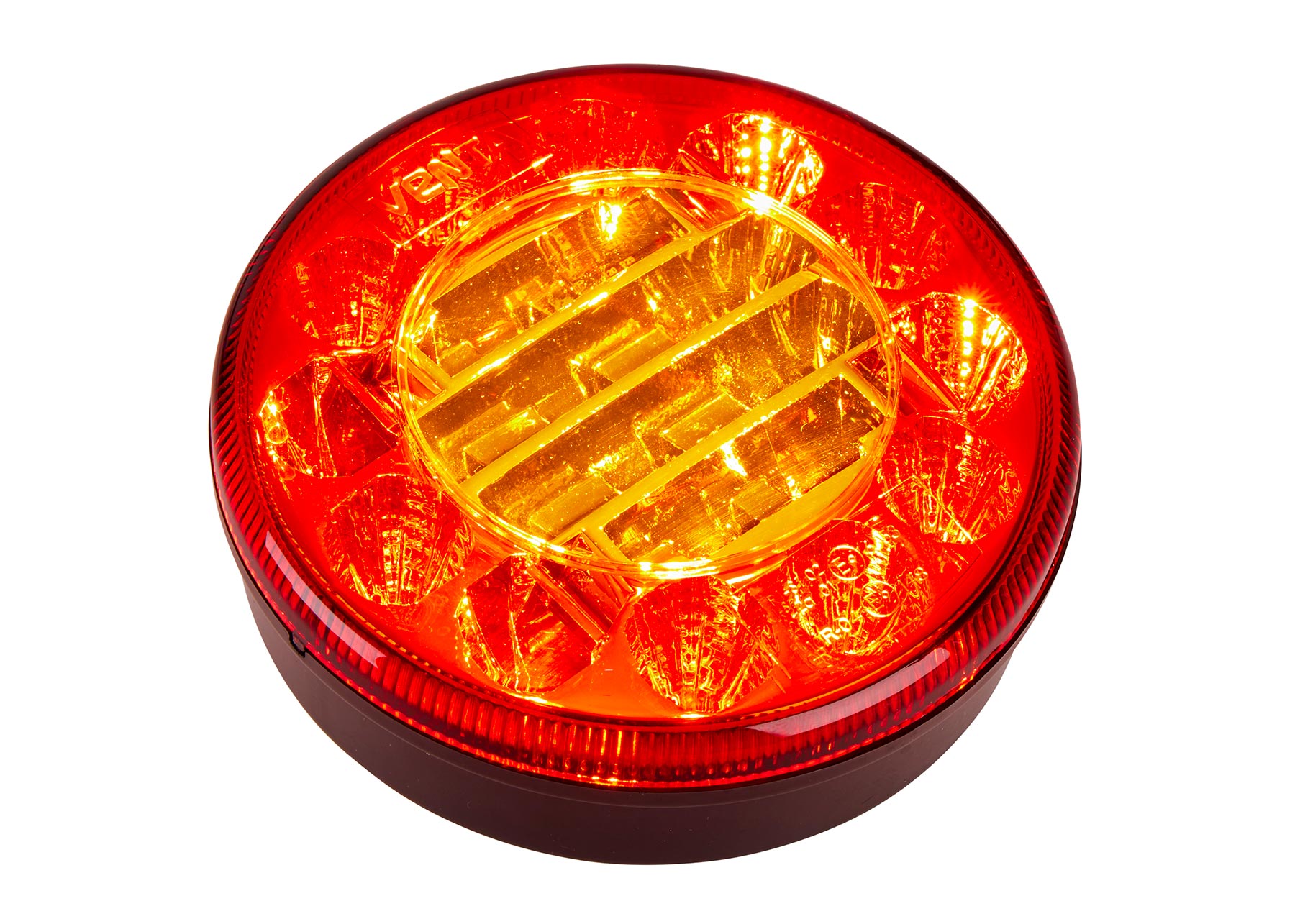

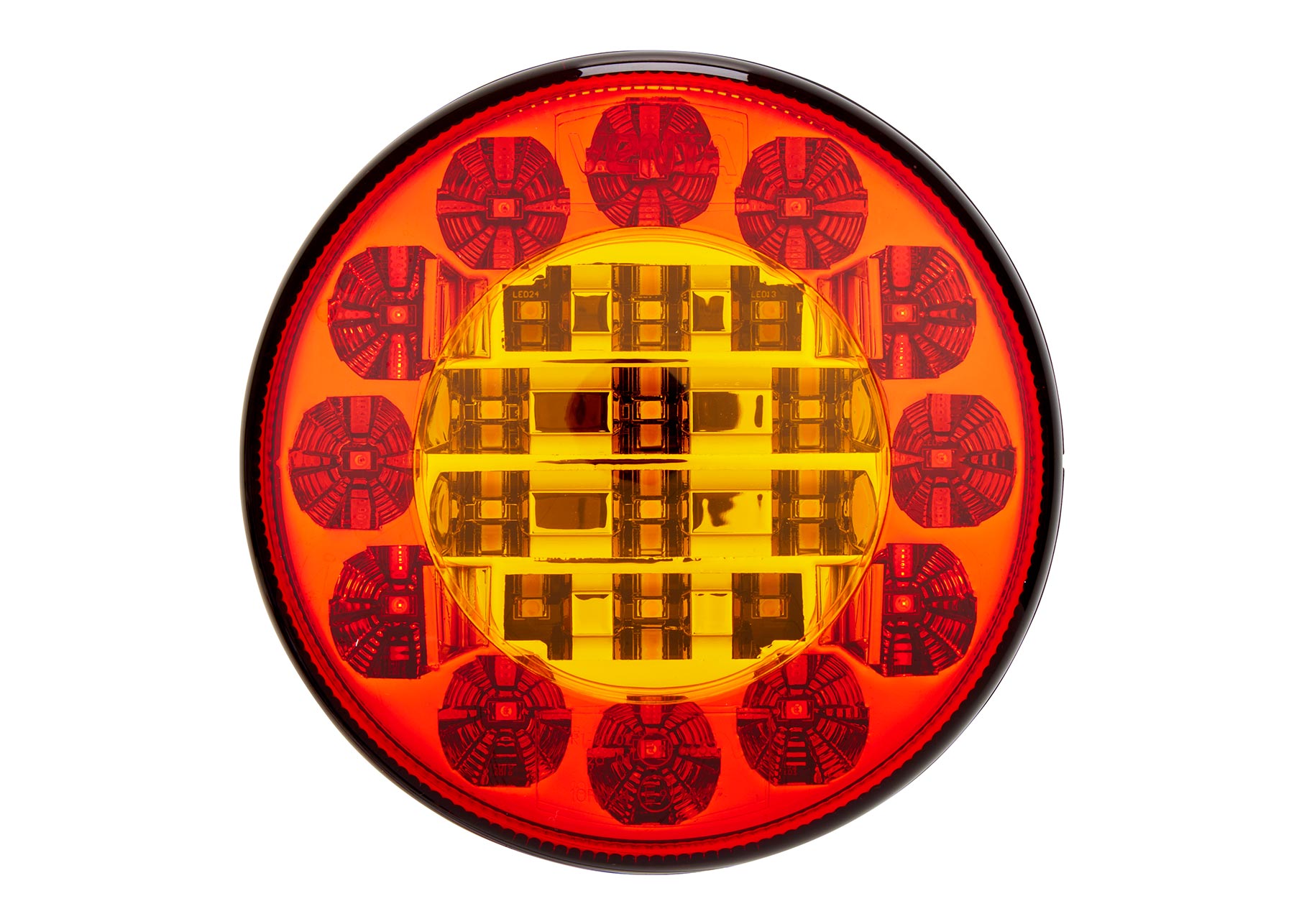

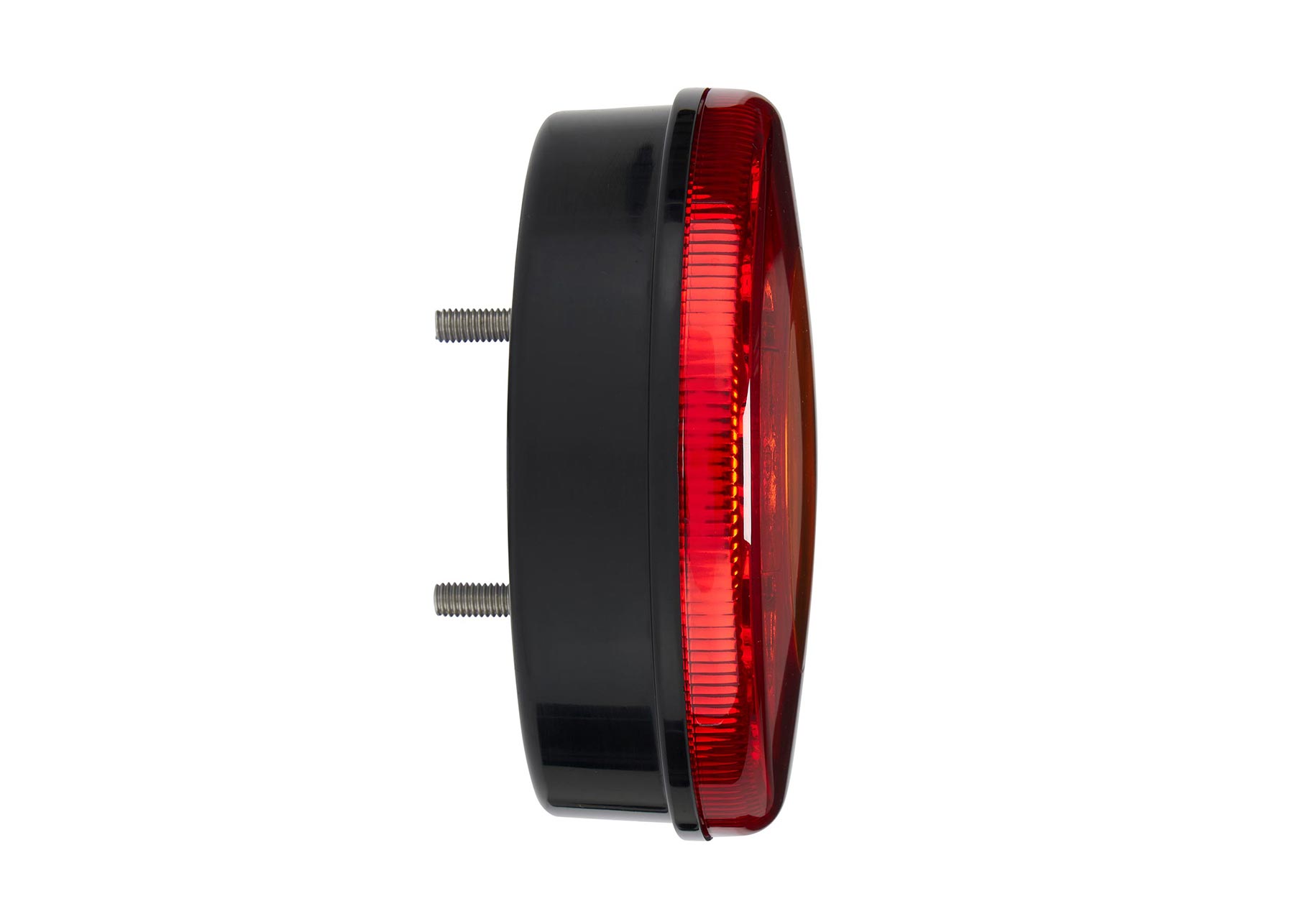

| RL122STI | 122mm LED Rear Light - Stop / Tail / Indicator - Red Lens | IP67 | 12/24 | Stop: 0.14A @12V, 0.07A @24V, Tail: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V | 230 | None | Red/Amber | Red/Amber | 122 | 0.224 | 43(D) |
| RL122STIS/LH | 122mm LED Rear Light - Stop / Tail / Indicator with Superseal Connector, 0.2m Cable - Left Side | IP67 | 12/24 | Stop: 0.14A @12V, 0.07A @24V, Tail: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V | 240 | SuperSeal | Red/Amber | Red/Amber | 122 | 0.249 | 43(D) |
| RL122STIS/RH | 122mm LED Rear Light - Stop / Tail / Indicator with Superseal Connector, 0.2m Cable - Right Side | IP67 | 12/24 | Stop: 0.14A @12V, 0.07A @24V, Tail: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V | 240 | SuperSeal | Red/Amber | Red/Amber | 122 | 0.249 | 43(D) |
Download Product Information
- RL122STI Product Spec Sheet Download
- RL122STIS/LH Product Spec Sheet Download
- RL122STIS/RH Product Spec Sheet Download
- RL122STI Technical Drawing Download
- RL122STIS/LH Technical Drawing Download
- RL122STIS/RH Technical Drawing Download
To download product materials, please login or register for an account.
