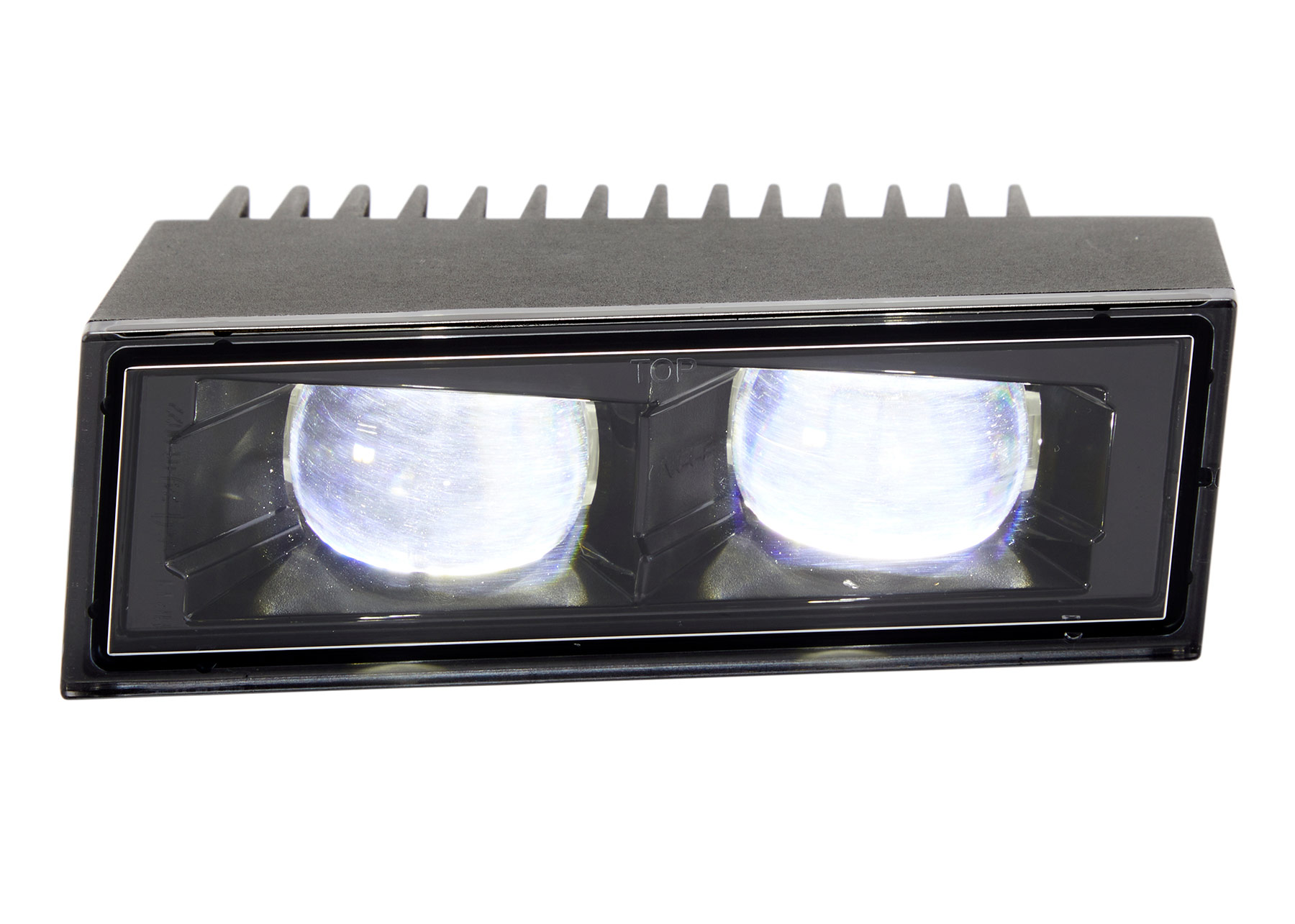

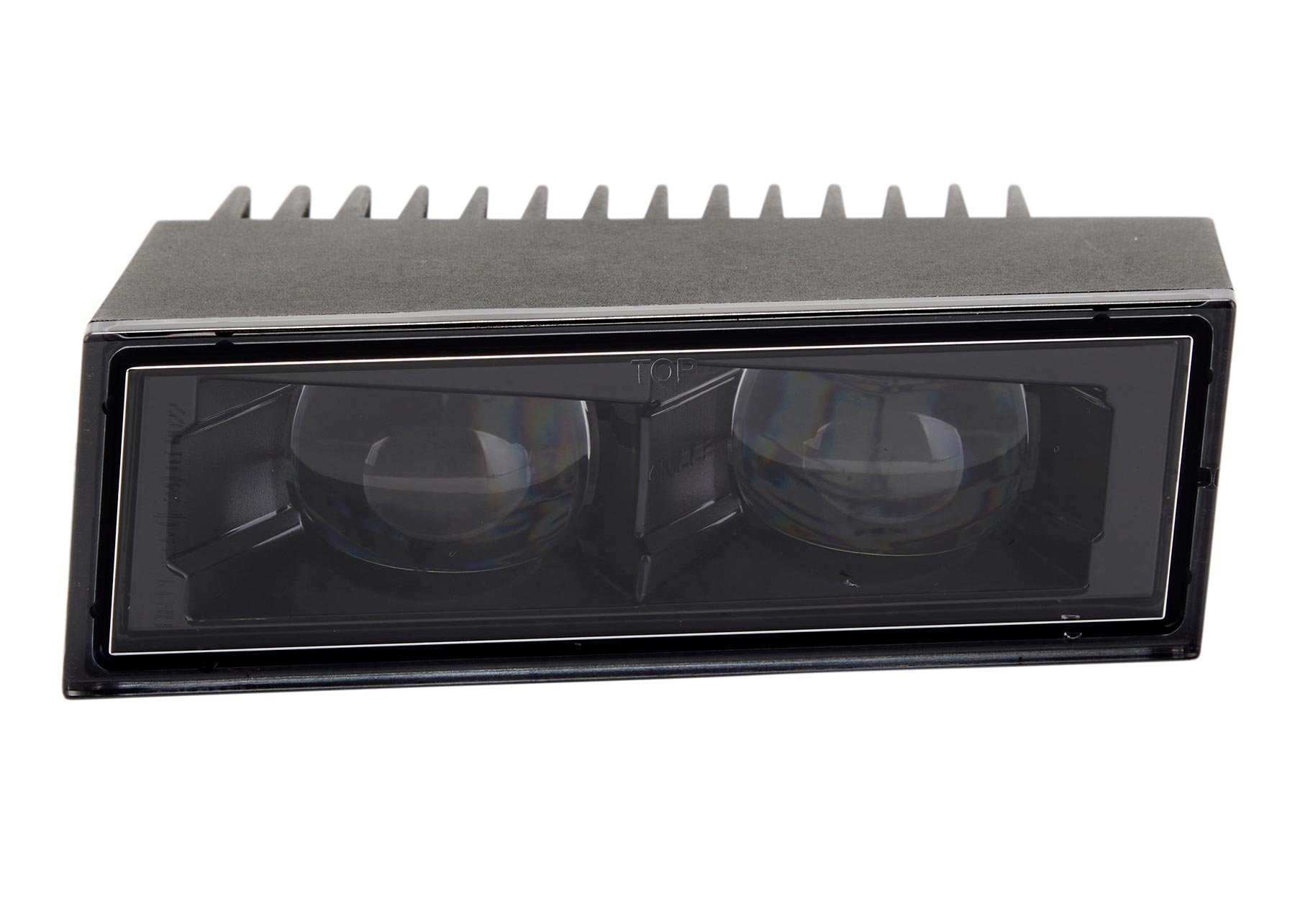

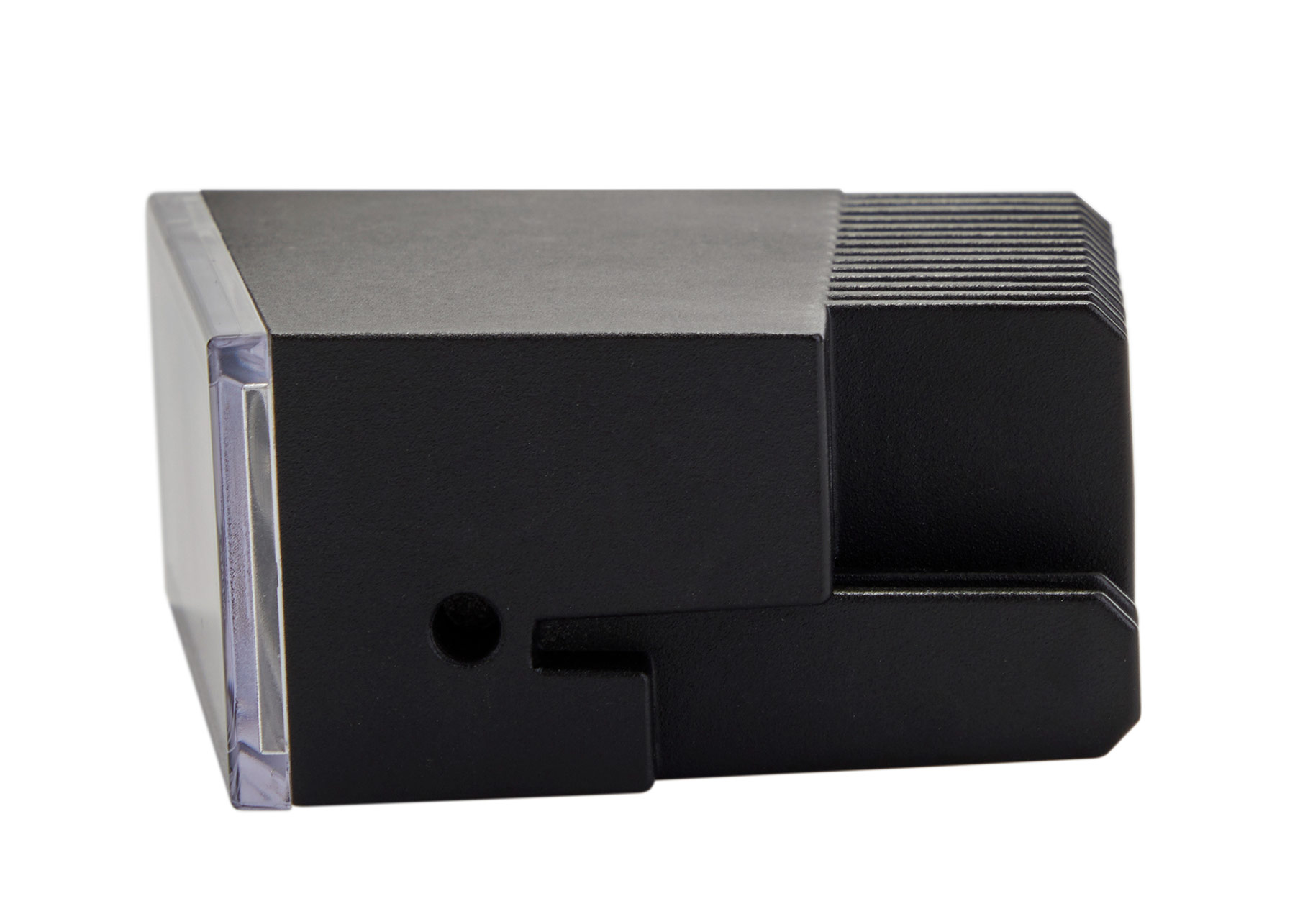

Blade Series LED Headlight 2 LED Angled High Beam Right Hand Drive

PART NO: RL6375

Product options
  • Product Overview:
    • Modern alternative to traditional round headlights.
    • Outstanding light output and spread.
    • Toughened outer lens prevents damage.

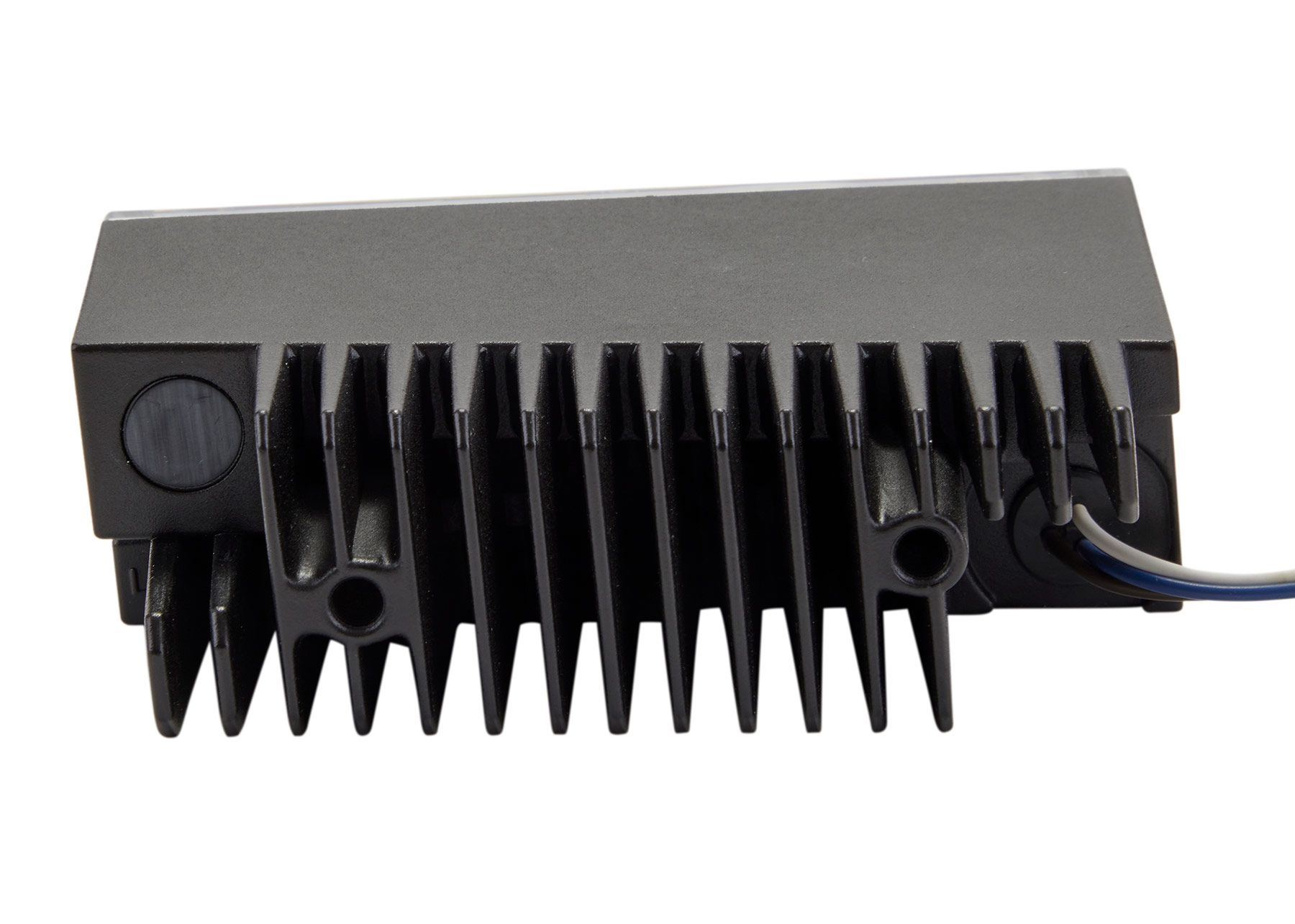

    • Venting patch on the back allows air to expand and contract to avoid damage to the sealing of the product.
  • Warranty: 3 Years
  • Approvals: ECE R10, R112.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE 2 LED Angled High Beam Headlight, Right Hand Drive - Left Side 2 LED Angled High Beam Headlight, Right Hand Drive - Right Side
PART NUMBER RL6375 RL637501
IP RATING IP68 IP68
VOLTAGE (V) DC 12/24 12/24
CURRENT DRAW (AMPS) 1.31A @ 12V, 0.65A @ 24V 1.31A @ 12V, 0.65A @ 24V
CABLE LENGTH (MM) 250 250
CONNECTORS Deutsch Deutsch
LIGHT COLOUR White White
LENS COLOUR Clear Clear
DIAMETER (MM) N/A N/A
LENGTH (MM) 120 120
HEIGHT (MM) 40 40
DEPTH (MM) 132 132
WEIGHT (KG) 0.473 0.473
