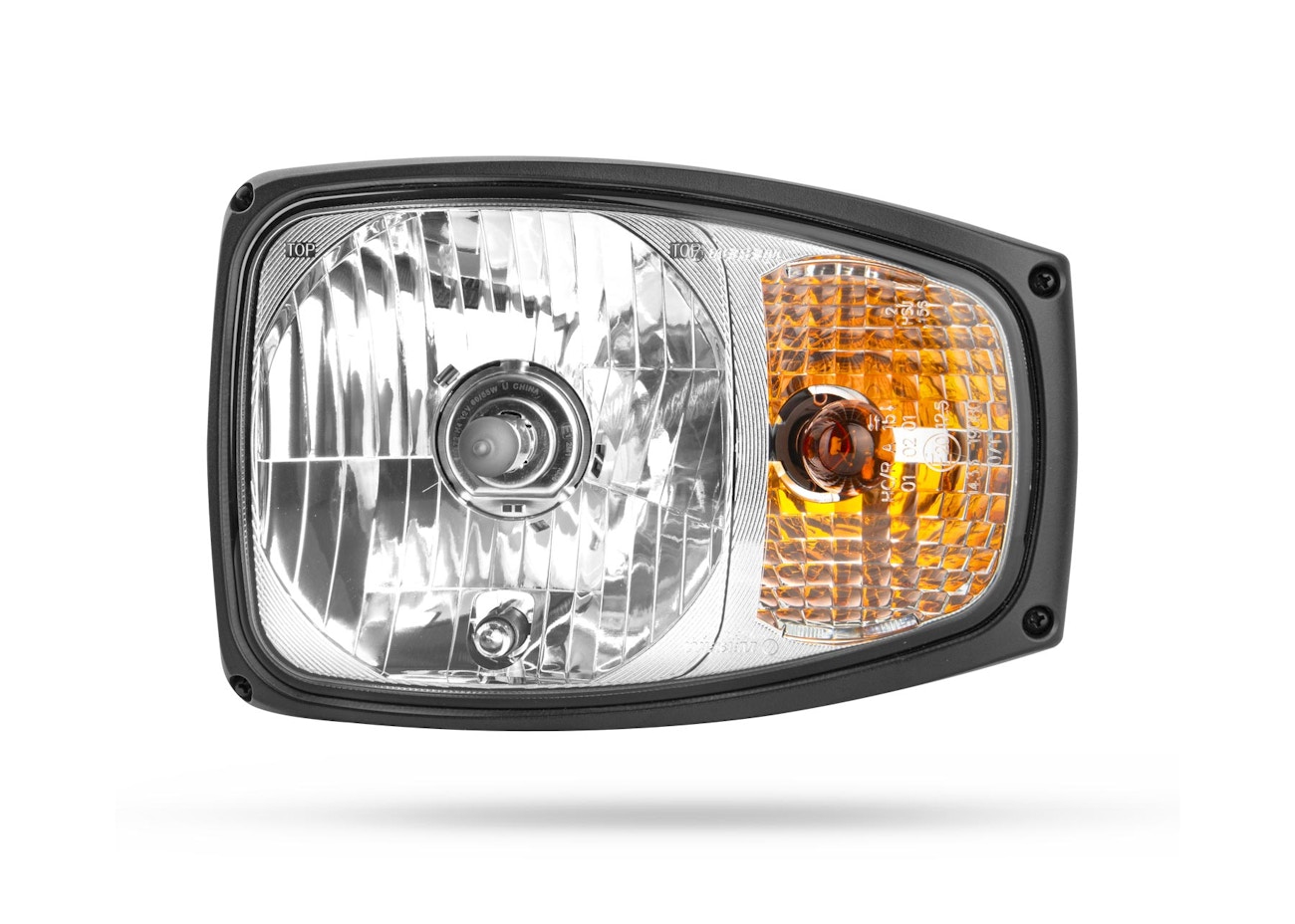

RL.RGV1.KLI.12V
RL.RGV1.KLI.12V

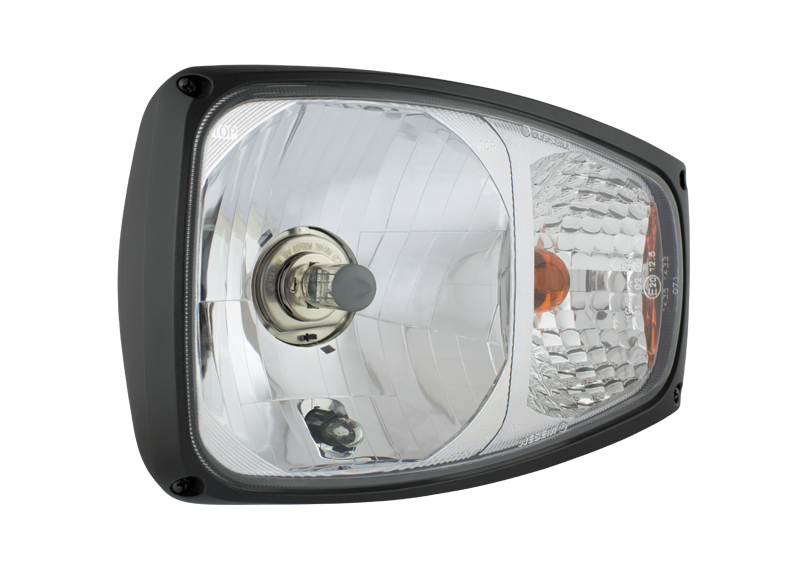

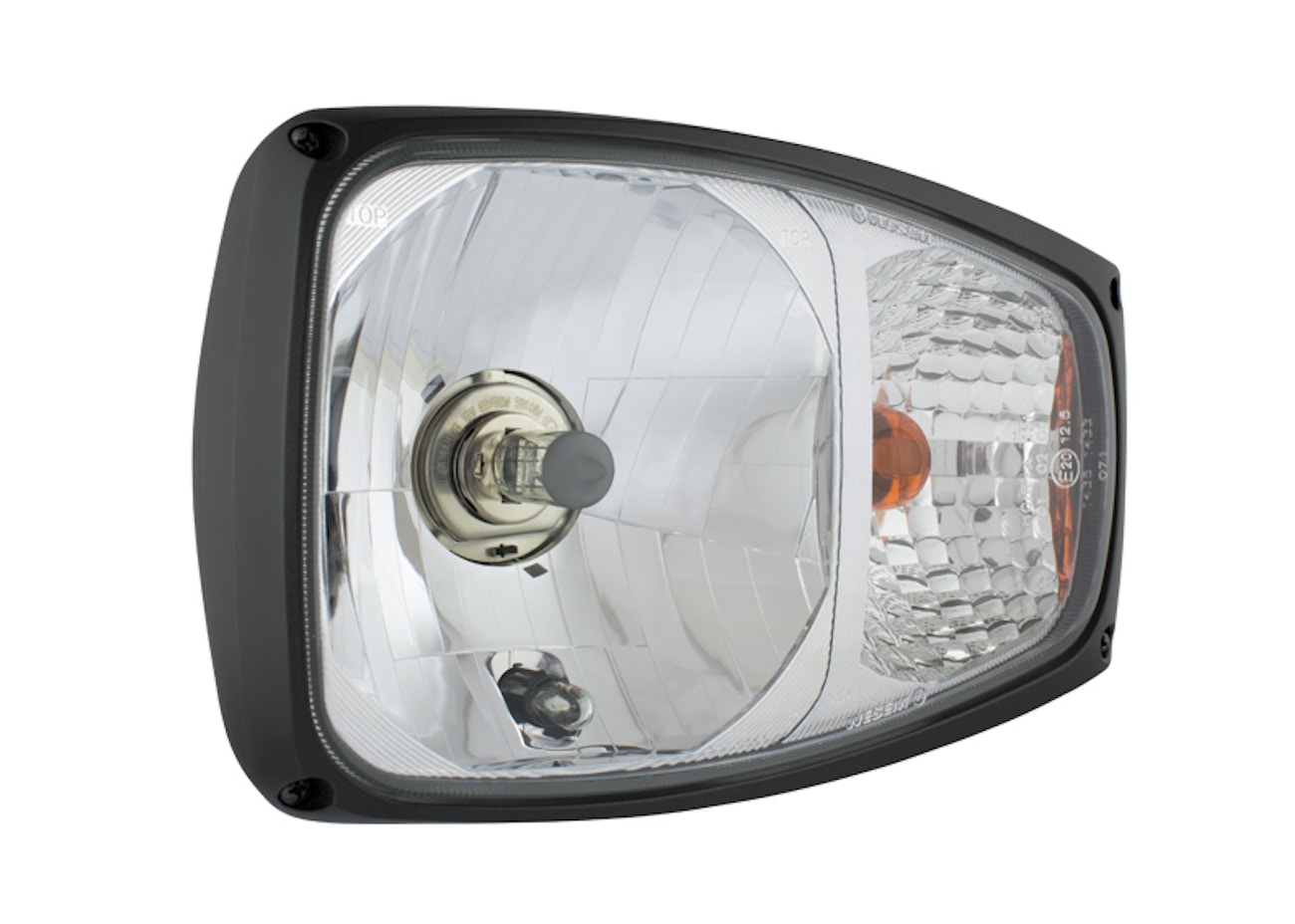

RL.RGV1.KLI.12V Off

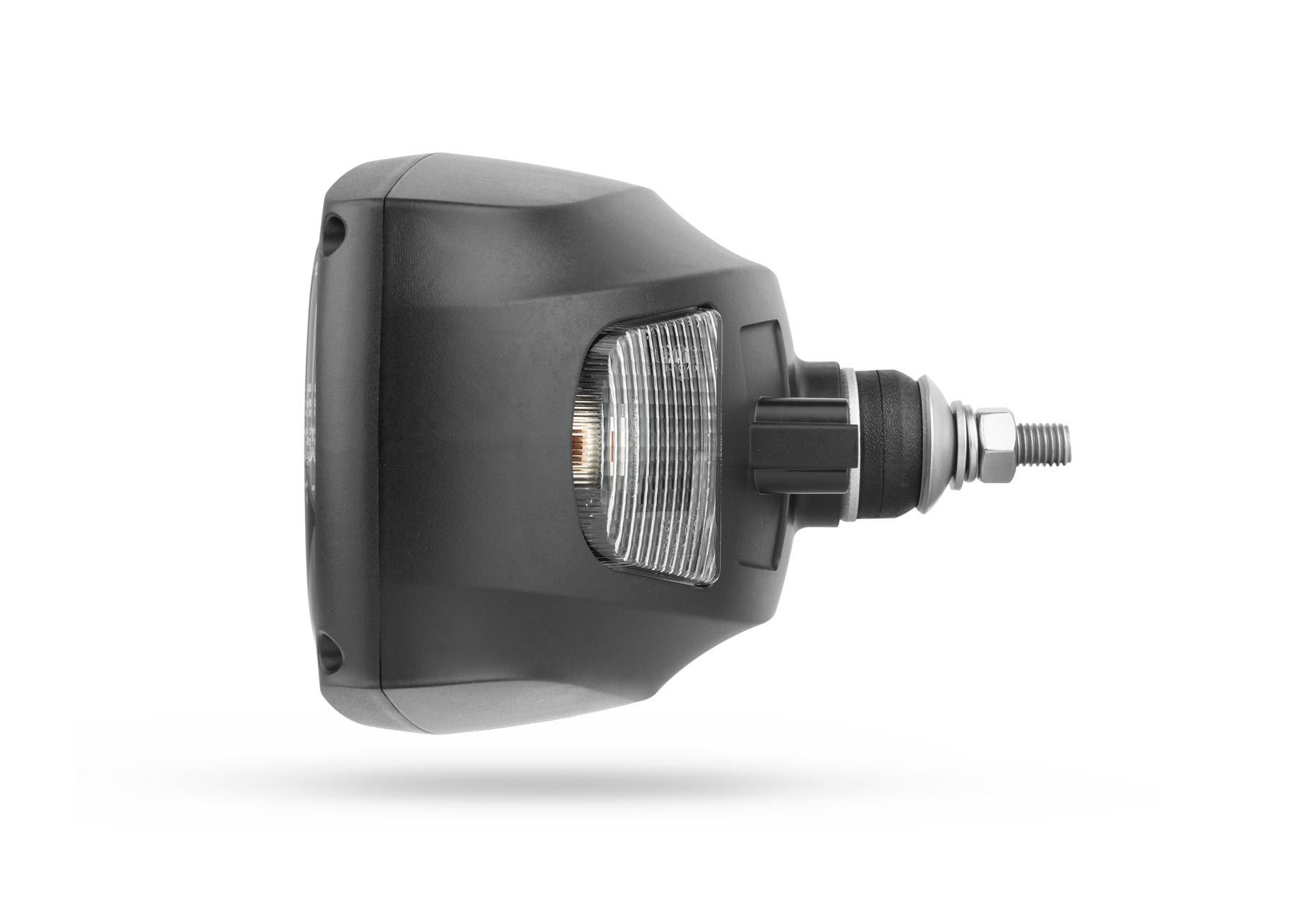

RL.RGV1.KLI.12V Side

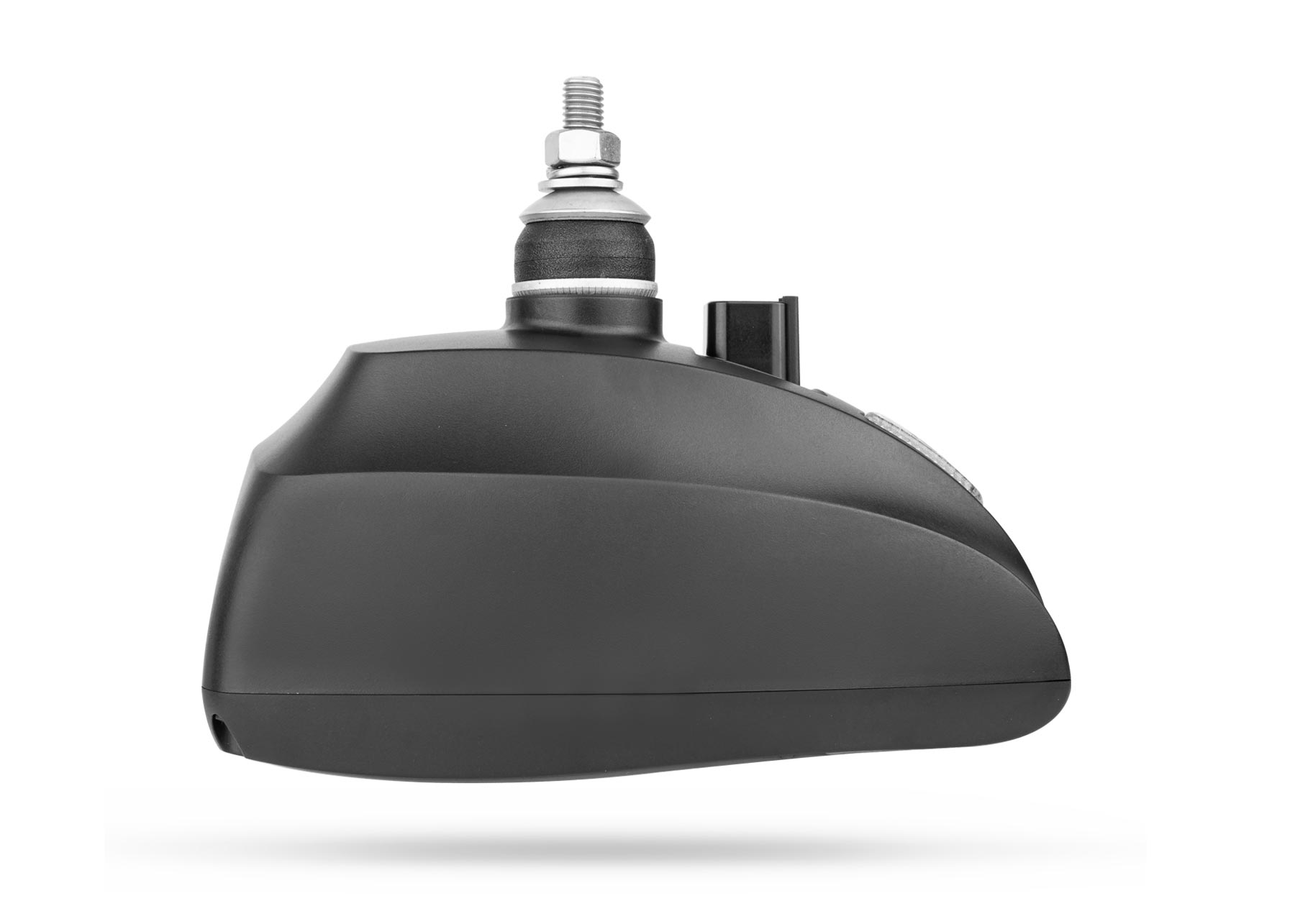

RL.RGV1.KLI.12V Top
RL.RGV1.KLI.12V Back

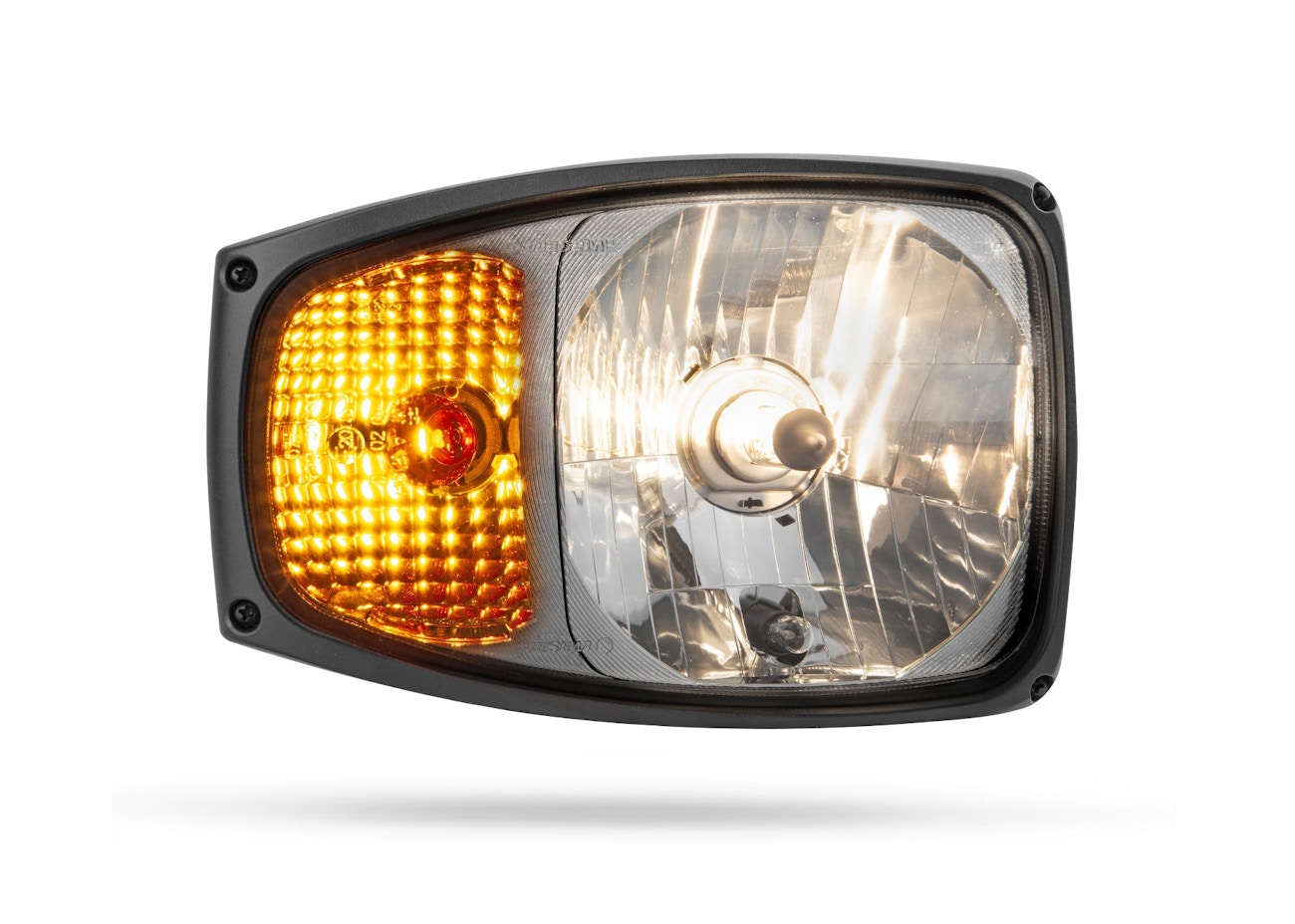

RL.RGV2.KLI.12V Illuminated

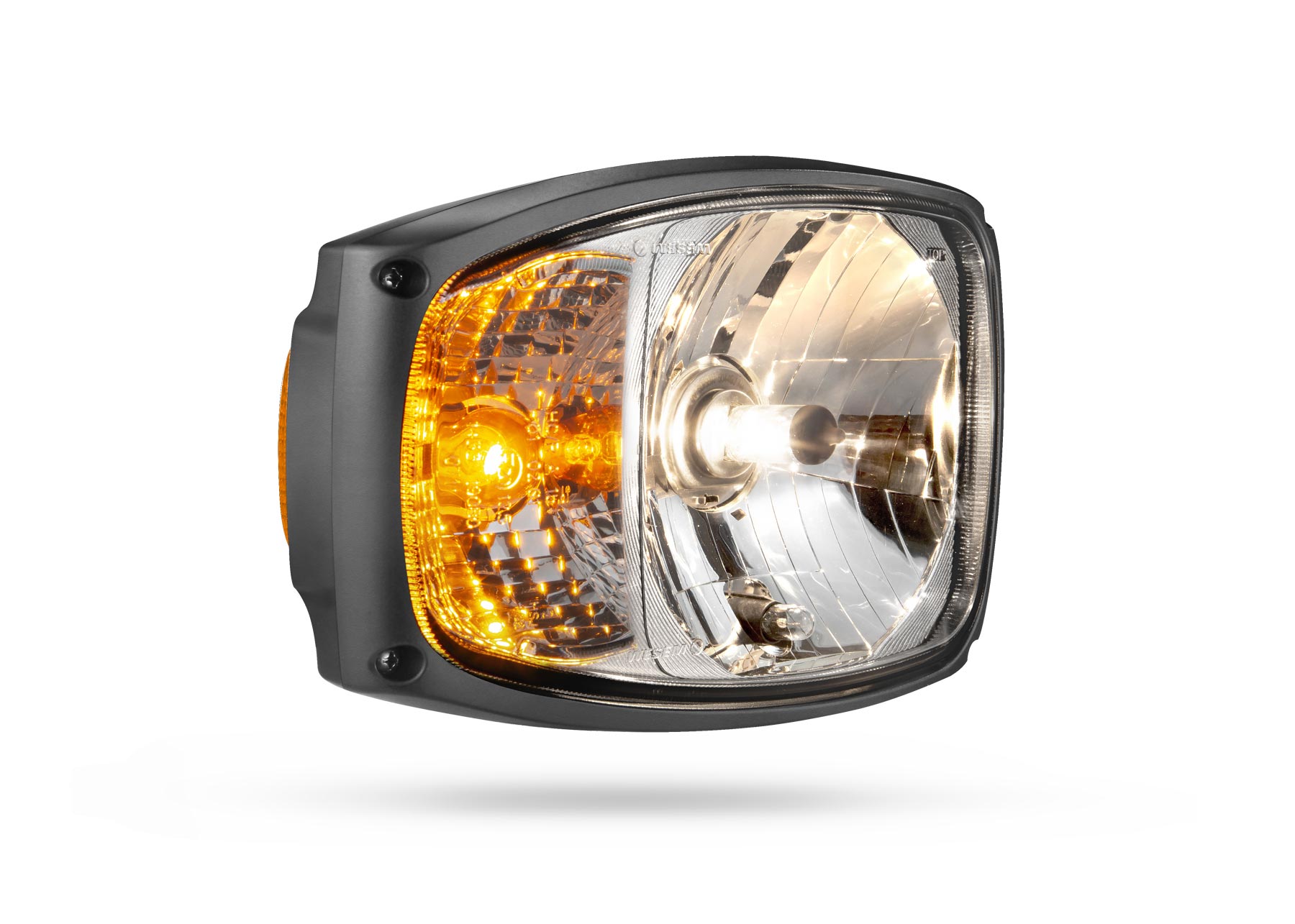

RL.RGV2.KLI.12V
RL.RGV2.KLI.12V
RL.RGV2.KLI.12V Off
RL.RGV2.KLI.12V Side

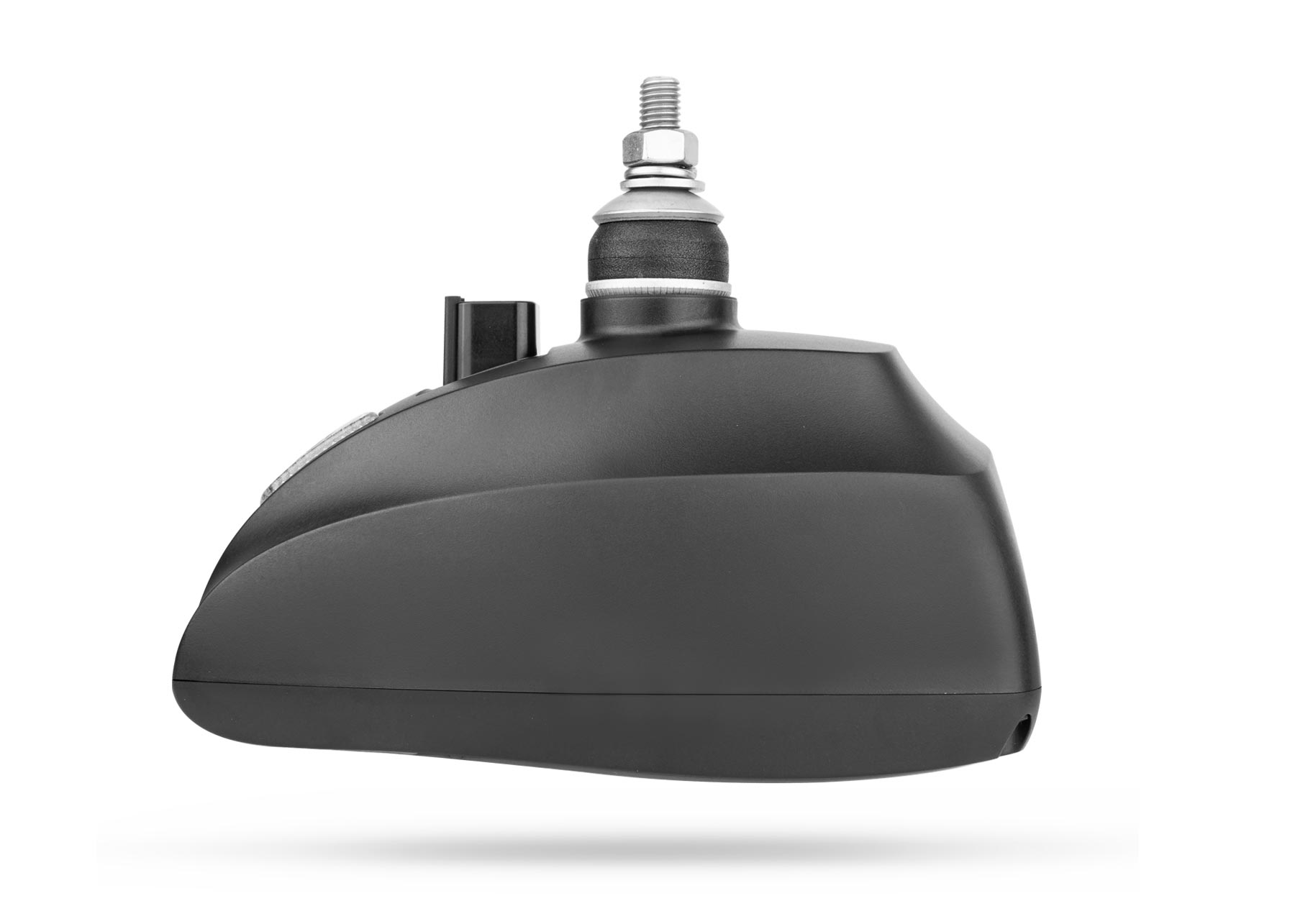

RL.RGV2.KLI.12V Top

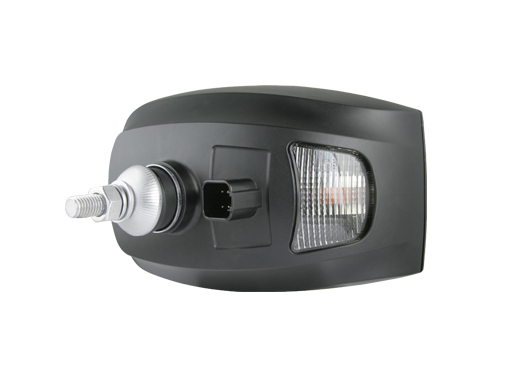

RL.RGV2.KLI.12V Back

RL.RGV Series Halogen Headlight

PART NO: RL.RGV1.KLI.12V

Product options
  • Product Overview:
    • High beam, dipped beam, position and direction indicator functions.
    • Integral rear facing indicator.
    • Integrated Deustch connector.
  • Warranty: 3 Years
  • Approvals: ECE R6.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Halogen Headlight - High Beam / Low Beam / Indicator - Right Side Halogen Headlight - High Beam / Low Beam / Indicator - Left Side
PART NUMBER RL.RGV1.KLI.12V RL.RGV2.KLI.12V
IP RATING IP66 IP66
VOLTAGE (V) DC 12 12
CURRENT DRAW (AMPS) High Beam: 5A @ 12V, Low Beam: 4.6A @ 12V, Indicator: 1.75A @ 12V, Parking Light: 0.45A @ 12V High Beam: 5A @ 12V, Low Beam: 4.6A @ 12V, Indicator: 1.75A @ 12V, Parking Light: 0.45A @ 12V
CABLE LENGTH (MM)
CONNECTORS Deutsch Deutsch
LIGHT COLOUR White White
LENS COLOUR Clear Clear
DIAMETER (MM) N/A N/A
LENGTH (MM) 225 225
HEIGHT (MM) 150 150
DEPTH (MM) 137 137
WEIGHT (KG) 1.25 1.25
