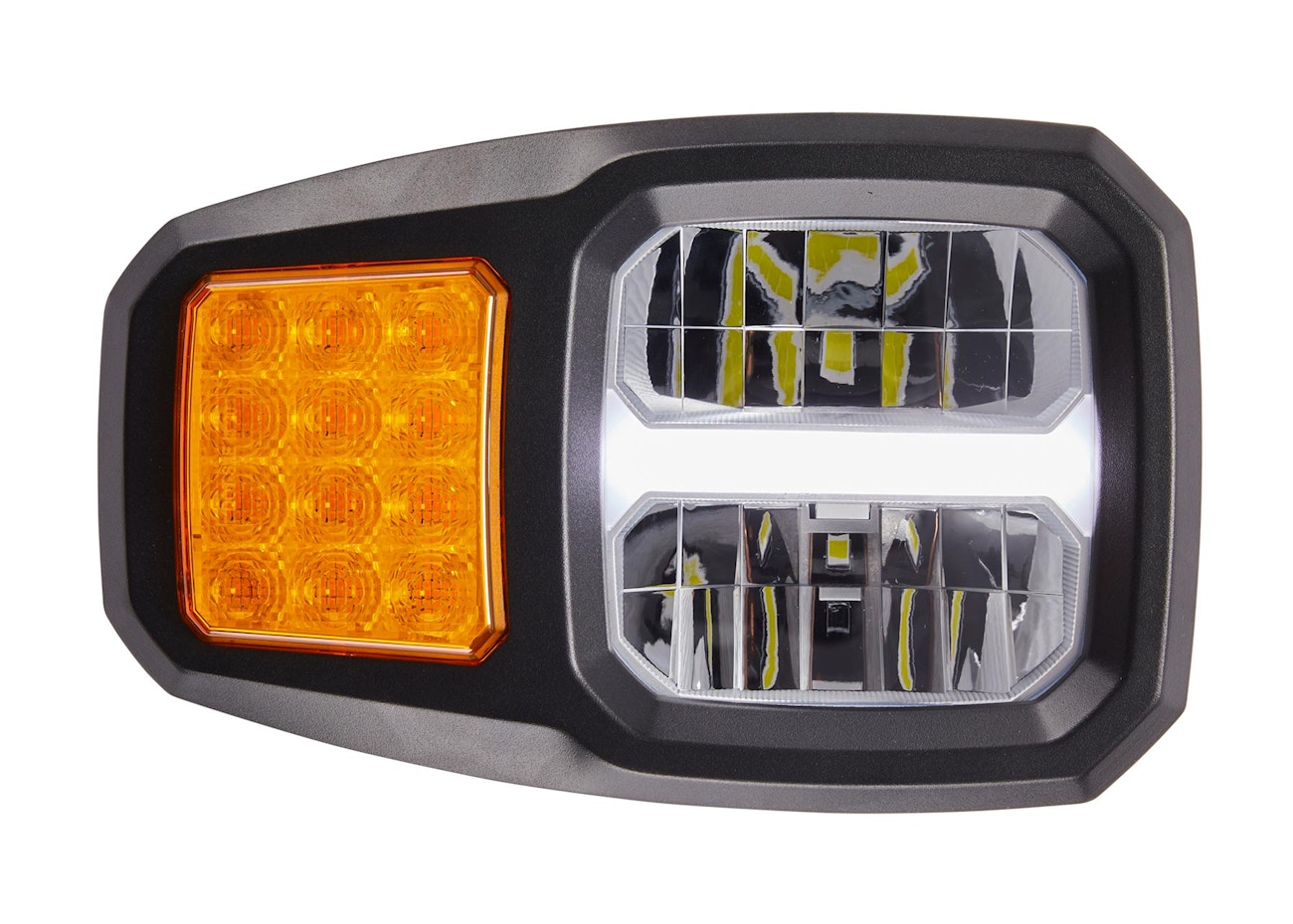

RL15 Series SAE Single Bolt Mount LED Headlight - High Beam / Dipped Beam / Position / Indicator

PART NO: RL1435

Product options
  • Product Overview:
    • Dotless LED position light.
    • Low current draw.
    • Adjustable bolt position for mounting at the base or the rear of the lamp.
    • Advanced thermal design reduces the temperature on LEDs, increasing the longevity of the product.
    • ECE and SAE approved versions available.
    • Pre-terminated with a Deutsch connector.
  • Warranty: 3 Years
  • Approvals: SAE DOT.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Single Bolt Mount LED Headlight with 500mm Cable and Deutsch Connector - Left Hand Drive - Left Side, SAE approval. Single Bolt Mount LED Headlight with 500mm Cable and Deutsch Connector - Left Hand Drive - Right Side, SAE approval.
PART NUMBER RL1435 RL143501
IP RATING IP67 IP67
VOLTAGE (V) DC 10-30 10-30
CURRENT DRAW (AMPS) High Beam: 1.44A @ 12V, 0.72A @ 24V, Low Beam: 1.41A @ 12V, 0.67A @ 24V, Position: 0.31A @ 12V, 0.15A @ 24V, Indicator: 0.91A @ 12V, 0.46A @ 24V High Beam: 1.44A @ 12V, 0.72A @ 24V, Low Beam: 1.41A @ 12V, 0.67A @ 24V, Position: 0.31A @ 12V, 0.15A @ 24V, Indicator: 0.91A @ 12V, 0.46A @ 24V
CABLE LENGTH (MM) 500 500
CONNECTORS Deutsch Deutsch
LIGHT COLOUR White White
LENS COLOUR Clear Clear
LENGTH (MM) 260 260
HEIGHT (MM) 165 165
DEPTH (MM) 101 101
WEIGHT (KG) 1.648 1.648
