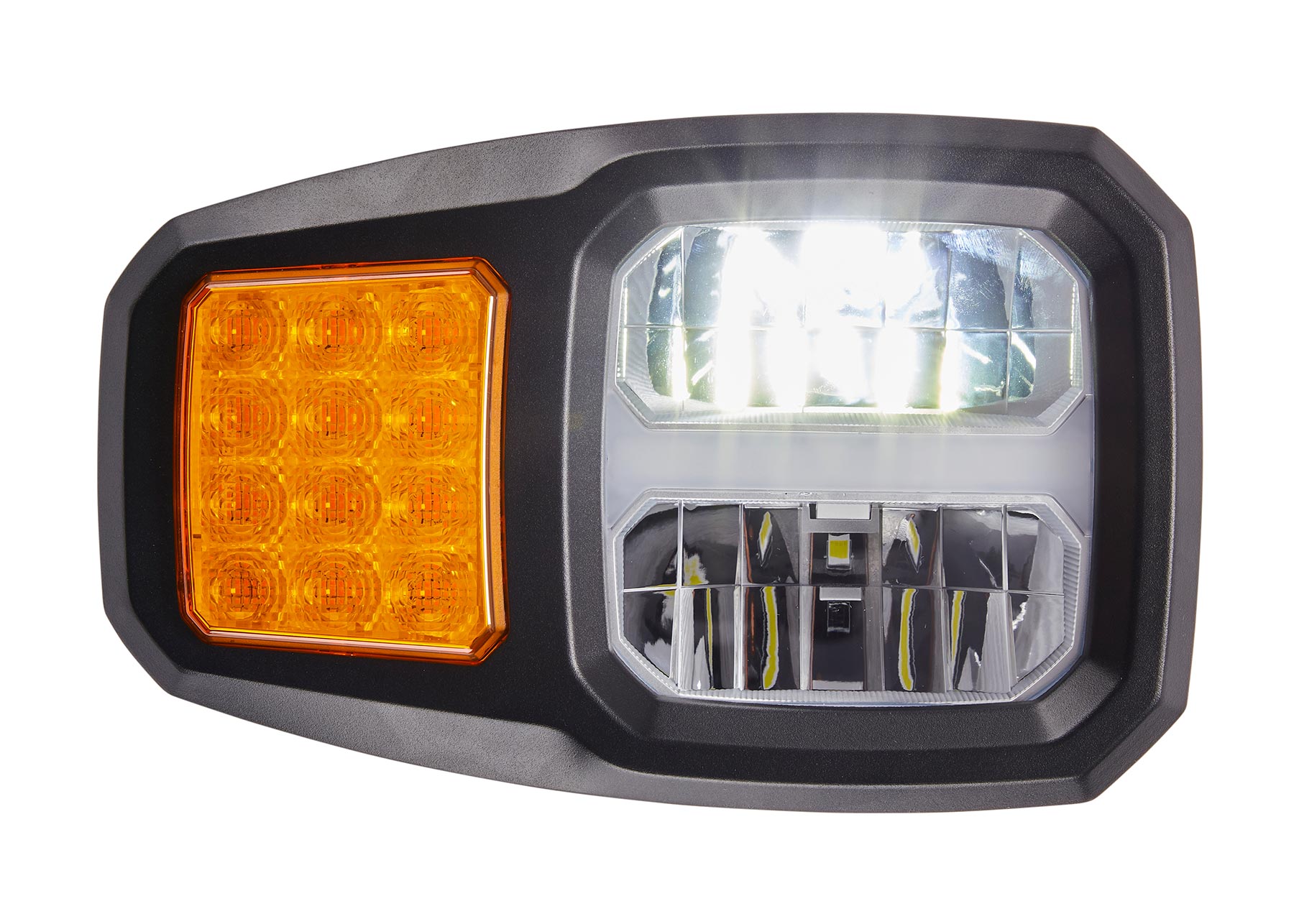

RL15 Series Front Illuminated - High Beam

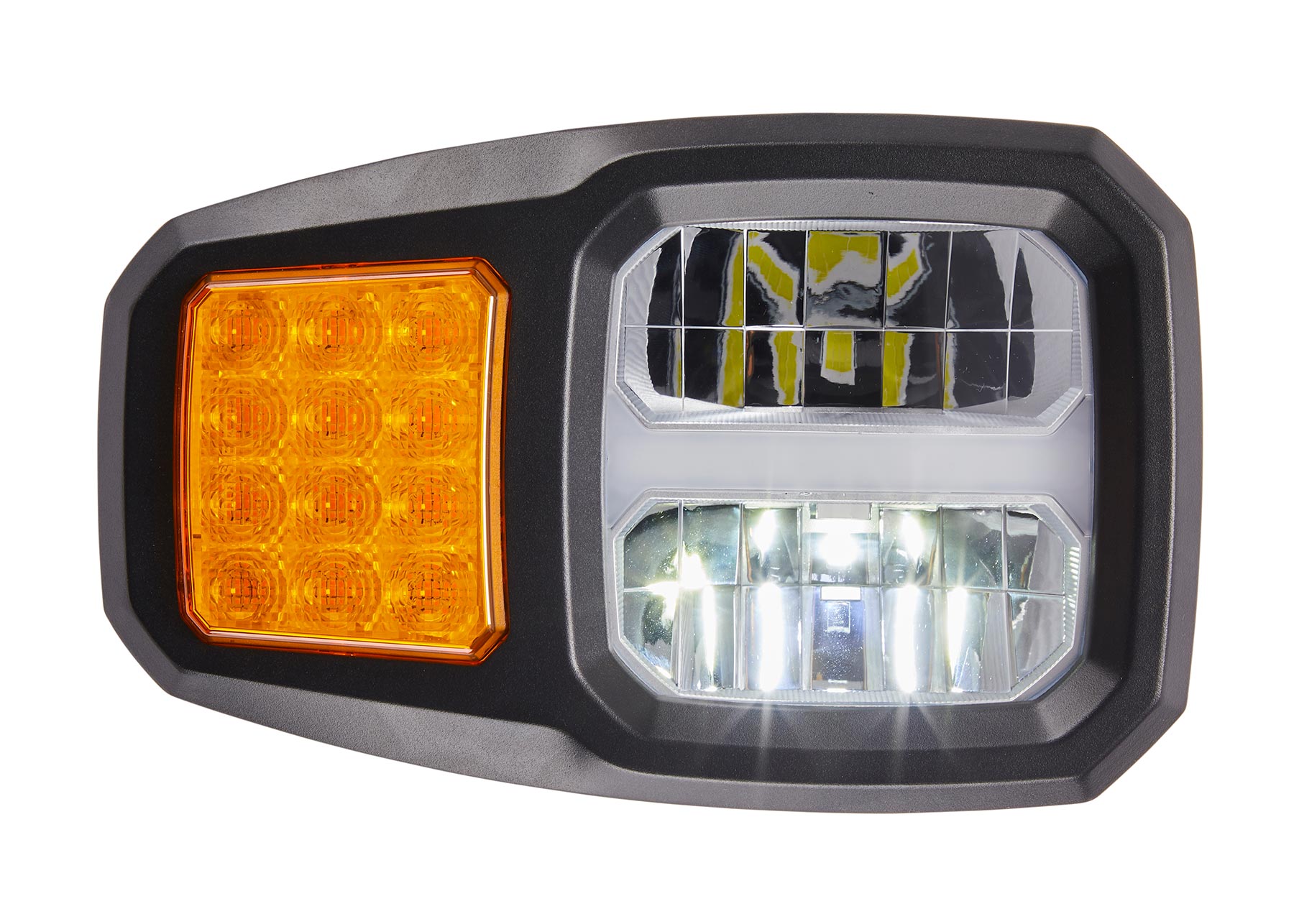

RL15 Series Front Illuminated - Dipped Beam

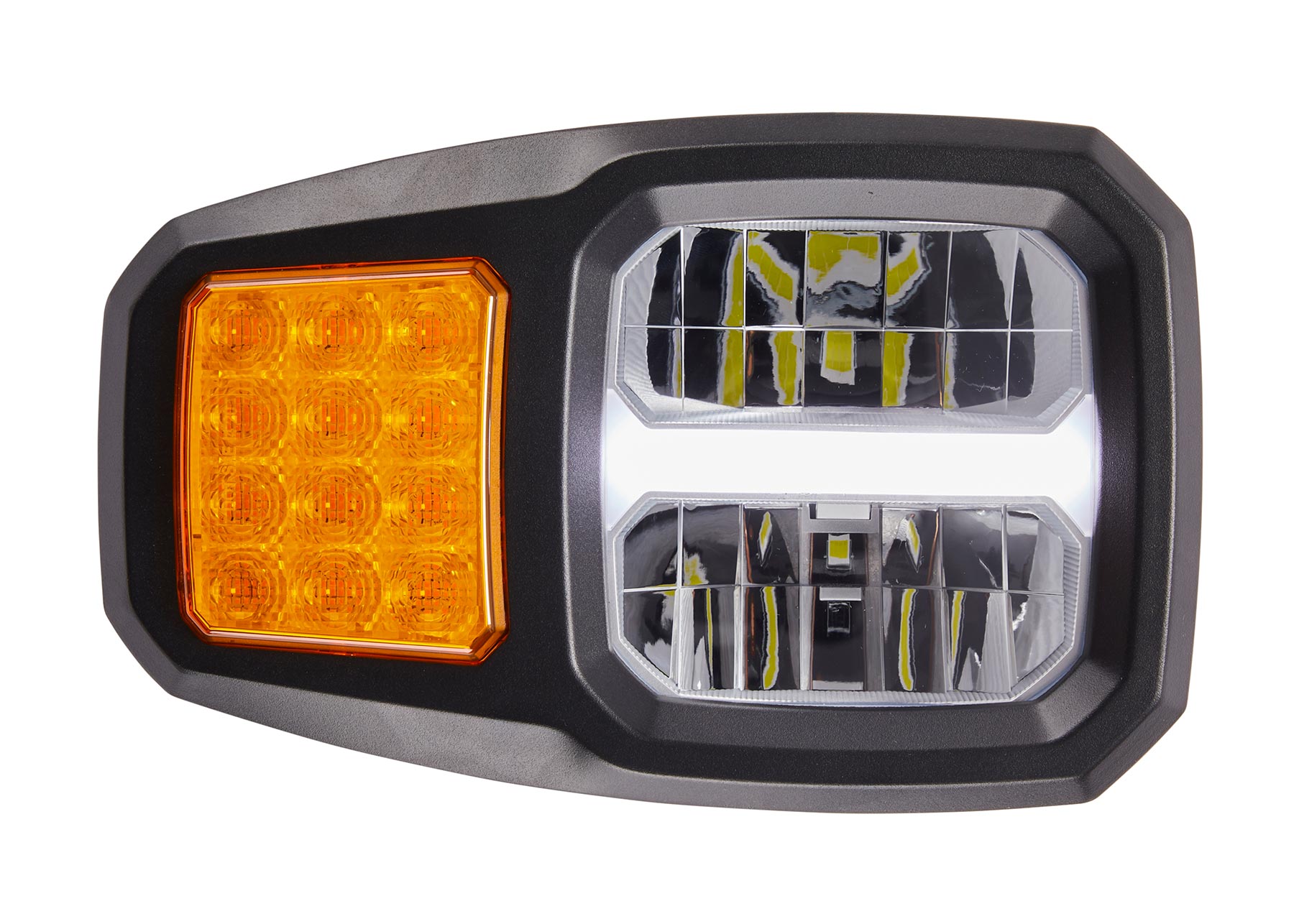

RL15 Series Front Illuminated - Position

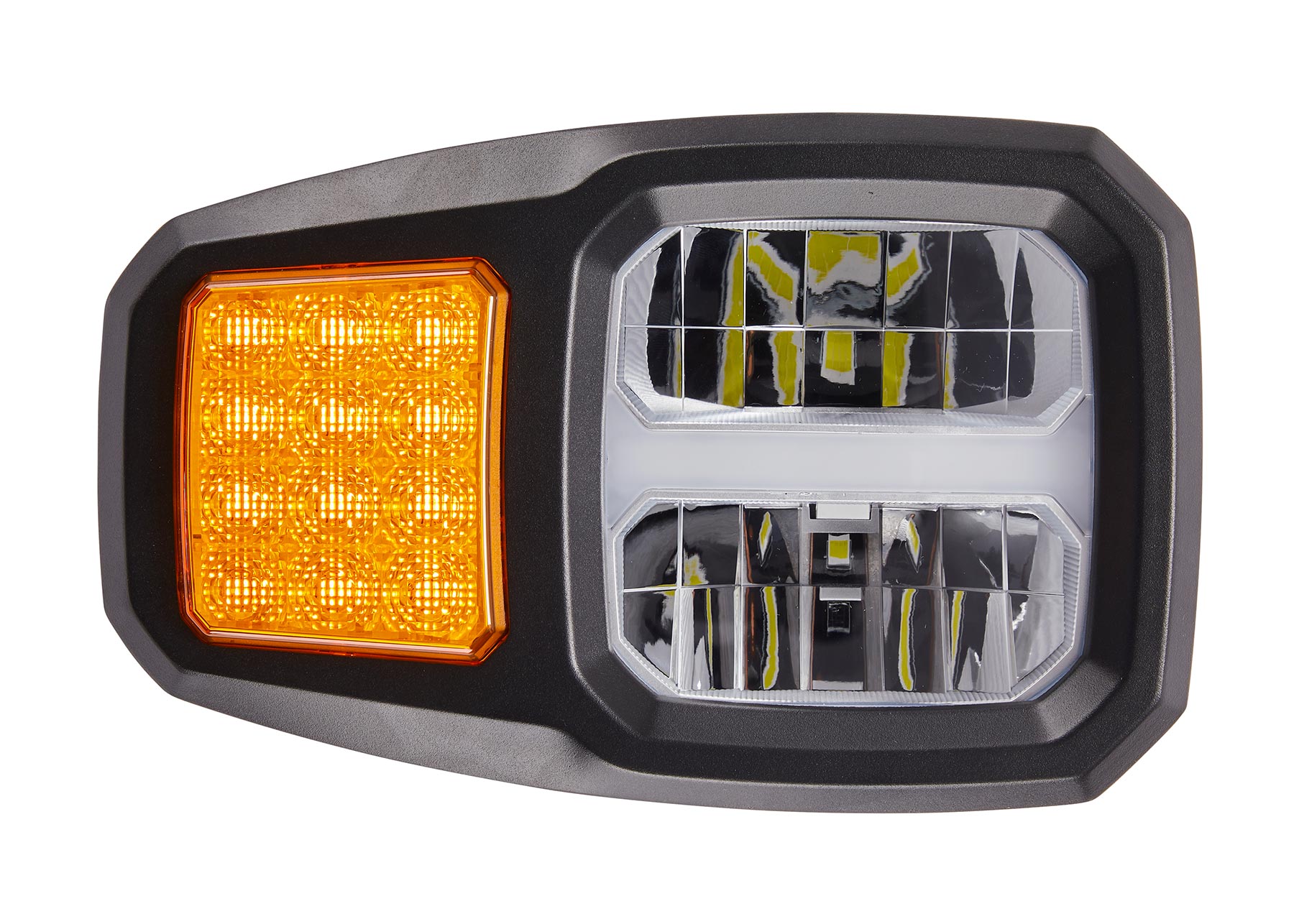

RL15 Series Front Illuminated - Indicator

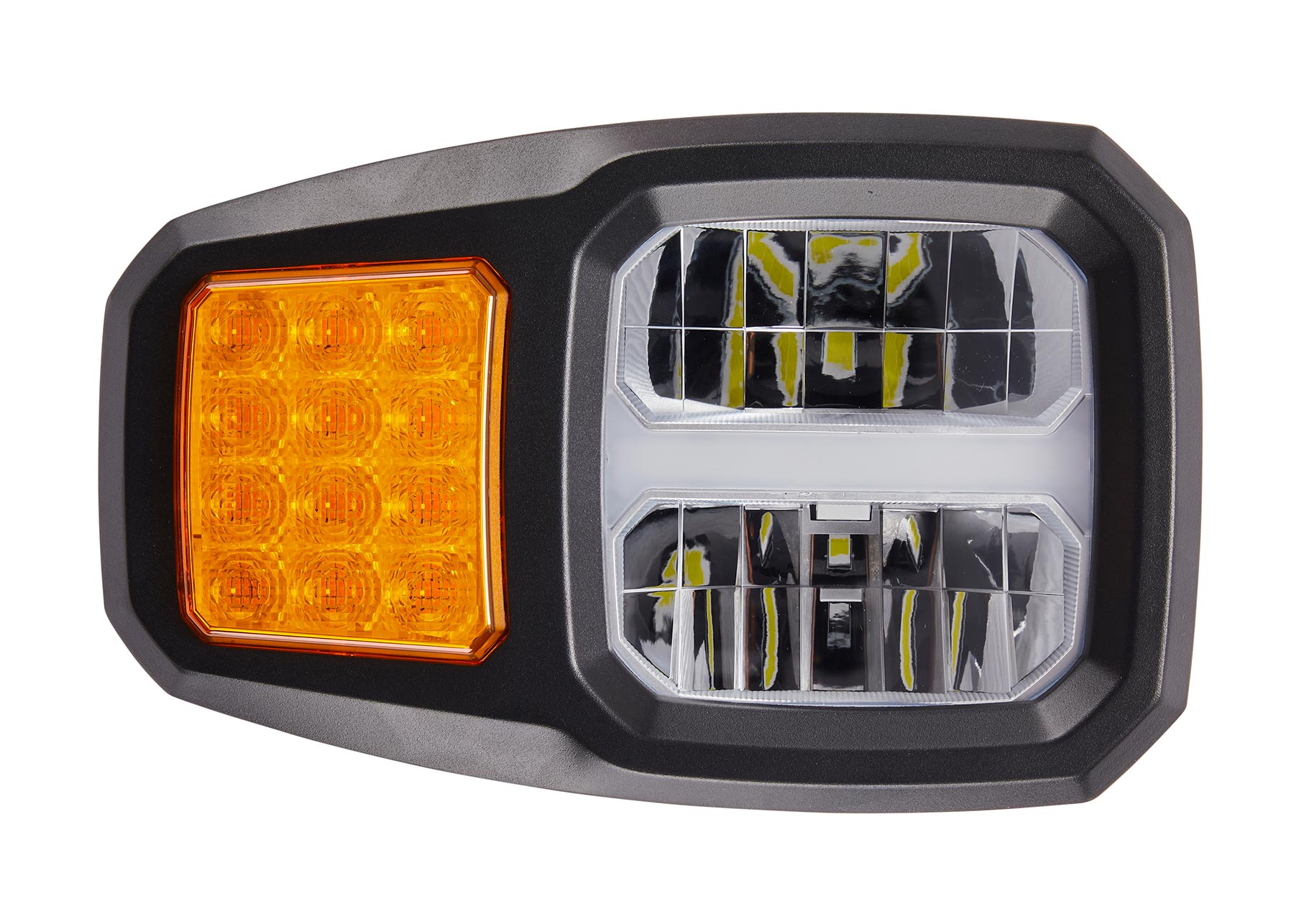

RL15 Series ECE Single Bolt Mount LED Headlight - High Beam / Dipped Beam / Position / Indicator

PART NO: RL8016

Product options

Product Overview:
- Dotless LED position light.
- Low current draw.

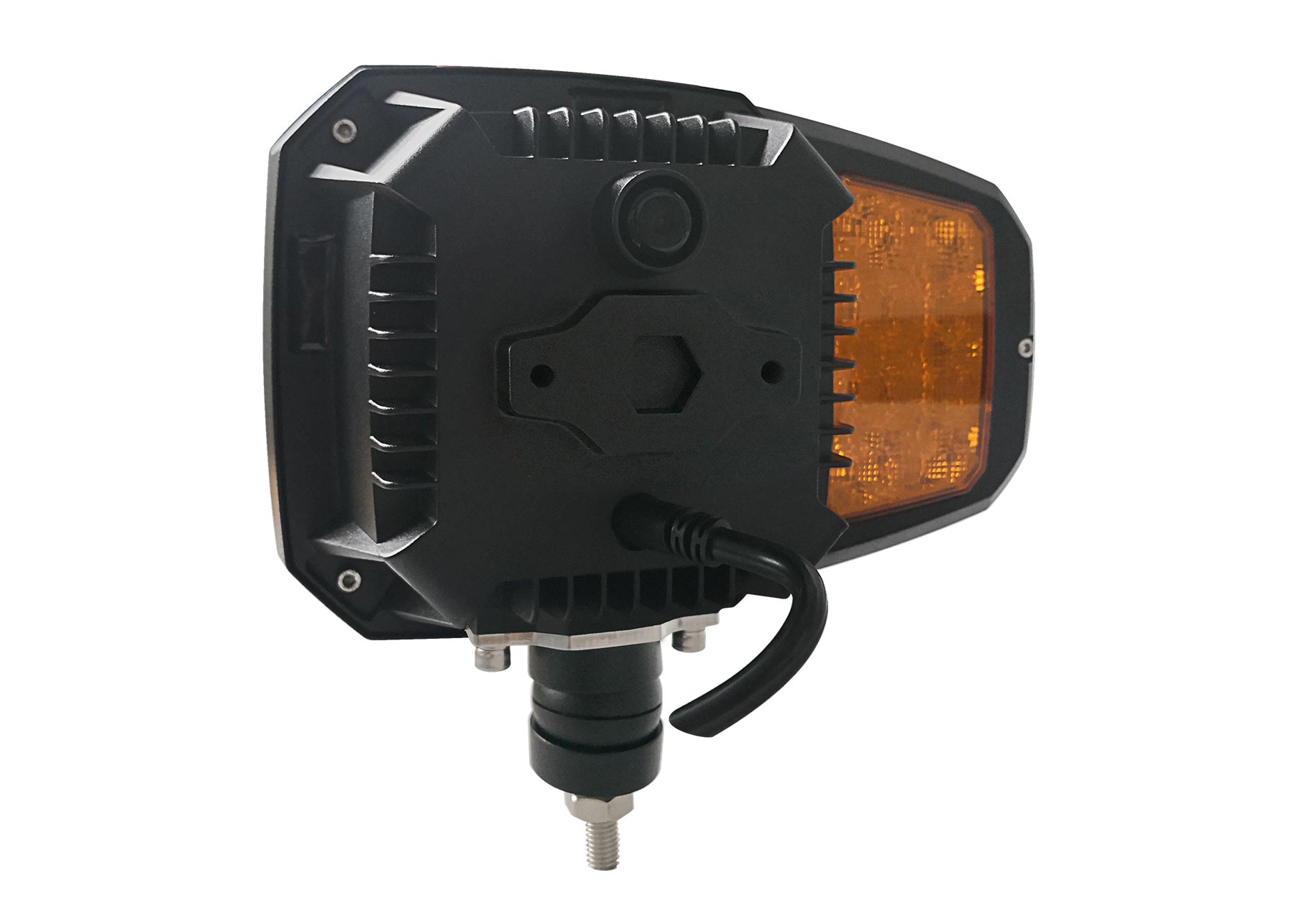

- Adjustable bolt position for mounting at the base or the rear of the lamp.
- Advanced thermal design reduces the temperature on LEDs, increasing the longevity of the product.
- ECE and SAE approved versions available.
- Pre-terminated with a Deutsch connector.
Warranty: 3 Years
Approvals: ECE R6, R7, R10, R112.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE	Single Bolt Mount LED Headlight with 500mm Cable and Deutsch Connector LHD - Left Side, ECE approval	Single Bolt Mount LED Headlight with 500mm Cable and Deutsch Connector RHD - Left Side, ECE approval.	Single Bolt Mount LED Headlight with 500mm Cable and Deutsch Connector RHD - Right Side, ECE approval.	Single Bolt Mount LED Headlight with 500mm Cable and Deutsch Connector LHD - Right Side, ECE approval
PART NUMBER	RL8016	RL1432	RL143201	RL801601
IP RATING	IP67	IP67	IP67	IP67
VOLTAGE (V) DC	10-30	10-30	10-30	10-30
CURRENT DRAW (AMPS)	High Beam: 1.44A @ 12V, 0.72A @ 24V, Low Beam: 1.41A @ 12V, 0.67A @ 24V, Position: 0.31A @ 12V, 0.15A @ 24V, Indicator: 0.5A @ 12V, 0.25A @ 24V	High Beam: 1.44A @ 12V, 0.72A @ 24V, Low Beam: 1.41A @ 12V, 0.67A @ 24V, Position: 0.31A @ 12V, 0.15A @ 24V, Indicator: 0.5A @ 12V, 0.25A @ 24V	High Beam: 1.44A @ 12V, 0.72A @ 24V, Low Beam: 1.41A @ 12V, 0.67A @ 24V, Position: 0.31A @ 12V, 0.15A @ 24V, Indicator: 0.5A @ 12V, 0.25A @ 24V	High Beam: 1.44A @ 12V, 0.72A @ 24V, Low Beam: 1.41A @ 12V, 0.67A @ 24V, Position: 0.31A @ 12V, 0.15A @ 24V, Indicator: 0.5A @ 12V, 0.25A @ 24V
CABLE LENGTH (MM)	500	500	500	500
CONNECTORS	Deutsch	Deutsch	Deutsch	Deutsch
LIGHT COLOUR	White	White	White	White
LENS COLOUR	Clear	Clear	Clear	Clear
LENGTH (MM)	260	260	260	260
HEIGHT (MM)	165	165	165	165
DEPTH (MM)	101	101	101	101
WEIGHT (KG)	1.638	1.638	1.638	1.638
