RL.F90.LWT.M.2G

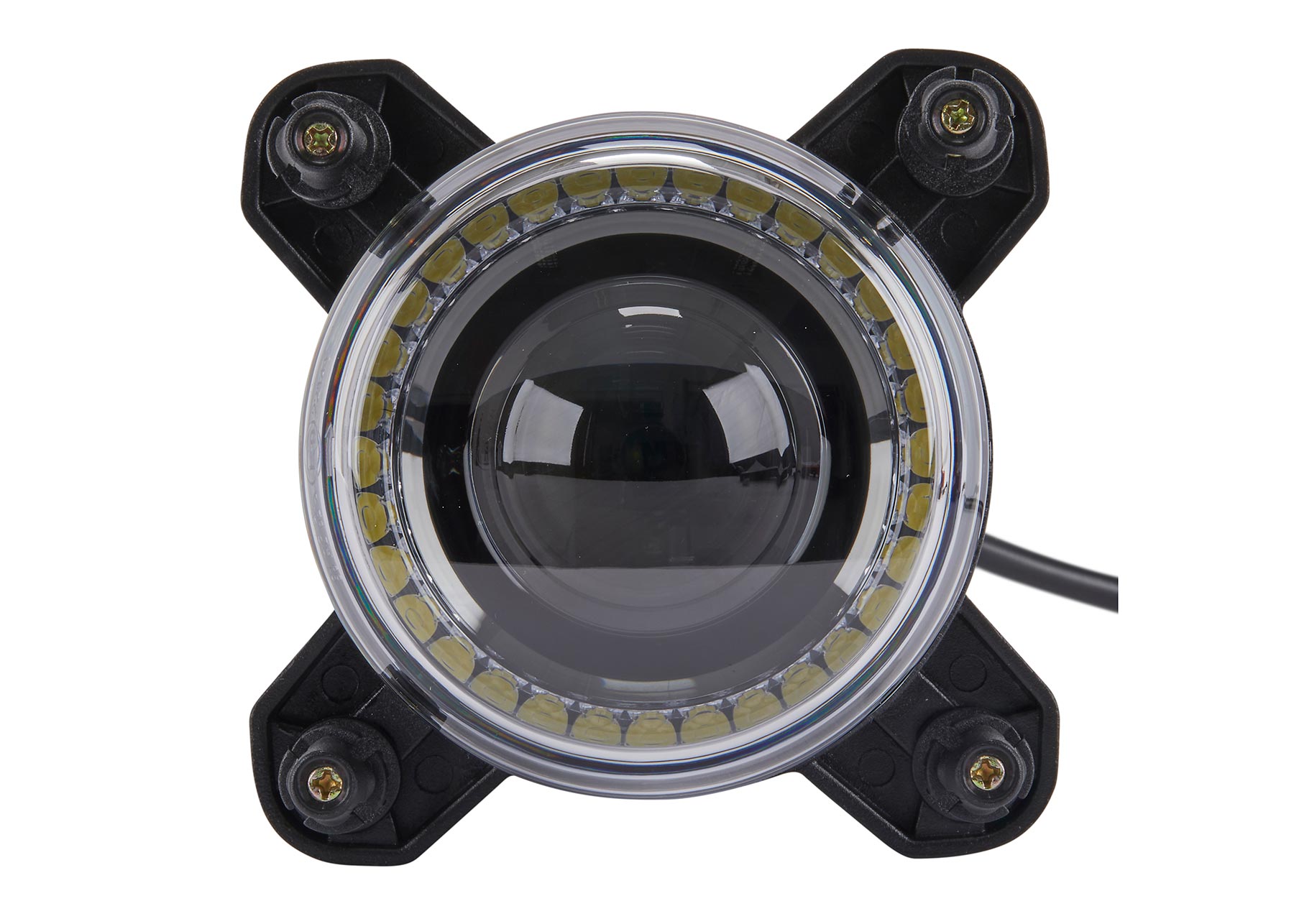

RL.F90.LWT.M.2G Off
RL.F90.LWT.M.2G

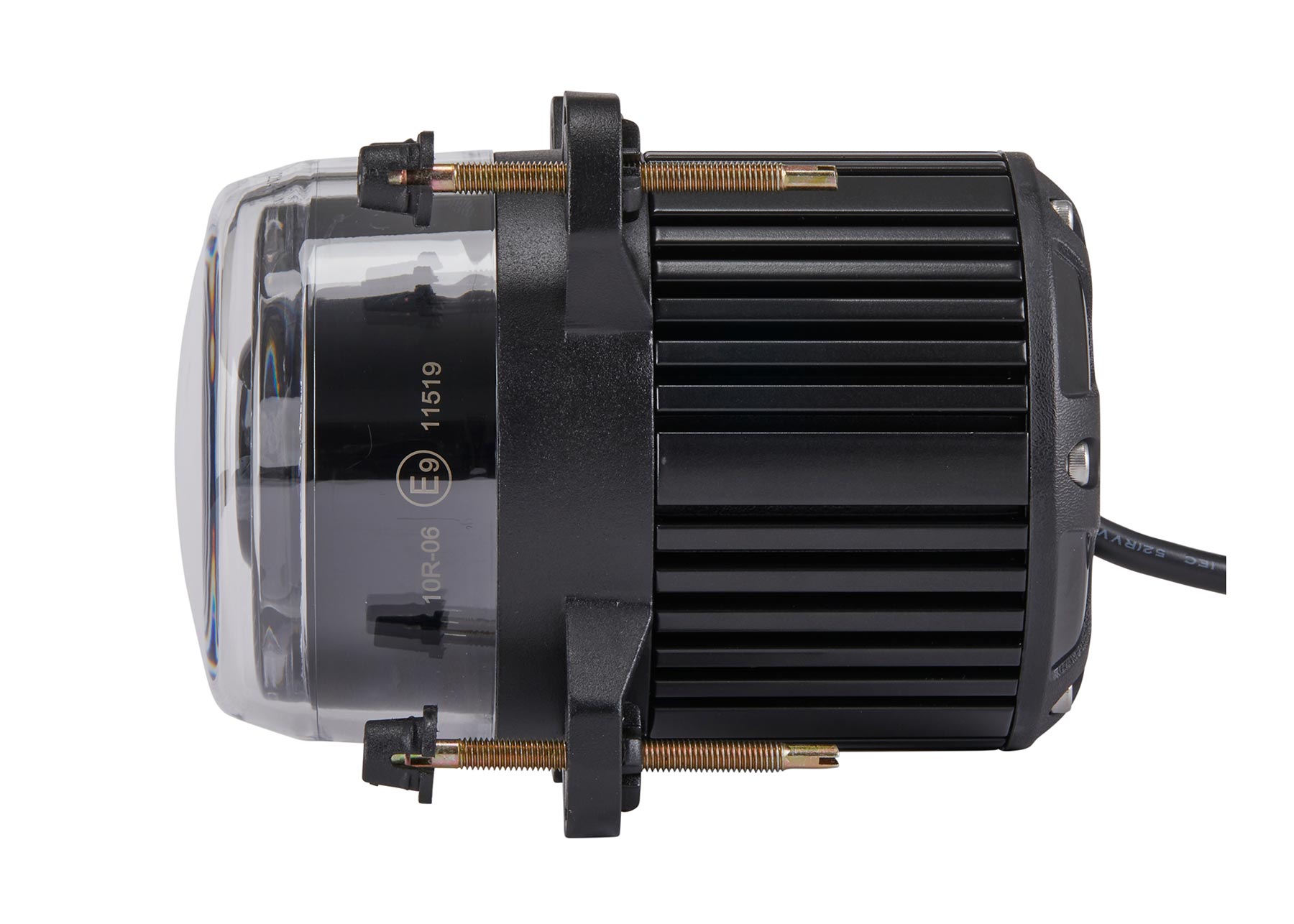

RL.F90.LWT.M.2G Side
RL.F90.LWT.M.2G Back

RL.F90 Series 90mm LED Headlight - Low Beam / Position / DRL

PART NO: RL.F90.LWT.M.2G

Product options
  • Product Overview:
    • Low beam headlight with position and DRL functions
  • Warranty: 3 Years
  • Approvals: ECE R7, R10, R87, R112 Class B, CISPR25 C3 .
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE 90mm LED Headlight - Low Beam / Position / DRL 90mm LED Headlight - Low Beam / Position / DRL - Left Hand Drive
PART NUMBER RL.F90.LWT.M.2G RL.F90.LWT.ML.2G
IP RATING IP67 IP67
VOLTAGE (V) DC 12/24 12/24
CABLE LENGTH (MM) 385 385
CONNECTORS None None
LIGHT COLOUR White White
LENS COLOUR Clear Clear
DIAMETER (MM) 90 90
LENGTH (MM) 110 110
HEIGHT (MM) 110 110
DEPTH (MM) 127 127
WEIGHT (KG) 0.976 0.976

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.

By clicking "Submit" you agree for us to contact you using the information you have provided. You can review our Privacy Policy here.
