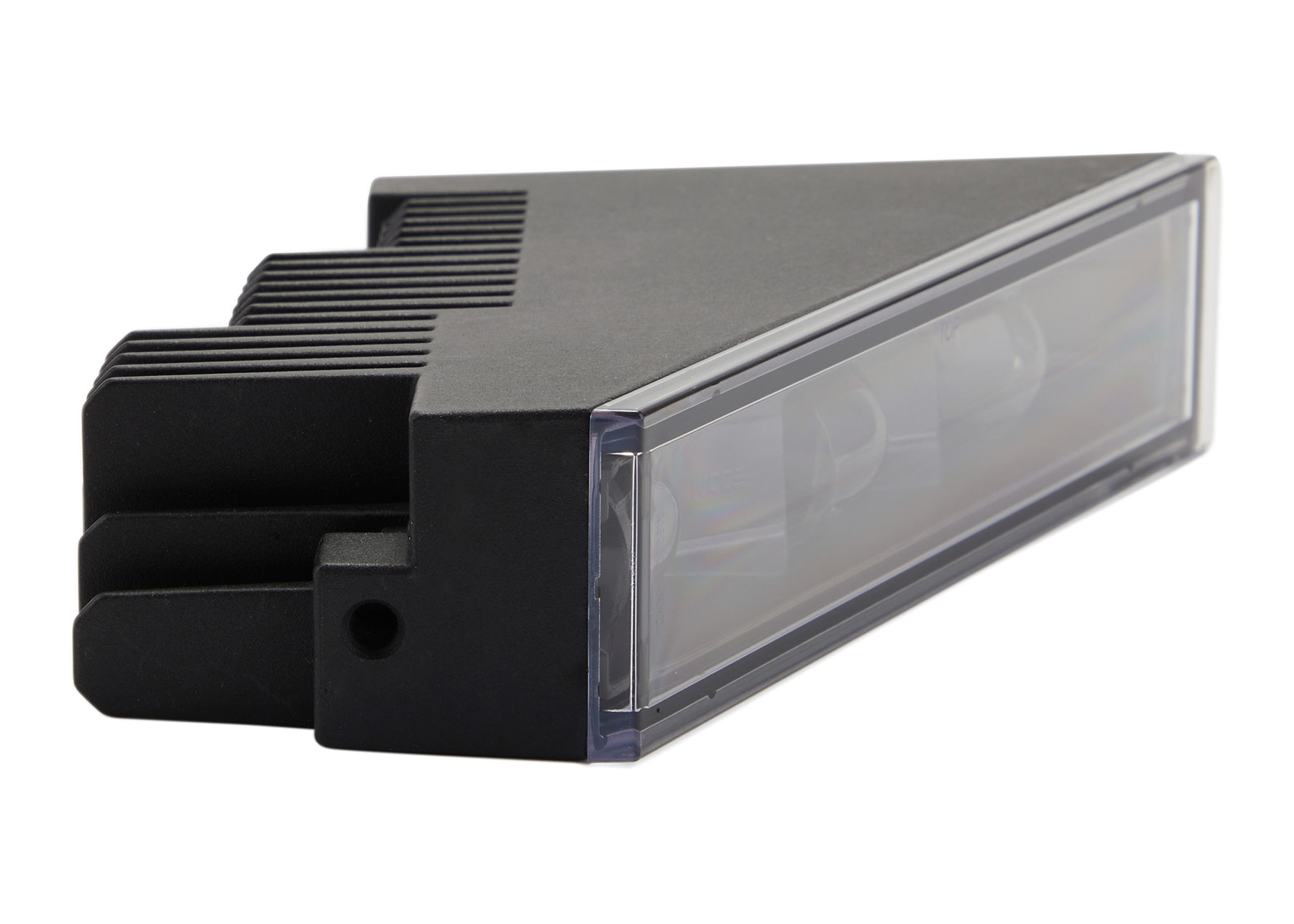

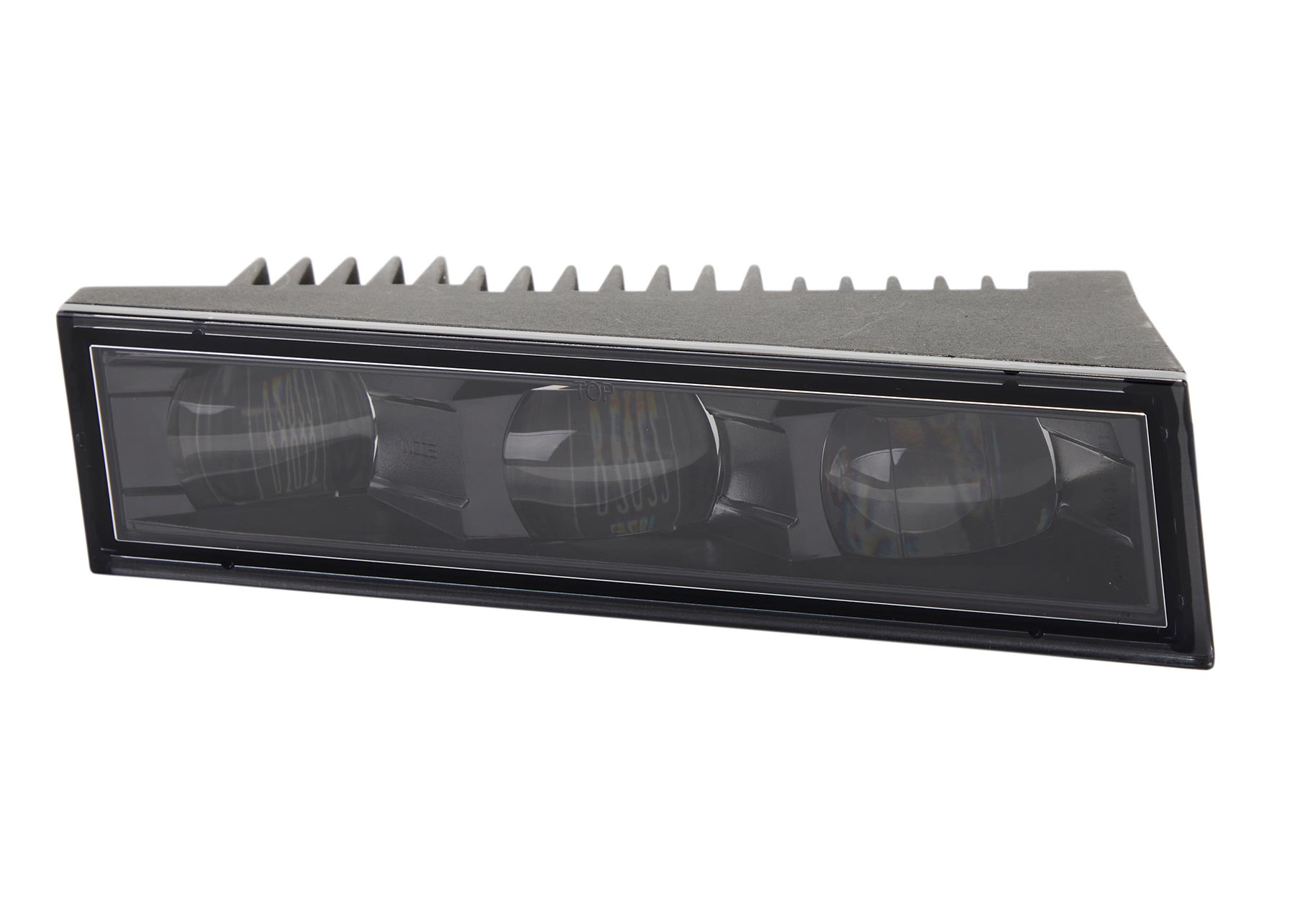

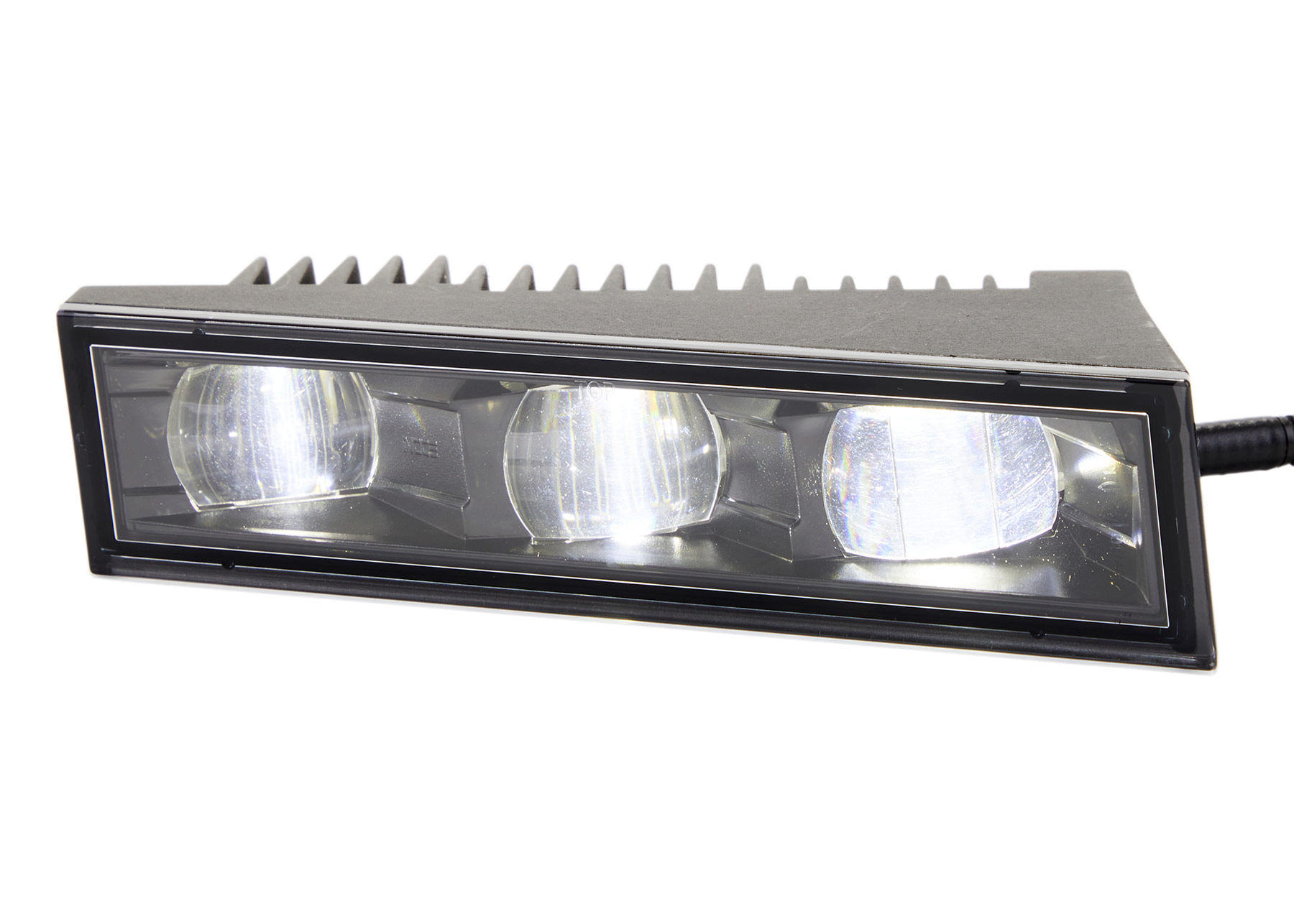

Blade Series LED Headlight 3 LED Angled Low Beam Right Hand Drive

PART NO: RL6374

Product options

Product Overview:
- Modern alternative to traditional round headlights.
- Outstanding light output and spread.
- Toughened outer lens prevents damage.

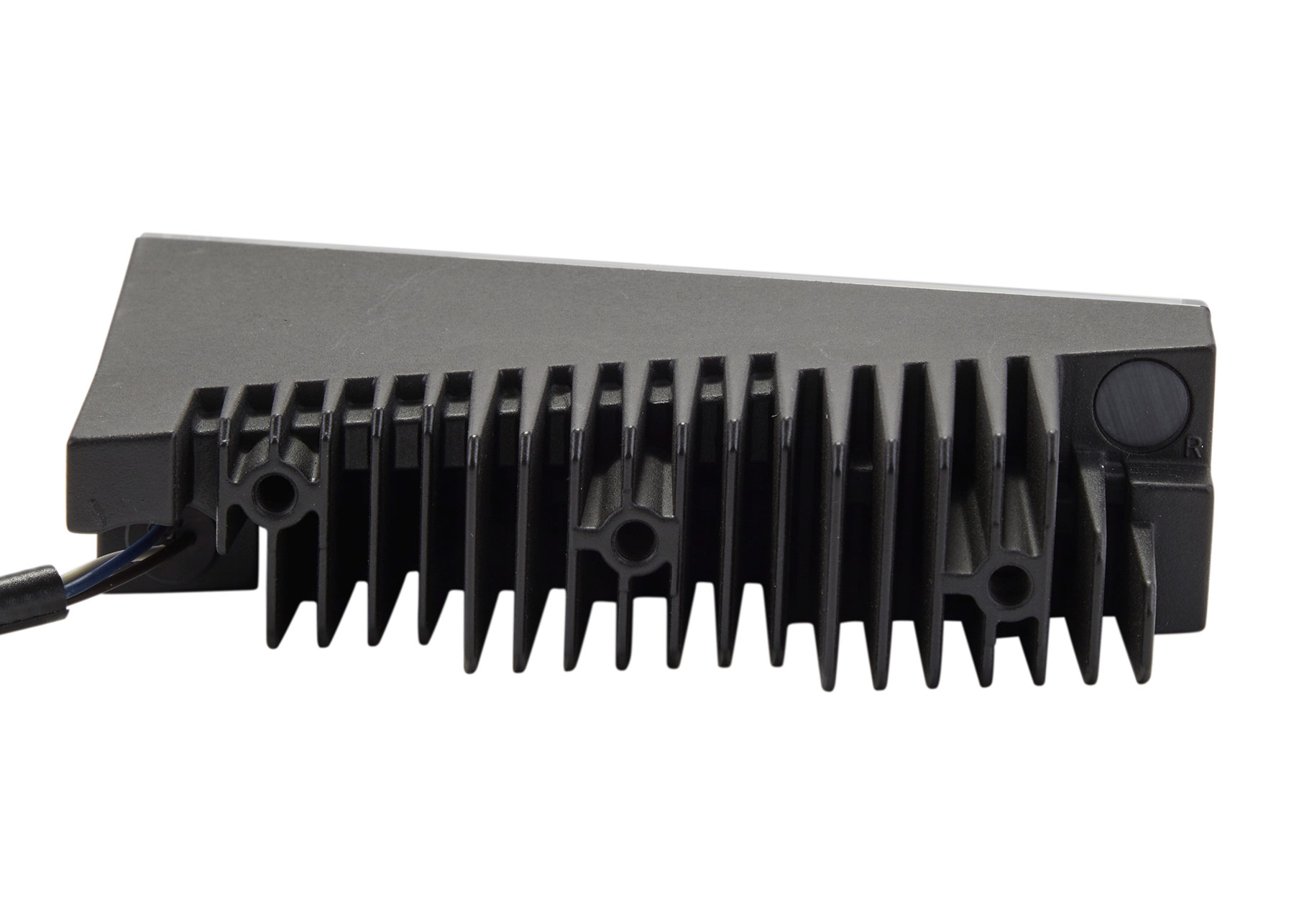

- Venting patch on the back allows air to expand and contract to avoid damage to the sealing of the product.
Warranty: 3 Years
Approvals: ECE R10, R112, SAE DOT.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE	3 LED Angled Low Beam Headlight, Right Hand Drive - Left Side	3 LED Angled Low Beam Headlight, Right Hand Drive - Right Side
PART NUMBER	RL6374	RL637401
IP RATING	IP68	IP68
VOLTAGE (V) DC	12/24	12/24
CURRENT DRAW (AMPS)	1.7A @ 13.5V, 0.8A @ 28V	1.7A @ 13.5V, 0.8A @ 28V
CABLE LENGTH (MM)	250	250
CONNECTORS	Deutsch	Deutsch
LIGHT COLOUR	White	White
LENS COLOUR	Clear	Clear
DIAMETER (MM)	N/A	N/A
LENGTH (MM)	160	160
HEIGHT (MM)	40	40
DEPTH (MM)	136	136
WEIGHT (KG)	0.585	0.585

Make a Product Enquiry

To enquire about this product or place an order give us a call on +44 (0)1962 88 44 44, use our online chat or fill in this contact form and we'll get back to you.
