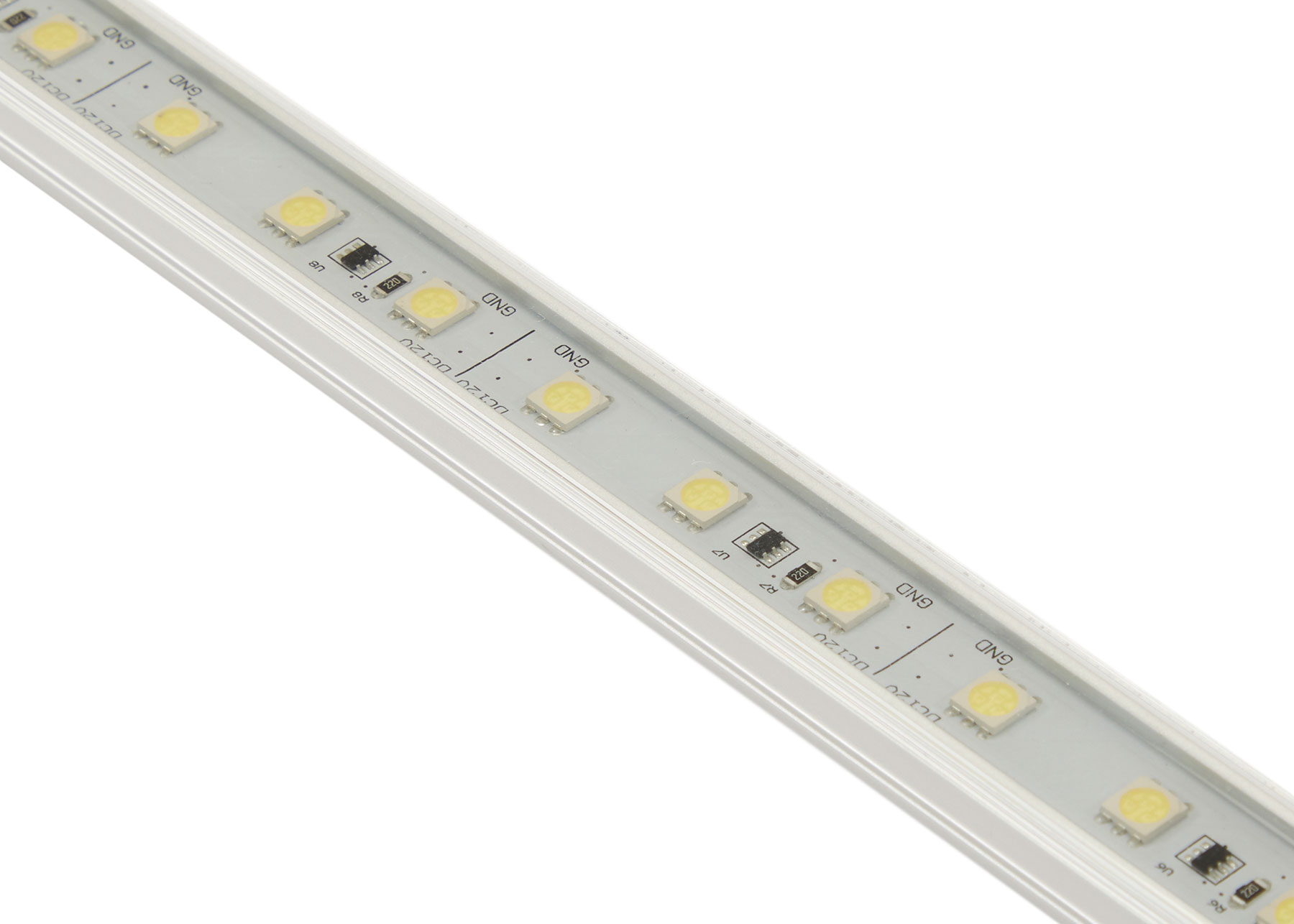

ILP1000 Off
ILP1000

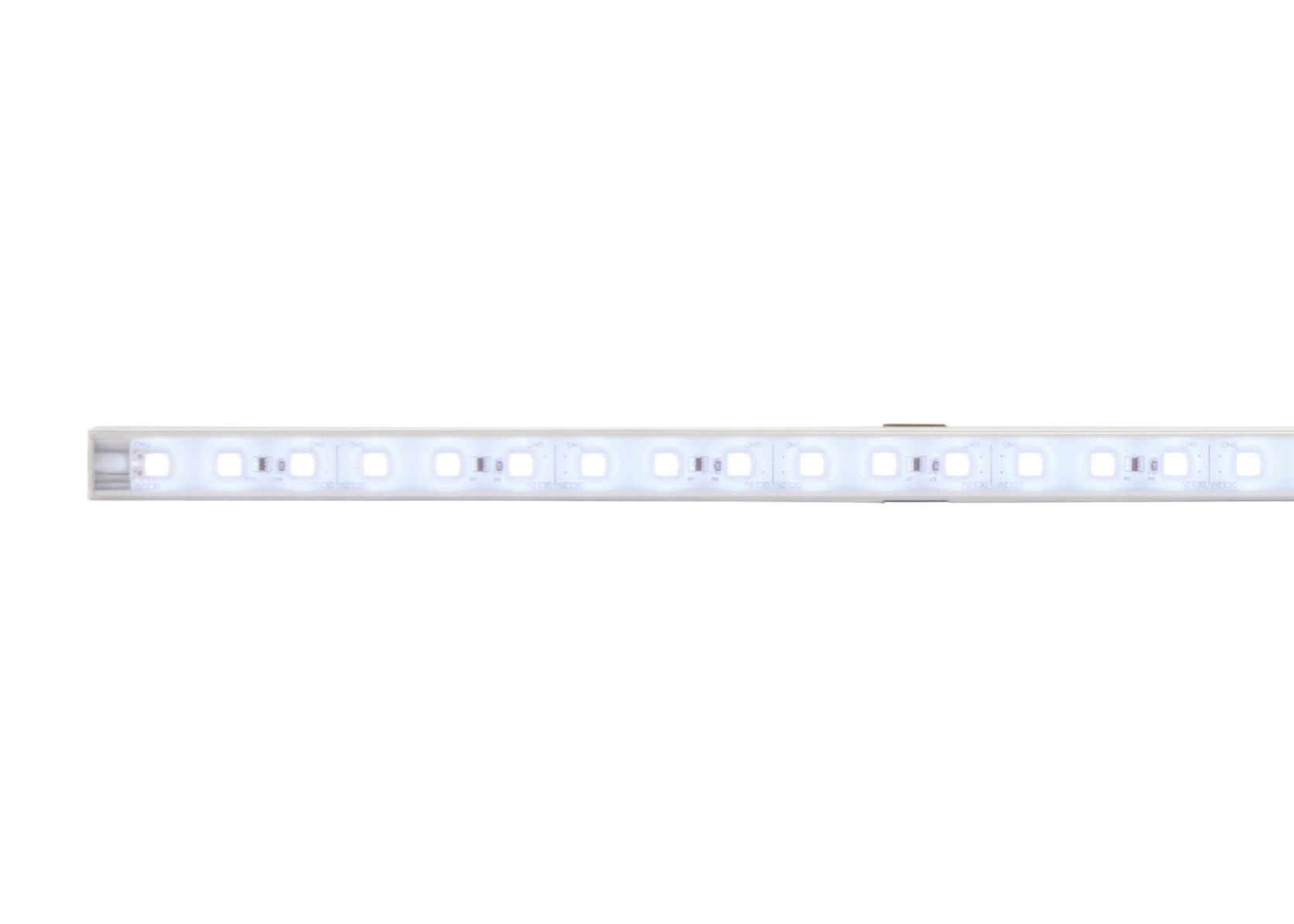

ILP1000 Front Illuminated

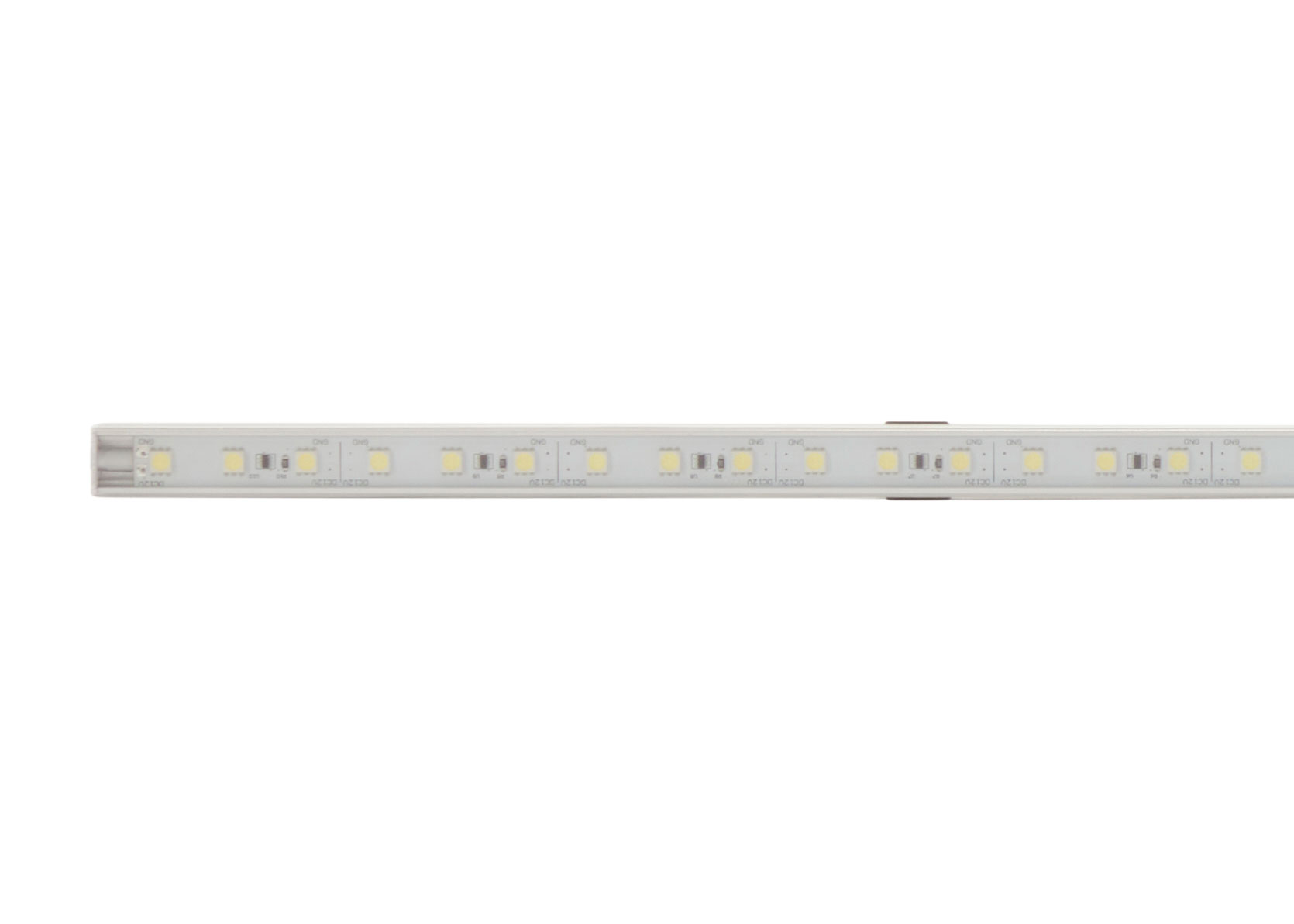

ILP1000 Front Off

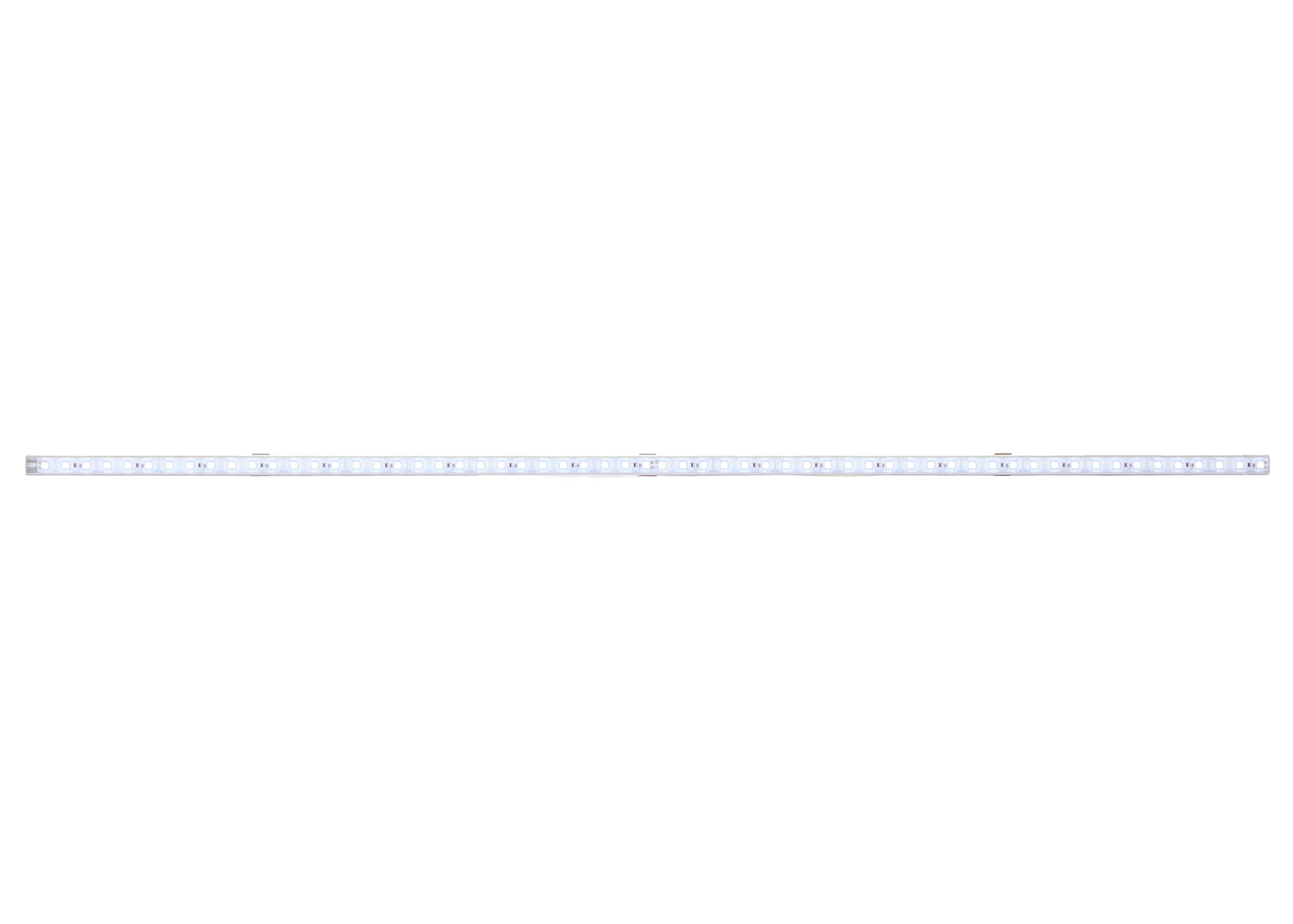

ILP1000 Front Illuminated

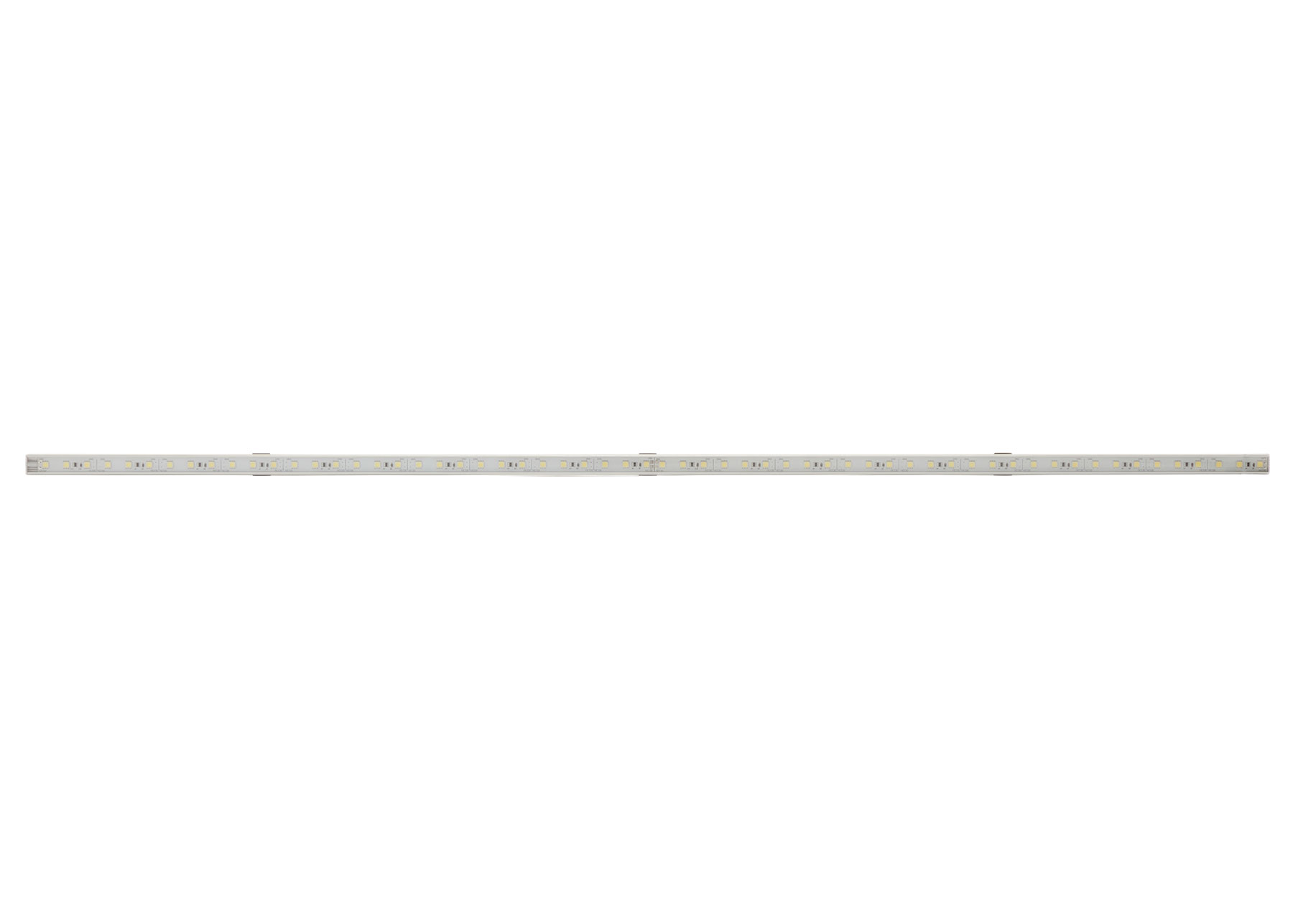

ILP1000 Front Off
ILP1000

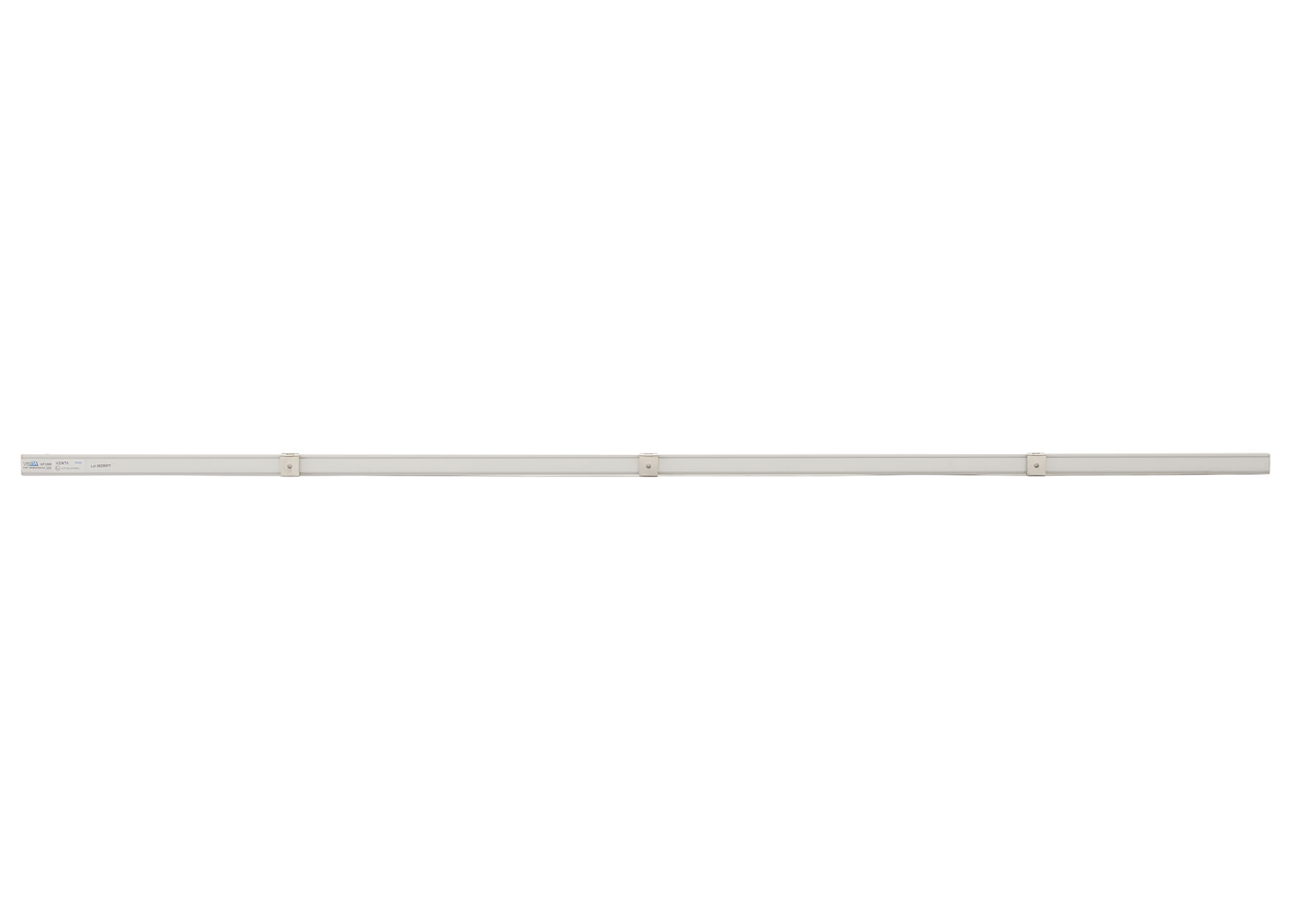

ILP1000 Back

ILP Series High Power Waterproof LED Strip Light - White, 1000mm

PART NO: ILP1000

Product options
  • Product Overview:
    • Robust, fully potted resin construction in aluminium housing.
    • Intense light output.
    • Incredible 120 ° light spread.
    • Only 8mm deep by 16mm wide.
    • Cost effective.
    • ILP1000 white version is available in 12V and 24V. Colour versions available in 24V.
    • Different colour options and lengths available across ILP Series.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE High Power Waterproof LED Strip Light - 1000mm - White, 12V High Power Waterproof LED Strip Light - 1000mm - White, 24V High Power Waterproof LED Strip Light - 1000mm - White, 24V, 600mm Cable
PART NUMBER ILP1000 ILP1000D ILP1000D/06
IP RATING IP65 IP65 IP65
VOLTAGE (V) DC 12 24 24
CURRENT DRAW (AMPS) 1.12A @ 12V 0.6A @ 24V 0.6A @ 24V
CABLE LENGTH (MM) 300 300 600
CONNECTORS None None None
LIGHT COLOUR White White White
LENS COLOUR Clear Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 6000 6000 6000
INTEGRAL SWITCH No No No
PIR No No No
DIAMETER (MM) N/A N/A N/A
LENGTH (MM) 1000 1000 1000
HEIGHT (MM) 8 8 8
DEPTH (MM) 16 16 16
WEIGHT (KG) 0.254 0.254 0.263
