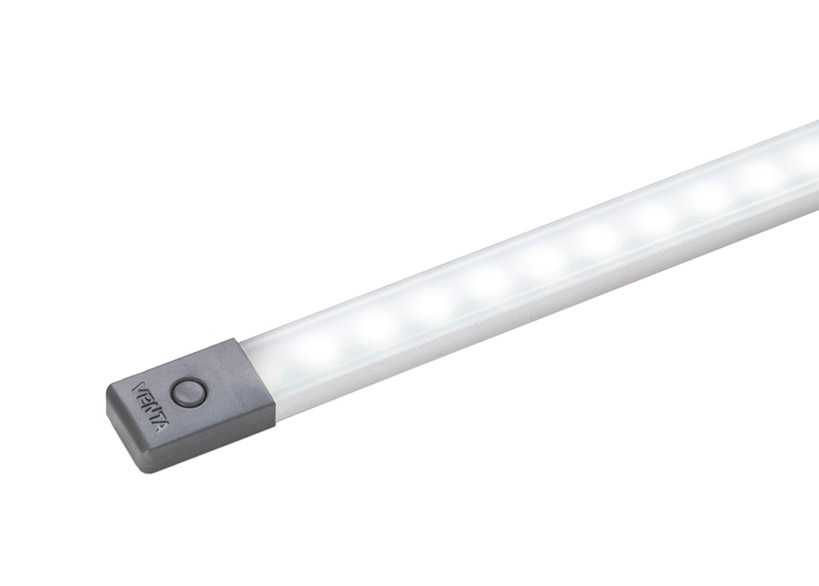

ILV200 Illuminated

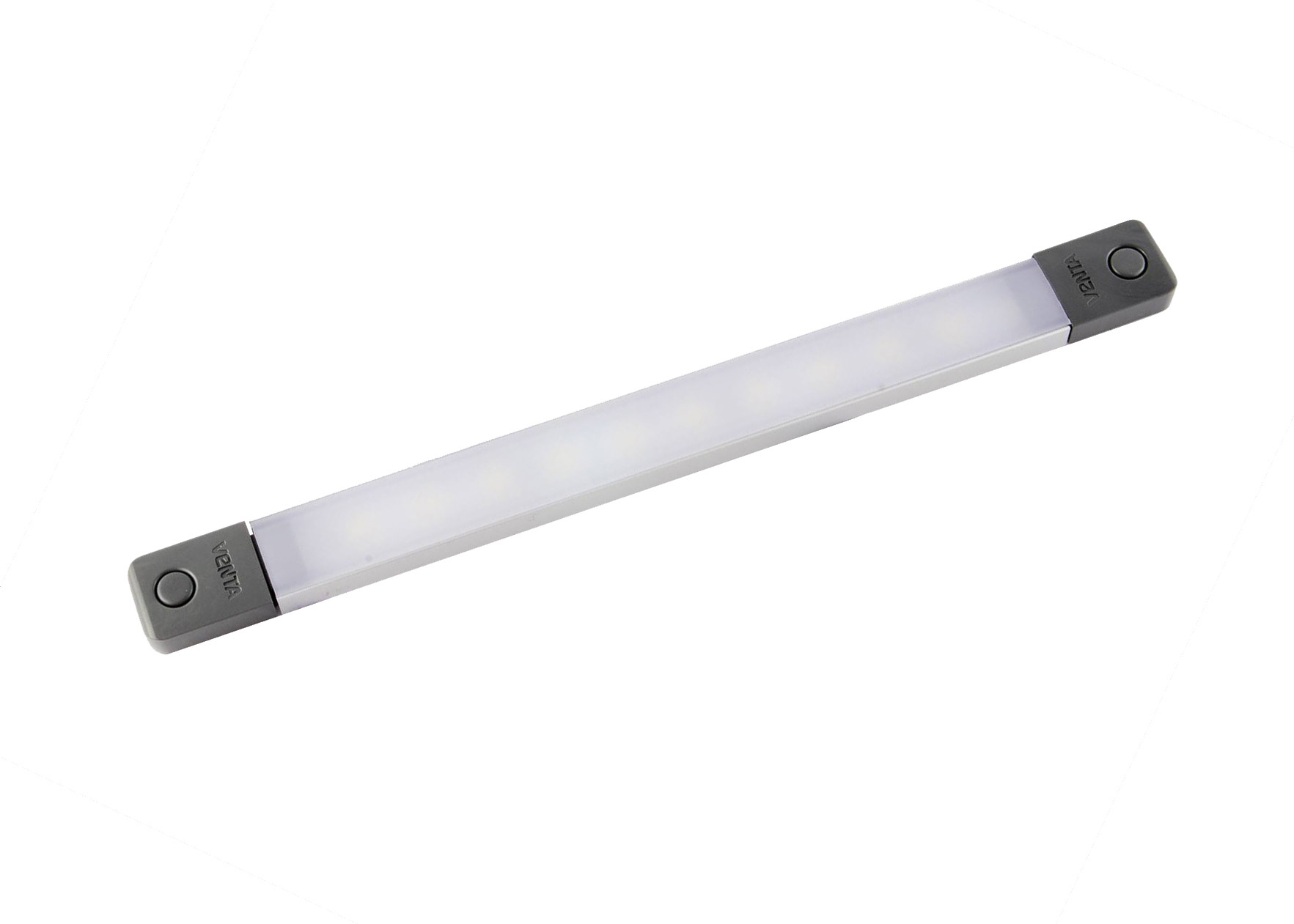

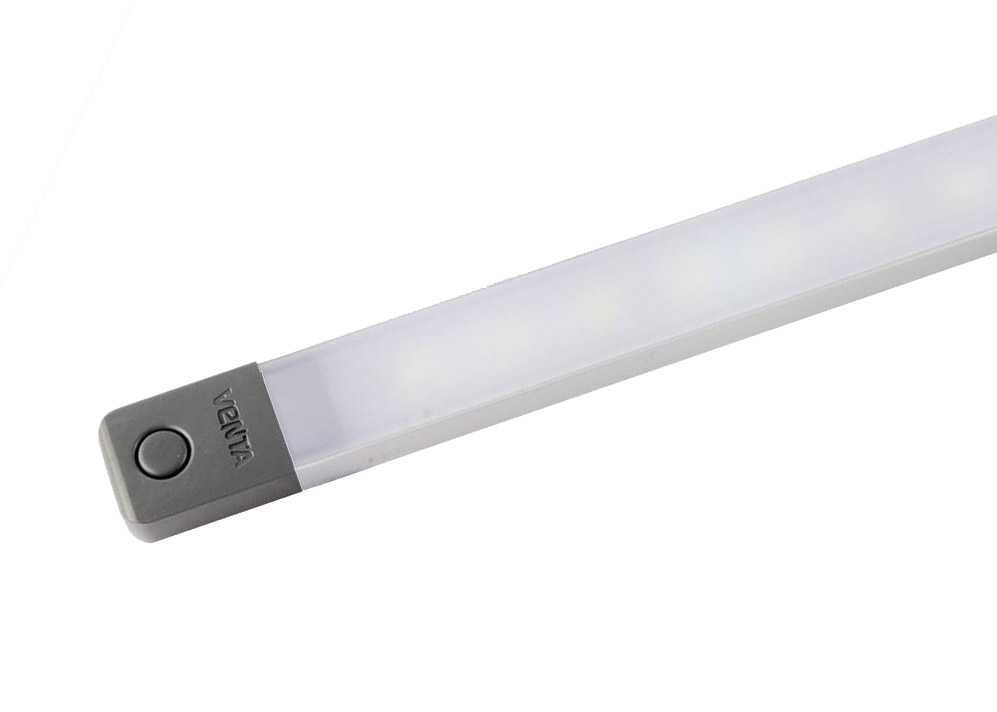

ILV200 Off
ILV200 Illuminated
ILV200 Off

ILV Series High Power LED Strip Light - 262mm

PART NO: ILV200

Product options
  • Product Overview:
    • Slimline design.
    • Surface mount.
    • ILV200 is available in 12V and 24V with no switch.
    • Other voltage and switching options available in other lengths of the ILV Series.
    • Some variants made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE High Power LED Strip Light - 262mm, 12V High Power LED Strip Light - 262mm, 24V High Power LED Strip Light - 262mm, 24V with Superseal Connector
PART NUMBER ILV200 ILV200D ILV200DS
IP RATING IP20 IP20 IP20
VOLTAGE (V) DC 12 24 24
CURRENT DRAW (AMPS) 0.2A @ 12V 0.12A @ 24V 0.12A @ 24V
CABLE LENGTH (MM) 1000 1000 1040
CONNECTORS None None SuperSeal
LIGHT COLOUR White White White
LENS COLOUR Clear Clear Clear
LIGHT COLOUR TEMPERATURE (°KELVINS) 6000 6000 6000
INTEGRAL SWITCH No No No
PIR No No No
DIAMETER (MM) N/A N/A N/A
LENGTH (MM) 260 260 260
HEIGHT (MM) 9 9 9
DEPTH (MM) 25 25 25
WEIGHT (KG) 0.068 0.068 0.072
